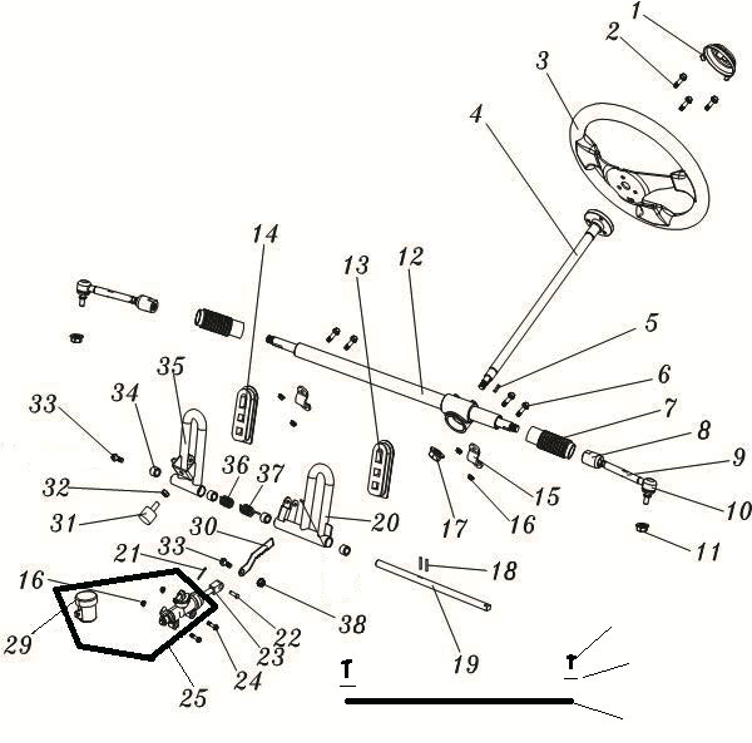

    • Hammerhead Mudhead SE (Steering Assembly)

    REF#  PART NUMBER  DESCRIPTION  COUNT
    1 7.010.056  STEERING WHEEL COVER  1
    2 9.106.016  FLANG BOLT M6*16  4
    3 7.020.057  STEERING WHEEL  1
    4 2.000.056  STEERING SHAFT  1
    5 8.010.203  KEY, 4X4X11.5  1
    6 9.106.020  BOLT, M6X1.00X20  4
    7 7.020.059

    STEERING BALL JOIN DUST COVER

    		 2
    8 6.000.180  STEERING BALL JOIN  2
    9 8.010.135  TIE ROD  2
    10 6.000.181  ROD END  2
    11 9.220.008  LOCKING NUT M8  2
    12 4.100.024  STEERING GEAR  1
    13 7.020.043  BRAKE PEDAL  1
    14 7.020.044  THROTTLE PEDAL  1
    15 8.020.130  STEERING GEAR BRACKET  2
    16 9.220.006  LOCKING NUT M 6  4
    17 9.220.012  LOCKING FLANGE NUT M12  1
    18 9.500.008  ROLL PIN  3
    19 8.010.123-R  PEDAL BOLT  1
    20 4.000.044-T  BRAKE PEDAL COMP.  1
    21 9.500.218  COTTER PIN  1
    22 6.000.308  LOCKING ROLL PIN  1
    23 6.000.306  SHAFT, BRAKE MASTER CYLINDER  1
    24 9.106.025  BOLT, M6X25  2
    25 H1910008  BRAKE CYLINDER  1
    26 9.700.004  BANJO BOLT 10  2
    27 13-1422-00  COPPER CRUSH WASHER 10 4
    28 6.000.091  BRAKE HOSE  1
    29 6.000.305-C  MASTER CYLINDER RESERVOIR CAP 1
    30 14652 PARKING BRAKE PEDAL  1
    31 20-0635-00  GAS PEDAL LIMIT BOLT  1
    32 9.200.008  M8 NUT  1
    33 9.908.014  ALLEN BOLT M8*14  1
    34 7.010.003  PEDAL BUSHING  4
    35 9.500.218-T  THROTTLE PEDAL ASSEMBLY  1
    36 8.040.010  THROTTLE PEDAL RETURN SPRING  1
    37 8.040.011  BRAKE PEDAL RETURN SPRING  1
    38 9.220.008  NUT, M8X1.25 LOCKING FLANGE  1

    CLICK HERE TO VIEW STEERING SYSTEM PARTS, THESE ARE THE SAME PARTS AS MUDHEAD 208R
