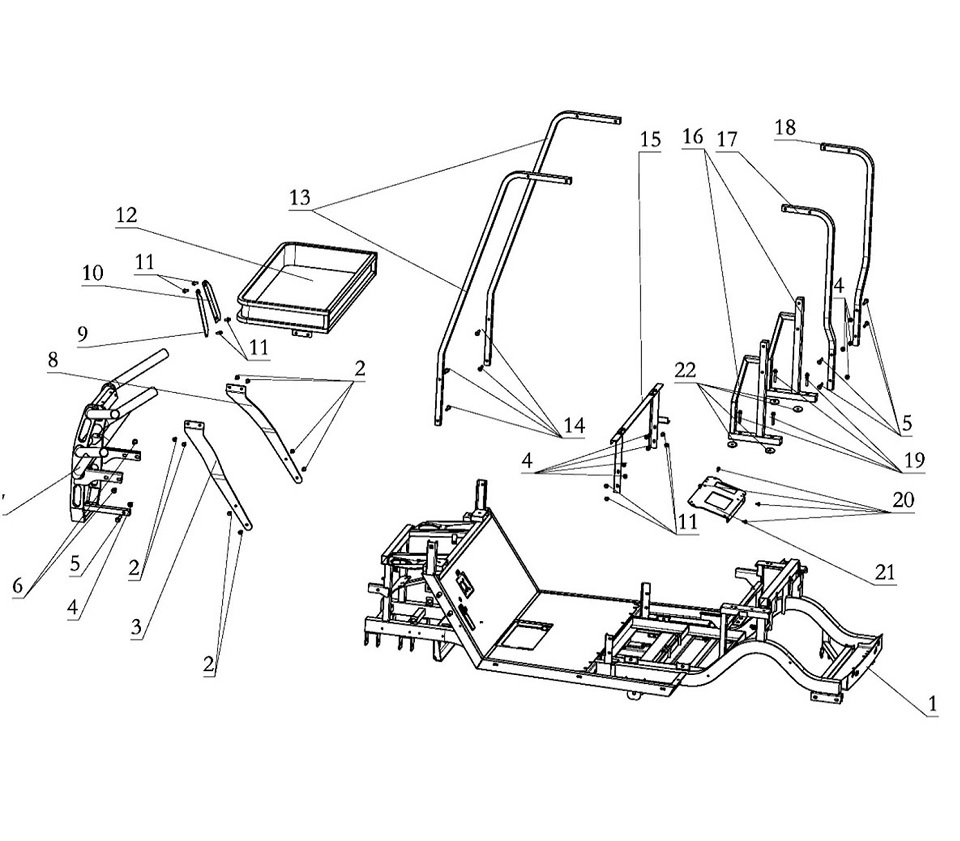

| Ref# |
Part# |
Item Description |
| 1 |
M1204-2801010 |
Frame Assembly |
| 2 |
Q1840820T1F6 |
Hex flange bolt M8×1.25×20 |
| 3 |
M1204-5005113 |
Beam Of Front Basket, Driver |
| 4 |
Q33008T2F6 |
Hexagonal flange lock nut M8×1.25 |
| 5 |
Q1840850T1F6 |
Hexagon flange bolt M8×1.25×50 |
| 6 |
Q1851025TF6 |
Hex Bolt M10×1.25×25 |
| 7 |
M1204-2809100 |
Front Bumper |
| 8 |
M1204-5005114 |
Beam Of Front Load Basket, Passenger |
| 9 |
M1204-5005211 |
Storage Basket-Connecting, Front, Driver |
| 10 |
M1204-5005222 |
Storage Basket-Connecting, Front, Passenger |
| 11 |
Q1840816T1F6 |
Hexagon flange bolt M8×1.25×16 |
| 12 |
M1204-5005120 |
Storage Basket, Front-NotAvailable |
| 13 |
M1203-2801411 |
A Pillar |
| 14 |
Q1840840T1F6 |
Hexagon flange bolt M8×1.25×40 |
| 15 |
M1204-2800310 |
Seat Beam Assy |
| C5E |
M1203-2801430-B |
B Pillar Instal Assy |
| 17 |
M1203-2801421 |
B Pillar, Driver |
| 18 |
M1203-2801422 |
B Pillar, Passenger |
| 19 |
Q1840860T1F33 |
Hexagon flange bolt M8×1.25×60 |
| 20 |
Q1840616T1F33 |
Hexagon flange bolt M6×16 |
| 21 |
M1203-2801551H |
Motor controller mounting components |
| 22 |
M1203-2801436 |
Large flat washer M8×4×40 |
| ASSY |
M1204-5005120-ASSY |
Front Basket Kit, Golf Cart |
