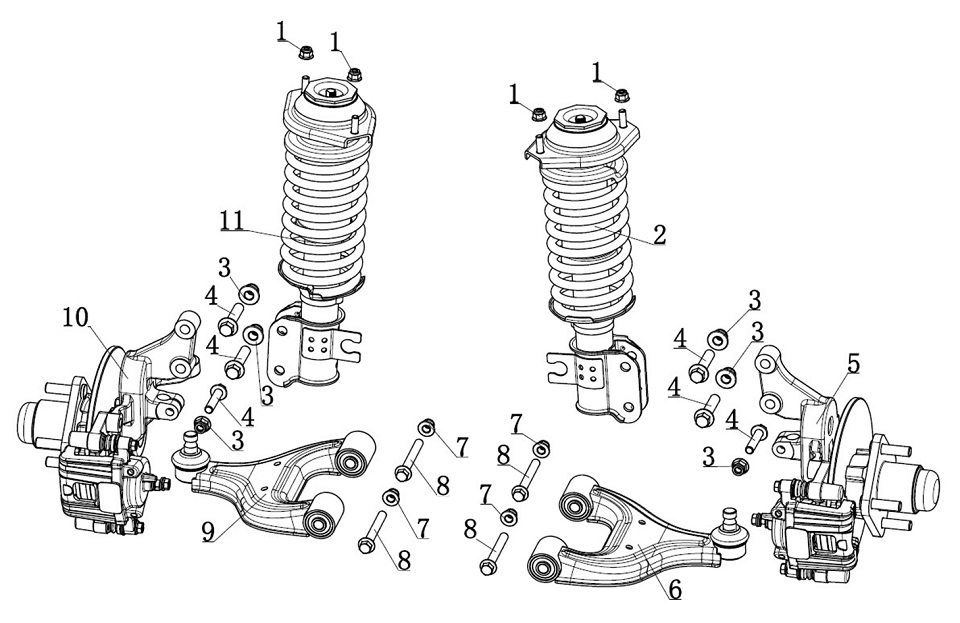

Kandi Kruiser 4P Front Suspension
| Ref# | Part # | Description |
| 1 | Q33008T2F6 | Hexagonal flange lock nut M8×1.25 |
| 2 | M1204-2901010 | Strut Assy, Front, Driver |
| 4 | Q1851050T32F6 | Hex flange bolt M10×1.25×50 |
| 5 | M6207-3001007 | Knuckle With Hub Assy, Front, Driver |
| 6 | M6203-2909010 | Swing Arm Assy, Front, Driver |
| 7 | Q33112T13F6 | Lock Nut M12×1.25 |
| 8 | Q1851280TF6 | Hexagon flange bolt M12×1.25×80 |
| 9 | M6203-2909020 | Swing Arm Assy, Front, Passenger |
| 10 | M6207-3001008 | Knuckle With Hub Assy, Front, Passenger |
| 11 | M1204-2901020 | Strut Assy, Front, Passenger |
