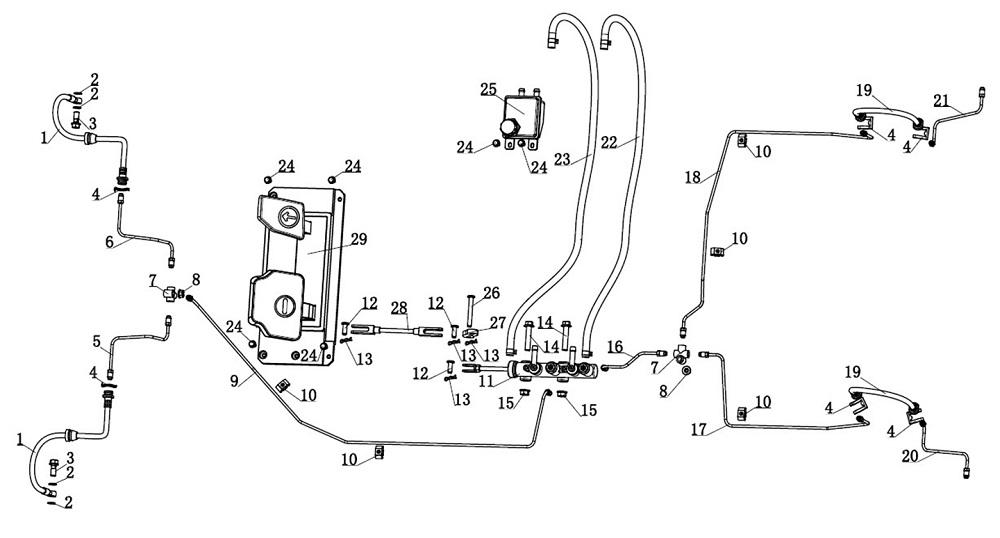

Kandi Kruiser 4P Hydraulic Brake Control
| Ref# | Part |
|---|---|
| 1 |
3506020YX-101 Front Brake Hose Assy |
| 2 |
3506117YX-101 Sealing Gasket |
| 3 |
3506116YX-101 Bolt |
| 4 |
3506114YX-101 Nozzle Clamp |
| 5 |
M1204-3506031 Brake Pipe, Front, Driver |
| 6 |
M1204-3506041 Brake Pipe, Front, Passenger |
| 7 |
L5201-3506115 Tee |
| 8 |
Q33008T2F6 Hexagonal flange lock nut M8×1.25 |
| 9 |
M1204-3506051 Brake Connect Pipe |
| 10 |
M1204-3506113 Tube Clamp |
| 11 |
L5201-3510010A Brake Master Cylinder Assy |
| 12 |
Q510B0822F3 Pin 8×22 |
| 13 |
Q50108F3 Lock Pin |
| 14 |
Q1851060TF6 Hexagon flange bolt M10×1.25×60 |
| 15 |
Q33110T13F6 Hexagonal flange lock nut M10×1.25 |
| 16 |
M1204-3506052 Brake Connect Pipe |
| 17 |
M1204-3506032 Brake Pipe,Rear, Driver |
| 18 |
M1204-3506042 Brake Pipe, Rear Passenger |
| 19 |
3506070YX-101 Rear Brake Hose Assy |
| 20 |
M6204-3506050 Rear Axle Left Brake Pipe, Rear, Driver |
| 21 |
M6204-3506060 Rear Axle Right Brake Pipe, Rear, Passenger |
| 22 |
M1204-3510021 Brake Fluid Connecting Pipe |
| 23 |
M1204-3510022 Brake Fluid Connecting Pipe |
| 24 |
Q1840616T1F33 Hexagon flange bolt M6×16 |
| 25 |
L5201-3510020 Brake Fluid Reservoir |
| 26 |
Q510B0850F3 Pin 8×50 |
| 27 |
M6204-3510012 Brake Master Cylinder Connecting Plate |
| 28 |
M6204-3510015 Brake Master Cylinder Connecting Rod |
| 29 |
M1204-3504010 Combined Pedal Assy |
| 11 |
L5201-3510010A-Ring O-Ring, Brake Master Cylinder |
