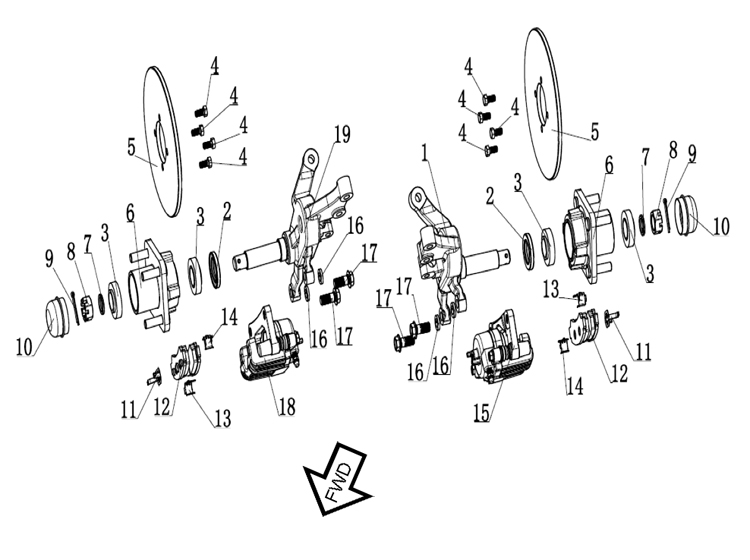

Kandi Kruiser Brake Caliper
| Ref# | Part | Item Description |
| 1 | M6206-3001015 | Front Knuckle, Driver |
| 2 | M6203-3001019 | Grease Seal |
| 3 | M6203-3001016 | Bearing |
| 4 | Q146B0830TF6 | Bolt, Brake Disc |
| 5 | M6204-3001020 | Brake Disc |
| 6 | M6203-3001017 | Hub Assembly |
| 7 | M6203-3001018 | Washer |
| 8 | Q38312TF3 | Hex Nut |
| 9 | Q5000436 | Pin |
| 10 | M6203-3001021 | End Cap |
| 11 | M6204-3501023 | Spring 1 |
| 12 | M6204-3501021 | Brake Pad Set |
| 13 | M6204-3501024 | Spring 2 |
| 14 | M6204-3501025 | Spring 3 |
| 15 | M6204-3501015 | Front Brake Caliper, Driver |
| 16 | Q40312F6 | Spring Washer |
| 17 | Q151B1230TF6 | Bolt |
| 18 | M6204-3502015 | Front Brake Caliper, Passenger |
| 19 | M6206-3001025 | Front Knuckle, Passenger |
