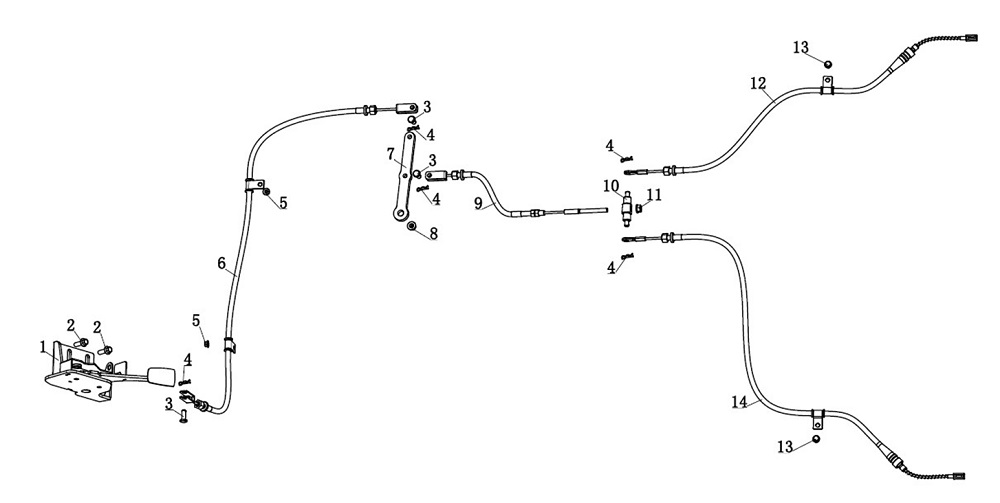

Kandi Kruiser Parking Brake Control
| Ref# | Part Number | Description |
| 1 | M6204-3508010 | Parking Brake Pedal |
| 2 | Q1840830T1F6 | Hexagon flange bolt M8×1.25×30 |
| 3 | Q510B0822F3 | Pin 8×22 |
| 4 | Q50108F3 | Lock Pin |
| 5 | Q32006T2F3 | Hexagon Flange Nut M6×1 |
| 6 | M1204-3508024 | Front Parking Cable Assy |
| 7 | M1204-3508025 | Rocker Lever |
| 8 | Q33008T2F6 | Hexagonal flange lock nut M8×1.25 |
| 9 | M1204-3508023 | Rocker Lever Cable Assembly |
| 10 | M6204-3508026 | Cable Connector |
| 11 | Q32008T2F33 | Hexagon flange nut M8×1.25 |
| 12 | M1204-3508022 | Brake Cable Assy, Rear, Passenger |
| 13 | Q1840616T1F33 | Hexagon flange bolt M6×16 |
| 14 | M1204-3508021 | Brake Cable Assy, Rear, Driver |
| 4 | Q1840830T1F6 | Hexagon flange bolt M8×1.25×30 |
***HIGHLIGHTED PARTS ARE LINKS TO PARTS BEING USED SOMEHWERE ELSE***
