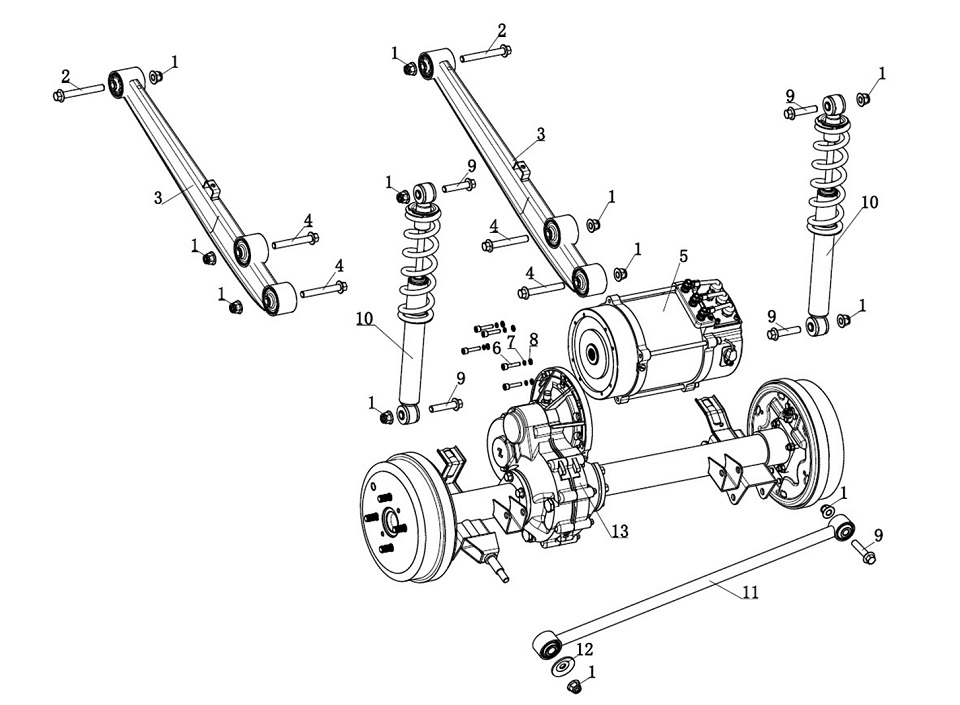

Kandi Kruiser Rear Suspension
| Ref# | Part | Price |
| 1 | Q33112T13F6 | Lock Nut M12×1.25 |
| 2 | Q1851295TF6 | Hexagon flange bolt M12×1.25×95 |
| 3 | 3301010YX-101 | Rear Trailing Arm Assy |
| 4 | Q1851285TF6 | Hexagon flange bolt M12×1.25×85 |
| 5 | M1203-2103010 | Motor Assy |
| 6 | 1/4-20*1-1/4 | Hex Bolts |
| 7 | Q40306F33 | Spring Washer |
| 8 | Q40106T16F33 | Flat Washer |
| 9 | Q1851255TF6 | Hexagon flange bolt M12×1.25×55 |
| 10 | M1204-2915010 | Rear Shock Absorber Assy |
| 11 | M6206-3301120 | Rear axle cross brace assembly |
| 12 | 2906017YX-101 | Shim |
| 13 | M6204-3301015 | Rear Axle With Brake Assy |
| 5 | M1203-2103030 | Motor Encoder |
| 5 | M1203-2103030SK | Motor Encoder (Round Head) |
