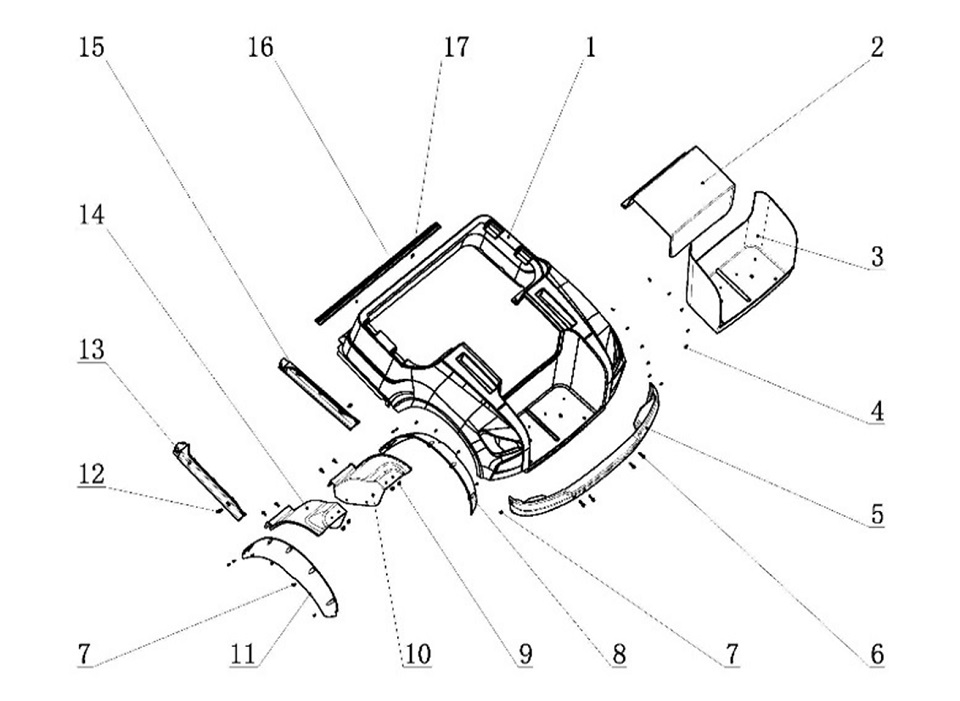

Kandi Kruiser Rear Trim Assembly
| Ref# | Part | Description |
| 1 | M1204-5006311 | Rear Hood (Call for Color) |
| 2 | M1203-5006313 | Machine Controller Cover |
| 3 | M1203-5006312 | Golf Bag Cabin |
| 4 | Q2714213F33 | Tapping screws ST4.2×13 |
| 5 | M1203-5006321 | Rear Bumper |
| 6 | Q2140635F33 | Pan head screw M6×1×35 |
| 7 | Q2714816F33 | Pan head tapping screws ST4.8×16 |
| 8 | M1203-5006354 | Wheel Fender, Rear, Passenger |
| 9 | Q1840616T1F33 | Hexagon flange bolt M6×16 |
| 10 | M1204-5006411 | Mudguard, Passenger |
| 11 | M1203-5006353 | Wheel Fender, Rear, Driver |
| 12 | Q2140625F33 | Cross recessed pan head screw M6×1×25 |
| 13 | M1204-5006233 | Rear-Threshold, Driver |
| 14 | M1204-5006412 | Mudguard, Driver |
| 15 | M1204-5006244 | Rear-Threshold, Passenger |
| 16 | M1204-5006251 | Alloy Strip |
| 17 | Q2540620T9F30 | Countersunk screw M6×1×20 |
