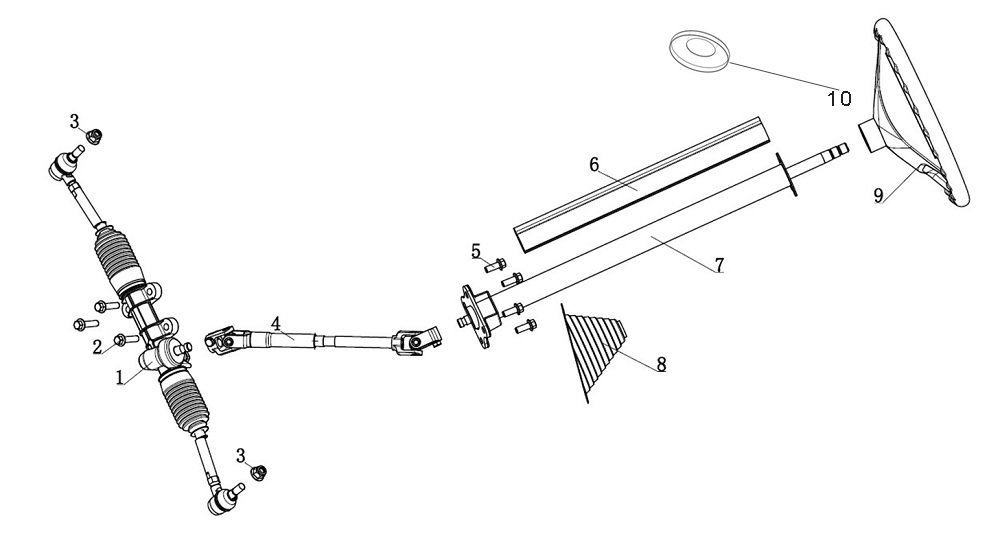

Kandi Kruiser Steering System
| Ref# | Part | Description |
| 1 | M1204-3401010 | Rack and Pinion |
| 2 | Q1851040TF6 | Hex Bolt M10×1.25×40 |
| 3 | Q33112T13F6 | Lock Nut M12×1.25 |
| 4 | M1204-3404020 | Steering Shaft Assembly |
| 5 | Q1851025TF6 | Hex Bolt M10×1.25×25 |
| 6 | M1203-5006612 | Bushing |
| 7 | M1203-3404010 | Steering Column Assy |
| 8 | M1203-5006611 | Boot, Steering Column |
| 9 | M1204-3402020 | Steering Wheel |
| 10 | M1204-3402020-C | Center Cover, Steering Wheel |
| M1203-5006613 | Stainless Steel Lock Tie |
