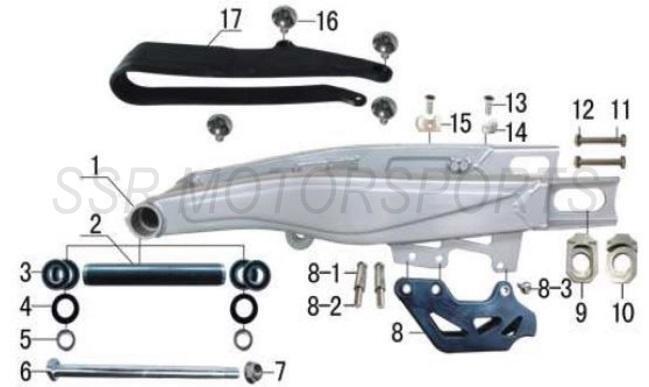

Swingarm
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00679-11-00 | SWINGARM XD150/250 | $166.30 | 1 |
| 2 | A00521-11-00 | BEARING SPACER SLEEVE 22X18X152MM ALLOY | $8.00 | 1 |
| 3 | A00084-28-00 | BEARING 6002 | $8.80 | 4 |
| 4 | A00033-26-00 | DUST SEAL 22X32X7 | $2.50 | 2 |
| 5 | A00332-11-00 | COLLAR 22X15X8.5MM | $2.00 | 2 |
| 6 | A00333-11-00 | SWINGARM AXLE 15XM14X1.5X240 | $40.30 | 1 |
| 7 | A00003-22-34 | FLANGE LOCKNUT M14 | $2.60 | 1 |
| 8 | A00334-11-00 | CHAIN GUIDE | $26.30 | 1 |
| 8-1 | A00524-16-00 | COLLAR | $2.60 | 2 |
| 8-2 | A00016-19-07 | BUTTON HEAD ALLEN BOLT M8X45 | $2.50 | 2 |
| 8-3 | A00017-19-07 | BUTTON HEAD ALLEN BOLT M8X16 | $2.00 | 1 |
| 9 | A00451-11-00 | LEFT CHAIN ADJUSTER BLOCK | $21.00 | 1 |
| 10 | A00452-11-00 | RIGHT CHAIN ADJUSTER BLOCK | $21.00 | 1 |
| 11 | A00006-19-03 | ADJUSTER BOLT M8X60 | $2.50 | 2 |
| 12 | A00002-22-01 | NUT M8 | $2.00 | 2 |
| 13 | A00003-20-01 | SCREW M6X16 | $2.00 | 2 |
| 14 | A00336-11-00 | BRAKE HOSE CLIP B | $2.00 | 1 |
| 15 | A00337-11-00 | BRAKE HOSE CLIP A | $2.00 | 1 |
| 16 | A00010-19-09 | PAN HEAD ALLEN BOLT M6X10 | $2.00 | 4 |
| 17 | A00338-11-00 | CHAIN SLIDER | $35.00 | 1 |
