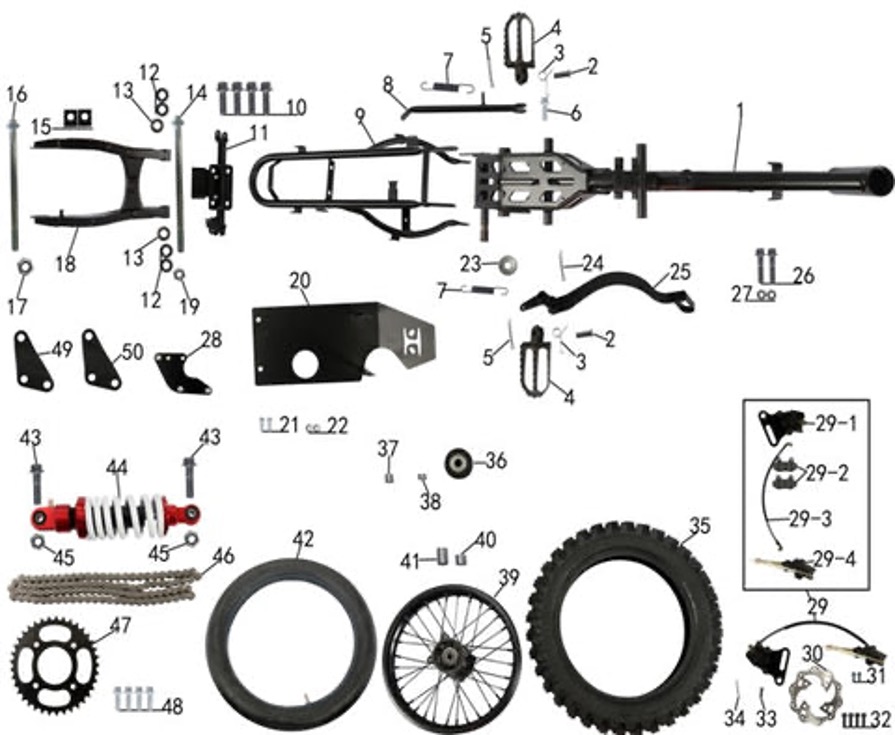

Tao DB17 (Frame & Rear End Assembly)
- 1 -109707- Dirt Bike Main Frame for DB 17
- 2 -601392- Pivot Pin 8x40 for DB10 and more
- 3 -104550- Foot Peg Spring for DB10 and more
- 4 -104549- Foot Peg Set for DB 14 and more
- 5 -105336- Cotter Pin 2x25 for Speedy 50 and more
- 6 -108395- Hex Flange Bolt M10x1.25x28 for DB10 and more
- 7 -103119- Brake Return Spring 15x108 for DB 14 and more
- 8 -109723- Side Stand (Kick Stand) for DB 17
- 9 -109847- Rear Metal Frame for DB 17
- 10 -105205- Hex Flange Bolt M8x20 for ATA 135 DU and more
- 11 -109867- Foot Peg Bracket for DB10 and more
- 12 -108090- Swing Arm Spacer for DB 17
- 13 -103821- Needle Roller Bearing HK2020 for DB 17 and more
- 14 -104961- Hex Flange Bolt M10x1.25x195 for ATA 150 G and more
- 15 -106704- Chain Adjuster Block for DB 17 and more
- 16 -105106- Rear Wheel Axle M14x1.25x205 for DB 17
- 17 -105263- Hex Locknut M14×15 for ATA 135 DU and more
- 18 -109834- Swing Arm for DB 17
- 19 -105253- Hex Nut M10x1.25 for Bull150 and more
- 20 -109753- Skid Plate for DB 17
- 21 -105137- Hex Flange Bolt M6x16 for JEEPAUTO and more
- 22 -105448- Flat Washer 16×6.3×1.5 for ATA 150 G and more
- 23 -601389- Flat Washer 28x15x2 for DB10 and more
- 24 -109643- Cotter Pin 3x25 for DB10 and more
- 25 -109955- Dirt Bike Foot Brake Pedal for DB 17
- 26 -105232- Hex Flange Bolt M8x50 for Snow Leopard and more
- 27 -105510- Hex Nut M8 White Zinc for DB 27 and more
- 28 -108091- Chain Guard for DB 17
- 29 -103476- Rear Disk Brake Assembly for DB 14
- 29-1 -112356- Rear Disk Brake Caliper for DB 14 and more
- 29-2 -112357- Rear Disk Brake Pad for DB 14 and more
- 29-3 -112367- Rear Disk Brake Line for DB 17
- 29-4 -112359- Foot Brake Master Cylinder for DB 14 and more
- 30 -103479- Disk Brake Rotor 190 for DB 17
- 31 -105137- Hex Flange Bolt M6x16 for JEEPAUTO and more
- 32 -108390- Hex Socket Bolt M8x20 for Snow Leopard and more
- 33 -600651- Cylindrical Dowel Pin 6×18 for ATA 135 DU and more
- 34 -105338- Cotter Pin 2.5×30 for ATA 135 DU and more
- 35 -103541- 14” Rear Tire 90/100-14 for DB 17 and more
- 36 -104410- Chain Tension Wheel for DB 17 and more
- 37 -104412- Tension Wheel Spacer 8x12x12 for DB 17
- 38 -104411- Tension Wheel Spacer 8x12x4 for DB 17
- 39 -103537- 14" Rim- Rear 1.85x14” for DB 17
- 40 -103531- Rear Wheel Spacer 22x15.5x25 for DB 17
- 41 -103534- Wheel Spacer 22x15.5x29 for DB 17 and more
- 42 -107351- 14” Inner Tube 90/100-14 for DB 17 and more
- 43 -105005- Hex Flange Bolt M10x1.25x40 for JEEPAUTO and more
- 44 -103501- Spring Coil Suspension(Single) 305mm for DB 17
- 45 -105253- Hex Nut M10x1.25 for Bull150 and more
- 46 -103737- #428 Drive Chain 112 Links for DB 17 and more
- 47 -103734- Rear Sprocket 428-41 for DB 17 and more
- 48 -105205- Hex Flange Bolt M8x20 for ATA 135 DU and more
- 49 -109758- Engine Mount Bracket for DB 17
- 50 -109757- Engine Mount Bracket for DB 17
