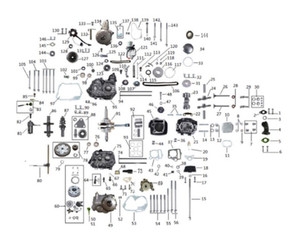

Tao New Cheetah (120cc Engine Assembly Parts)
- 0 - 103250 - Engine Standard Hardware Set for Chinese 110cc ATV and more
- 1 - 600936 - Hex Flange Bolt M6x28 for NEW CHEETAH and more
- 2 - 111640 - Intake Manifold Heat Shield for ATA 110 D/D1 and more
- 3 - 111633 - Intake Manifold Heat Shield O Ring 25.4x2.5 for ATA 110 D/D1 and more
- 4 - 103049 - Intake Manifold Black for ATA 110 D/D1 and more
- 5 - 111629 - Intake Manifold Gasket for ATA 110 D/D1 and more
- 6 - 601135 - Hex Flange Bolt M6x25 for NEW CHEETAH and more
- 7 - S000329 - Acorn Nut M7 for NEW CHEETAH and more
- 8 - S000330 - Flat Washer 7x13x2 for NEW CHEETAH and more
- 9 - S000331 - Flat Washer 7x13x2 Copper for NEW CHEETAH and more
- 10 - 111656 - Cylinder Head Cover Black for ATA 110 D/D1 and more
- 11 - 111621 - Cylinder Head Cover Gasket for ATA 110 D/D1 and more
- 12 - 111655 - Valve Cap for ATA 110 D/D1 and more
- 13 - 111630 - O-Ring 30.8x3.2 for ATA 110 D/D1 and more
- 14 - S000332 - Stud Mlx20 for NEW CHEETAH and more
- 15 - 600927 - Hex Flange Bolt M6x110 for NEW CHEETAH and more
- 16 - S000333 - Flat Washer for NEW CHEETAH and more
- 17 - 600937 - Hex Flange Bolt M6x20 for NEW CHEETAH and more
- 18 - 111657 - Cylinder Head Right Side Cover Black for NEW CHEETAH and more
- 19 - 111623 - Cylinder Head Side Cover Gasket - Right for ATA 110 D/D1 and more
- 20 - 101373 - Spark Plug for ATA 110 D/D1 and more
- 21 - 104110 - Cylinder Head for NEW CHEETAH and more
- 22 - 600887 - Compression Release Valve for NEW CHEETAH and more
- 23 - 103043 - Camshaft for NEW CHEETAH and more
- 24 - 103057 - Valve Rocker Arm for ATA 110 D/D1 and more
- 25 - 104227 - Valve Rocker Arm Shaft for ATA 110 D/D1 and more
- 26 - 111659 - Intake Valve Stem for ATA 110 D/D1 and more
- 27 - 111660 - Exhaust Valve Stem for ATA 110 D/D1 and more
- 28 - 111642 - Engine Valve Stem Seal for ATA 110 D/D1 and more
- 29 - 103856 - Engine Valve Spring for ATA 110 D/D1 and more
- 30 - 103228 - Engine Valve Retainer, Spring Cotter Set for ATA 110 D/D1 and more
- 31 - 104111 - Timing Chain Sprocket 28 Teeth for ATA 110 D/D1 and more
- 32 - S000334 - Cross Large Flat Head bolt M5x12 for NEW CHEETAH and more
- 33 - 111622 - Cylinder Head Side Cover Gasket - Left for NEW CHEETAH and more
- 34 - 111658 - Cylinder Head Left Side Cover for NEW CHEETAH and more
- 35 - S000335 - Cross Hex Bolt M6x23 for NEW CHEETAH and more
- 36 - S000336 - Cross Hex Bolt M6x30 for NEW CHEETAH and more
- 37 - 111620 - Cylinder Head Cover Gasket for NEW CHEETAH and more
- 38 - 111637 - Large Rubber Packing for ATA 110 D/D1 and more
- 39 - S000337 - Large Rubber Packing Collar for NEW CHEETAH and more
- 40 - 111639 - Small Rubber Packing for ATA 110 D/D1 and more
- 41 - 103172 - Small Rubber Packing Collar for ATA 110 D/D1 and more
- 42 - 111638 - Medium Rubber Packing for ATA 110 D/D1 and more
- 43 - 111624 - Cylinder Jug Gasket for ATA 110 D/D1 and more
- 44 - 103338 - Dowel Pin 8x14 for ATA 110 D/D1 and more
- 45 - 103849 - Cylinder Jug for ATA 110 D/D1 and more
- 46 - 111649 - Cam Chain Roller Guide for ATA 110 D/D1 and more
- 47 - S000338 - Flat Washer 8 for NEW CHEETAH and more
- 48 - S000339 - Cam Chain Roller Guide Pin for NEW CHEETAH and more
- 49 - 115249 - Engine Right Cover for Chinese 125cc ATV and more
- 50 - 103051 - Oil Dipstick for ATA 110 D/D1 and more

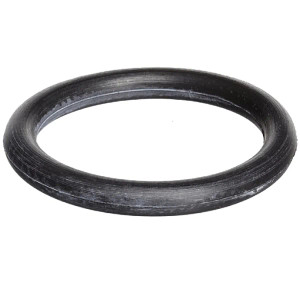

- 51 - 111632 - O-Ring 18x3 for ATA 110 D/D1 and more
- 52 - 103336 - Dowel Pin 8x12 for ATA 110 D/D1 and more
- 54 - 600932 - Hex Flange Bolt M6x40 for NEW CHEETAH and more
- 55 - 600929 - Hex Flange Bolt M6x65 for NEW CHEETAH and more
- 56 - S000340 - Hex Flange Bolt M6x80 for NEW CHEETAH and more
- 60 - S000341 - Clutch Accessories for NEW CHEETAH and more
- 61 - 111650 - Automatic with Reverse Clutch for 50~125cc Engine for DB 14 and more
- 64 - 600886 - Gear Shift Stopper for ATA 110 D/D1 and more
- 65 - S000342 - Gear Shift Stopper Spring Pin for NEW CHEETAH and more
- 66 - S000343 - Hex Flange Bolt M12x16 for NEW CHEETAH and more
- 67 - S000344 - Flat Washer 12x20x1.5 Aluminum for NEW CHEETAH and more
- 68 - 111641 - Oil Filter for ATA 110 D/D1 and more
- 69 - S000345 - Oil Pump for NEW CHEETAH and more

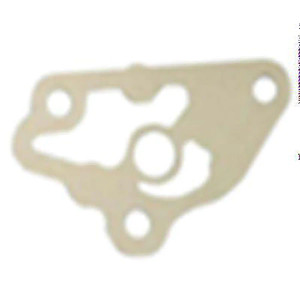

- 70 - 111628 - Oil Pump Gasket for ATA 110 D/D1 and more
- 71 - S000346 - Cross Pan Head Bolt M6x16 for NEW CHEETAH and more
- 72 - S000347 - Cross Pan Head Bolt M6x22 for NEW CHEETAH and more
- 73 - S000348 - Bolt for Oil Pump for NEW CHEETAH and more
- 74 - S000349 - Stud M7x212 for NEW CHEETAH and more
- 75 - 104374 - Engine Crankcase Comp for NEW CHEETAH and more
- 76 - 102788 - Ball Bearing 6203 for ATA 110 D/D1 and more
- 77 - 104444 - Ball Bearing 6201 for ATA 110 D/D1 and more
- 78 - 104463 - Engine Gear 17/69 Teeth for DB 14 and more
- 79 - S000350 - Circlip for NEW CHEETAH and more
- 80 - 600855 - Internal Gear Shift Arm for NEW CHEETAH and more
- 81 - 103037 - Gear Shifter Fork for NEW CHEETAH and more
- 82 - S000351 - Hex Socket Bolt M6x16 for NEW CHEETAH and more
- 83 - 103038 - Engine Gear Indicator for NEW CHEETAH and more
- 85 - 600938 - Hex Flange Bolt M6×12 for NEW CHEETAH and more
- 86 - 111653 - Transmission Counter Shaft for NEW CHEETAH and more
- 87 - 111652 - Transmission Main Shaft for NEW CHEETAH and more
- 88 - 111654 - Other Engine Parts for NEW CHEETAH and more
- 89 - 103336 - Dowel Pin 8x12 for ATA 110 D/D1 and more
- 90 - 601091 - Hex Bolt M6x22 for NEW CHEETAH and more
- 91 - 111787 - Crank Shaft for NEW CHEETAH and more
- 92 - 103633 - Piston and Piston Rings Set for ATA 110 D/D1 and more
- 93 - 103636 - Piston Rings for ATA 110 D/D1 and more
- 94 - S000353 - Stud M7x204 for NEW CHEETAH and more
- 95 - 104528 - Engine Crankcase Comp for NEW CHEETAH and more
- 96 - 103333 - Cylinder head Dowel Pin 10x14 for ATA 110 D/D1 and more
- 97 - 111625 - Crankcase Gasket for ATA 110 D/D1 and more
- 98 - 102818 - Ball Bearing 6001 for Cheetah and more
- 99 - 102788 - Ball Bearing 6203 for ATA 110 D/D1 and more
- 100 - 111645 - Oil Seal 11.6×24×10 for DB 14 and more
- 101 - 111643 - Oil Seal 17x29x5 for NEW CHEETAH and more
- 102 - S000354 - Tube Clamp for NEW CHEETAH and more
- 103 - 600929 - Hex Flange Bolt M6x65 for NEW CHEETAH and more
- 104 - 600938 - Hex Flange Bolt M6×12 for NEW CHEETAH and more
- 105 - 600931 - Hex Flange Bolt M6x50 for NEW CHEETAH and more
- 106 - 103739 - Timing Chain 84 Links for ATA 110 D/D1 and more
- 107 - 111647 - Timing Chain Sprocket for ATA 110 D/D1 and more
- 108 - 111648 - Timing Chain Tension Roller for ATA 110 D/D1 and more
- 109 - S000355 - Timing Chain Tensionner Pivot for NEW CHEETAH and more
- 110 - 104407 - Timing Chain Tension Roller Arm for ATA 110 D/D1 and more
- 111 - 104408 - Timing Chain Tensionner Push Rod for ATA 110 D/D1 and more
- 112 - 104409 - Timing Chain Tensionner Push Rod Spring for ATA 110 D/D1 and more
- 113 - S000356 - Bolts/Screws M14x1.5x12 for NEW CHEETAH and more
- 114 - S000357 - Flat Washer 14x20x1.5 for NEW CHEETAH and more
- 115 - 111644 - Oil Seal 30x42x4.5 for ATA 110 D/D1 and more
- 116 - 103075 - Oil Disk Cover for ATA 110 D/D1 and more
- 117 - 111631 - O-Ring 107x2 for ATA 110 D/D1 and more
- 118 - 111634 - O-Ring 6x2 for ATA 110 D/D1 and more
- 119 - S000358 - Cross Countersunk Head Screw M6x16 for NEW CHEETAH and more
- 120 - 104069 - Timing Chain Plank Set for ATA 110 D/D1 and more
- 121 - 103839 - Starter Motor 3 Bolts 12 Teeth for ATA 110 D/D1 and more
- 122 - 103738 - Starting Chain 62 links for ATA 110 D/D1 and more
- 123 - 103843 - Starter Chain Sprocket for ATA 110 D/D1 and more
- 124 - 111646 - Oil Seal 19x30x5 for ATA 110 D/D1 and more
- 125 - S000359 - Starting Sprocket Press Plate for NEW CHEETAH and more
- 126 - 601089 - Hex Flange Bolt M6x16 for NEW CHEETAH and more
- 127 - 103187 - Magneto Rotor for ATA 110 D/D1 and more
- 129 - 103183 - 6 Poles Stator for ATA 110 D/D1 and more
- 130 - 600937 - Hex Flange Bolt M6x20 for NEW CHEETAH and more
- 131 - S000361 - Hex Bolt M5x12 for NEW CHEETAH and more
- 132 - S000362 - Gear Indicator Clamp Plate for NEW CHEETAH and more
- 133 - 600938 - Hex Flange Bolt M6×12 for NEW CHEETAH and more
- 134 - 115253 - Engine Left Cover 120CC for NEW TFORCE and more
- 135 - 103053 - Engine Stator Cover Caps for ATA 110 D/D1 and more
- 136 - 111635 - O-Ring 27.4×2.4 for ATA 110 D/D1 and more
- 137 - 111636 - O-Ring 13×2.6 for ATA 110 D/D1 and more
- 138 - 103336 - Dowel Pin 8x12 for ATA 110 D/D1 and more
- 139 - 111627 - Left Crankcase Gasket for ATA 110 D/D1 and more
- 140 - 600936 - Hex Flange Bolt M6x28 for NEW CHEETAH and more

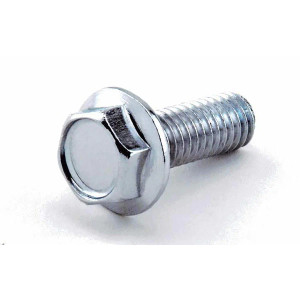

- 141 - 600935 - Hex Flange Bolt M6×32 for NEW CHEETAH and more
- 142 - 600931 - Hex Flange Bolt M6x50 for NEW CHEETAH and more
- 143 - 600933 - Hex Flange Bolt M6x70 for NEW CHEETAH and more
- 144 - 104212 - Engine Sprocket 428-13 for NEW CHEETAH and more
- 145 - 115850 - Engine Sprocket Fixing Plate for ATA 110 D/D1 and more
- 146 - S000364 - Hex Bolt M6x8 for NEW CHEETAH and more
- 147 - S000365 - Flat Washer 6 for NEW CHEETAH and more
- 036-1 - 103336 - Dowel Pin 8x12 for ATA 110 D/D1 and more
- 064-1 - 103331 - Gear Shift Stopper Spring for ATA 110 D/D1 and more
