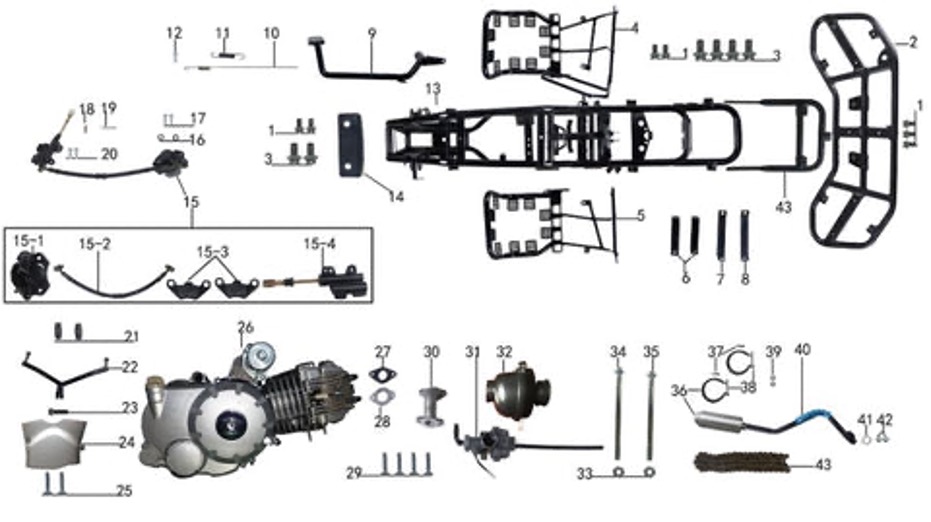

Tao New Cheetah (Frame & Engine)
- 1 - 105187 - Hex Flange Bolt M8x14 for ATA 135 DU and more
- 2 - 602433 - Rear Rack for Mudhawk 6 and more
- 3 - 104985 - Hex Flange Bolt M10x1.5x25 for ATA 135 DU and more
- 4 - 603414 - FootRest Mount-Right for NEW CHEETAH
- 5 - 605539 - Left Foot Rest All Metal No Fabric Version for Cheetah and more
- 6 - 109925 - Face Panel Connector for Cheetah and more
- 7 - 109855 - Right panel stent for Cheetah and more
- 8 - 109858 - After the left panel bracket for Cheetah and more
- 9 - 109945 - ATV Foot Brake Pedal for Cheetah and more
- 10 - 104647 - Foot Brake Pedal Return Spring for ATA 135 DU and more
- 11 - 600539 - Brake Switch Spring for ATA 135 DU and more
- 12 - 105187 - Hex Flange Bolt M8x14 for ATA 135 DU and more
- 13 - 603413 - ATV Main Frame for NEW CHEETAH
- 14 - 602455 - Front Bumper Connection Plate for Mudhawk 6 and more
- 15 - 100742 - Rear Disk Brake Assembly (New Style) 500x105mm for ATA 135 DU and more
- 16 - 600646 - Brake Disk Spacer 16×11×5.5 for ATA 135 DU and more
- 17 - 105187 - Hex Flange Bolt M8x14 for ATA 135 DU and more
- 18 - 600651 - Cylindrical Dowel Pin 6×18 for ATA 135 DU and more
- 19 - 105338 - Cotter Pin 2.5×30 for ATA 135 DU and more
- 20 - 105140 - Hex Flange Bolt M6x16 Army Green for ATA 135 DU and more

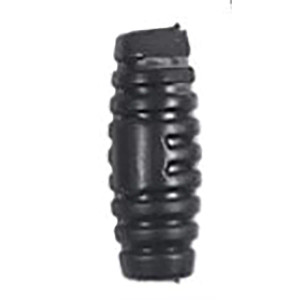

- 21 - 600802 - Gear Peg Rubber Pad for DB 14 and more
- 22 - 109672 - Gear Peg for Cheetah and more
- 24 - 110975 - Engine Sprocket Cover Silver for ATA 135 DU and more
- 25 - 105712 - Hex Nut M8×20 for ATA 135 DU and more
- 26 - 603975 - 125cc Automatic w/ Reverse, Elec. Start Engine Aluminum Head Silver for NEW CHEETAH
- 27 - 101332-1 - Intake Manifold Heat Shield for ATA 135 DU and more
- 28 - 106945 - Intake Manifold Gasket for ATA 135 DU and more

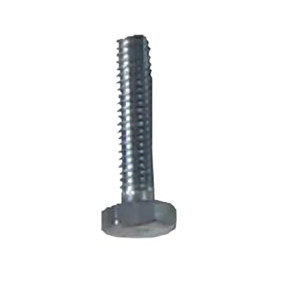

- 29 - 105714 - Hex Bolt M8×25 for NEW CHEETAH and more
- 30 - 103050 - Intake Manifold Metal Color for ATA 135 DU and more
- 31 - 101342 - Left Manual Choke Carburetor PZ22 for NEW CHEETAH and more
- 32 - 115510 - Tube Shape Air Filter Assembly for Mudhawk 6 and more
- 33 - 105276 - Hex Locknut M8 for ATA 135 DU and more
- 34 - 104925 - Hex Flange Bolt M8x115 for ATA 135 DU and more
- 35 - 104928 - Hex Flange Bolt M8x105 for ATA 135 DU and more
- 36 - 111477 - Exhaust Rear End Muffler Aluminum for NEW CHEETAH and more
- 37 - 115633 - Muffler Spacer for NEW CHEETAH and more
- 38 - 105230 - Hex Flange Bolt M8x45 for EK 80 and more
- 39 - 105276 - Hex Locknut M8 for ATA 135 DU and more
- 40 - 112415 - Exhaust Front End Pipe for NEW CHEETAH
- 41 - 102419 - Muffler Gasket OD： 31.5mm ID: 23.5mm for ATA 135 DU and more
- 42 - 105272 - Hex Locknut M6 for ATA 135 DU and more

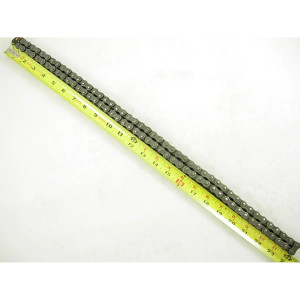

- 43 - 101639 - #428 Drive Chain 96 Links for Cheetah and more
- 44 - 602833 - Rear Lifter for NEW CHEETAH
- 45 - 606743 - Muffler Clamp for NEW TFORCE and more
- 15-1 - 111934 - Rear Disk Brake Caliper for ATA 135 DU and more
- 15-2 - 111987 - Rear Disk Brake Line 500mm (19.69”) for Cheetah and more

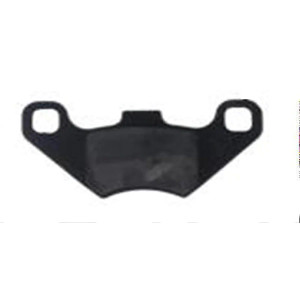

- 15-3 - 111936 - Rear Disk Brake Pad for ATA 135 DU and more
- 15-4 - 111986 - Foot Brake Master Cylinder for NEW CHEETAH
