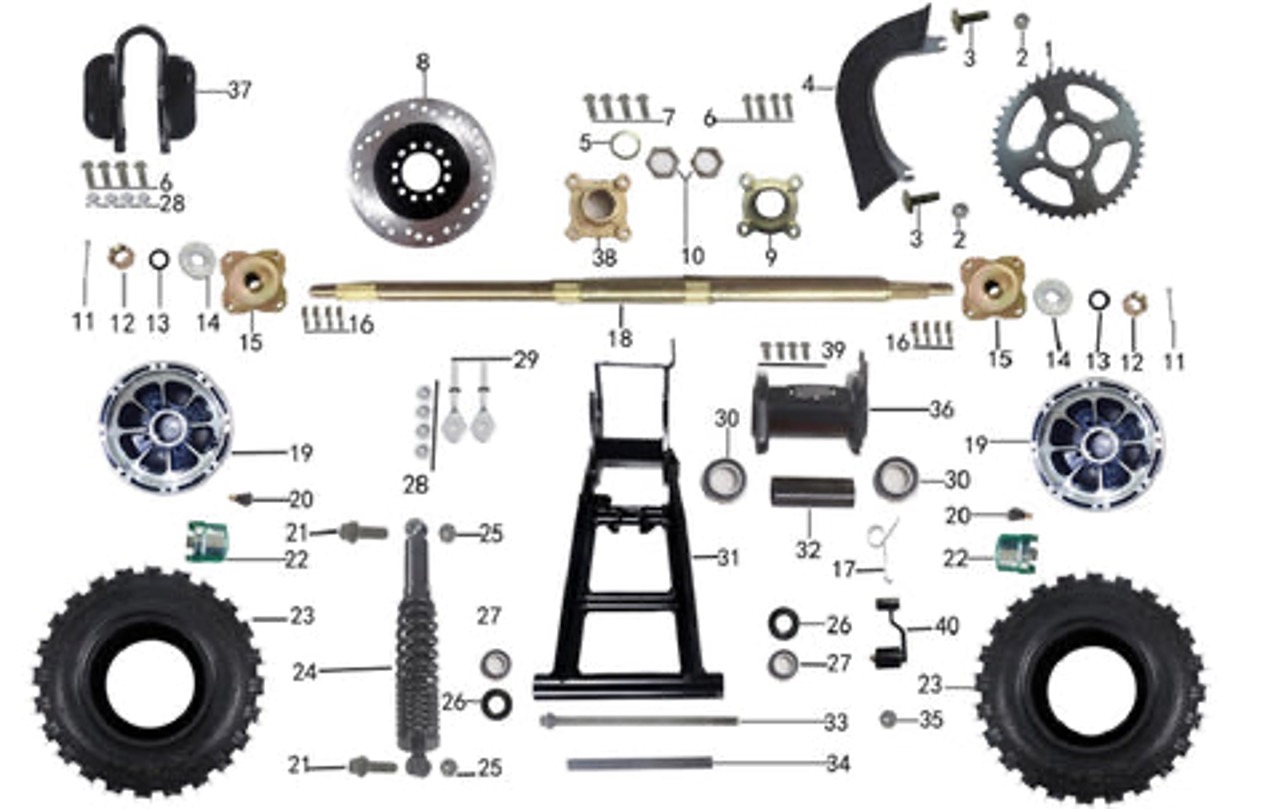

Tao New Cheetah (Rear End System)
- 1 - 101592 - Rear Sprocket 428-41 for Cheetah and more
- 2 - 105272 - Hex Locknut M6 for ATA 135 DU and more
- 3 - 105532 - Cross Large Flat Head bolt M6x16 for ATA 135 DU and more
- 4 - 101663 - Chain Cover for Cheetah and more
- 5 - 600804 - Rear Axle Washer 27 for ATA 150 G and more
- 6 - 105187 - Hex Flange Bolt M8x14 for ATA 135 DU and more
- 7 - 105195 - Hex Flange Bolt M8x1.25x16 for ATA 135 DU and more
- 8 - 600552 - Disk Brake Rotor 190×3.5 4 Bolts for Cheetah and more
- 9 - 108291 - Rear Sprocket Hub 32 Spline for Cheetah and more
- 10 - 104862 - Hex Nut M27×1.5 for Cheetah and more
- 11 - 105340 - Cotter Pin 3×40 for ATA 135 DU and more
- 12 - 105329 - Castle Nut M16×1.5 for Cheetah and more
- 13 - 104874 - Spring Washer M16 for Cheetah and more
- 14 - 115922 - Flat Washer 16×48×3 for NEW CHEETAH
- 15 - 100870 - Rear Rim Hub for ATA 150 G and more
- 16 - 109369 - Hub Bolt M10×30 for NEW CHEETAH and more
- 17 - 104651 - Chain Tensioner Spring for ATA 150 G and more
- 18 - 101304 - Rear Axle for Cheetah and more
- 19 - 109241 - Rim- Rear 8” for NEW CHEETAH and more
- 20 - 108238 - Valve Stem for ATA 135 DU and more
- 21 - 105006 - Hex Flange Bolt M10x1.25x40 for ATA 135 DU and more

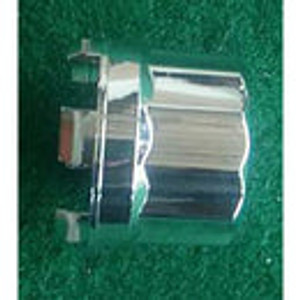

- 22 - 118092 - Rear Rim Center Cap 8" for NEW TFORCE and more
- 23 - 101286 - 8” Tire 18x9.5-8 for NEW CHEETAH and more
- 24 - 101174 - Spring Coil Suspension(Single) 280mm for Cheetah and more
- 25 - 105254 - Hex Locknut M10×1.25 for ATA 135 DU and more
- 26 - 109191 - Swing Arm Bushing for Cheetah and more
- 27 - 102818 - Ball Bearing 6001 for Cheetah and more
- 28 - 105276 - Hex Locknut M8 for ATA 135 DU and more
- 29 - 105926 - Chain Adjuster -Single Piece M8×40 for Cheetah and more
- 30 - 102817 - Ball Bearing 6006 for ATA 150 G and more
- 31 - 109826 - ATV Swing Arm for Cheetah and more
- 32 - 600540 - Rear Axle Carrier Spacer 35x31x89.5 for Cheetah and more
- 33 - 105080 - Hex Flange Bolt M12×260×1.25 for Cheetah and more
- 34 - 602340 - Swing Arm Bushing 16x211 for Cheetah and more
- 35 - 105259 - Hex Locknut M12×1.25 for ATA 135 DU and more
- 36 - 109837 - Rear Axle Carrier for Cheetah and more
- 37 - 109836 - Rear Axle Hub Protector for Cheetah and more
- 38 - 100866 - Rear Sprocket Hub for ATA110B and more
- 39 - 104984 - Hex Flange Bolt M10x1.5x25 for ATA 150 G and more
- 40 - 102741 - Chain Tension Wheel for ATA 150 G and more
