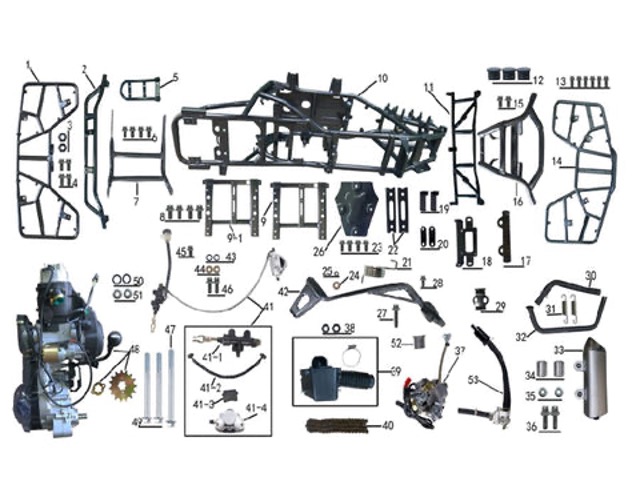

Tao Raptor 200 (Frame & Engine)
- 1 - 606511 - Rear Rack for RAPTOR 200
- 2 - 606527 - Rear Rack supporting Bracket for RAPTOR 200
- 3 - 105276 - Hex Locknut M8 for ATA 135 DU and more
- 4 - 105204 - Hex Flange Bolt M8x20 for Targa 150 and more
- 5 - 606658 - Back Support Bracket for RAPTOR 200
- 6 - 105194 - Hex Flange Bolt M8x16 for ATA110B and more
- 7 - 606529 - Rack Supporting Bracket- Rear for RAPTOR 200
- 8 - 104963 - Hex Flange Bolt M10×1.25×20 Army Green for RAPTOR 200
- 9 - 606515 - FootRest Mount-Left for RAPTOR 200
- 10 - 606503 - Main Frame for RAPTOR 200
- 11 - 606531 - Front Lower Support Bracket for RAPTOR 200
- 12 - 102414 - Rubber Plug OD: 16 for RAPTOR 200 and more
- 13 - 105212 - Hex Flange Bolt M8x25 for Quantum 150 and more
- 14 - 606509 - Front Rack for RAPTOR 200
- 15 - 105194 - Hex Flange Bolt M8x16 for ATA110B and more
- 16 - 606513 - Front Bumper for RAPTOR 200
- 17 - 603847 - Gauge Mounting Bracket for and more
- 18 - 606523 - Speedometer Bracket for RAPTOR 200
- 19 - 109860 - Hand Guard Mounting Bracket for ATA 150 G and more
- 20 - 109861 - Hand Guard Bracket for ATA 150 G and more
- 21 - 606817 - Brake Return Spring for RAPTOR 200 and more
- 22 - 606525 - Anti-Slip Foot Peg for RAPTOR 200
- 23 - 105131 - Hex Flange Bolt M6x12 Black for GK 80 and more
- 24 - 106932 - Flat Washer 8x20x1.5 for Speedy 50 and more
- 25 - 105514 - Hex Flange Nut M8 Army Green for RAPTOR 200

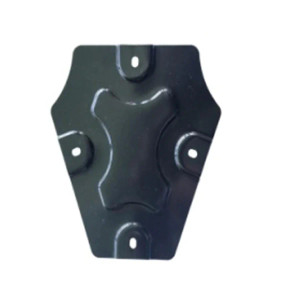

- 26 - 606535 - Skid Plate for RAPTOR 200
- 27 - 105227 - Hex Flange Bolt M8x40 for ARROW 150 and more
- 28 - 105194 - Hex Flange Bolt M8x16 for ATA110B and more
- 29 - 603845 - Electric Parts Bracket for RAPTOR and more
- 30 - 606860 - Exhaust Middle Tube TGA170K for RAPTOR 200
- 31 - 606580 - Muffler Spring for RAPTOR 200
- 32 - 606579 - Exhaust Front End Pipe TGA170K for RAPTOR 200
- 33 - 606859 - Exhaust Rear End Muffler TGA170K for RAPTOR 200
- 34 - 600753 - Bushing 20x8.2x19 for RAPTOR 200
- 35 - 105888 - Hex Locknut M8 for RAPTOR 200 and more
- 36 - 105217 - Hex Flange Bolt M8×30 for RAPTOR 200
- 37 - 110728 - Electric Choke Carburetor PD26 250mm for RAPTOR 200
- 38 - 105272 - Hex Locknut M6 for ATA 135 DU and more
- 39 - 607836 - Box Shape Air Filter Assembly w/ Clamp for RAPTOR 200
- 40 - 101641 - #530 Drive Chain 82 Links for Bull 150 and more
- 41 - 606584 - Rear Disk Brake Assembly Brake Line 1150mm×120mm for RAPTOR 200
- 42 - 606519 - Foot Brake Pedal for RAPTOR 200
- 43 - 105276 - Hex Locknut M8 for ATA 135 DU and more
- 44 - 106931 - Flat Washer 8x16x2 for RAPTOR 200
- 46 - 105212 - Hex Flange Bolt M8x25 for Quantum 150 and more
- 47 - 115430 - Engine Mounting Bolt M10×1.25×115 for RAPTOR 200
- 48 - 606578 - GY6 170cc Automatic w/ Reverse Engine 15 Gear for RAPTOR 200
- 49 - 607102 - Hex Flange Bolt M10×1.25×105 for RAPTOR 200
- 50 - 104868 - Spring Washer M10 for RAPTOR 200 and more
- 51 - 105254 - Hex Locknut M10×1.25 for ATA 135 DU and more
- 52 - 112933 - Steering Shaft Bushing 25.5×21×17×20 for Mudhawk 6 and more
- 53 - 117236 - Air Replenishment Valve for RAPTOR 200
- 44440 - 606517 - FootRest Mount-Right for RAPTOR 200
- 41-1 - 108332 - Foot Brake Master Cylinder 100mm for ATA 125 F1 and more
- 41-2 - 607189 - Disk Brake Oil Line 1150mm×120mm for RAPTOR 200
- 41-3 - 111719 - Disk Brake Pad for ATA 150 G and more
- 41-4 - 123164 - Rear Disk Brake Caliper for RAPTOR 200
