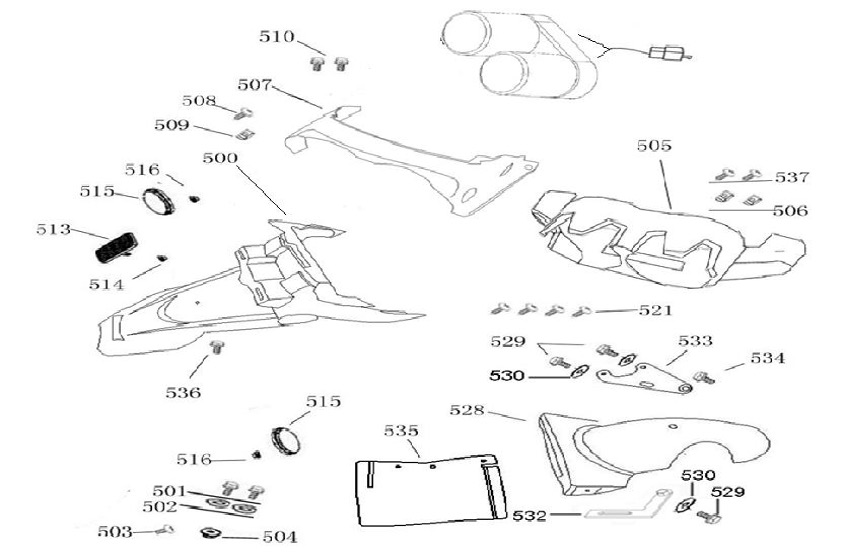

Wolf Rugby (Tail Light Assembly)
|
No. Part Number Description |
||||
|
500 |
80111-LB-9100 |
TAIL BOARD |
||
|
501 |

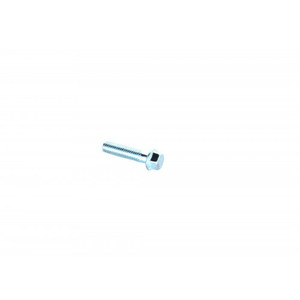

92101-06016-03 |
FLANGE BOLT 6MM X 16MM |
||
|
502 |
95801-06000-03 |
6MM WASHER |
||
|
503 |
92702-06016-03 |
SCREW SPECIAL 6mm x 16mm |
||
|
504 |
GB6117-86 |
FLANGE NUT 6MM |
||
|
505 |
80105-LB-9100 |
TAIL LIGHT HOLDER |
||
|
506 |
GB/T93-4 |
SPRING CLIP NUT 4MM |
||
|
507 |
83756-LB-9100 |
TAIL PIECE |
||
|
508 |
GB845-85 |
TAPPING SCREW 4.2MM X 16MM |
||
|
509 |
GB/T93-4 |
SPRING CLIP NUT 4MM |
||
|
510 |
92101-06016-03 |
FLANGE BOLT 6MM X 16MM |
||
|
513 |
33751-F8-E000 |
REFLECTOR - RED - RECTANGULAR |
||
|
514 |
GB6117-86 |
FLANGE NUT 6MM |
||
|
515 |
33741-F8-E000 |
REFLECTOR - ORANGE - CIRCULAR |
||
|
516 |
GB6117-86 |
FLANGE NUT 6MM |
||
|
520 |
33700-LB-9100 |
TAIL LIGHT ASSEMBLY |
||
|
521 |
GB845-85 |
TAPPING SCREW 4.2MM X 16MM |
||
|
528 |
80102-FA-9000 |
REAR WHEEL FENDER |
||
|
529 |
92101-06016-03 |
FLANGE BOLT 6MM X 16MM |
||
|
530 |
95801-06000-03 |
6MM WASHER |
||
|
532 |
80110-FA-9000 |
REAR WHEEL FENDER BRACKET - LEFT SIDE |
||
|

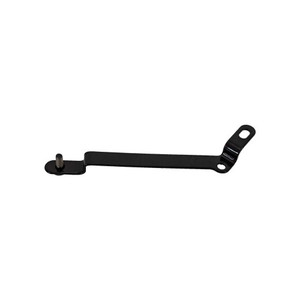

533 |
80109-FA-9000 |
REAR WHEEL FENDER BRACKET - RIGHT SIDE |
||
|
534 |
GB/T5789-M8x12 |
FLANGE BOLT 8MM X 12MM |
||
|

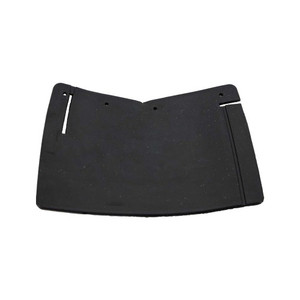

535 |
80106-FA-9000 |
MUD GUARD |
||
|
536 |
92101-06016-03 |
FLANGE BOLT 6MM X 16MM |
||
|
537 |
GB845-85 |
TAPPING SCREW 4.2MM X 16MM |
||
