Product Description
Features
- Front-mounted tracks with flexible sides and a slight curve toward the inside for stable handling and a more comfortable ride
- Double bearing hubs and oil bath housing for optimum durability
- Bolted idler and midroller wheels feature interchangeable double bearings for increased durability and easier maintenance
Part Notices
- Part has special instructions
- Out of Stock
Harmonized Codes
- EU - 87087099000
- US - 8708.70.6060
- Schedule B - 8708.70.0050
Specs

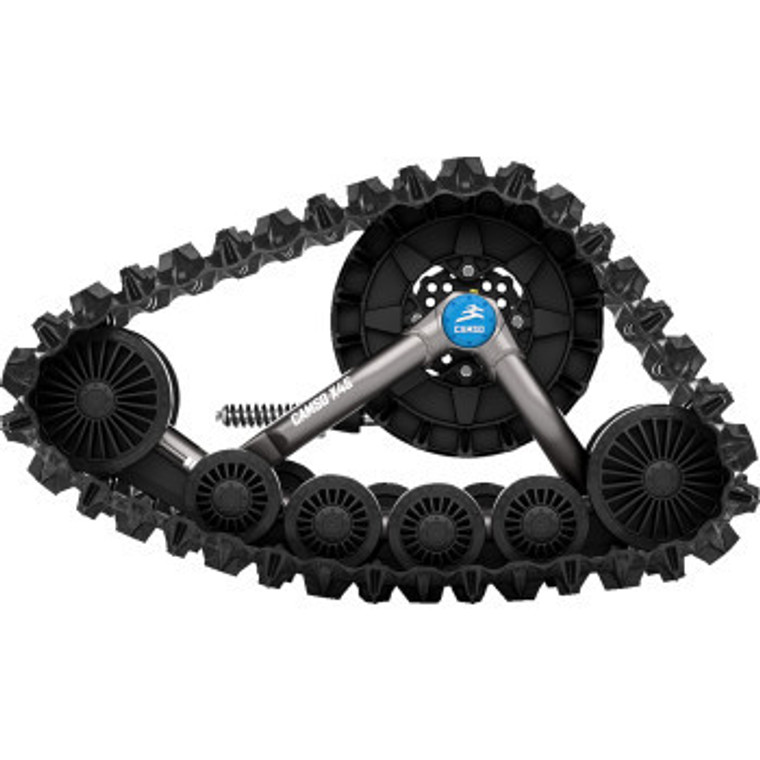

| PRODUCT NAME | TRACK SYSTEM |
| MODEL | ATV X4S |
| FRONT TRACK LENGTH | 93-3/8" |
| FRONT TRACK WIDTH | 11-1/2" / 292 MM |
| REAR TRACK LENGTH | 98-1/2" |
| REAR TRACK WIDTH | 318 MM (12-1/2") / 12-1/2" |
| FRONT HEIGHT | 23-3/4" |
| REAR HEIGHT | 23-1/4" |
| GROUND SURFACE | 1,30 M² (2000 SQUARE INCH) |
| FRONT GROUND CLEARANCE | 390 MM (15-3/8") |
| REAR GROUND CLEARANCE | 372 MM (14-5/8") |
| LUG HEIGHT | 1-1/4" |
| UNITS | EACH |
| RIDING STYLE | ATV / SNOW |
References
| CATALOGS |
24 PU SNOW / Page 956
24 PU SNOW / Page 957
24 PU SNOW / Page 958
24 PU SNOW / Page 959
24 PU SNOW / Page 960
24 PU SNOW / Page 961
24 PU SNOW / Page 962
24 PU SNOW / Page 963
23 PU ATV / Page 381
23 PU ATV / Page 382
23 PU ATV / Page 383
23 PU ATV / Page 384
23 PU ATV / Page 385
23 PU ATV / Page 386
23 PU ATV / Page 387
23 PU ATV / Page 388
23 PU ATV / Page 389
|
Fitments
|
|
|
|
POSITION | NOTES |
|---|---|---|---|---|
| 2013-2018 | Kymco | MXU 700 IE | - | - |
| 2013-2018 | Kymco | MXU 700 | - | - |
