Product Description
Fitment:
2018-2022 GC1K
2018-2022 GC1K Crew
2018-2022 GC1K Truck Models with 2" front receiver

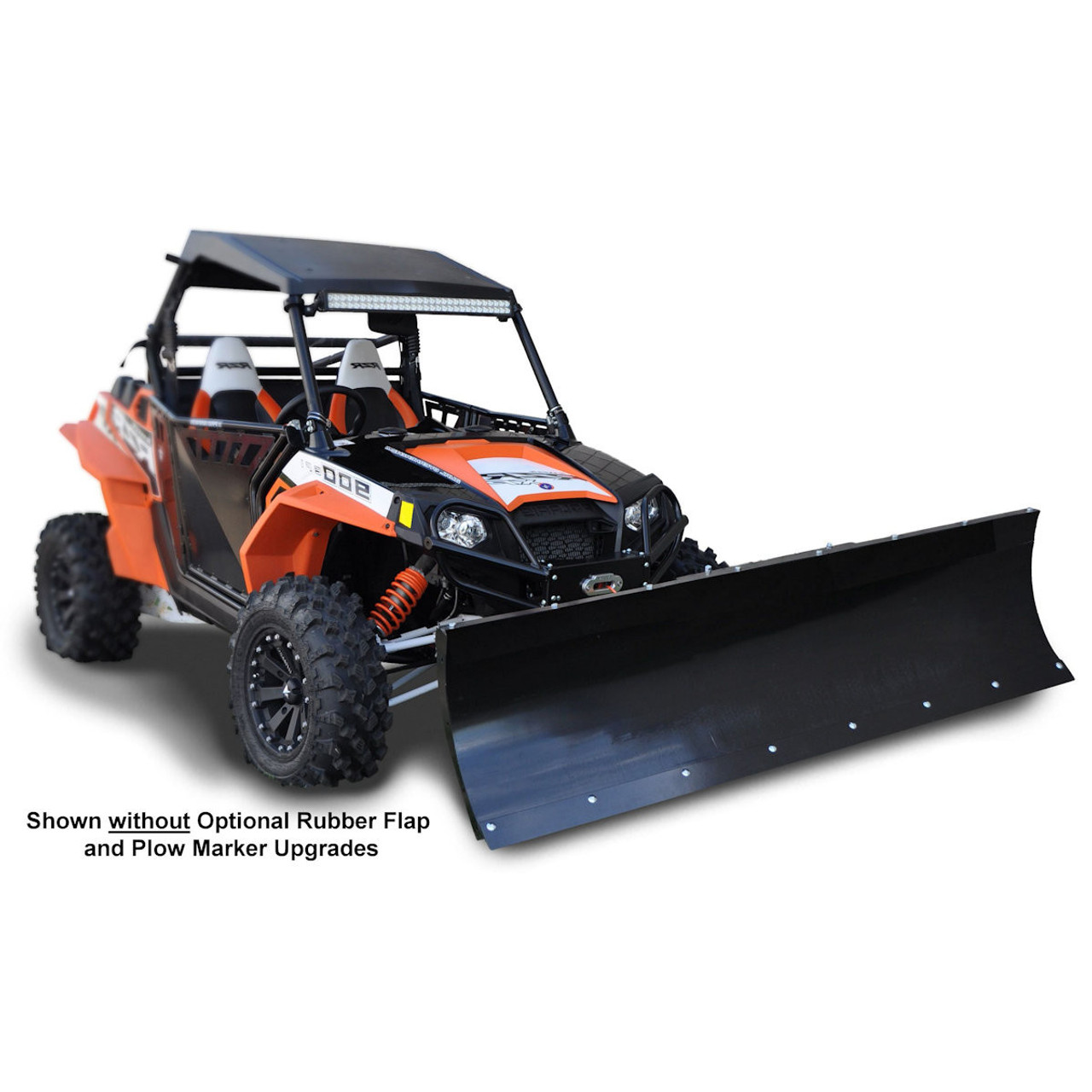

DENALI UTV Snow Plows are made to handle the toughest conditions and hold up against sand, snow and ice. With a 65 degree attack angle and over center design, the heavy duty plow blade ensures snow rolls up and is thrown forward. The central mounting position of the plow kit disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact. Our easy-connect design makes for a quick attachment of the plow to your UTV for when the snow begins to fly. Then, when winter draws to a close, take the plow back off in a matter of minutes. The durable snowplow mount plate is specifically engineered to fit the frame of your UTV and can remain on your vehicle year round.
Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER Elite, VIPER Max, or VIPER Midnight winches.
Kit Contents:
- UTV Snow Plow Blade - Straight
- Pushtubes
- Wearbar
- Skid Feet
- Installation Hardware and Instructions
Blade Features:
- Snow Plow Blade (19 inches scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
- Four 7 gauge ribs run the full height of the blade
- Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
- 65° attack angle and over center design ensures snow rolls up and is thrown forward
- Replaceable 7gauge steel wear bar included with every kit
- Height and angle adjustable skid feet included
- 3 Year Warranty
Pushtube and Lift Kit Features:
- Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength
- Turn system allows you to easily position your plow in 10 different angles - 0, 12.5°, 25°
- Simple detachment system with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity
- Quick Release Pins included
- 13.5 inches center to center for plow mount tabs
- Pushtube Lift Kits bolt directly to the pushtubes, providing 2 or 4 inches of lift
- Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
- Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)
- Extended Push Tubes are designed to be used with SxS/UTVs that have tracks
Optional Hydroturn Features:
- PLEASE NOTE: Extended Pushtubes is not compatible with the Hydraulic Lift System
- Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
- Change the blade angle while driving; full radius turn in just 5 seconds
- Heavy duty chrome plated ¾″ cylinder shaft
- No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
- Wire harness utilizes weatherproof connectors
Optional Plow Pulley Fairlead Features:
- Roller
- Replaces the winch fairlead during the plow season
- For use with Steel AND Synthetic cables
- Curved cable groove helps eliminate flattening and breaking of cable
- Bolt Patterns:
- Standard Spool: 3″ x 4.875″
- Wide Spool: 3″ x 6.67″
- Sheave
- Includes pulley, 1/4″ clevis hook and nylon strap
- Allows greater precision when raising/lowering plow blade and increases the angle of pull
- Cable
- 12′ length, 1/4″ diameter
- Single braid, dyneema rope with galvanized steel thimble/eyelet
