Product Description
DENALI UTV Snow Plow Mounts are made from 100% laser cut 1/4" steel. The custom slotted holes allow your snow plow blade to hug the ground while the overall design of the side walls are formed from the body which maximizes the strength of the mount. All other components of the snow plow mount are then welded together to create one impact resistant mount.
Please Note: the silver Quick Release Pins are not included with the purchase of a DENALI snow plow mount plate. They are included with the DENALI UTV Snow Plow Pushtubes of any DENALI Snow Plow System.
Fitment:
MA11760
2006-2015 Prowler
2014 Prowler HDX 500 Limited
MA11761
2012-2019 Arctic Cat Wildcat 1000
2012-2020 Arctic Cat Wildcat 1000 Sport
MA11762
2019-2020 Arctic Cat Prowler Pro
MA11764
2017-2019 Textron Stampede
MA11770
2 inch Receiver Plow Mount
All machines with front 2 inch receiver already installed
Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER Elite, VIPER Max, or VIPER Midnight winches.
Kit Contents:

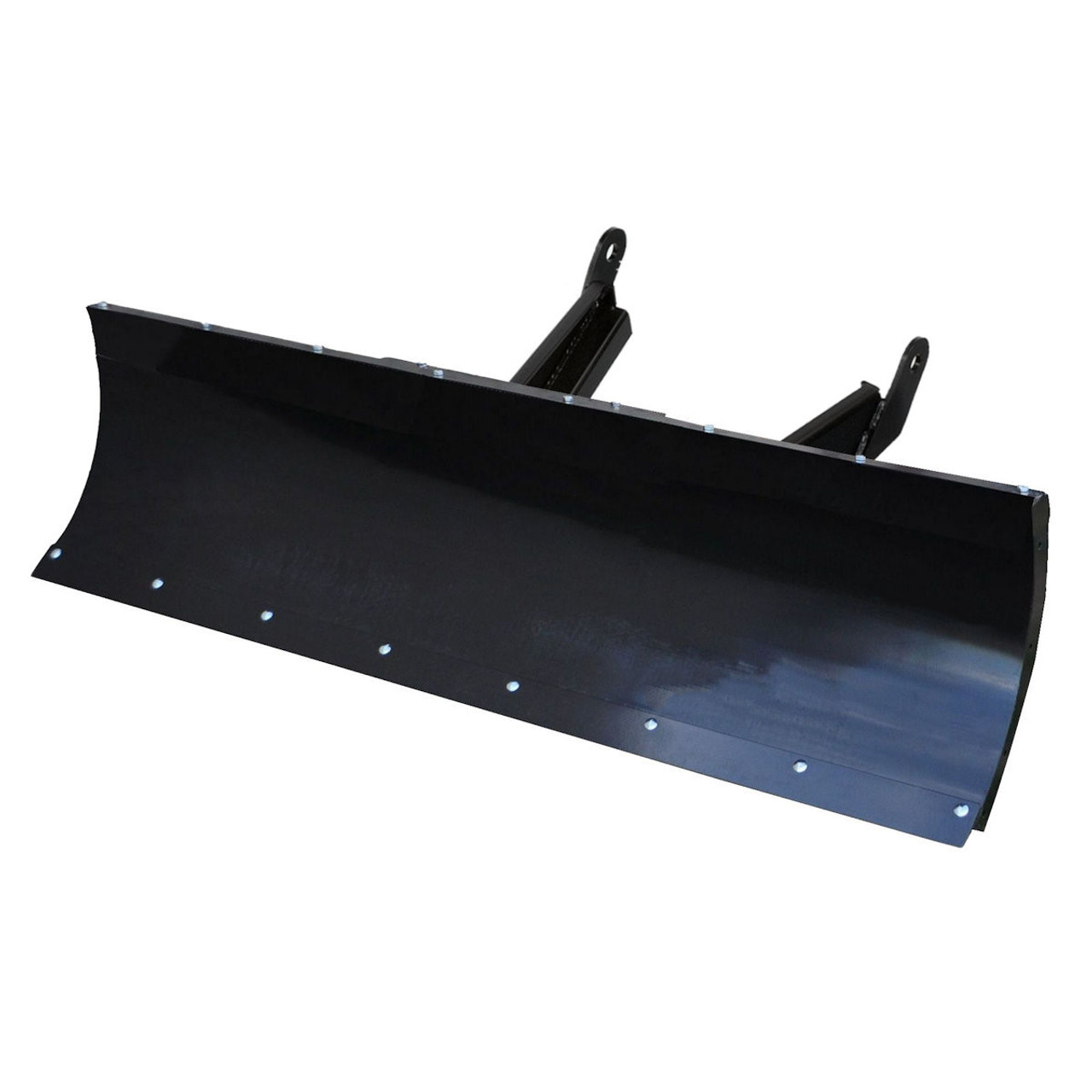

- UTV Snow Plow Blade - Straight
- Pushtubes
- Wearbar
- Skid Feet
- Installation Hardware and Instructions
Blade Features:
- Snow Plow Blade (19 inches scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
- Four 7 gauge ribs run the full height of the blade
- Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
- 65° attack angle and over center design ensures snow rolls up and is thrown forward
- Replaceable 7gauge steel wear bar included with every kit
- Height and angle adjustable skid feet included
- 3 Year Warranty
Pushtube Features:
- Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength
- Turn system allows you to easily position your plow in 10 different angles - 0, 12.5°, 25°
- Simple detachment system with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity
- Quick Release Pins included
- 13.5 inches center to center for plow mount tabs
- Extended Push Tubes are designed to be used with SxS/UTVs that have tracks
Pushtube Lift Kits:
- Pushtube Lift Kits bolt directly to the pushtubes, providing 2 or 4 inches of lift
- Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
- Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)
Optional Hydroturn Features:
- PLEASE NOTE: Extended Pushtubes is not compatible with the Hydraulic Lift System
- Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
- Change the blade angle while driving; full radius turn in just 5 seconds
- Heavy duty chrome plated ¾″ cylinder shaft
- No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
- Wire harness utilizes weatherproof connectors
Optional Plow Pulley Fairlead Features:
- Roller
- Replaces the winch fairlead during the plow season
- For use with Steel AND Synthetic cables
- Curved cable groove helps eliminate flattening and breaking of cable
- Bolt Patterns:
- Standard Spool: 3″ x 4.875″
- Wide Spool: 3″ x 6.67″
- Sheave
- Includes pulley, 1/4″ clevis hook and nylon strap
- Allows greater precision when raising/lowering plow blade and increases the angle of pull
- Cable
- 12′ length, 1/4″ diameter
- Single braid, dyneema rope with galvanized steel thimble/eyelet
Get ready to tackle the toughest winter conditions with the Denali UTV Snow Plow Kits - Arctic Cat Utv. These snow plow mounts are made from 100% laser cut 1/4" steel, ensuring durability and strength. The custom slotted holes allow your snow plow blade to hug the ground, while the overall design of the side walls maximizes the mount's strength. With easy attachment and detachment, you can quickly adapt your UTV to handle snow, sand, and ice. The 65-degree attack angle and over-center design of the heavy-duty plow blade ensure that snow is rolled up and thrown forward, providing efficient snow removal. The central mounting position disperses the force of impact, protecting your UTV's front end from damage.
The Denali UTV Snow Plow Kits include all the necessary components for easy installation: a straight snow plow blade (19 inches scoop), pushtubes, wearbars, skid feet, and installation hardware. The blade is made from a single piece of 11-gauge steel with four 7-gauge ribs for added strength. It also features replaceable 7-gauge steel wear bar and height/angle adjustable skid feet. The reinforced pivot assembly of the pushtubes ensures maximum durability and strength, and the turn system allows you to position the plow in 10 different angles. For added convenience, the quick release pins make detachment a breeze. Upgrade to the optional hydraulic lift system or plow pulley fairlead for enhanced functionality. Compatible with various Arctic Cat and Textron UTV models, the Denali UTV Snow Plow Kits are the perfect tool for winter snow removal.
