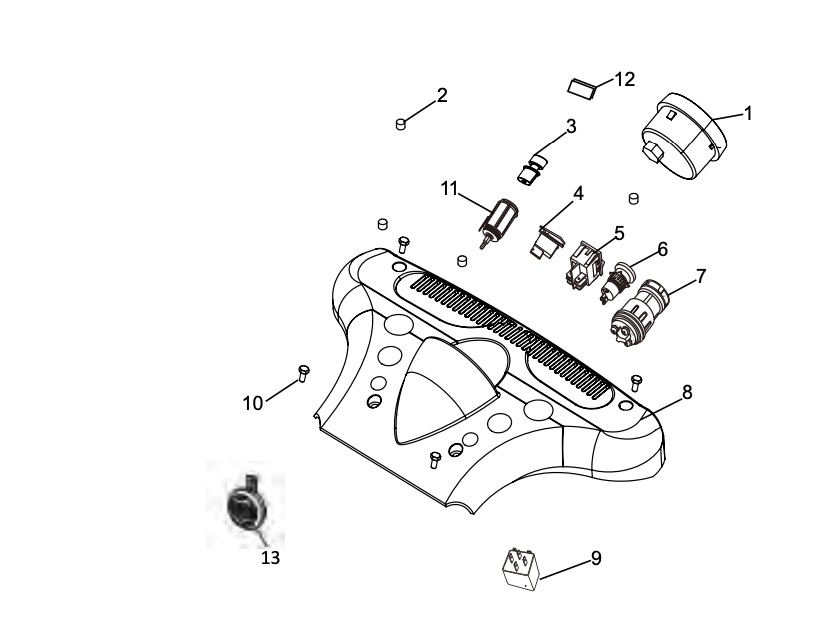

Dash Panel

(01) Hammerhead Speedometer for GTS 150 / Platinum GTS 150

Hammerhead GTS 150 Speedometer / Trailmaster 150 XRX speedometer / American Sportworks 7150 SpeedometerHas Left and Right turn signal indicators as well as a hi/low beam indicator.Trailmaster 150 XRX speedometer / Trailmaster 300 XRX...

(02) Hammerhead Screw Cover

Rubber Screw Cover / Rubber Bolt CoverUsed on Dash and Electrical CoverHammerhead part # 7.010.061Polaris part # 5455568

(03) Hammerhead Rubber Plug for 12-Volt Outlet

Rubber Plug for Power Outlet in dashCar Cigarette Lighter PlugHammerhead part # 7.020.051 Polaris part # 208037027American Sportworks part # 14914

(04) Hammerhead Horn Button

This is the horn switch that snaps into the dash for horns.  This horn button measures roughly 1 and 1/4"This horn switch is use on the Hammerhead and Trailmaster 150cc and 250cc and 300cc Models.It is also used on the Hammerhead 80T and mid...

(05) Hammerhead Headlight Switch

Headlight switch used for single-beam headlightsHead light on/off switch for lights without hi/lo beamHammerhead part # 6.000.058 Hammerhead part # 16-0320-00 American SportWorks part # 14220

(06) Hammerhead Engine Stop Button, Kill Switch

Engine kill button that snaps into dash to shut off engine immediately when pushed.Used on most all 150cc karts and 250cc karts.  Does NOT work for R-150 or GL 150.Hammerhead part # 6.000.159 Carter Brothers part # 609-0006Hammerhead part # 6...

(07) Hammerhead Ignition Switch

Standard three wire ignition key switch. This 3wire key switch will work on several go-kart models including the SS150, new-style GTS150 w/ internal reverse, and the GTS250.This 3-wire ignition switch is also used on all American SportWorks 150cc gokarts...

(08) Hammerhead Dash Board / Switch Panel Cover

Switch panel cover for GTS150s with Forward / Neutral / Reverse (F/N/R)Switch cover panel for SS250 and GTS250.   This GTS150 dash works for GTS with keyed ignition. Switch panel cover for GTS150 / Dash for GTS150 with F/N/RFor GTS150 with push...

(09) Hammerhead Control Relay

Control Relay located in dash.  SKU# 15016 Brake interlock RelayRelay/Safety switch used on the 200 Series Light Utility VehiclesAlso used on the YS36 Electric Light Utility Vehcles by American LandMaster   Hammerhead part # 6.000...

(11) Hammerhead Power Outlet,12-Volt

12-volt Auxiliary Power Outlet that goes into dash.  OEM 12V Power Outlet for the power outlet on the dashboard panel for Hammerhead 150, 250, and 300cc buggies. This is a power outlet used for accessories with many buggy models.Car Cigarette...

(12) Hammerhead Rubber Plug

SEE DIAGRAM PAGE 33

(13) Hammerhead Horn

Horn that works on either side and is used on all TrailMaster and Hammerhead karts.Only one horn is shipped, even though some images might show two. PRICE IS PER HORN!   Hammerhead part # 6.000.174 Old Hammerhead part # 6.000.135Old Hammerehad...
