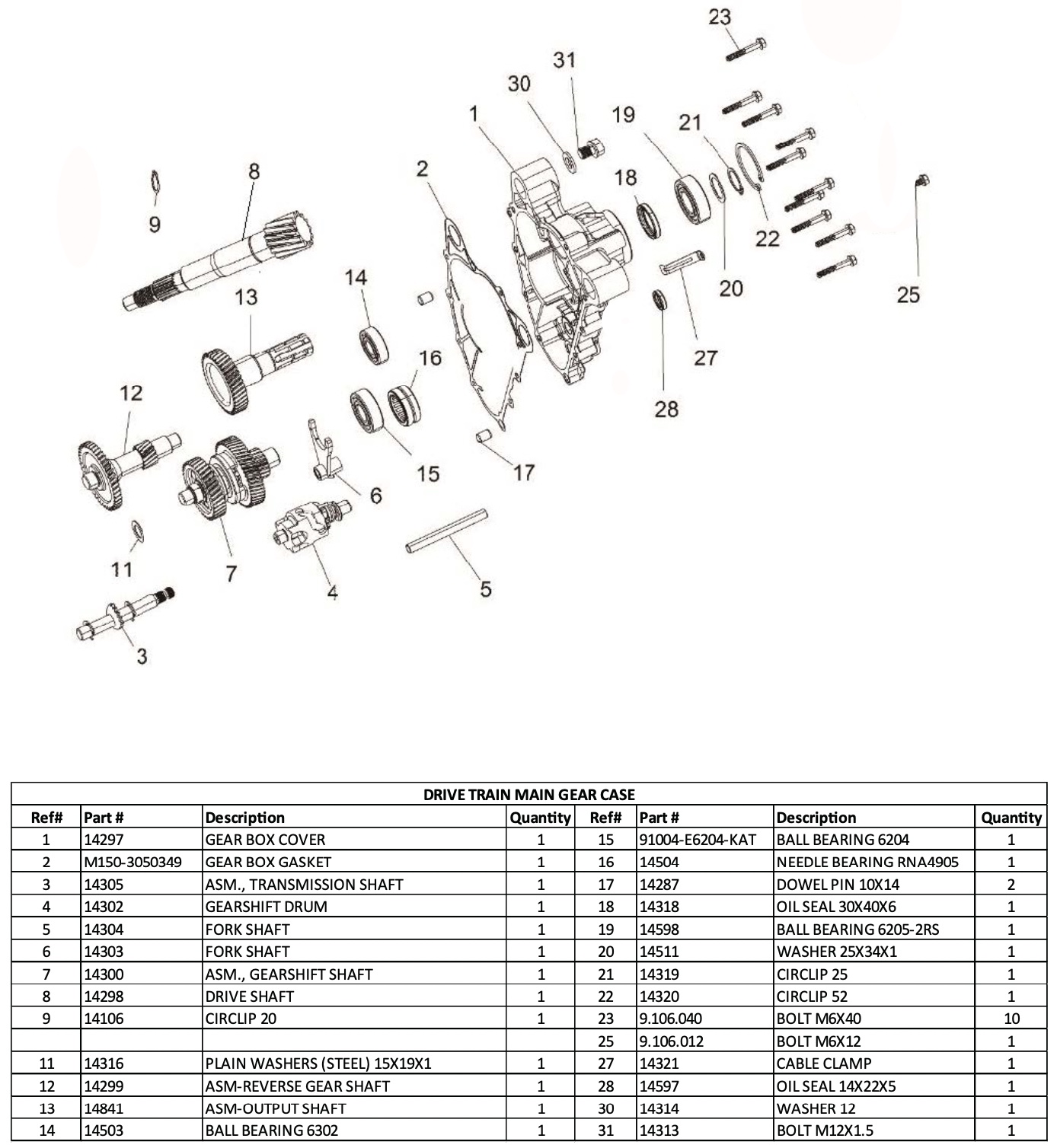

Drive Train Main Gear Case

(01) Hammerhead Cover, Transmission Housing WITH Shift Selector Hole for 150cc with F/N/R

Outer transmisison housing for 150cc vehicles with internal reverse.  This housing uses gasket, part # 14306***PLEASE NOTE THIS HOUSING HAS A HOLE FOR AN ELECTRONIC SHIFT SELECTOR******THIS HOLE IS NOT IN THE PICTURE BUT IS REPRESENTED BY...

(02) Hammerhead Transmission Case Gasket for 150cc with F/N/R

Gasket for the transmission case on Forward / Neutral / Reverse 150cc vehiclesGear Box Cover GasketGASKET-CCASE COVER RHHammerhead part # 14306Trailmaster part # 157F.12.305 Hammerhead part # M150-3050349Polaris part # 3050285Polaris part # 3050350

(03) Hammerhead Shifter Cam Shaft for 150cc with F/N/R

Shaft, Shifter Cam for 150cc models with F/N/RHammerhead part # 14305 Trailmaster part # 157F.10.440

(04) Hammerhead Shift Selector Assembly for 150cc with F/N/R

Shift Selector Assy for all 150cc with Neutral position.  Works for all Trailmaster 150cc and all American Sportworks 150cc.  Works on all FNR Hammerhead gokarts. and UTVs.Gearshift DrumHammerhead part # 14302Trailmaster part # 157F.10...

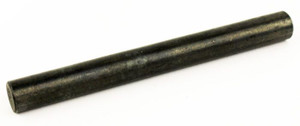

(05) Hammerhead Shift Pawl Rod / Shift Fork Rod for 150cc with F/N/R

Shift Pawl Rod for 150cc with Neutral positionFork ShaftHammerhead part # 14304 Trailmaster part # 157F.10.404

(05/20) Hammerhead Washer, M22x31x2.5 Flat Washer

Flat Washer M22 x 31 x 2.5 Flat / Adjust Washer 25Hammerhead Part # 14511Trailmaster part # 157F.10.437Hammerhead part # M150-1004013

(06) Hammerhead Pawl, Shift Selector Pawl for 150cc with F/N/R

Shift Selector Pawl for 150cc with Neutral position.  Fork ShaftShifing Fork for 150cc with F/N/RHammerhead part # 14303 Trailmaster part # 157F.10.403Polaris part # 3050289

(07) Hammerhead Shifting Gear Cluster, Shifting Shaft Assembly for 150cc with F/N/R

150cc Shift Gear Cluster Assembly that is used on all 150cc engines with D/N/R or F/N/R.  150cc Gear Shift AssemblyAssembly includes:  Shaft with fixed gear, Forward gear, Reverse gear, Dog gear, snap rings, etc.ASM, Gearshift ShaftHammerhead...

(07/23) Hammerhead Bolt, M6x40 Flange Bolt

Hammerhead Part # 9.106.040 Old TJ Power Sports Part # 9.100.640American Sportworks part # 14235Joyner Viper 150 Part # GY150-301-17-0108Joyner 250cc Part # 152MI-013009, 440604021Baja Reaction 150 (2-seat model) part # BR150S-451Baja Reaction...

(08) Hammerhead Gear, Primary / Drive Shaft for 150cc with F/N/R

Drive shaft that the rear drive clutch (m150-1031000) is mounted on for 150cc vehicles with Forward / Neutral / Reverse Drive shaftHammerhead part # 14298 Trailmaster part # 157F.10.401Polaris part # 3050291

(09) Hammerhead Circlip, M20 Circlip, Snap Ring

m20 circlip on primary gear drive shaft (part # 14298)Hammerhead part # 14106 Trailmaster part # GB/T984.1Φ20

(11) Hammerhead Spacer, M15 Inner Gear Spacer

Spacer for gear custer (part # 14300) / Adjust Washer 15M15 Inner Gear Spacer for 150cc with Neutral positionM15x19x1 Steel WasherHammerhead part # 14316 Trailmaster part # 157F.10.427

(12) Hammerhead Gear, Secondary / Drive Shaft for 150cc with F/N/R

Secondary Drive Gear Shaft / Reverse Shaft Assembly / Transmission Shaft AssemblyReverse Shaft Assembly ASM-Reverse Gear ShaftHammerhead part # 14299Trailmaster part # 157F.10.411

(13) Hammerhead Final Drive Shaft Gear for 150cc with F/N/R

Final Drive Shaft Transmission Gear for 150cc D/N/R engine/transmissionASM-Output Shaft, 14841Output shaft: chain sprocket connects to this part.  40 TeethNOTE:  Only for single row sprocket (150cc F/N/R gokarts).  NOT for...

(13/30) Hammerhead Washer, M12 Washer for Fill / Drain Bolt

Fill / Drain Bolt Washer 12 for transmission fill bolt14314, Gasket, Trans Drain Plug - 150cc Hammerhead part # 14314American Ladnmaster part # 14314Trailmaster part # GB97.1 12

(14) Hammerhead Bearing 6302, 15x42x13 Transmission Bearing for 150cc with F/N/R

15 x 42 x 13 Bearing 6302 BALL BEARING 6302 Hammerhead part # 14503 Trailmaster part # GB/T276 6302American Landmaster part # 14503Dongfang DF200GKA Part # 1.00.01.6302Polaris part # 3050342

(14/31) Hammerhead Bolt, M12x1.5 Transmission Fill / Drain Bolt

m12 x 1.5 Transmission Fill/Drain Bolt for 150cc.  Hammerhead part # 14313Hammerhead part # M150-1003018American Landmaster part # 14313American Landmaster part # 14288Trailmaster part # 152.11.205

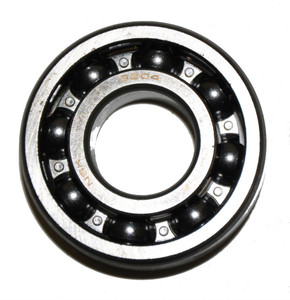

(15/20) Hammerhead Ball Bearing 6204

E6204 Radial Ball Bearing BALL BEARING 6204Hammerhead part # 91004-E6204-KAT Hammerhead part # 82407Trailmaster part # GB/T276 6204  Polaris part # 3050323

(16) Hammerhead Bearing RNA4905, 30x42x17 Needle Bearing Transmission for 150cc with F/N/R

30x42x17 Bearing RNA4905, Needle Rolling Bearing RNA4905Needle bearing RNA4905Hammerhead part # 14504 Trailmaster part # GB/T5801 RNA4905Polaris part # 3050297

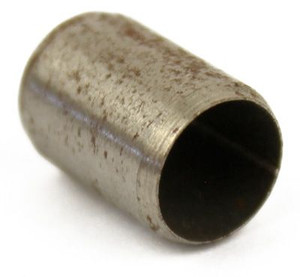

(17) Hammerhead Pin - M10x14 Dowel Pin

Dowel Pin, m10 X 14 Size: M10 (Metric 10mm diameter center opening) Height: 14mm Type: Dowel Pin Price is per piece Hammerhead part # 14287Hammerhead part # 152mi-021005Trailmaster part # 157F.11.517

(18) Hammerhead Seal, M30x40x6 Oil Seal

m30x40x6 SealHammerhead part  # 14318Trailmaster part # 157F.12.103Polaris Part # 3050299

(19) Hammerhead Bearing 6205 Sealed, Transmission Bearing for 150cc with F/N/R

6205 Sealed Bearing for 150cc / Bearing 6205-2RZ Bearing 6205-2RSHammerhead part # 14598 Trailmaster part # GB/T276 6205-2RZHammerhead part # 6205LLU

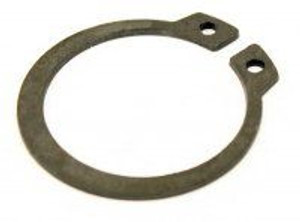

(21) Hammerhead Circlip, M25 Circlip / Snap Ring

Hammerhead part # 14319 Trailmaster part # GB/T894.1 025

(22) Hammerhead Circlip, M52 Circlip / Snapring

Circlip 52Hammerhead part# 14320 Trailmaster part # GB/T893.1 052Polaris part # 3050303
