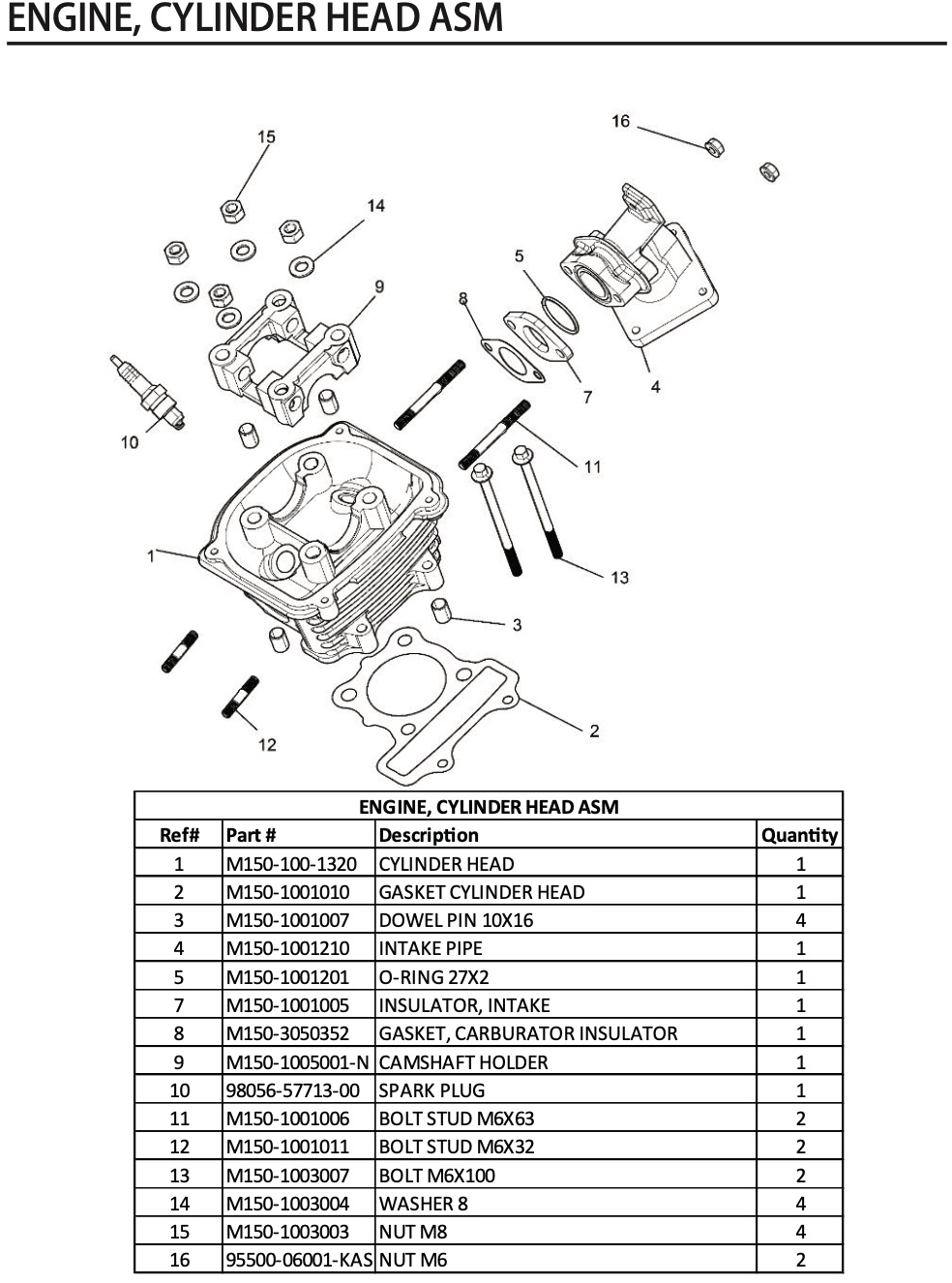

Engine, Cylinder Head Assembly

(01)-Hammerhead Cylinder Head Assembly with Valves for 150cc, GY6 - M150-100-1320-C

This is a 150cc head assy. complete with valves already installed and just needs to be bolted on.  This fits engines that the valve cover is held on by 4 bolts.This is a true plug and play as it is ready to go as is.  Fits all Hammerhead 150cc...

(02)-Hammerhead Cylinder Head Gasket, Seal for 150cc, GY6 - M150-1001010

Cylinder head gasket for 150ccWorks on all 150cc Hammerhead models as well as American SportWorks, Trailmaster gokarts and Trailmaster 150cc UTVs, etc... GASKET-CYLINDER HEADHammerhead part # m150-1001010American Sportworks part # 14255Carter Brothers...

(03)-Hammerhead Pin, M10x16 Dowel Pin for 150cc, GY6 - M150-1001007

10 x 16 Dowel Pin Size: M10 (Metric 10mm diameter center opening) Height: 16mm Type: Dowel Pin Hammerhead Part # M150-1001007, 152MI-011007Polaris part # 3050047American Sportworks Part # 14266Baja Part #  BR150S-360, BR150S-372, BR150S-445Baja...

(04)-Hammerhead Intake Pipe Manifold for 150cc, GY6 - M150-1001210

Intake manifolds should be inspected and replaced if leaking, cracked, or showing abnormal wear. An air leak through the intake manifold significantly affects the air/fuel mixture, usually resulting in degraded performance and a lean mixture that can...

(05)-Hammerhead O-Ring 27x2 for 150cc, GY6 - M150-1001201

27 x 2 O-ring O-RING-THROTTLE BODY,2X27Hammerhead part # M150-1001201 Polaris part # 5416176American Sportworks Part # 14261Baja Reaction 150 (2-seater model) Part # BR150S-393   Baja Dune 150 Part # DN150-251Carter Bros 150cc Vehicles...

(07)-Hammerhead Intake Pipe Insulator, Intake Pipe Spacer for 150cc, GY6 - M150-1001005

150cc Intake Spacer This is the hard plastic spacer goes below the stock intake manifold on GY6 motors.Insulator IntakeHammerhead part # M150-1001005 Polaris part # 3050048Baja Reaction 150 (2-seats) - BR150S-349Baja Reaction 150 (Bench Seat) -...

(08)-Hammerhead Intake Pipe Spacer Gasket for 150cc, GY6 - M150-3050352

150cc Intake Pipe Spacer Gasket / 150cc Gasket Carburetor InsulatorGasket-Carb InsulatorThis gasket goes between the cylinder head and the intake manifold on GY6 motors.Hammerhad part # M150-1001004Hammerhead part # M150-3050352Polaris part #...

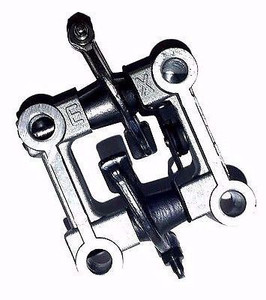

(09)-Hammerhead Camshaft Seat Holder With Rocker Arms for 150cc, GY6 - M150-1005001-N

150cc Camshaft Holder with Rocker Arms Assembly14356 Cap, Camshaft BRG - 150ccOur Cam holder comes with rocker arms 14356 CAP, CAMSHAFT BRG - 150CC CAMSHAFT HOLDER Hammerhead part # M150-1005001-NPolaris part # 3050050 (COMP)American Landmaster part #...

(10)-NGK Spark Plug CR7HSA for 150cc - 98056-57713-00 replaces 152.07.200, 50304, 3050051, 513-1077, C7HSA, 4549, 380108

This high quality NGK spark plug is the standard spark plug for your GY6 150cc engine.It's best to keep a few of these on hand for spares or carburetor tuning.When rejetting your carburetor, you'll want to use these to check to see if your fuel mixture...

(11)-Hammerhead Bolt, M6x50 Intake Stud for 150cc, GY6 - M150-1001006 replaces 152.11.202, 14264, 3050052

150cc intake stud m6 x 50m6 x 50 intake stud boltThis bolt (you need 2) mounts the intake manifold to the cylinder head. Commonly found in the Cylinder Head Assembly section of many parts manuals. Size: M6 (Metric 6mm diameter) Length: 63mm Thread...

(12)-Hammerhead Bolt, M6x18 Exhaust Stud / Bolt for 150cc, GY6 - M150-1001011 replaces 152.11.201, 14263

150cc Exhaust Stud / m6 x18 stud for exhaust Exhaust port stud bolts for GY6 engines. Works with 125 or 150cc stock engines that use M6 exhaust stud bolts.  Size: M6 (Metric 6mm diameter) Length: 32mm Thread Pitch: 1mm Type: Stud (no head) Price is...

(13/16)-Hammerhead Bolt, M6x100 Flange Bolt for 150cc, GY6 - M150-1003007 replaces GB/T16674 M6x100, 14338, 50087

M6 x 100 Cylinder Head Bolt / M150-1003007, FLANGE BOLT M6X100 for CYLINDER HEAD Size: M6 (Metric 6mm diameter) Length: 100mm Thread Pitch: 1mm Type: Flanged Price is per bolt BOLT M6X100 Hammerhead part # M150-1003007Polaris part #...

(14)-M150-1003004 M150-1003004, WASHER ***SPECIAL ORDER***

(14)-M150-1003004 M150-1003004, WASHER ***SPECIAL ORDER***

(15)-M150-1003003 M150-1003003, FLANGE NUT M8 **SPECIAL ORDER***

(15)-M150-1003003 M150-1003003, FLANGE NUT M8 **SPECIAL ORDER***

(16)-Hammerhead Nut, M6 Flanged ZN.D Nut - 95500-06001-KAS replaces 50024

FLANGE NUT M6-ZN. DHammerhead part # 95500-06001-KASAmerican Landmaster part # 50024
