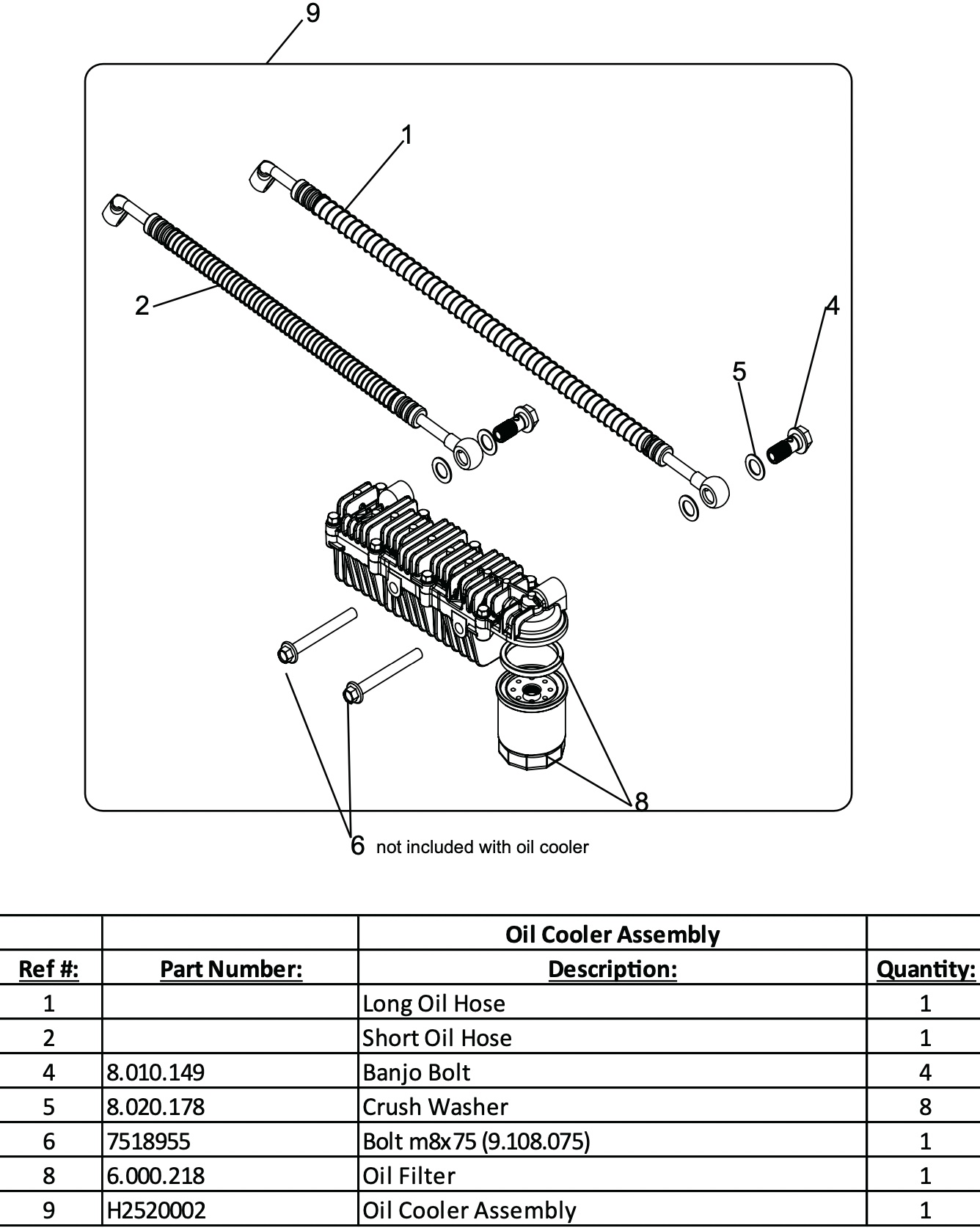

Oil Cooler Assembly

(01) Hammerhead Oil Line / Oil Hose, 540mm for 150cc Oil Cooler

Oil Cooler Line for oil cooler on the 150cc units with an external oil cooler.  This is the longer line and measures roughly 21 inches.Hammerhead part # 6.000.216

(02) Hammerhead Oil Line / Oil Hose, 400mm for 150cc Oil Cooler

Oil Cooler Line for external oil cooler on the 150cc units with an external oil cooler.  This is the shorter line and measures roughly 16 inches.Hammerhead part # 6.000.217

(04) Hammerhead Bolt - M12x28 Banjo Bolt for Oil Line

Banjo Bolt for Oil Cooler Lines Size: M12 (Metric 12mm diameter) Length: 28mm Thread Pitch: Type: Banjo Price is per bolt Hammerhead part # 8.010.149American Landmaster part # 14537

(05) Hammerhead Washer, M10 Copper Crush Washer for Oil Cooler

Copper Crush Washer also referred to as a "gasket " for the oil cooler in older parts manauls.M10Hammerhead part # 8.020.178American Landmaster part # 14538

(06) Hammerhead Bolt, M8x75 Allen Head Bolt

M8 * 75 Allen Head Bolt for oil cooler assembly Size: M8 (Metric 12mm diameter) Length: 75mm Thread Pitch: 1.25mm Type: Flange Price is per bolt Hammerhead part # 9.108.075Polaris part # 7518955

(08) Hammerhead Oil Filter for 150cc

150cc Oil Filter used on all vehicles that have an external oil cooler.  All 2017 GTS 150s and newer use an oil filter.  Comes with part # 7.020.064R-150 and LM200, TW200 oil filter**only units with external oil coolers have oil filters**This...

(09) Hammerhead LE150 Oil Cooler Assembly

Oil-Cooler Assembly comes with oil cooler, oil lines and oil filter for LE 150.   ***THIS IS ONLY FOR THE LE 150***
