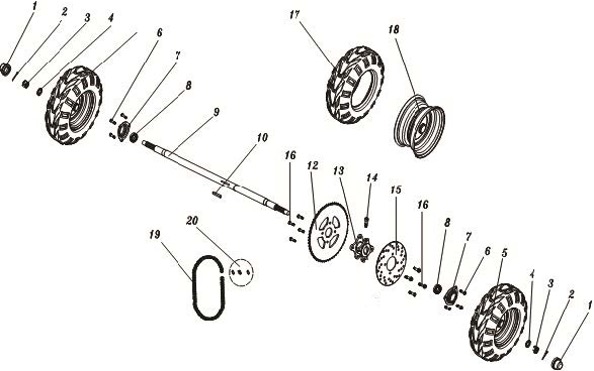

| Ref. No. |
Part # |
Description |
Qty |
| 1 |
7.020.039 |
HUB COVER, RR |
2 |
| 2 |
9.500.330 |
COTTER PIN |
2 |
| 3 |
9.800.016 |
M16X1.5 CASTLE NUT |
2 |
| 4 |
9.300.016 |
WASHER |
2 |
| 5 |
6.000.316 |
LEFT REAR TIRE/ WHEEL ASSEMBLY |
1 |
| 6 |
9.108.016 |
FLANGE BOLT M8X1.25.X16 |
6 |
| 7 |
6.000.195 |
AXLE COVER |
2 |
| 8 |
9.030.018 |
BEARING 6005 |
2 |
| 9 |
20-1101-00 |
REAR AXLE |
1 |
| 10 |
8.010.138 |
AXLE HUB KEYWAY |
1 |
| 11 |
6.000.315 |
RIGHT REAR TIRE/WHEEL ASSEMBLY |
1 |
| 12 |
23-1109-01 |
REAR SPROCKET (55T) |
1 |
| 13 |
8.010.202-M |
REAR AXLE SPROCKET/DISC HUB |
1 |
| 14 |
9.129.816 |
ALLEN HEAD BOLT M8X1.25X10 |
1 |
| 15 |
8.010.201 |
BRAKE DISC, RR |
1 |
| 16 |
9.108.020 |
FLANGE BOLT M8X20 |
8 |
| 17 |
7.020.078 |
REAR TIRE (16X7-8) |
2 |
| 18 |
6.000.333-BK |
8" REAR RIM (black) |
2 |
| 19 |
23-1103-01 |
CHAIN(420HX60L) |
1 |
| 20 |
6.100.324 |
MASTER LINK |
1 |
