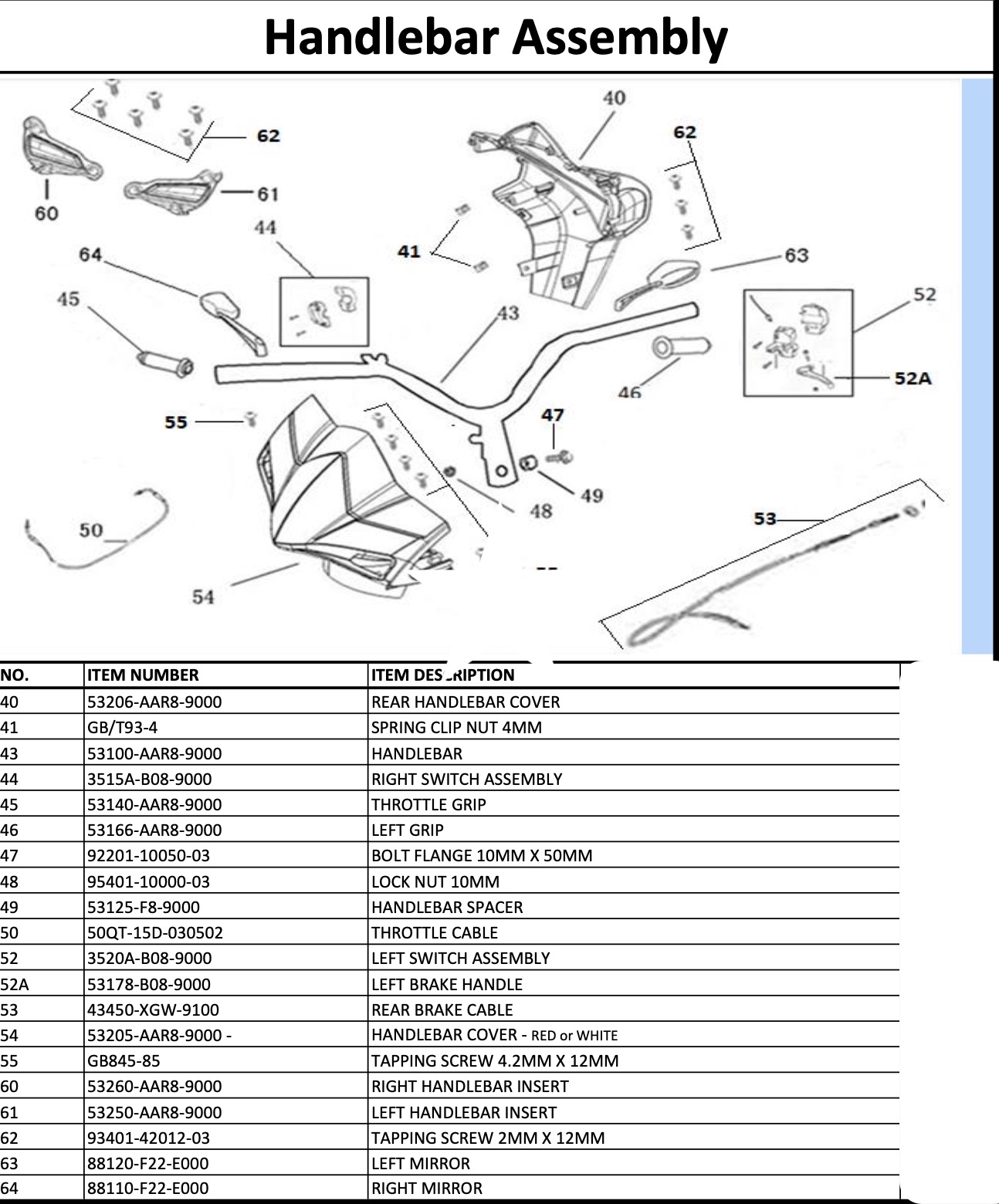

Handlebar Assembly

(40) Wolf Blaze 50 Rear Handlebar Cover

Rear Handlebar Cover Fits:  Blaze 50cc / Blaze II Plastic

(41) Wolf Islander Spring Clip Nut (4mm)

SPRING CLIP NUT 4MM

(43) Wolf Blaze 50 Handle Bar Assembly

Fits: Blaze 50cc   Overall length: 25 inches Rise: 4 inches Pullback: 2-1/2 inches Outer diameter: 22mm

(44) Wolf Blaze 50 Right Switch Assembly

Connector type: square 3 pin Includes yellow start switch and red kill swich. Wire length: 13 cm (5-1/4") Diameter bar fitment: 22 mm Threaded for 8 mm mirrors. Fits: V50/V150, Blaze 50cc and Blaze 150cc

(45) Wolf Blaze 50 Throttle Grip

Length: 136mmInner diameter: 23mmColor: Black/RedTexture type: Thick red lines and small diamonds Fits: Blaze/Blaze II

(46) Wolf Blaze 50 Left Grip

Length: 136mmInner diameter: 23mmColor: Black/RedTexture type: Thick red lines and small diamonds Fits: Blaze/Blaze II

(47) WOLF SCOOTER Flange Bolt 10mm x 50mm

Flange Bolt 10 mm x 50 mmThread: M10x1.50   Flange Bolt 10mm FOR WOLF BRAND SCOOTER RX 50 MODEL/Blaze 50

(48) Wolf Blaze 50 Lock Nut 10mm

Lock Nut 10 mmThread: M10x1.5Diameter of flange: 19 mmWrench size: 14 mm   Fits: Any scooters using this sized lock nut

(49) Wolf Blaze 50 Handle Bar Spacer

Handlebar SpacerOuter Diameter: 21mmInner Diameter: 10.5mm   Fits: V50/V150, Blaze 50cc, RUGBY

(50) Wolf Blaze 50 Throttle Cable

Length: 136mmInner diameter: 23mmColor: Black/RedTexture type: Thick red lines and small diamonds Fits: Blaze/Blaze II

(52) Wolf Blaze 50 Left Switch Assembly

Left Switch Assembly with Brake Lever Horn switch Turn signal/hazard switch Hi/Low beam headlight switch Includes brake light switch Fits: V50/V150, Blaze 50cc

(52A) Wolf Blaze 50 Left Brake Handle

Available colors: Black Overall Length: 8 inches Mounting Inner Diameter: 8 mm Fits: Blaze 50cc / Blaze II 150cc / V-50 / V-150

(53) Wolf Blaze 50 Rear Brake Cable

Rear Brake CableSleeve Length: 69 InchesOverall Length: 77 1/4 Inches Fits: Islander/Blaze 50

(54) Wolf Blaze 50 Handle Bar Cover

Handle Bar Cover - Blaze Fits: Blaze 50cc / Blaze II 150cc Plastic Handle Bar Cover - Blaze

(55) Wolf BlazeTapping Screw 4.2mm x 16mm

Tapping Screw Thread diameter: 4.2 mm Head diameter: 11 mm Length from bottom of head: 16 mm Overall length (incl head): 18 mm   Fits: Universal

(60) Wolf Blaze Right Handlebar Insert

Right Handlebar Insert   Fits: Blaze

(61) Wolf Blaze Left Handlebar Insert

Left Handlebar Insert   Fits: Blaze

(62) WOLF Blaze 50 Tapping Screw 2mm x 12mm

Tapping Screw Thread diameter: 3.5 mm Head diameter: 5 mm Length from bottom of head: 12 mm Overall length (incl head): 14 mm

(63) Wolf Blaze 50 Left Mirror

Fits: Rugby, V50/V150, Blaze/Blaze2 Overall length: 12 inches Mirror width: 6-1/4 inches Color: Black Thread: M8x1.25mm

(63/64) Wolf Blaze Left & Right Mirrors

Fits: Rugby, V50/V150, Blaze/Blaze2 Overall length: 12 inches Mirror width: 6-1/4 inches Color: Black Thread: M8x1.25mm
