BMS UTV Plow Mounts

UTV Front-Mount Plow Mount:

• KFI UTV Front-Mount Plow Mount - #SEE CHART BELOW

NOTE: Mounts listed below will use the new style #106300 tubes.

UTV Model Specific Plow Mount Specifications:

• 100% MADE IN USA
• Front-Mount System
• Plate constructed from Grade 50 Steel
• All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
• All Plow tabs are tapered to help reduce hang-ups while trail riding
• Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Satisfaction guaranteed

  BMS UTV's	Year	Model Specific Mount
  Colt 700 LSX 2S	2021	106420
  Colt 700 LSX 4S	2021	106420
  Ranch Pony 700 EFI 2S	2021	106420
  Ranch Pony 700 EFI 4S	2021	106420

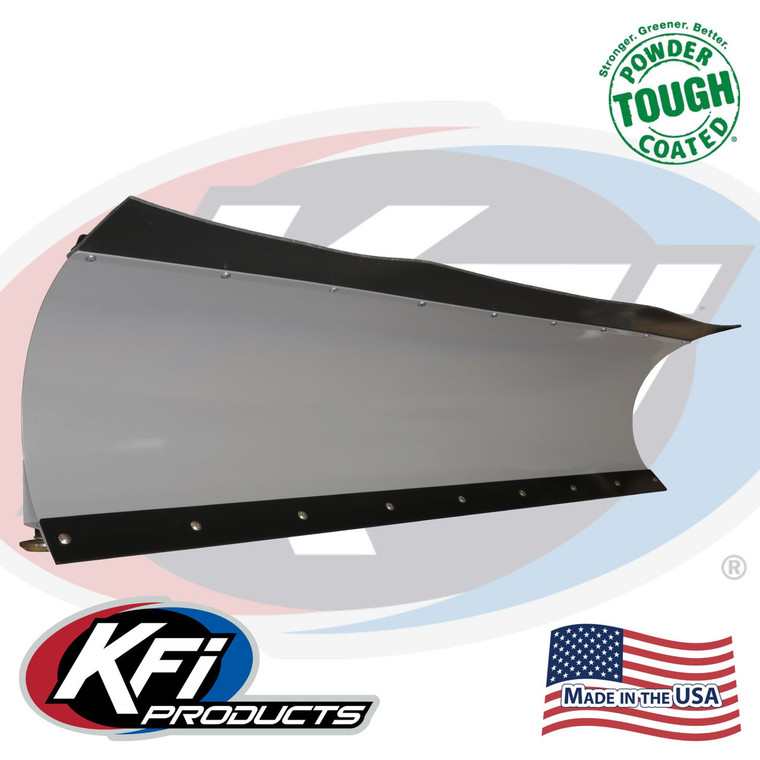

Straight Blade Specifications:

• 100% MADE IN USA
• Pushes snow straight ahead or to the sides up to 25 degrees
• Added gussets for the wider width
• The 66" & 72" blades include a 7" high 2-ply top rubber flap
• Measures 16” Vertical blade face height with an approximate 21” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Blade Constructed of 11 ga steel
• 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• 2-Year KFI Warranty

NEW PRO 2.0 UTV PUSH TUBE - #106300

• Improved Manufacturing
• Easier Install For All Plow Accessories
• Added 2.5" Of Overall Length
• Works With All KFI Plows
• Front Mount Design with 30"+ of lift height
• 100% MADE IN USA
• Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
• Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
• 6" Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 Degrees
• Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• 2-Year KFI Warranty

KFI UTV Plow Actuator

Specifications:

• Specifically designed for use with KFI UTV Tubes
• KFI Electric (12 volt) Over Hydraulic Cylinder
• 1 Year KFI Limited Warranty
• Does NOT include the Tube System, Bracket Kit, or Wire Harness #105940 (Purchase separatly)

10-5895 Actuator Mount Bracket for 10-5635 Push tube with Tires

10-6430 (DISCONTINUED)

10-6305 Actuator Brackets for 10-6300 push tube with tires

10-6335 Actuator Brackets for 10-6300 push tube with tracks

10-6330 Tube Extension for all Track machines
