Hisun UTV Plow Mounts

UTV Front-Mount Plow Mount:

• KFI UTV Front-Mount Plow Mount - #SEE CHART BELOW

NOTE: Mounts listed below will use the new style #106300 or old style #105635 UTV push tubes.

UTV Model Specific Plow Mount Specifications:

• 100% MADE IN USA
• Front-Mount System
• Plate constructed from Grade 50 Steel
• All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
• All Plow tabs are tapered to help reduce hang-ups while trail riding
• Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Satisfaction guaranteed

  Hisun UTV's	Year	Model Specific Mount
  Axis 500	'20-22	106420
  Axis 700	2022	106420
  HS400	'15-16	106420
  HS500	'15-16	105555
  HS700	'15-16	105555
  HS700 Crew	'15-16	105555
  HS750 Crew	2016	105555
  Sector 450	'15-22	106420
  Sector 550	'15-18	106420 / Disc 106245
  Sector 550	'19-22	106420
  Sector 750	'15-17	106420 / Disc 106245
  Sector 750 Crew	'15-17	106420 / Disc 106245
  Sector 750	'18-22	106420
  Sector 750 Crew	'18-22	106420
  Sector 1000	'15-22	106420
  Sector 1000 Crew	'17-22	106420
  Sector E1	'16-22	106420

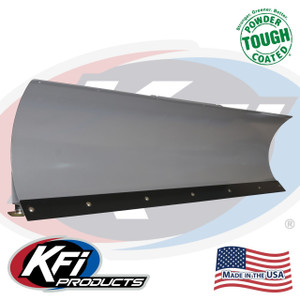

Straight Blade Specifications:

• 100% MADE IN USA
• Pushes snow straight ahead or to the sides up to 25 degrees
• Added gussets for the wider width

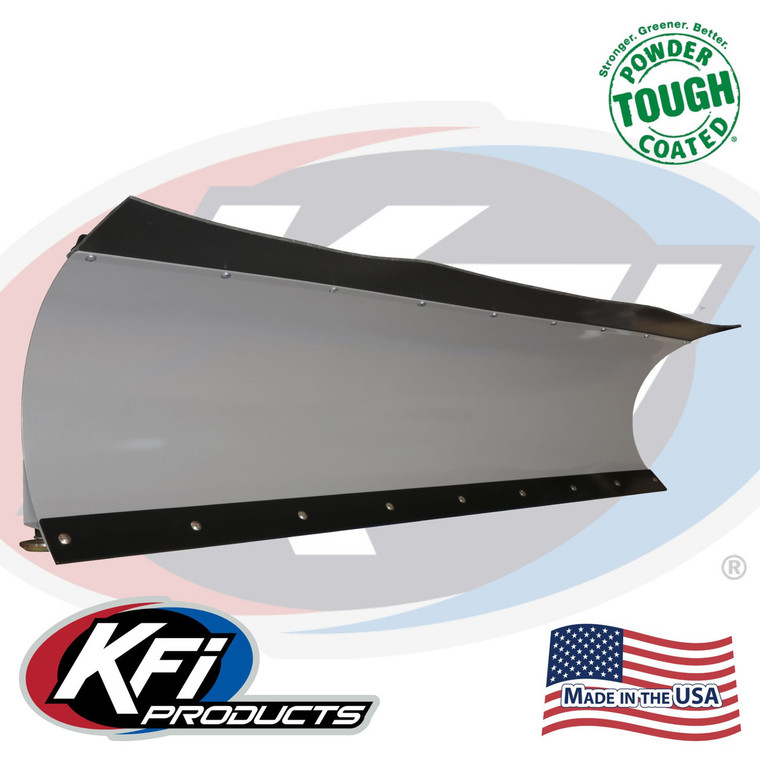

• The 66" & 72" blades include a 7" high 2-ply top rubber flap
• Measures 16” Vertical blade face height with an approximate 21” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Blade Constructed of 11 ga steel
• 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• 2-Year KFI Warranty

NEW PRO 2.0 UTV PUSH TUBE - #106300

• Improved Manufacturing
• Easier Install For All Plow Accessories
• Added 2.5" Of Overall Length
• Works With All KFI Plows
• Front Mount Design with 30"+ of lift height
• 100% MADE IN USA
• Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
• Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
• 6" Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 Degrees
• Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• 2-Year KFI Warranty

KFI UTV Plow Actuator

Specifications:

• Specifically designed for use with KFI UTV Tubes
• KFI Electric (12 volt) Over Hydraulic Cylinder
• 1 Year KFI Limited Warranty
• Does NOT include the Tube System, Bracket Kit, or Wire Harness #105940 (Purchase separatly)

10-5895 Actuator Mount Bracket for 10-5635 Push tube with Tires

10-6430 (DISCONTINUED)

10-6305 Actuator Brackets for 10-6300 push tube with tires

10-6335 Actuator Brackets for 10-6300 push tube with tracks

10-6330 Tube Extension for all Track machines
