Product Description
Polaris General
UTV Front-Mount Plow Mount:
- KFI UTV Front-Mount Plow Mount - #SEE CHART BELOW -
NOTE: Mounts listed below will use the new style #10-6300
UTV Model Specific Plow Mount Specifications:
- 100% MADE IN USA
- Front-Mount System
- Plate constructed from Grade 50 Steel
- All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
Xpedition Year Part Number Xpedition ADV 2024 106615 Xpedition ADV 5 2024 106615 Xpedition XP 2024 106615 Xpedition XP 5 2024 106615 Fitment is based on stock machines. Installing a different bumper can affect fitment of this mount.

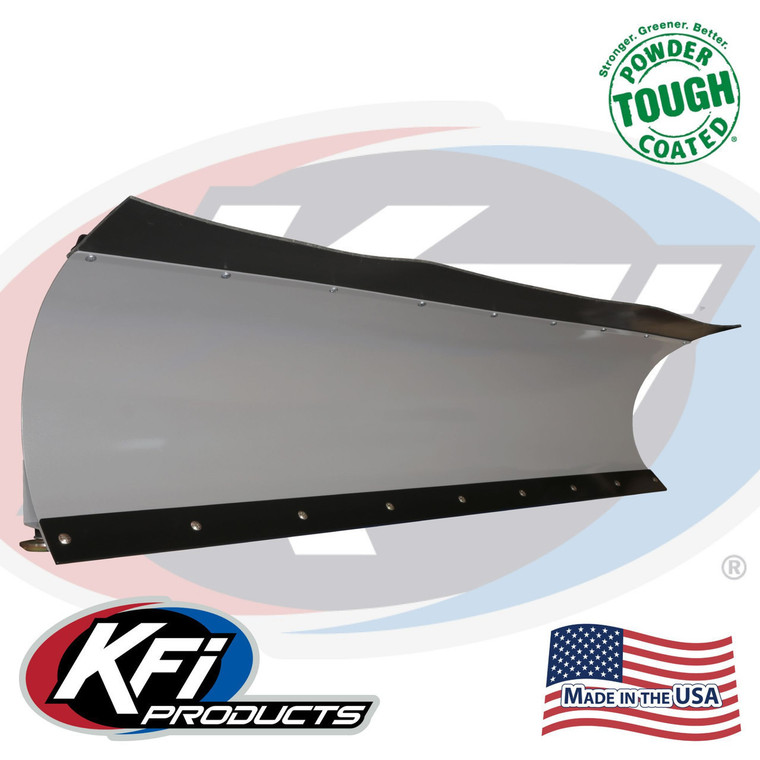

Straight Blade Specifications:
- 100% MADE IN USA
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gussets for the wider width
- The 66" & 72" blades include a 7" high 2-ply top rubber flap
- Measures 16” Vertical blade face height with an approximate 21” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Blade Constructed of 11 ga steel
- 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- 2-Year KFI Warranty
NEW PRO 2.0 UTV PUSH TUBE - #106300
- Improved Manufacturing
- Easier Install For All Plow Accessories
- Added 2.5" Of Overall Length
- Works With All KFI Plows
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter POM Injection Molded Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- 2-Year KFI Warranty
KFI UTV Plow Actuator
Specifications:
- Specifically designed for use with KFI UTV Tubes
- KFI Electric (12 volt) Over Hydraulic Cylinder
- 1 Year KFI Limited Warranty
- Does NOT include the Tube System, Bracket Kit, or Wire Harness #105940 (Purchase separatly)
10-5895 Actuator Mount Bracket for 10-5635 Push tube with Tires
10-6430 (DISCONTINUED)
10-6305 Actuator Brackets for 10-6300 push tube with tires
10-6335 Actuator Brackets for 10-6300 push tube with tracks
