Product Description

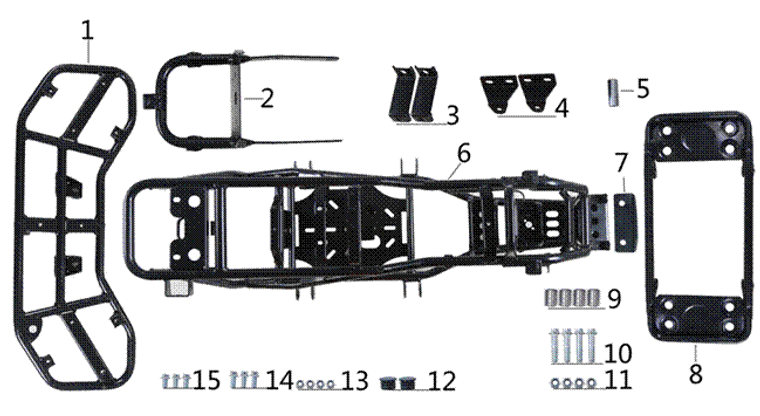

Ref. No. | Part # | Description |
1 | 602433 | Off Road Vehicle Rear Rack for MudHawk 6 |
2 | 602435 | Rear Lifter for MudHawk 6 |
3 | 602446 | Face Panel Bracket for MudHawk 6 |
4 | 602443 | Engine Mount Bracket for MudHawk 6 |
5 | 112917 | Engine pylon spacer; φ20×φ8.5×6 |
6 | 602425 | Main Frame for MudHawk 6 |
7 | 602455 | Front Bumper Connection Plate for JAGUAR |
8 | 602429 | Floor Plate |
9 | 101355 | Bushing; 10x30x35 |
10 | 105015 | Hex Flange Bolt; M10×55×1.25 |
11 | 105254 | Locknut; M10×1.25 |
12 | 102415 | Metal Tube Rubber Cap; ¢22 |
13 | 105277 | Locknut; M8 |
14 | 105194 | Hex Flange Bolt; M8x16 |
15 | 105204 | Hex Flange Bolt; M8x20 |
