  • Odes Raider 800 (Front Suspension)

    • Odes Raider 800 (Front Suspension)

    SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

    (No reviews yet) Write a Review
    Condition:
    New

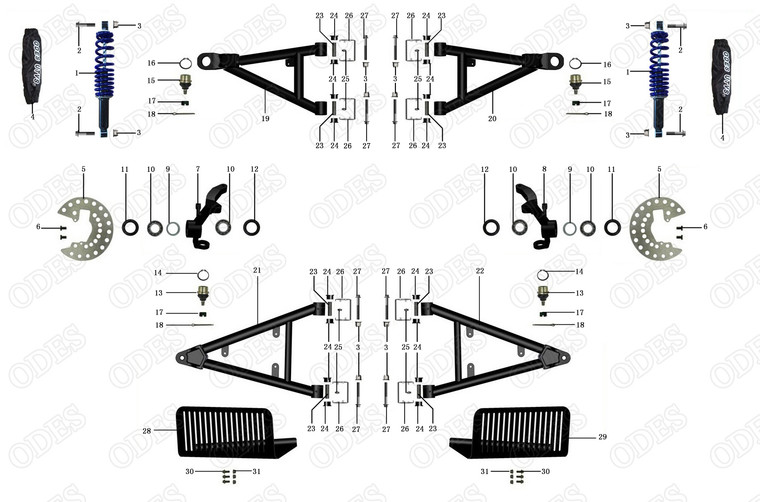

    Product Description

    Front suspension system

    Item No.
    English name
    Specification
    Quantity
    Warranty period
    1 Front shock(blue)   2 12 Months (Unlimited Miles) 保修期：12个月（无公里数限制）
    2 Hexagon flange bolt M10x55x1.25 4 Not Covered Under Warranty 不在保修范围内
    3 Hexagon flange locking nut M10x1.25 4 Not Covered Under Warranty 不在保修范围内
    4 Protective cover(ODES UTVS) 380×320mm 2 Not Covered Under Warranty 不在保修范围内
    5 Front disc brake guard board   2 6 Months (Unlimited Miles) 保修期：6个月（无公里数限制）
    6 hexagon bolt M6x12 4 Not Covered Under Warranty 不在保修范围内
    7 Steering Knuckle, drive side   1 12 Months (Unlimited Miles) 保修期：12个月（无公里数限制）
    8 Steering Knuckle, passenger side   1 12 Months (Unlimited Miles) 保修期：12个月（无公里数限制）
    9 Steering knuckle spacer   2 Not Covered Under Warranty 不在保修范围内
    10 Bearing(double sealed) 6006 4 Not Covered Under Warranty 不在保修范围内
    11 Oil seal 38x55x7 2 Not Covered Under Warranty 不在保修范围内
    12 Oil seal 38x55x8 2 Not Covered Under Warranty 不在保修范围内
    13 Ball joint ￠32 2 12 Months (Unlimited Miles) 保修期：12个月（无公里数限制）
    14 Snap ring ￠32 2 Not Covered Under Warranty 不在保修范围内
    15 Ball joint ￠34 2 12 Months (Unlimited Miles) 保修期：12个月（无公里数限制）
    16 Snap ring ￠34 2 Not Covered Under Warranty 不在保修范围内
    17 Castle nut M12x1.25 4 Not Covered Under Warranty 不在保修范围内
    18 Cotter Pin φ3.2x25 4 Not Covered Under Warranty 不在保修范围内
    19 Front uppper A-arm, driver side   1 12 Months (Unlimited Miles) 保修期：12个月（无公里数限制）
    20 Front uppper A-arm, passenger side   1 12 Months (Unlimited Miles) 保修期：12个月（无公里数限制）
    21 Front lower A-arm, driver side   1 12 Months (Unlimited Miles) 保修期：12个月（无公里数限制）
    22 Front lower A-arm, passenger side   1 12 Months (Unlimited Miles) 保修期：12个月（无公里数限制）
    23 A-arm inner sleeve   8 Not Covered Under Warranty 不在保修范围内
    24 A-arm nylon sleeve   16 Not Covered Under Warranty 不在保修范围内
    25 Grease nipple(white)   8 Not Covered Under Warranty 不在保修范围内
    26 A-arm nylon sleeve retainer   8 Not Covered Under Warranty 不在保修范围内
    27 Hexagon flange bolt M10x70x1.25 8 Not Covered Under Warranty 不在保修范围内
    28 Front lower A-arm guard board, driver side   1 6 Months (Unlimited Miles) 保修期：6个月（无公里数限制）
    29 Front lower A-arm guard board, passenger side   1 6 Months (Unlimited Miles) 保修期：6个月（无公里数限制）
    30 Hexagon flange bolt M6x20 6 Not Covered Under Warranty 不在保修范围内
    31 Hexagon flange locking nut M6 6 Not Covered Under Warranty 不在保修范围内
