Okai E10 Pro - EA10c Parts Schematics
OkaiCALL TO ORDER (320)-358-1994
(No reviews yet)
Write a Review
Okai
Okai E10 Pro - EA10c Parts Schematics
| HANDLEBARS/CONTROLS | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00037-05-00 | LEFT HANDLEBAR GRIP | GREY | 1 | Pc. |  |
$18.00 |
| 2 | B00036-04-00 | BRAKE PERCH W/ LEVER AND BELL | 1 | Pc. |  |
$39.00 | |
| 3 | B00077-08-00 | POWER BUTTON | 1 | Pc. |  |
$18.00 | |
| 4 | B00078-08-00 | ELECTRONIC DISPLAY | 1 | Pc. |  |
$104.00 | |
| 5 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7_12_A2-70_SUS304_本色_NYLOK | 4 | Pcs. | $1.50 | ||
| 6 | B00037-04-00 | BRAKE PERCH W/ LEVER | 1 | Pc. |  |
$33.00 | |
| 7 | B00038-05-00 | THROTTLE | 1 | Pc. |  |
$30.00 | |
| 8 | B00039-05-00 | RIGHT HANDLEBAR GRIP | GREY | 1 | Pc. |  |
$13.00 |
| 9 | 六角单头螺柱 Hexagonal single head stud |
M4_P0.7_10_碳钢_镀镍 | 4 | Pcs. | $1.50 | ||
| 10 | B00079-08-00 | DISPLAY COVER | 1 | Pc. |  |
$11.00 | |
| 11 | 半圆头内六角螺丝 Half round head hexagonal screws |
M6_P1.0_16_A2-70_SUS304_本色_NYLOK_φ6 | 5 | Pcs. | $1.50 | ||
| 12 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7_16_A2-70_SUS304_本色_NYLOK_φ7平垫 | 1 | Pc. | $1.50 | ||
| 13 | B00018-03-00 | HEADLIGHT | 1 | Pc. |  |
$45.00 | |
| 14 | 半圆头内六角螺丝 Half round head hexagonal screws |
M4_P0.7_8_A2-70_SUS304_本色_NYLOK_Ø7 | 1 | Pc. | |||
| 15 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7_10_A2-70_SUS304_本色_NYLOK | 1 | Pc. | |||
| 16 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7_12_A2-70_SUS304_本色_NYLOK | 1 | Pc. | |||
| 17 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M3_P0.5_8_10.9_40Cr_镀锌 | 5 | Pcs. | |||

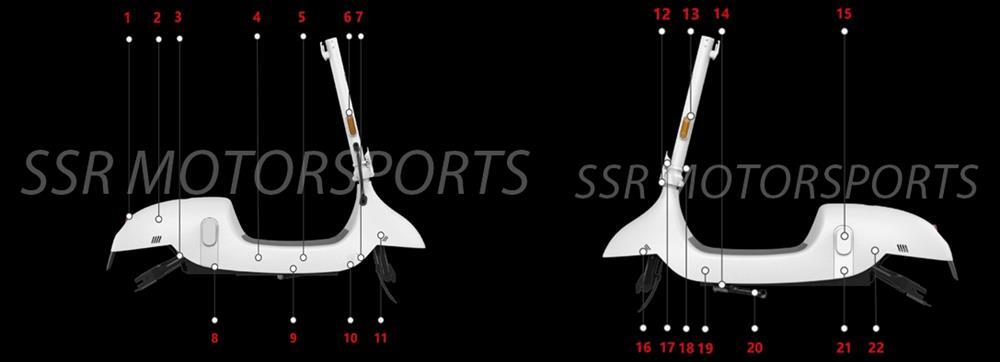

| FRAME & COMPONENTS | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00019-03-00 | TAIL LIGHT | 1 | Pc. |  |
$36.00 | |
| 2 | B00062-02-01 | FRAME COVER | WHTE | 1 | Pc. |  |
$83.00 |
| 2 | B00062-02-02 | FRAME COVER | BLACK | 1 | Pc. |  |
$83.00 |
| 2 | B00062-02-04 | FRAME COVER | GREEN | 1 | Pc. |  |
$83.00 |
| 2 | B00062-02-10 | FRAME COVER | PINK | 1 | Pc. |  |
$83.00 |
| 3 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M5_P0.8_10_8.8_10B21_电泳黑_带垫片φ9.5 | 4 | Pcs. | $1.50 | ||
| 4 | B00070-08-00 | CONTROLLER | 48V 20A | 1 | Pc. |  |
$104.00 |
| 5 | B00080-08-00 | LITHIUM BATTERY | 48V 10.4Ah | 1 | Pc. |  |
$1.50 |
| 6 | 半圆头内六角螺丝 Half round head hexagonal screws |
M4_P0.7_8_A2-70_SUS304_本色_NYLOK_Ø7 | 4 | Pcs. | $1.50 | ||
| 7 | B00082-08-01 | CHARGING PORT COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 7 | B00082-08-02 | CHARGING PORT COVER | BLACK | 1 | Pc. | #N/A | |
| 7 | B00082-08-04 | CHARGING PORT COVER | GREEN | 1 | Pc. | #N/A | |
| 7 | B00082-08-10 | CHARGING PORT COVER | PINK | 1 | Pc. | #N/A | |
| 8 | B00071-02-01 | RIGHT FRAME COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 9 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7_8_A2-70_SUS304_本色_NYLOK | 4 | Pcs. | $1.50 | ||
| 10 | B00061-08-00 | BATTERY CHARGING PORT | 1 | Pc. |  |
$24.00 | |
| 11 | EA10圆柱头内六角螺丝（委 EA10 cylindrical head hexagonal screws 外加工） External processing) |
SUS304_本色_改短 | 2 | Pcs. | $1.50 | ||
| 12 | 半圆头内六角螺丝 Half round head hexagonal screws |
M6_P1.0_12_A2-70_SUS304_本色_NYLOK_Ø13 | 8 | Pcs. | $1.50 | ||
| 13 | B00038-11-00 | REFLECTOR | AMBER | 2 | Pcs. |  |
$8.00 |
| 14 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M6_P1.0_14_10.9_SCM435_电泳黑_NYLOK_Φ6 | 2 | Pcs. | $1.50 | ||
| 15 | B00064-02-01 | FRAME COVER PLUG | WHITE | 2 | Pcs. |  |
$7.00 |
| 16 | 防松螺母 Lock nut |
M4_P0.7_5_8.8_35#_镀锌 | 2 | Pcs. | $1.50 | ||
| 17 | 半圆头十字自攻螺丝 Semicircular head cross self-tapping screws |
ST2.9_5.5_A2-70_SUS304_本色 | 2 | Pcs. | $1.50 | ||
| 18 | B00039-11-01 | FOLDING POST SAFETY CATCH | WHITE? OTHER COLORS? | 1 | Pc. |  |
$7.00 |
| 19 | 半圆头十字自攻螺丝 Semicircular head cross self-tapping screws |
ST2.9_10_8.8_35#_镀锌_尖尾 | 2 | Pcs. | $1.50 | ||
| 20 | B00032-11-00 | SIDE STAND | 1 | Pc. |  |
$33.00 | |
| 21 | B00063-02-01 | LEFT FRAME COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 22 | B00068-02-00 | FRONT BASKET | AVAILABLE ACCESSORY | 1 | Pc. |  |
$66.00 |
| 22 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7_10_A2-70_SUS304_本色_NYLOK_φ12 | 6 | Pcs. | |||

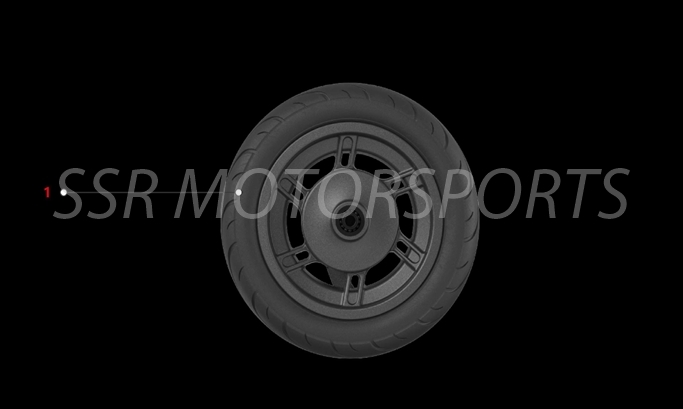

| FRONT WHEEL | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00055-18-00 | FRONT WHEEL ASSY | W/ DRUM BRAKE | 1 | Assy. |  |
#N/A |
| 2 | B00061-18-00 | FRONT/REAR TIRE | 60/70-6.5 | 1 | Pc. | $59.00 | |
| REAR WHEEL | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00013-09-00 | ELECTRIC MOTOR W/ REAR TIRE | 48V350W W/ DRUM BRAKE 60/70-6.5 | 1 | Pc. |  |
$265.00 |
| 2 | REAR TIRE W/ ELECTRIC MOTOR | 60/70-6.5 | 1 | Pc. | #N/A | ||
| 2 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M5_P0.8_20_A2-70_SUS304_本色_NYLOK | 1 | Pc. | |||
| SEAT | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00065-02-00 | SEAT | 1 | Pc. |  |
$51.00 | |
| 2 | B00066-02-00 | FOLDING SEAT POST | 1 | Pc. |  |
#N/A | |
| OTHER ITEMS | |||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00081-08-00 | BATTERY CHARGER | 54.6V 2A | 1 | Pc. |  |
$112.00 |
| 2 | B00003-01-00 | BATTERY CHARGER BAG | AVAILABLE ACCESSORY | 1 | Pc. |  |
$48.00 |
