Okai Neon II - ES20 Parts Schematics

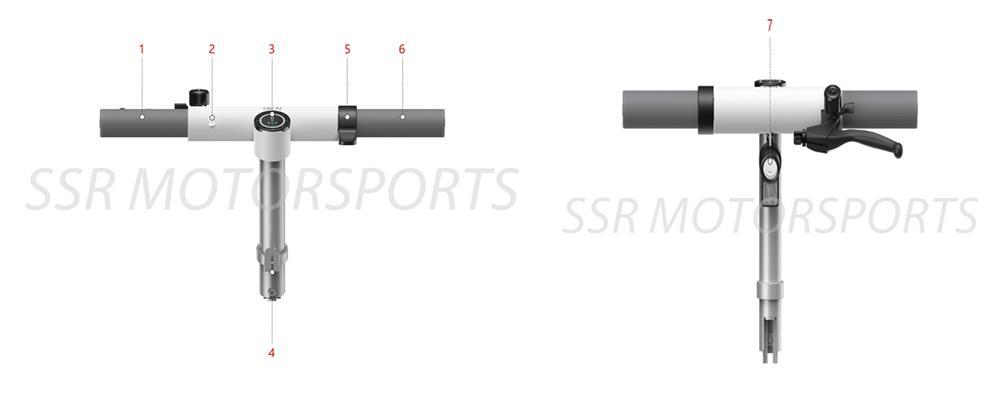

| HANDLEBARS/CONTROLS | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00033-05-00 | LEFT HANDLEBAR GRIP | GREY | 1 | Pc. |  |
$18.00 |
| 2 | B00075-08-00 | POWER BUTTON | 1 | Pc. |  |
$18.00 | |
| 3 | B00056-08-00 | ELECTRONIC DISPLAY | 1 | Pc. |  |
$142.00 | |
| 4 | B00034-05-00 | HANDLEBAR POST CLAMP W/ BAG HOOK | SILVER | 1 | Pc. |  |
$30.00 |
| 5 | B00035-05-00 | THUMB THROTTLE | 1 | Pc. |  |
$24.00 | |
| 6 | B00032-05-00 | RIGHT HANDLEBAR GRIP | GREY | 1 | Pc. |  |
$18.00 |
| 7 | B00010-03-00 | HEADLIGHT W/ REFLECTOR | 1 | Pc. |  |
$45.00 | |
| 8 | B00034-04-00 | BRAKE PERCH W/ LEVER AND BELL | 1 | Pc. | $41.00 | ||
| 8 | 十字扁头对锁螺丝 Cross flat head lock screws |
M3_0.6_6_4_6_10.9_10B21_镀镍银色_NYLOK | 1 | Pc. | |||
| 9 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_0.7_6_A2-70_SUS304_本色 | 2 | Pcs. | |||
| 10 | 沉头内六角螺丝 Countersunk head hexagonal screws |
M5_0.8_40_10.9_10B21_镀镍 | 2 | Pcs. | |||

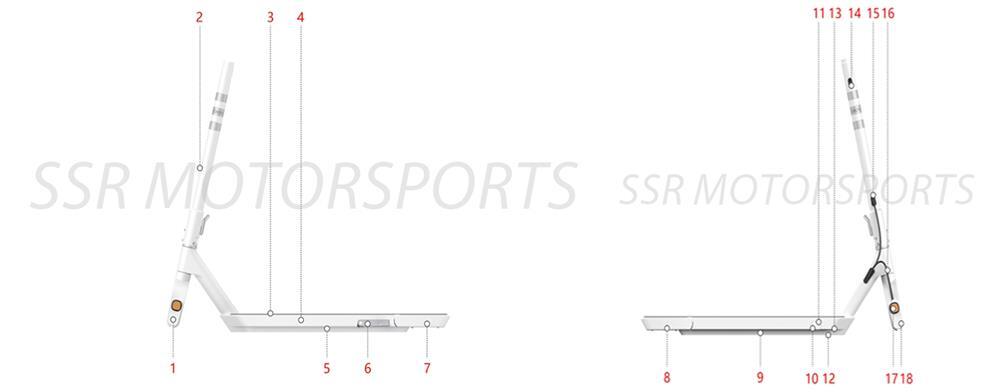

| FRAME & COMPONENTS | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00036-11-01 | LEFT FRONT FORK COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 1 | B00036-11-02 | LEFT FRONT FORK COVER | BLACK | 1 | Pc. |  |
$8.00 |
| 2 | B00011-03-00 | LED STRIP | RGB 5V 130 | 1 | Pc. |  |
$39.00 |
| 3 | B00021-11-00 | FLOORBOARD COVER | GREY | 1 | Pc. |  |
$1.50 |
| 4 | B00068-08-00 | CONTROLLER | 36V 10A | 1 | Pc. |  |
$89.00 |
| 5 | B00015-03-00 | LEFT BOTTOM LED STRIP | RGB 5V 300 | 1 | Pc. |  |
$39.00 |
| 6 | B00031-11-00 | SIDE STAND | 1 | Pc. |  |
$36.00 | |
| 7 | B00034-11-01 | LEFT REAR AXLE COVER | WHITE | 1 | Pc. |  |
$18.00 |
| 7 | B00034-11-02 | LEFT REAR AXLE COVER | BLACK | 1 | Pc. |  |
$18.00 |
| 8 | B00018-11-01 | RIGHT REAR AXLE COVER | WHITE | 1 | Pc. |  |
$18.00 |
| 8 | B00018-11-02 | RIGHT REAR AXLE COVER | BLACK | 1 | Pc. |  |
$18.00 |
| 9 | B00013-03-00 | BOTTOM LED STRIP | RGB 5V 140 | 1 | Pc. |  |
$39.00 |
| 10 | B00060-08-00 | BATTERY CHARGING PORT | 1 | Pc. |  |
$18.00 | |
| 11 | B00064-08-01 | BATTERY CHARGING PORT COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 11 | B00064-08-02 | BATTERY CHARGING PORT COVER | BLACK | 1 | Pc. |  |
$8.00 |
| 12 | B00065-08-00 | POWER SWITCH | 1 | Pc. |  |
$18.00 | |
| 13 | B00066-08-00 | POWER SWITCH PLUG | 1 | Pc. |  |
#N/A | |
| 14 | B00024-11-00 | BRAKE CABLE/WIRE GROMMET | 1 | Pc. |  |
$7.00 | |
| 15 | B00023-11-00 | BRAKE CABLE/WIRE GROMMET | 1 | Pc. |  |
$7.00 | |
| 16 | B00028-04-00 | BRAKE CABLE SHEATH | 5X1900MM | 1 | Pc. |  |
$14.00 |
| 17 | B00025-11-00 | REFLECTOR | AMBER | 2 | Pcs. |  |
$8.00 |
| 18 | B00035-11-01 | RIGHT FRONT FORK COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 18 | B00035-11-02 | RIGHT FRONT FORK COVER | BLACK | 1 | Pc. |  |
$8.00 |
| 19 | B00087-08-00 | 5-PIN GREEN TIP DATA CABLE | 1 | Pc. | $21.00 | ||
| 19 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7（牙长20）_35_8.8_SUS304_本色_NYLOK | 2 | Pcs. | |||
| 20 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M8_1.25_23.2_10.9_10B21_镀锌_TSLG precote#85 | 2 | Pcs. | |||
| 21 | 半圆头内六角螺丝 Half round head hexagonal screws |
M4_0.7_8_4.8_A3_镀铬 | 4 | Pcs. | |||
| 22 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M6_1_14_A2-70_SUS304_本色 | 2 | Pcs. | |||
| 23 | 半圆头十字螺丝 Half round head cross screws |
M3_0.5_10_4.8_A3_电泳黑_NYLOK | 2 | Pcs. | |||
| 24 | 沉头内六角螺丝 Countersunk head hexagonal screws |
M5_P0.8_12_A2-70_SUS304_本色_NYLOK | 8 | Pcs. | |||
| 25 | 半圆头内六角螺丝 Half round head hexagonal screws |
M4_0.7_8_A2-70_SUS304_本色 | 8 | Pcs. | |||
| 26 | 沉头十字自攻螺丝 Countersunk cross self-tapping screws |
ST4.8_0.8_16_A2-70_SUS304_本色 | 4 | Pcs. | |||
| 27 | 半圆头内六角螺丝 Half round head hexagonal screws |
M4_0.7_8_4.8_A3_镀铬 | 4 | Pcs. | |||
| 28 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7_10_A2-70_SUS304_本色_NYLOK | 2 | Pcs. | |||
| 29 | 半圆头内六角螺丝 Half round head hexagonal screws |
M8_1.25_35_10.9_35#_盐雾铬_NYLOK | 3 | Pcs. | |||
| 30 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7_10_A2-70_SUS304_本色_NYLOK | 2 | Pcs. | |||
| 31 | 沉头内六角螺丝 Countersunk head hexagonal screws |
M5_P0.8_12_A2-70_SUS304_本色_NYLOK | 8 | Pcs. | |||
| 32 | 半圆头内六角螺丝 Half round head hexagonal screws |
M4_0.7_8_A2-70_SUS304_本色 | 8 | Pcs. | |||
| 33 | 沉头内六角螺丝 Countersunk head hexagonal screws |
M6_1_12_A2-70_SUS304_本色_NYLOK | 8 | Pcs. | |||
| FRONT WHEEL | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00060-02-02 | FRONT FENDER | BLACK | 1 | Pc. |  |
$21.00 |
| 2 | B00009-09-00 | ELECTRIC MOTOR | 36V 250W | 1 | Pc. |  |
$265.00 |
| 3 | B00057-18-00 | FRONT TIRE | 230-5.0 | 1 | Pc. | $47.00 | |
| 3-1 | B00060-18-00 | INNERTUBE | 230-5.0 | 1 | Pc. | $18.00 | |
| 4 | B00058-18-00 | REAR TIRE | SOLID 8.5-2 | 1 | Pc. | #N/A | |
| 5 | B00059-18-00 | VALVE STEM | 1 | Pc. | #N/A | ||
| 3 | 半圆头内六角螺丝 Half round head hexagonal screws |
M5_0.8_12_A2-70_SUS304_本色_NYLOK | 4 | Pcs. | |||

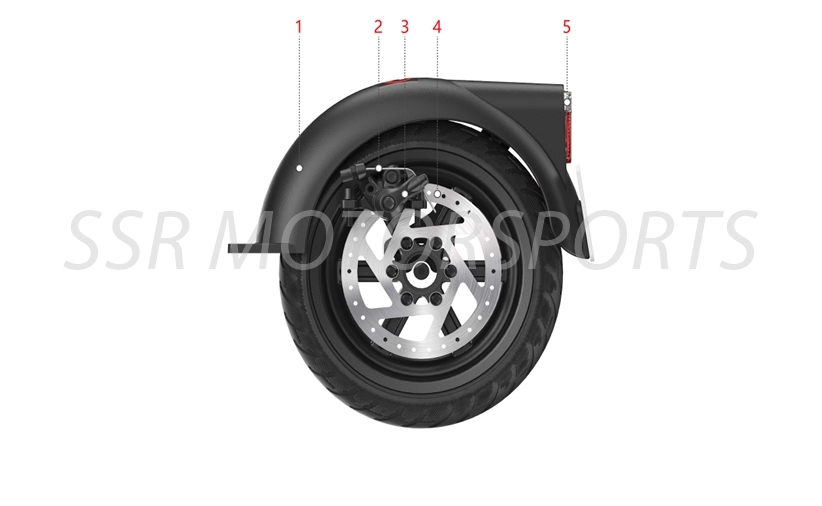

| REAR WHEEL | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00061-02-02 | REAR FENDER | BLACK | 1 | Pc. |  |
$30.00 |
| 2 | B00029-04-00 | BRAKE CABLE | 1.5X2010MM | 1 | Pc. |  |
$14.00 |
| 3 | B00030-04-00 | REAR BRAKE CALIPER | ER1 A380 | 1 | Assy. |  |
#N/A |
| 3-1 | B00039-04-00 | REAR BRAKE PAD SET | 1 | Set | #N/A | ||
| 4 | B00032-04-00 | REAR BRAKE ROTOR | 1 | Pc. |  |
$24.00 | |
| 5 | B00014-03-00 | TAIL LIGHT W/ REFLECTOR | 1 | Pc. |  |
$72.00 | |
| 6 | B00010-09-00 | REAR WHEEL ASSY | 1 | Assy. |  |
#N/A | |
| 7 | 盘头十字自攻螺丝 Disk head cross self-tapping screws |
ST3.5_0.6_10_A2-70_SUS304_本色 | 2 | Pcs. | |||
| 8 | 半圆头内六角螺丝 Half round head hexagonal screws |
M5_P0.8_10_A2-70_SUS304_本色_NYLOK | 2 | Pcs. | |||
| 9 | 圆柱头内六角塞打螺丝 Hexagonal plug stud in cylindrical head |
M8_1.25_24.3_A2-70_SUS304_本色_NYLOK | 2 | Pcs. | |||
| 10 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M5_P0.8_10_6.8级_SUS304_本色_NYLOK | 3 | Pcs. | |||
| OTHER ITEMS | |||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00074-08-00 | BATTERY CHARGER | 42V 2A | 1 | Pc. | $69.00 | |
| 2 | B00003-01-00 | BATTERY CHARGER BAG | AVAILABLE ACCESSORY | 1 | Pc. |  |
$48.00 |
| 3 | B00072-08-00 | NFC KEY CARD | 1 | Pc. |  |
$13.00 | |
| 4 | B00054-18-00 | EZ TIRE INFLATION ADAPTER | 1 | Pc. | $8.00 | ||
