Okai Neon Lite - ES10 Parts Schematics
| OKAI - NEON LITE ES10 | |||||||
 |
|||||||
| HANDLEBARS/CONTROLS | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00032-05-00 | RIGHT HANDLEBAR GRIP | GREY | 1 | Pc. |  |
$18.00 |
| 2 | 十字扁头对锁螺丝 Cross flat head lock screws |
M3_0.6_6_4_6_10.9_10B21_镀镍银色_NYLOK | 1 | Pc. | |||
| 3 | B00010-03-00 | HEADLIGHT W/ REFLECTOR | 1 | Pc. |  |
$39.00 | |
| 4 | B00033-04-00 | BRAKE CABLE SHEATH | ∅5X1580MM | 1 | Pc. |  |
$14.00 |
| 5 | B00034-04-00 | BRAKE PERCH W/ LEVER AND BELL | 1 | Pc. |  |
$41.00 | |
| 6 | B00033-05-00 | LEFT HANDLEBAR GRIP | GREY | 1 | Pc. |  |
$18.00 |
| 7 | B00075-08-00 | POWER BUTTON | 1 | Pc. |  |
$18.00 | |
| 8 | B00034-05-00 | HANDLEBAR POST CLAMP W/ BAG HOOK | SILVER | 1 | Pc. |  |
$30.00 |
| 9 | B00056-08-00 | ELECTRONIC DISPLAY | 1 | Pc. |  |
$142.00 | |
| 10 | 沉头内六角螺丝 Countersunk head hexagonal screws |
M5_0.8_40_10.9_10B21_镀镍 | 2 | Pcs. | $1.50 | ||
| 11 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_0.7_6_A2-70_SUS304_本色 | 2 | Pcs. | $1.50 | ||
| 12 | B00035-05-00 | THUMB THROTTLE | 1 | Pc. |  |
$24.00 | |
| FRAME & COMPONENTS | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00019-11-01 | RIGHT REAR AXLE COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 1 | B00019-11-02 | RIGHT REAR AXLE COVER | BLACK | 1 | Pc. |  |
$8.00 |
| 2 | B00035-04-00 | BRAKE CABLE | ∅1.5X1895MM | 1 | Pc. |  |
$14.00 |
| 3 | B00022-11-00 | FLOORBOARD COVER | GREY | 1 | Pc. |  |
$36.00 |
| 4 | B00060-08-00 | BATTERY CHARGING PORT | 1 | Pc. |  |
$18.00 | |
| 5 | 沉头十字螺丝 Countersunk cross screws |
M3_0.5_25_4.8_A3_发黑_NYLOK | 2 | Pcs. | $1.50 | ||
| 6 | B00064-08-01 | BATTERY CHARGING PORT COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 6 | B00064-08-02 | BATTERY CHARGING PORT COVER | BLACK | 1 | Pc. |  |
$8.00 |
| 7 | B00066-08-00 | POWER SWITCH PLUG | 1 | Pc. |  |
#N/A | |
| 8 | 扁平头十字螺丝 Flat head cross screws |
M4_0.7_8_A2-70_SUS304_本色 | 2 | Pcs. | $1.50 | ||
| 9 | B00065-08-00 | POWER SWITCH | 1 | Pc. |  |
$18.00 | |
| 10 | B00024-11-00 | BRAKE CABLE/WIRE GROMMET | 1 | Pc. |  |
$7.00 | |
| 11 | B00011-03-00 | LED STRIP | RGB 5V 130 | 1 | Pc. |  |
$39.00 |
| 12 | B00023-11-00 | BRAKE CABLE/WIRE GROMMET | 1 | Pc. |  |
$7.00 | |
| 13 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M8_1.25_23.2_10.9_10B21_镀锌_TSLG precote#85 | 2 | Pcs. | $1.50 | ||
| 14 | B00025-11-00 | REFLECTOR | AMBER | 2 | Pcs. |  |
$8.00 |
| 15 | B00035-11-01 | RIGHT FRONT FORK COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 15 | B00035-11-02 | RIGHT FRONT FORK COVER | BLACK | 1 | Pc. |  |
$8.00 |
| 16 | B00036-11-01 | LEFT FRONT FORK COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 16 | B00036-11-02 | LEFT FRONT FORK COVER | BLACK | 1 | Pc. |  |
$8.00 |
| 17 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M4_P0.7_10_A2-70_SUS304_本色_NYLOK | 2 | Pcs. | $1.50 | ||
| 18 | 半圆头内六角螺丝 Half round head hexagonal screws |
M8_1.25_35_10.9_35#_盐雾铬_NYLOK | 3 | Pcs. | $1.50 | ||
| 19 | 沉头十字自攻螺丝 Countersunk cross self-tapping screws |
ST3.5_16_A2-70_AUA304_本色 | 24 | Pcs. | $1.50 | ||
| 20 | 沉头内六角螺丝 Countersunk head hexagonal screws |
M5_P0.8_12_A2-70_SUS304_本色_NYLOK | 4 | Pcs. | $1.50 | ||
| 21 | B00069-08-00 | CONTROLLER | 1 | Pc. |  |
$89.00 | |
| 22 | 半圆头内六角螺丝 Half round head hexagonal screws |
M4_0.7_5_12.9_A3_发黑_NYLOK | 4 | Pcs. | $1.50 | ||
| 23 | B00030-11-00 | SIDE STAND | 1 | Pc. |  |
$36.00 | |
| 24 | B00030-04-00 | REAR BRAKE CALIPER | ER1 A380 | 1 | Pc. |  |
$33.00 |
| 24-1 | B00039-04-00 | REAR BRAKE PAD SET | 1 | Set | #N/A | ||
| 25 | B00037-11-01 | LEFT REAR AXLE COVER | WHITE | 1 | Pc. |  |
$8.00 |
| 26 | B00037-11-02 | LEFT REAR AXLE COVER | BLACK | 1 | Pc. |  |
$8.00 |

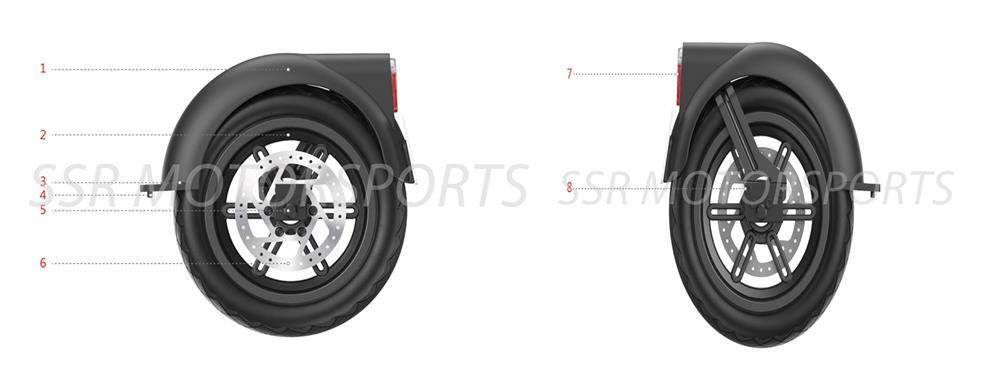

| 27 | B00087-08-00 | 5-PIN GREEN TIP DATA CABLE | 1 | Pc. | $21.00 | ||
| 27 | FOLDING HANDLE | 70.4_11.6_23_PA（UL）SUN PATTERN GREY | 1 | Pc. | |||
| 28 | FRONT STRAIGHT BAR | AL6061 WHITE | 1 | Pc. | |||
| 29 | REAR FRAME COVER | PC+ABS SUNSCREEN WHITE | 1 | Pc. | |||
| 30 | FRONT FRAME COVER | PC+ABS SUNSCREEN WHITE | 1 | Pc. | |||
| 31 | ES10 FRAME | AL6061-T6 UNPAINTED | 1 | Pc. | |||
| 32 | FRAME COVER PLATE | AL6061-T6 UNPAINTED | 1 | Pc. | |||
| FRONT WHEEL | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | 半圆头内六角螺丝 Half round head hexagonal screws |
M5_0.8_12_A2-70_SUS304_本色_NYLOK | 4 | Pcs. | |||
| 2 | B00060-02-02 | FRONT FENDER | BLACK | 1 | Pc. |  |
$14.00 |
| 3 | B00011-09-00 | ELECTRIC MOTOR | 1 | Pc. |  |
$209.00 | |
| 3 | B00032-18-00 | FRONT/REAR TIRE | 50/75-6.1 | 2 | Pcs. | #N/A | |
| 4 | B00059-18-00 | VALVE STEM | 2 | Pcs. | #N/A | ||
| REAR WHEEL | |||||||
 |
|||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00061-02-02 | REAR FENDER | BLACK | 1 | Pc. |  |
$30.00 |
| 2 | B00012-09-00 | REAR WHEEL ASSY | 1 | Assy. |  |
#N/A | |
| 3 | 盘头十字自攻螺丝 Disk head cross self-tapping screws |
ST3.5_0.6_10_A2-70_SUS304_本色 | 2 | Pcs. | #N/A | ||
| 4 | 半圆头内六角螺丝 Half round head hexagonal screws |
M5_P0.8_10_A2-70_SUS304_本色_NYLOK | 2 | Pcs. | #N/A | ||
| 5 | 外六角法兰螺丝 External hexagonal flange bolts |
M6_1.0_20_A2-70_SUS304_本色_NYLOK | 2 | Pcs. | #N/A | ||
| 6 | B00032-04-00 | REAR BRAKE ROTOR | 1 | Pc. |  |
$24.00 | |
| 7 | B00014-03-00 | TAIL LIGHT W/ REFLECTOR | 1 | Pc. |  |
$72.00 | |
| 8 | 圆柱头内六角螺丝 Hexagonal studs in cylindrical head |
M5_0.8_16_A2-70_SUS304_本色_NYLOK | 6 | Pcs. | |||
| OTHER ITEMS | |||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PART IMAGE | RETAIL |
| 1 | B00074-08-00 | BATTERY CHARGER | 42V 2A | 1 | Pc. | $69.00 | |
| 2 | B00003-01-00 | BATTERY CHARGER BAG | AVAILABLE ACCESSORY | 1 | Pc. |  |
$48.00 |
| 3 | B00072-08-00 | NFC KEY CARD | 1 | Pc. |  |
$13.00 | |
| 4 | B00054-18-00 | EZ TIRE INFLATION ADAPTER | $8.00 | ||||
