(SR70AUTO) Full Engine Parts Schematics
| CYLINDER HEAD & CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01173-09-00 | LEFT CYLINDER HEAD COVER | CHROME | 1 | Pc. | $18.00 |
| 2 | A01174-09-00 | TAPPET COVER | CHROME | 2 | Pcs. | $8.00 |
| 3 | A00003-22-36 | FLANGE CAP NUT | M6 | 4 | Pcs. | $1.50 |
| 4 | A00004-27-00 | O-RING | 2 | Pcs. | $3.50 | |
| 5 | A00272-21-01 | COPPER WASHER | M6 | 1 | Pc. | $1.50 |
| 6 | A00007-21-01 | WASHER | M6 | 3 | Pcs. | $1.50 |
| 7 | A02928-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $21.00 | |
| 8 | A00001-19-04 | STUD | M6X32 | 2 | Pcs. | $1.50 |
| 9 | C7HSA | SPARK PLUG | C7HSA | 1 | Pc. | $8.00 |
| 10 | A00127-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 11 | A02931-09-00 | RIGHT CYLINDER HEAD COVER | 1 | Pc. | $18.00 | |
| 12 | A00439-19-07 | TIMING COVER FLANGE BOLT | M6X110 | 1 | Pc. | $2.50 |
| 13 | A00009-27-00 | O-RING | 11.5×2.5 | 1 | Pc. | $1.50 |
| 14 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 15 | A01177-09-00 | ALUMINUM WASHER | M6 | 1 | Pc. | $1.50 |
| 16 | A00128-13-00 | RIGHT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 17 | A02764-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $103.00 |
| 18 | A00002-19-03 | BOLT | M6X23 | 2 | Pcs. | $1.50 |
| 19 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 20 | A00118-23-00 | SPECIAL PIN | 8X11 | 1 | Pc. | $2.50 |
| 21 | A00008-27-00 | O-RING | 14.5×2.5 | 1 | Pc. | $1.50 |
| 22 | A00001-23-00 | DOWEL PIN | M8X14 | 1 | Pc. | $1.50 |
| 22A | A00118-23-00 | SPECIAL PIN | 8X11 | 1 | Pc. | $2.50 |
| 23 | A00130-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $11.00 | |
| 24 | A00112-21-01 | O-RING | 9×1.5 | 1 | Pc. | $1.50 |
| 25 | A02717-09-00 | CYLNDER | 1 | Pc. | $98.00 | |
| 26 | A00260-13-00 | CYLNDER BASE GASKET | 1 | Pc. | $11.00 | |
| 27 | A00003-23-00 | DOWEL PIN | M8×12 | 2 | Pcs. | $1.50 |
| VALVES & CAMSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPCIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01323-09-00 | TENSIONER ROD | 1 | Pc. | $7.00 | |
| 2 | A01303-09-00 | FLANGE BOLT | 1 | Pc. | $1.50 | |
| 3 | A00094-21-01 | WASHER | 8x14x1.5 | 1 | Pc. | $1.50 |
| 4 | A02442-09-00 | TIMING CHAIN | 82 | 1 | Pc. | $18.00 |
| 5 | A00025-19-03 | BOLT | M5X12 | 3 | Pcs. | $1.50 |
| 6 | A01187-09-00 | ROCKER ARM | 2 | Assy. | $18.00 | |
| 7 | A01188-09-00 | ROCKER ARM SHAFT | 2 | Pcs. | $6.00 | |
| 8 | A01185-09-00 | CAMSHAFT | 1 | Pc. | $63.00 | |
| 9 | A01195-09-00 | COLLET | 4 | Pcs. | $2.00 | |
| 10 | A01329-09-00 | CAMSHAFT SPROCKET | 28T | 1 | Pc. | $21.00 |
| 11 | A01193-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 12 | A01191-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 13 | A01192-09-00 | INNER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 14 | A01322-09-00 | TENSIONER SPRING | 1 | Pc. | $2.50 | |
| 15 | A01300-09-00 | CHAIN ROLLER | RUBBER | 1 | Pc. | $14.00 |
| 16 | A01307-09-00 | TENSIONER SEAL | 14.2×20×1.5 | 1 | Pc. | $1.50 |
| 17 | A02858-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.50 | |
| 18 | A01194-09-00 | LOWER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 19 | A02455-09-00 | TENSIONER BOLT | M14×1.5 | 1 | Pc. | $2.50 |
| 20 | A01304-09-00 | GUIDE SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 21 | A01257-09-00 | TENSIONER SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 22 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 23 | A01321-09-00 | TENSIONER PLATE BOLT | 1 | Pc. | $2.00 | |
| 24 | A01190-09-00 | EXHAUST VALVE | 1 | Pc. | $13.00 | |
| 25 | A01189-09-00 | INTAKE VALVE | 1 | Pc. | $13.00 | |
| CRANKSHAFT & TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPEFICATION | QTY. | UNIT | RETAIL |
| 1 | A02825-09-00 | PISTON RING SET | 1 | Set | $32.00 | |
| 2 | A02826-09-00 | PISTON | 1 | Pc. | $32.00 | |
| 3 | A02827-09-00 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 4 | A02828-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 5 | A02829-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $76.00 | |
| 7 | A00216-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 8 | A00003-28-00 | BEARING | 6001 | 1 | Pc. | $8.00 |
| 9 | A00390-17-00 | MAIN SHAFT ASSY | 1 | Assy. | $77.00 | |
| 10 | A00008-28-00 | BEARING | 6203 | 1 | Pc. | $27.00 |
| 11 | A00005-28-00 | BEARING | 6201 | 1 | Pc. | $8.00 |
| 12 | A00015-19-03 | BOLT | M6×10 | 2 | Pc. | $1.50 |
| 13 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 14 | A00307-07-00 | COUNTERSHAFT SPROCKET | 14T | 1 | Pc. | $14.00 |
| 15 | A00001-26-00 | OIL SEAL | 17X29X5 | 1 | Pc. | $4.00 |
| 16 | A00008-28-00 | BEARING | 6203 | 1 | Pc. | $27.00 |
| 17 | A00391-07-00 | COUNTER SHAFT ASSY | 1 | Assy. | $77.00 | |
| 18 | A02824-09-00 | PISTON KIT | 1,2,3,4 | 1 | Kit | $63.00 |
| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00128-19-04 | CYLINDER STUD B | M6X196MM | 2 | Pcs. | $8.00 |
| 2 | A00129-19-04 | CYLINDER STUD A | M6X188MM | 2 | Pcs. | $8.00 |
| 3 | A00093-27-00 | O-RING | 116.8x2 | 1 | Pc. | $8.00 |
| 4 | A00003-20-12 | CS SCREW | M6X16 | 1 | Pc. | $1.50 |
| 5 | A00059-26-00 | OIL SEAL | 30X42X4.5 | 1 | Pc. | $4.00 |
| 6 | A03051-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $90.00 | |
| 7 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 8 | A00427-19-08 | CASE FLANGE BOLT | M6X45 | 1 | Pc. | $1.50 |
| 9 | A00012-27-00 | O-RING | 2 | Pcs. | $1.50 | |
| 10 | A02504-09-00 | STARTER MOTOR BRACKET | 1 | Pc. | $27.00 | |
| 11 | A01310-09-00 | COIL WIRE RETAINER | 2 | Pcs. | $1.50 | |
| 12 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 4 | Pcs. | $2.00 |
| 13 | A00002-23-00 | DOWEL PIN | M10×14 | 2 | Pcs. | $1.50 |
| 14 | A01098-09-00 | OIL SCREEN | 1 | Pc. | $10.00 | |
| 15 | A00012-21-04 | CRUSH WASHER | 12.5X20X1.5 | 1 | Pc. | $1.50 |
| 16 | A01102-09-00 | OIL DRAIN PLUG | 1 | Pc. | $4.00 | |
| 17 | A03052-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $85.00 | |
| 18 | A00122-13-00 | CENTER CASE GASKET | 1 | Pc. | $14.00 | |
| RIGHT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPEFICATION | QTY. | UNIT | RETAIL |
| 1 | A00120-13-00 | CLUTCH COVER GASKET | 1 | Pc. | $14.00 | |
| 2 | A01309-09-00 | CLUTCH ADJUSTMENT COVER | 1 | Pcs. | $21.00 | |
| 3 | A00007-20-01 | COUNTERSUNK PHILLIPS BOLT | M5X12 | 2 | Pc. | $1.50 |
| 4 | A01229-09-00 | OIL PUMP SHAFT BUSHING | 1 | Pcs. | $2.00 | |
| 5 | A00123-13-00 | OIL PUMP GASKET | 1 | Pc. | $6.00 | |
| 6 | A01221-09-00 | OIL PUMP ASSY | 1 | Assy. | $42.00 | |
| 7 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 8 | A00003-23-00 | DOWEL PIN | M8×12 | 2 | Pcs. | $1.50 |
| 9 | A01311-09-00 | DIPSTICK | 1 | Pc. | $8.00 | |
| 10 | A02507-09-00 | CLUTCH COVER | 1 | Pc. | $85.00 | |
| 11 | A00012-27-00 | O-RING | 1 | Pc. | $1.50 | |
| 11A | A00004-21-01 | WASHER | M8 | 1 | Pc. | $1.50 |
| 12 | A02331-09-00 | CLUTCH ADJUSTING BOLT | 1 | Pc. | $6.00 | |
| 13 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
| 14 | A01301-09-00 | PRIMARY DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 15 | A02484-09-00 | CLUTCH | 1 | Assy. | $76.00 | |
| 16 | A00243-13-00 | CLUTCH END CAP GASKET | 1 | Pc. | $8.00 | |
| 17 | A02508-09-00 | CLUTCH END CAP | 1 | Pc. | $18.00 | |
| 18 | A00031-19-01 | BOLT | M6X12 | 3 | Pcs. | $1.50 |
| 19 | A01310-09-00 | COIL WIRE RETAINER | 1 | Pc. | $1.50 | |
| 20 | A01302-09-00 | DRIVEN GEAR | 18T | 1 | Pc. | $18.00 |
| 21 | A01271-09-00 | PRIMARY DRIVE GEAR BUSHING | 1 | Pc. | $6.00 | |
| 22 | A00036-24-07 | CIRCLIP | 1 | Pc. | $1.50 | |
| 23 | A01283-09-00 | TONGUE WASHER | 1 | Pc. | $2.50 | |
| 24 | A01284-09-00 | PRIMARY DRIVE DISHED WASHER | 1 | Pc. | $1.50 | |
| 25 | A01282-09-00 | PRIMARY DRIVE GEAR LOCKNUT | 1 | Pc. | $2.50 | |
| 26 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 5 | Pcs. | $1.50 |
| 27 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 28 | A00434-19-08 | CASE FLANGE BOLT | M6X100 | 2 | Pcs. | $2.00 |
| LEFT CRANKCASE COVER & ELECTRICAL SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02501-09-00 | STATOR | 1 | Pc. | $85.00 | |
| 2 | A00121-19-01 | BOLT | M5X6 | 1 | Pc. | $1.50 |
| 3 | A00033-24-03 | WIRE CLAMP | 1 | Pc. | $1.50 | |
| 4 | A00006-19-01 | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 5 | A02509-09-00 | STATOR WIRE CLAMP | 1 | Pc. | $2.50 | |
| 6 | A02510-09-00 | STARTER MOTOR ASSY | 1 | Assy. | $85.00 | |
| 7 | A00040-19-01 | PHILLIPS BOLT | M6X28 | 3 | Pcs. | $1.50 |
| 8 | A00437-19-08 | CASE FLANGE BOLT | M6X105 | 1 | Pc. | $2.00 |
| 9 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 10 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 11 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 2 | Pcs. | $1.50 |
| 12 | A02511-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $26.00 | |
| 13 | A02512-09-00 | TIMING PLUG | 1 | Pc. | $4.00 | |
| 14 | A00005-22-08 | SPECIAL NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 15 | A02513-09-00 | FLYWHEEL/STARTER CLUTCH | 1 | Pc. | $63.00 | |
| 16 | A02514-09-00 | STATOR COVER | 1 | Pc. | $48.00 | |
| 17 | A00056-27-00 | O-RING | 13.8X2.5 | 1 | Pc. | $2.50 |
| 18 | A00025-19-02 | ALLEN BOLT | M5X12 | 2 | Pcs. | $1.50 |
| 19 | A02515-09-00 | CHAIN TENSIONER SLIDER | 1 | Pc. | $6.00 | |
| 20 | A02516-09-00 | GEAR RETAINER PLATE | 1 | Pc. | $6.00 | |
| 21 | A00006-20-12 | CS SCREW | M6X12 | 1 | Pc. | $1.50 |
| 22 | A00055-27-00 | O-RING | 27X2.4 | 1 | Pc. | $1.50 |
| 23 | A02517-09-00 | CHAIN SLIDER | 1 | Pc. | $6.00 | |
| 24 | A02518-09-00 | STARTER PINION GEAR | 1 | Pc. | $8.00 | |
| 25 | A02310-09-00 | CRANK INSPECTION PLUG | 1 | Pc. | $14.00 | |
| 26 | A00003-26-00 | OIL SEAL | 18.9X30.5 | 1 | Pc. | $4.00 |
| 27 | A02520-09-00 | STARTER CHAIN | 1 | Pc. | $11.00 | |
| 28 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |
| 29 | A00244-13-00 | STATOR COVER GASKET | 1 | Pc. | $10.00 | |

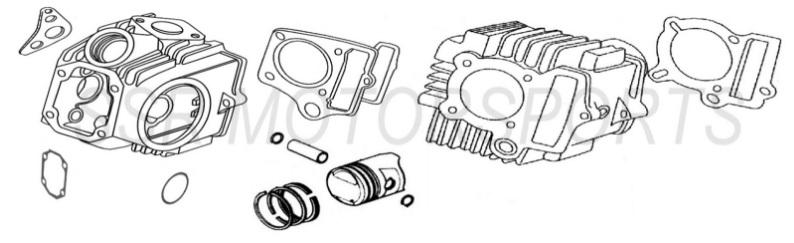

| ENGINE PART SETS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00257-13-00 | COMPLETE ENGINE GASKET SET | 1 | Set | $63.00 | |
| 2 | A00248-26-00 | COMPLETE ENGINE SEALS SET | 1 | Set | $14.00 | |
| 3 | A00265-13-00 | COMPLETE TOP END GASKET SET | 1 | Set | $39.00 | |
| 4 | A02919-09-00 | COMPLETE TOP END KIT | 1 | Kit | $205.00 | |
