(SR70AUTO) Full Parts Schematics (2018-2022)
| 2018-2022 SR70AUTO | ||||||
 |
||||||

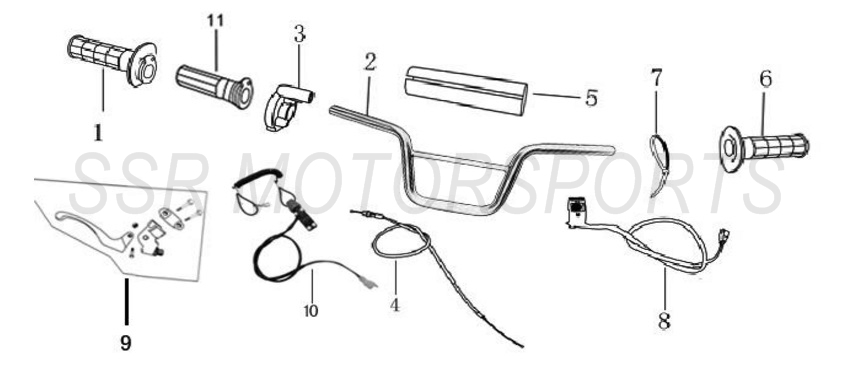

| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00342-05-00 | RIGHT HANDLEBAR GRIP W/ TUBE (LIMITER STYLE) | BLACK | 1 | Pc. | $8.00 |
| 2 | A00343-05-00 | HANDLEBAR | BLACK | 1 | Pc. | $32.00 |
| 3 | A00344-05-00 | THROTTLE HOUSING W/ LIMITER | 1 | Pc. | $18.00 | |
| 4 | A00345-05-00 | THROTTLE CABLE | 780 119 | 1 | Pc. | $18.00 |
| 5 | A00346-05-00 | HANDLEBAR PAD W/ COVER | 170X172 | 1 | Pc. | $14.00 |
| 6 | A00347-05-00 | LEFT HANDLEBAR GRIP | BLACK | 1 | Pc. | $7.00 |
| 7 | A00001-24-01 | ZIP TIE | 5X200MM | 2 | Pc. | $1.50 |
| 8 | A00551-08-00 | LEFT HANDLEBAR COMBO SWITCH | 1 | Pc. | $18.00 | |
| 9 | A00348-05-00 | FRONT BRAKE LEVER PERCH ASSY | BRAKE LEVER NOT AVAILABLE SEPARATELY | 1 | Assy. | $26.00 |
| 10 | A00474-08-00 | SAFETY TETHER KILL | 1 | Pc. | $18.00 | |
| 11 | A00349-05-00 | THROTTLE TUBE / LIMITER STYLE | 1 | Pc. | $8.00 | |
| FRONT DRUM BRAKE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00489-04-00 | FRONT/REAR BRAKE DRUM ASSY | 1 | Assy. | $56.00 | |
| 1 - 1 | A00490-04-00 | DRUM BRAKE SHOE SET | 1 | Set | $21.00 | |
| 1 - 2 | A00493-04-00 | BRAKE DRUM ASSY LESS SHOES | 1 | Assy. | $36.00 | |
| 2 | A00491-04-00 | FRONT BRAKE CABLE | 1 | Pc. | $14.00 | |
| 3 | A00492-04-00 | ACTUATOR ARM | 1 | Pc. | $8.00 | |
| 4 | A00443-19-03 | ACTUATOR BOLT | M5X30 | 1 | Pc. | $1.50 |
| 5 | A00003-21-02 | LOCK WASHER | M5 | 1 | Pc. | $1.50 |
| 6 | A00003-21-01 | WASHER | M5 | 1 | Pc. | $1.50 |
| 7 | A00007-22-01 | NUT | M5 | 1 | Pc. | $1.50 |
| REAR DRUM BRAKE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00489-04-00 | FRONT/REAR BRAKE DRUM ASSY | 1 | Assy. | $56.00 | |
| 1-1 | A00490-04-00 | DRUM BRAKE SHOE SET | DB70 | 1 | Set | $21.00 |
| 1 - 2 | A00493-04-00 | BRAKE DRUM ASSY LESS SHOES | 1 | Assy. | $36.00 | |
| 2 | A00063-21-01 | WASHER | 2X20 | 1 | Pc. | $1.50 |
| 3 | A00495-04-00 | REAR BRAKE ROD W/ SPRING + NUT | 1 | Assy. | $18.00 | |
| 4 | A00018-28-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 5 | A00492-04-00 | ACTUATOR ARM | 1 | Pc. | $8.00 | |
| 6 | A00443-19-03 | ACTUATOR BOLT | M5X30 | 1 | Pc. | $1.50 |
| 7 | A00003-21-02 | LOCK WASHER | M5 | 1 | Pc. | $1.50 |
| 8 | A00003-21-01 | WASHER | M5 | 1 | Pc. | $1.50 |
| 9 | A00007-22-01 | NUT | M5 | 1 | Pc. | $1.50 |
| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00482-16-00 | RIGHT FRONT FORK ASSY (HYDRAULIC) | SILVER | 1 | Assy. | $85.00 |
| 2 | A00481-16-00 | LEFT FRONT FORK ASSY (HYDRAULIC) | SILVER | 1 | Assy. | $85.00 |
| 3 | A00483-16-00 | FRONT BRAKE CABLE BRACKET | 1 | Pc. | $1.50 | |
| 4 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 5 | A00512-16-00 | FORK SEAL | 27X39X10.5 | 2 | Pcs. | $7.00 |
| 6 | A00513-16-00 | DUST SEAL | 27X37.5X12.5 | 2 | Pcs. | $7.00 |
| 7 | A00393-19-01 | FORK CROWN BOLT | 2 | Pcs. | $3.50 | |

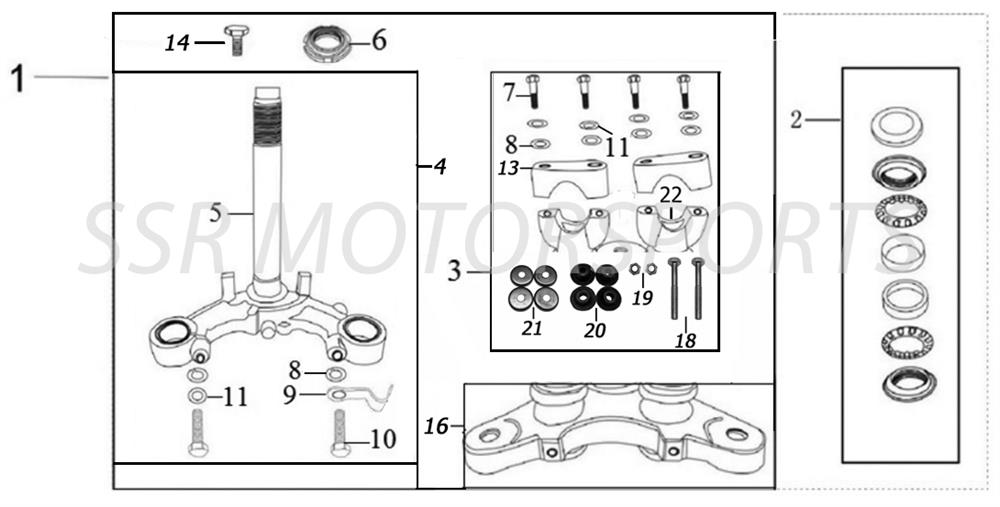

| UPPER AND LOWER TRIPLE CLAMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00188-15-00 | UPPER / LOWER TRIPLE CLAMP ASSY | 1 | Assy. | $124.00 | |
| 2 | A00168-15-00 | STEERING STEM BEARING SET | 1 | Set | $30.00 | |
| 3 | A00231-15-00 | HANDLEBAR RISER SET | 1 | Set | $33.00 | |
| 4 | A00237-15-00 | LOWER TRIPLE CLAMP ASSY | 1 | Assy. | $77.00 | |
| 5 | A00236-15-00 | LOWER TRIPLE CLAMP W/ STEM | 1 | Pc. | $59.00 | |
| 6 | A00234-15-00 | STEERING STEM NUT | 1 | Pc. | $4.00 | |
| 7 | A00130-19-03 | DOMED HEX BOLT | M8X33 | 4 | Pcs. | $2.00 |
| 8 | A00113-21-01 | WASHER | M8 | 6 | Pcs. | $1.50 |
| 9 | A00235-15-00 | BRAKE HOSE GUIDE | 1 | Pc. | $2.00 | |
| 10 | A00131-19-03 | HEX BOLT | M8X30 | 2 | Pcs. | $1.50 |
| 11 | A00001-21-02 | LOCK WASHER | M8 | 6 | Pcs. | $1.50 |
| 13 | A00351-15-00 | UPPER HANDLEBAR CLAMP | 2 | Pcs. | $8.00 | |
| 14 | A00392-19-01 | BOLT | 1 | Pc. | $4.00 | |
| 16 | A00355-15-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $48.00 | |
| 18 | A00462-19-03 | HEX BOLT | M7X65 | 2 | Pcs. | $2.00 |
| 18 | A00505-19-03 | HEX BOLT | M10X72 | 2 | Pcs. | $2.50 |
| 19 | A00008-22-04 | FLANGE LOCKNUT | M7 | 2 | Pcs. | $1.50 |
| 19 | A00004-22-34 | FLANGE LOCKNUT | M10 | 2 | Pcs. | $2.00 |
| 20 | A00374-15-00 | RUBBER DAMPER | M7 | 4 | Pcs. | $1.50 |
| 20 | A00412-15-00 | RUBBER DAMPER | M10 | 4 | Pcs. | $1.50 |
| 21 | A00274-21-06 | CUPPED WASHER | M7 | 4 | Pcs. | $2.00 |
| 21 | A00291-21-06 | CUPPED WASHER | M10 | 4 | Pcs. | $2.00 |
| 22 | A00401-15-00 | LOWER HANDLEBAR CLAMP | 2 | Pcs. | $8.00 | |
| 23 | A00290-21-07 | WASHER | M7 | 2 | Pcs. | $1.50 |
| 23 | A00002-21-01 | WASHER | M10 | 2 | Pcs. | $1.50 |
| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00322-18-00 | FRONT/REAR TIRE | 2.50-10 | 1 | Pc. | $24.00 |
| 2 | A00323-18-00 | FRONT WHEEL ASSY (BLACK RIM WITH SILVER HUB) | 1.4-10 | 1 | Assy | $85.00 |
| 3 | A00324-18-00 | WHEEL SPACER | 12X20XH27 | 1 | Pc. | $6.00 |
| 4 | A00001-22-03 | FLANGE NUT | GB6187-86 M12X1.25 | 1 | Pc. | $2.00 |
| 5 | A00326-18-00 | FRONT AXLE | 12X195XM12X1.25MM | 1 | Pc. | $8.00 |
| 6 | A00219-18-00 | INNER TUBE | 2.50-10 | 1 | Pc. | $14.00 |
| 7 | A00334-18-00 | RIM STRIP | 10 | 1 | Pc. | $6.00 |
| 8 | A00115-28-00 | WHEEL BEARING | 6001RS | 1 | Pc. | $6.00 |
| 8A | A00116-28-00 | WHEEL BEARING | 6201RS | 1 | Pc. | $6.00 |
| 9 | A00034-26-00 | WHEEL DUST SEAL | 20X32X5 | 1 | Pc. | $2.50 |
| 11 | A00512-18-00 | FRONT SPOKES W/ NIPPLE SET | 1 | Set | $21.00 | |
| 12 | A00402-18-00 | FRONT HUB | 1 | Pc. | $56.00 | |
| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00322-18-00 | FRONT/REAR TIRE | 2.50-10 | 1 | Pc. | $24.00 |
| 2 | A00451-18-00 | REAR WHEEL ASSY (BLACK RIM WITH SILVER HUB) | 1.4-10 | 1 | Assy | $85.00 |
| 3 | A00001-22-04 | LOCK NUT | M8 | 4 | Pcs. | $1.50 |
| 4 | A00300-07-00 | REAR SPROCKET | 37T | 1 | Pc. | $21.00 |
| 5 | A00041-19-01 | FLANGE BOLT | M8X30 | 4 | Pcs. | $1.50 |
| 6 | A00329-18-00 | LEFT REAR WHEEL SPACER | 12X20XH6 | 1 | Pc. | $6.00 |
| 7 | A00330-18-00 | CHAIN ADJUSTER | M6X50 | 2 | Pcs. | $7.00 |
| 8 | A00331-18-00 | REAR WHEEL AXLE | 12X215X1.25MM | 1 | Pc. | $11.00 |
| 9 | A00001-22-03 | FLANGE NUT | M12X1.25 | 1 | Pc. | $2.00 |
| 10 | A00333-18-00 | RIGHT REAR WHEEL SPACER | 12X20XH19 | 1 | Pc. | $6.00 |
| 11 | A00002-21-02 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 12 | A00017-21-01 | WASHER | 6X12X1.5 | 2 | Pcs. | $1.50 |
| 13 | A00001-22-01 | NUT | M6 | 2 | Pcs. | $1.50 |
| 14 | A00219-18-00 | INNER TUBE | 2.50-10 | 1 | Pc. | $14.00 |
| 15 | A00334-18-00 | RIM STRIP | 10 | 1 | Pc. | $6.00 |
| 16 | A00512-18-00 | REAR SPOKES W/ NIPPLE SET | 1 | Set | $21.00 | |
| 17 | A00405-18-00 | REAR WHEEL HUB | 1 | Pc. | $56.00 | |
| 19 | A00115-28-00 | WHEEL BEARING | 6001RS | 1 | Pc. | $6.00 |
| 19A | A00116-28-00 | WHEEL BEARING | 6201RS | 1 | Pc. | $6.00 |
| 20 | A00034-26-00 | WHEEL DUST SEAL | 20X32X5 | 1 | Pc. | $2.50 |
| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00390-11-00 | FRAME | *OVERSIZE* | 1 | Pc. | $145.00 |
| 2 | A00391-11-00 | BATTERY BOX | 119X70X77 | 1 | Pc. | $26.00 |
| 3 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 4 | A00047-19-01 | FLANGE BOLT | M8X110 (NOTCHED) | 1 | Pc. | $2.50 |
| 5 | A00046-19-01 | FLANGE BOLT | M8X110 | 1 | Pc. | $2.50 |
| 6 | A00100-22-34 | FLANGE LOCKNUT | M8 | 4 | Pcs. | $1.50 |
| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00392-11-00 | SWINGARM | 1 | Pc. | $63.00 | |
| 2 | A00298-07-00 | DRIVE CHAIN | 420-78L | 1 | Pc. | $36.00 |
| 2-1 | A00287-07-00 | CLIP LINK | 420 | 1 | Pc. | $6.00 |
| 3 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 4 | A00371-11-00 | LOWER CHAIN GUIDE | 1 | Pc. | $21.00 | |
| 5 | A00011-21-01 | WASHER | 6X18X1.5MM | 2 | Pcs. | $1.50 |
| 6 | A00021-19-03 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 7 | A00394-11-00 | FRONT CHAIN SLIDER | DB70 | 1 | Pc. | $10.00 |
| 8 | A00002-19-01 | FLANGE BOLT | M6X16 | 3 | Pcs. | $1.50 |
| 9 | A00369-11-00 | SWINGARM AXLE | 10X190XM10X1.25MM | 1 | Pc. | $10.00 |
| 10 | A00004-22-34 | FLANGE LOCKNUT | M10X1.25 | 1 | Pc. | $2.00 |
| 11 | A00013-21-01 | WASHER | 8X16X1.5 | 2 | Pcs. | $1.50 |
| 12 | A00001-21-02 | LOCK WASHER | 8X13X2 | 2 | Pcs. | $1.50 |
| 13 | A00060-28-00 | BEARING | 6000Z | 2 | Pcs. | $8.00 |
| 14 | A00397-11-00 | BUSHING | 10.2X22.5XH20 | 2 | Pcs. | $6.00 |
| 15 | A00398-11-00 | CHAIN GUARD | DB70 | 1 | Pc. | $10.00 |
| 16 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 3 | Pcs. | $1.50 |
| 17 | A00005-22-04 | LOCKNUT | M6 | 3 | Pcs. | $1.50 |
| REAR SHOCK ABSORBER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00484-16-00 | REAR SHOCK ABSORBER | DB70 L=255 | 1 | Pc. | $76.00 |
| 2 | A00004-22-03 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 3 | A00046-19-03 | FLANGE BOLT | M10X40X1.25 | 2 | Pcs. | $3.50 |

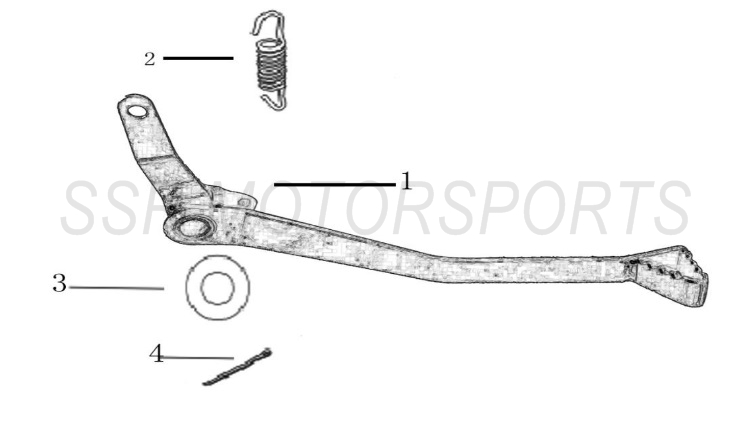

| REAR BRAKE PEDAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00350-05-00 | REAR BRAKE PEDAL | BLACK | 1 | Pc. | $21.00 |
| 2 | A00320-05-00 | REAR BRAKE PEDAL RETURN SPRING | 13X2.4XH24X10 | 1 | Pc. | $2.00 |
| 3 | A00015-21-01 | WASHER | 15X30X2.5 | 1 | Pc. | $1.50 |
| 4 | A00019-28-01 | COTTER PIN | 2.5X24 | 1 | Pc. | $1.50 |
| ENGINE COMPLETE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01619-09-00 | COMPLETE ENGINE AUTO | 420-14 *OVERSIZE* | 1 | Assy. | $269.00 |
| FOOTPEGS AND BRACKET | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00352-05-00 | FOOTPEG BRACKET ASSEMBLY | INCLUDES:1,6,7,8,9,10,11 | 1 | Assy. | $63.00 |
| 2 | A00353-05-00 | SIDE STAND W/ SPRING + BOLT | L=160 | 1 | Assy. | $27.00 |
| 3 | A00062-21-01 | WASHER | 8X13X2 | 4 | Pcs. | $1.50 |
| 4 | A00015-19-01 | FLANGE BOLT | M8X20 S12 | 4 | Pcs. | $1.50 |
| 5 | A00013-21-01 | WASHER | 8X16X1.5 | 4 | Pcs. | $1.50 |
| 6 | A00324-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 7 | A00326-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
| 8 | A00336-05-00 | FOOTPEG PIVOT PIN | 7.8X42 | 2 | Pcs. | $1.50 |
| 9 | A00505-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 10 | A00506-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 11 | A00019-28-01 | COTTER PIN | 2.5X24 | 2 | Pcs. | $1.50 |
| 12 | A00055-01-00 | TRAINING WHEEL KIT | AVAILABLE ACCESSORY | 1 | Kit | $124.00 |
| 13 | A00522-18-00 | TRAINING WHEEL TIRE | NOT PICTURED | 2 | Pcs. | $24.00 |
| 13 | A00619-18-00 | TRAINING WHEEL TIRE | GEN. 2 - FOR MAG WHEEL | 2 | Pcs. | $25.00 |
| 14 | A00086-01-00 | TRAINING WHEEL BUSHING | 12MM | 4 | Pcs. | $4.00 |
| 14 | A00102-01-00 | TRAINING WHEEL BEARING | 16MM | 4 | Pcs. | $7.00 |
| 14 | A00179-28-00 | TRAINING WHEEL BEARING | GEN. 2 - FOR MAG WHEEL 6200RS | 4 | Pcs. | $7.00 |
| 15 | A00087-01-00 | TRAINING WHEEL ASSY | WHEEL W/ TIRE + TUBE (12MM) | 2 | Pcs. | $41.00 |
| 15 | A00087-01-X1 | TRAINING WHEEL ASSY | WHEEL W/ TIRE + TUBE (16MM) | 2 | Pcs. | $41.00 |
| 15 | A00113-01-00 | TRAINING WHEEL ASSY | GEN. 2 - WHEEL W/ TIRE + TUBE (10MM) | 2 | Pcs. | $41.00 |
| 16 | A00523-18-00 | INNERTUBE 2.50-4 | NOT PICTURED | 2 | Pcs. | $14.00 |
| 16 | A00620-18-00 | INNERTUBE 2.00-5 | GEN. 2 - FOR MAG WHEEL | 2 | Pcs. | $14.00 |
| 17 | A00088-01-00 | TRAINING WHEEL KIT REAR BRAKE PEDAL | NOT PICTURED | 1 | Pc. | $18.00 |

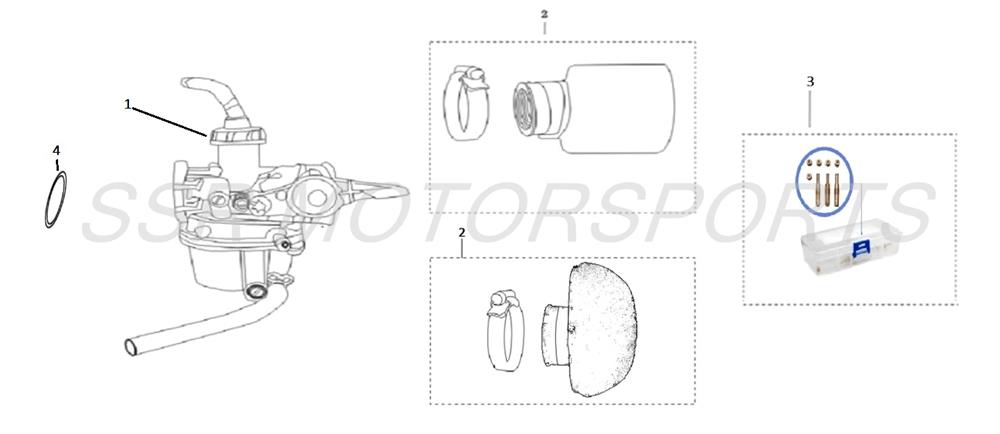

| CARBURETOR AND AIR FILTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00328-12-00 | CARBURETOR | JK 19 KS | 1 | Pc. | $76.00 |
| 2 | A00237-14-00 | AIR FILTER ELEMENT | 35 | 1 | Pc. | $18.00 |
| 2 | A00302-14-00 | AIR FILTER ELEMENT - BUTTON | 35 | 1 | Assy. | $23.00 |
| 3 | A00051-01-00 | CARBURETOR JET KIT | AVAILABLE ACCESSORY | 1 | Kit | $33.00 |
| 4 | A00150-27-00 | O-RING | 1 | Pc. | $2.50 | |
| 5 | A00416-12-00 | FLOAT BOWL O-RING | 1 | Pc. | $2.50 | |
| 6 | A00226-14-00 | INTAKE MANIFOLD | 1 | Pc. | $27.00 | |
| 7 | A00227-14-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $4.00 | |
| 8 | A00144-27-00 | INSULATOR O-RING | 1 | Pc. | $2.50 | |
| 9 | A00126-13-00 | INTAKE INSULATOR | 1 | Pc. | $6.00 | |
| 10 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 11 | A00024-19-01 | FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |

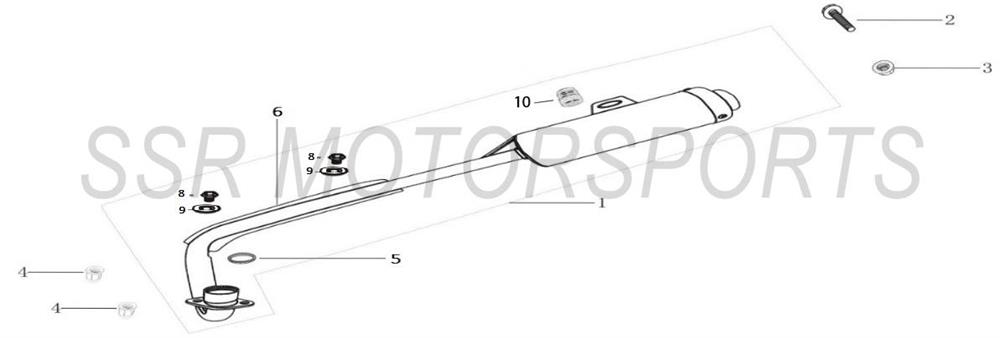

| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00081-10-00 | EXHAUST SYSTEM | 1 | Assy. | $76.00 | |
| 2 | A00049-19-01 | FLANGE BOLT | M8X35 | 1 | Pc. | $2.00 |
| 3 | A00003-22-03 | FLANGE NUT | M8 | 1 | Pc. | $1.50 |
| 4 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 5 | A00115-13-00 | EXHAUST GASKET | 1 | Pc. | $6.00 | |
| 6 | A00094-10-00 | MUFFLER GUARD | 1 | Pc. | $14.00 | |
| 8 | A00090-20-01 | MED PANHEAD PHILLIPS BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 9 | A00002-21-02 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 10 | A00118-10-00 | RUBBER DAMPER | 1 | Pc. | $1.50 | |
| ELECTRICAL EQUIPMENT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00013-08-0A | WIRE HARNESS | 1 | Pc. | $42.00 | |
| 2 | A00475-08-00 | STARTER RELAY | 1 | Pc. | $27.00 | |
| 3 | YTX4L-BS | BATTERY | 12V4Ah | 1 | Pc. | $63.00 |
| 4 | A00476-08-00 | BATTERY STRAP | DB70/KMB | 1 | Pc. | $8.00 |
| 5 | A00477-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $21.00 | |
| 6 | A00478-08-00 | IGNITION SWITCH | W/ 2 KEYS | 1 | Pc. | $30.00 |
| 7 | A00479-08-00 | CDI | 1 | Pc. | $21.00 | |
| 8 | A00480-08-00 | IGNITION COIL | 1 | Pc. | $27.00 | |
| 9 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 10 | A00156-08-00 | FUSE | 10A | 1 | Pc. | $2.50 |

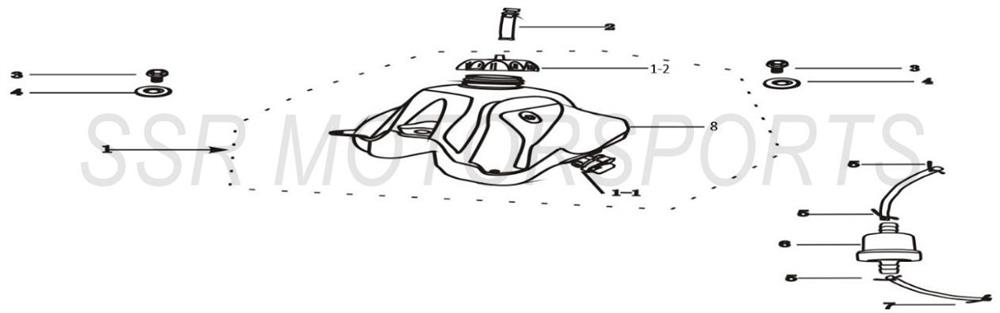

| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00315-12-00 | FUEL TANK ASSY | 1 | Assy. | $56.00 | |
| 1-1 | A00330-12-00 | FUEL PETCOCK | 1 | Pc. | $18.00 | |
| 1-2 | A00317-12-00 | FUEL TANK CAP | 1 | Pc. | $14.00 | |
| 2 | A00332-12-00 | FUEL TANK CAP VENT | 1 | Pc. | $6.00 | |
| 3 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 4 | A00012-21-01 | FENDER WASHER | 8X28X1.5 | 2 | Pcs. | $1.50 |
| 5 | A00002-24-03 | WIRE HOSE CLAMP | 7.5 | 3 | Pcs. | $1.50 |
| 6 | A00254-12-00 | FUEL FILTER | ONLY | 1 | Pc. | $4.00 |
| 6 | A00464-12-00 | FUEL FILTER W/ HOSES + CLAMPS | 1 | Assy. | $6.00 | |
| 7 | A00003-24-03 | WIRE HOSE CLAMP | 9 | 1 | Pc. | $1.50 |
| 8 | A00358-12-00 | FUEL TANK | ONLY | 1 | Pc. | $42.00 |
| 9 | A00465-12-00 | FUEL HOSE | A=50MM B=200MM | 1 | Set | $4.00 |
| 10 | A00468-12-00 | FUEL PETCOCK GASKET | 1 | Pc. | $7.00 | |

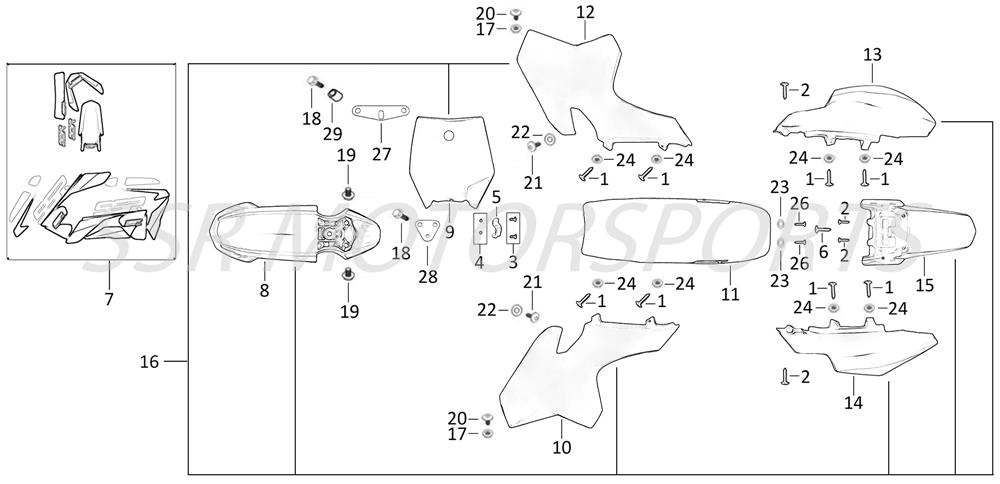

| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00010-20-03 | ST SCREW | ST4.2X16 | 8 | Pcs. | $1.50 |
| 2 | A00002-20-03 | ST SCREW | ST4.2X12 | 4 | Pcs. | $1.50 |
| 3 | A00009-20-01 | PHILLIPS BOLT | M4X12 | 2 | Pcs. | $1.50 |
| 4 | A00348-22-04 | LOCKNUT | M4 | 2 | Pcs. | $1.50 |
| 5 | A00684-02-00 | FRONT BRAKE HOSE GUIDE | WHITE | 1 | Pc. | $1.50 |
| 6 | A00005-22-05 | SCREW | ST4.8X16 | 1 | Pc. | $1.50 |
| 7 | A00702-02-00 | GRAPHIC KIT | 3M | 1 | Kit | $39.00 |
| 8 | A00685-02-02 | FRONT FENDER | BLACK | 1 | Pc. | $14.00 |
| 8 | A00685-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $14.00 |
| 8 | A00685-02-40 | FRONT FENDER | LIME GREEN | 1 | Pc. | $14.00 |
| 8 | A00685-02-12 | FRONT FENDER | BLUE | 1 | Pc. | $14.00 |
| 8 | A00685-02-18 | FRONT FENDER | RED | 1 | Pc. | $14.00 |
| 8 | A00685-02-03 | FRONT FENDER | ORANGE | 1 | Pc. | $14.00 |
| 9 | A00686-02-02 | FRONT NUMBER PLATE | BLACK | 1 | Pc. | $14.00 |
| 9 | A00686-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 9 | A00686-02-40 | FRONT NUMBER PLATE | LIME GREEN | 1 | Pc. | $14.00 |
| 9 | A00686-02-12 | FRONT NUMBER PLATE | BLUE | 1 | Pc. | $14.00 |
| 9 | A00686-02-18 | FRONT NUMBER PLATE | RED | 1 | Pc. | $14.00 |
| 9 | A00686-02-03 | FRONT NUMBER PLATE | ORANGE | 1 | Pc. | $14.00 |
| 10 | A00687-02-02 | LEFT FUEL TANK SHROUD | BLACK | 1 | Pc. | $14.00 |
| 10 | A00687-02-01 | LEFT FUEL TANK SHROUD | WHITE | 1 | Pc. | $14.00 |
| 10 | A00687-02-40 | LEFT FUEL TANK SHROUD | LIME GREEN | 1 | Pc. | $14.00 |
| 10 | A00687-02-12 | LEFT FUEL TANK SHROUD | BLUE | 1 | Pc. | $14.00 |
| 10 | A00687-02-18 | LEFT FUEL TANK SHROUD | RED | 1 | Pc. | $14.00 |
| 10 | A00687-02-03 | LEFT FUEL TANK SHROUD | ORANGE | 1 | Pc. | $14.00 |
| 11 | A00717-02-00 | SEAT | 1 | Pc. | $45.00 | |
| 12 | A00688-02-02 | RIGHT FUEL TANK SHROUD | BLACK | 1 | Pc. | $14.00 |
| 12 | A00688-02-01 | RIGHT FUEL TANK SHROUD | WHITE | 1 | Pc. | $14.00 |
| 12 | A00688-02-40 | RIGHT FUEL TANK SHROUD | LIME GREEN | 1 | Pc. | $14.00 |
| 12 | A00688-02-12 | RIGHT FUEL TANK SHROUD | BLUE | 1 | Pc. | $14.00 |
| 12 | A00688-02-18 | RIGHT FUEL TANK SHROUD | RED | 1 | Pc. | $14.00 |
| 12 | A00688-02-03 | RIGHT FUEL TANK SHROUD | ORANGE | 1 | Pc. | $14.00 |
| 13 | A00689-02-02 | RIGHT REAR NUMBER PLATE | BLACK | 1 | Pc. | $14.00 |
| 13 | A00689-02-01 | RIGHT REAR NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 13 | A00689-02-40 | RIGHT REAR NUMBER PLATE | LIME GREEN | 1 | Pc. | $14.00 |
| 13 | A00689-02-12 | RIGHT REAR NUMBER PLATE | BLUE | 1 | Pc. | $14.00 |
| 13 | A00689-02-18 | RIGHT REAR NUMBER PLATE | RED | 1 | Pc. | $14.00 |
| 13 | A00689-02-03 | RIGHT REAR NUMBER PLATE | ORANGE | 1 | Pc. | $14.00 |
| 14 | A00690-02-02 | LEFT REAR NUMBER PLATE | BLACK | 1 | Pc. | $14.00 |
| 14 | A00690-02-01 | LEFT REAR NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 14 | A00690-02-40 | LEFT REAR NUMBER PLATE | LIME GREEN | 1 | Pc. | $14.00 |
| 14 | A00690-02-12 | LEFT REAR NUMBER PLATE | BLUE | 1 | Pc. | $14.00 |
| 14 | A00690-02-18 | LEFT REAR NUMBER PLATE | RED | 1 | Pc. | $14.00 |
| 14 | A00690-02-03 | LEFT REAR NUMBER PLATE | ORANGE | 1 | Pc. | $14.00 |
| 15 | A00691-02-02 | REAR FENDER | BLACK | 1 | Pc. | $14.00 |
| 15 | A00691-02-01 | REAR FENDER | WHITE | 1 | Pc. | $14.00 |
| 15 | A00691-02-40 | REAR FENDER | LIME GREEN | 1 | Pc. | $14.00 |
| 15 | A00691-02-12 | REAR FENDER | BLUE | 1 | Pc. | $14.00 |
| 15 | A00691-02-18 | REAR FENDER | RED | 1 | Pc. | $14.00 |
| 15 | A00691-02-03 | REAR FENDER | ORANGE | 1 | Pc. | $14.00 |
| 16 | A00692-02-02 | COMPLETE PLASTIC KIT | BLACK | 1 | Kit | $42.00 |
| 16 | A00692-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | Kit | $42.00 |
| 16 | A00692-02-40 | COMPLETE PLASTIC KIT | LIME GREEN | 1 | Kit | $42.00 |
| 16 | A00692-02-12 | COMPLETE PLASTIC KIT | BLUE | 1 | Kit | $42.00 |
| 16 | A00692-02-18 | COMPLETE PLASTIC KIT | RED | 1 | Kit | $42.00 |
| 16 | A00692-02-03 | COMPLETE PLASTIC KIT | ORANGE | 1 | Kit | $42.00 |
| 17 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 18 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 19 | A00008-19-03 | BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 20 | A00003-20-01 | PHILLIPS BOLT | TM6X16 | 2 | Pcs. | $1.50 |
| 21 | A00010-19-29 | PAN HEAD PHILLIPS BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 22 | A00016-21-01 | RUBBER WASHER | 6X17X3.5 | 2 | Pcs. | $1.50 |
| 23 | A00011-21-01 | WASHER | 6X18X1.5 | 2 | Pcs. | $1.50 |
| 24 | A00017-21-01 | WASHER | 6X12X1.5 | 6 | Pcs. | $1.50 |
| 26 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 27 | A00705-02-00 | UPPER NUMBER PLATE BRACKET | 1 | Pc. | $6.00 | |
| 28 | A00706-02-00 | FRONT FENDER BRACKET | 1 | Pc. | $4.00 | |
| 29 | A00685-02-00 | SPACER | 8X16XH6.5 | 1 | Pc. | $1.50 |
