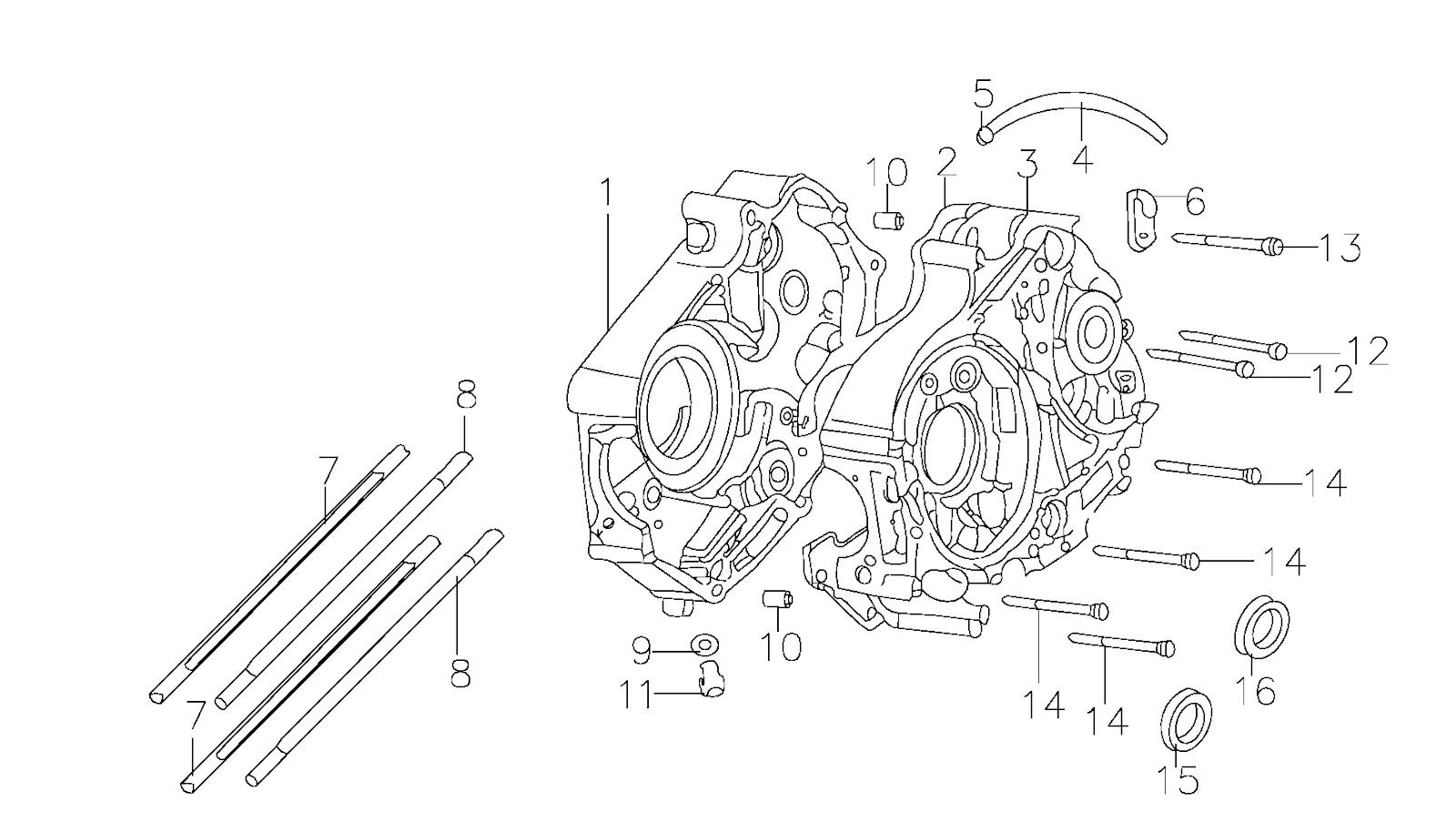

Piranha P140 (Crankcase)
| Ref.No. | Part No. | Description | Quantity |
| 1 | 208A020 | RIGHT CRANKCASE BODY | 1 |
| 2 | E13B005 | CRANKCASE SEALED PACKING | 1 |
| 3 | 208A010 | LEFT CRANKCASE BOGY | 1 |
| 4 | F00C024 | BREATHING PIPE | 1 |
| 5 | D00L014 | OVERFLOW PIPE CLIP | 1 |
| 6 | D00L039BCR | PIPE CLAMPING | 1 |
| 7 | 206M001 | CYLINDER TRAPPED STUD(A) | 2 |
| 8 | 206M002 | CYLINDER TRAPPED STUD (B) | 2 |
| 9 | D00L021 | WASHER | 1 |
| 10 | 97010014 | ASTEMBLING PIN | 2 |
| 11 | D00E026BX | DISCHARGING OIL PLUG SCREW | 1 |
| 12 | GB5787 | BOLT | 2 |
| 13 | GB5787 | BOLT | 1 |
| 14 | GB5787 | BOLT | 4 |
| 15 | D001C008 | WASHER | 1 |
| 16 | D00C026 | WASHER | 1 |
