Kandi Goat 2p Parts Schematics

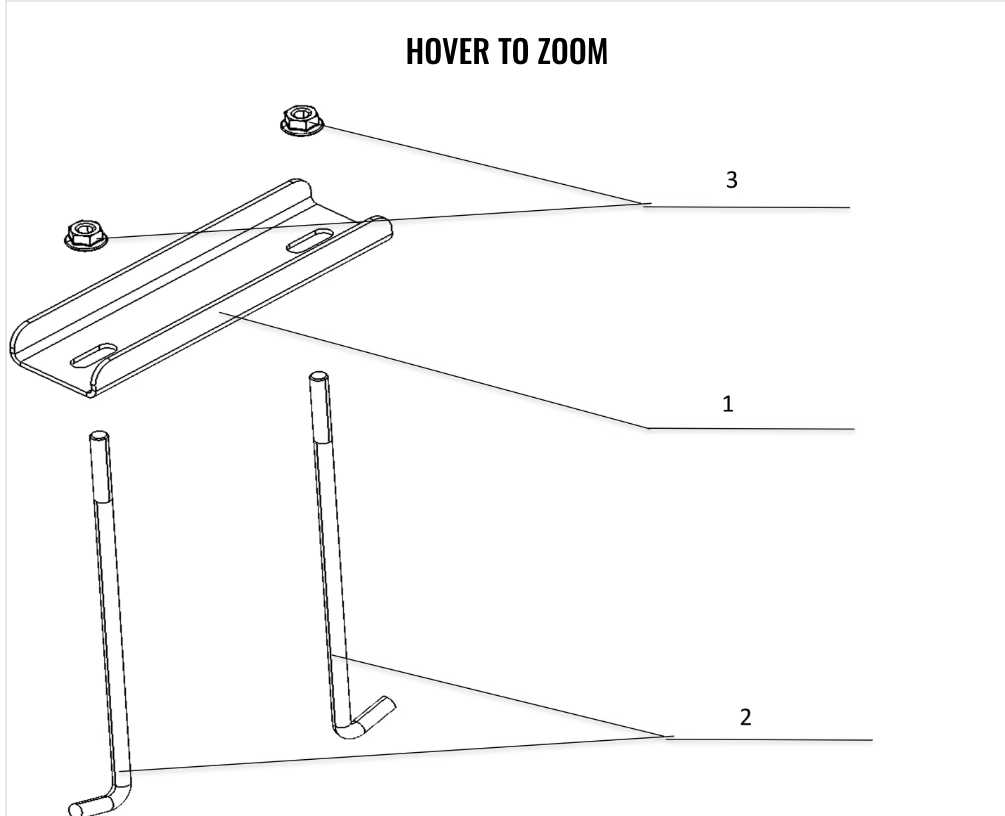

| Ref# | Part | Price |
|---|---|---|
| 1 |
M1203-3703022
Battery Hold-Down
|
$12.54 |
| 2 |
M1203-3703021
Battery Hold-Down Rod
|
$8.06 |
| 3 |
Q32006T2F33
Hexagon Flange Nut - M6×1
|
$1.79 |

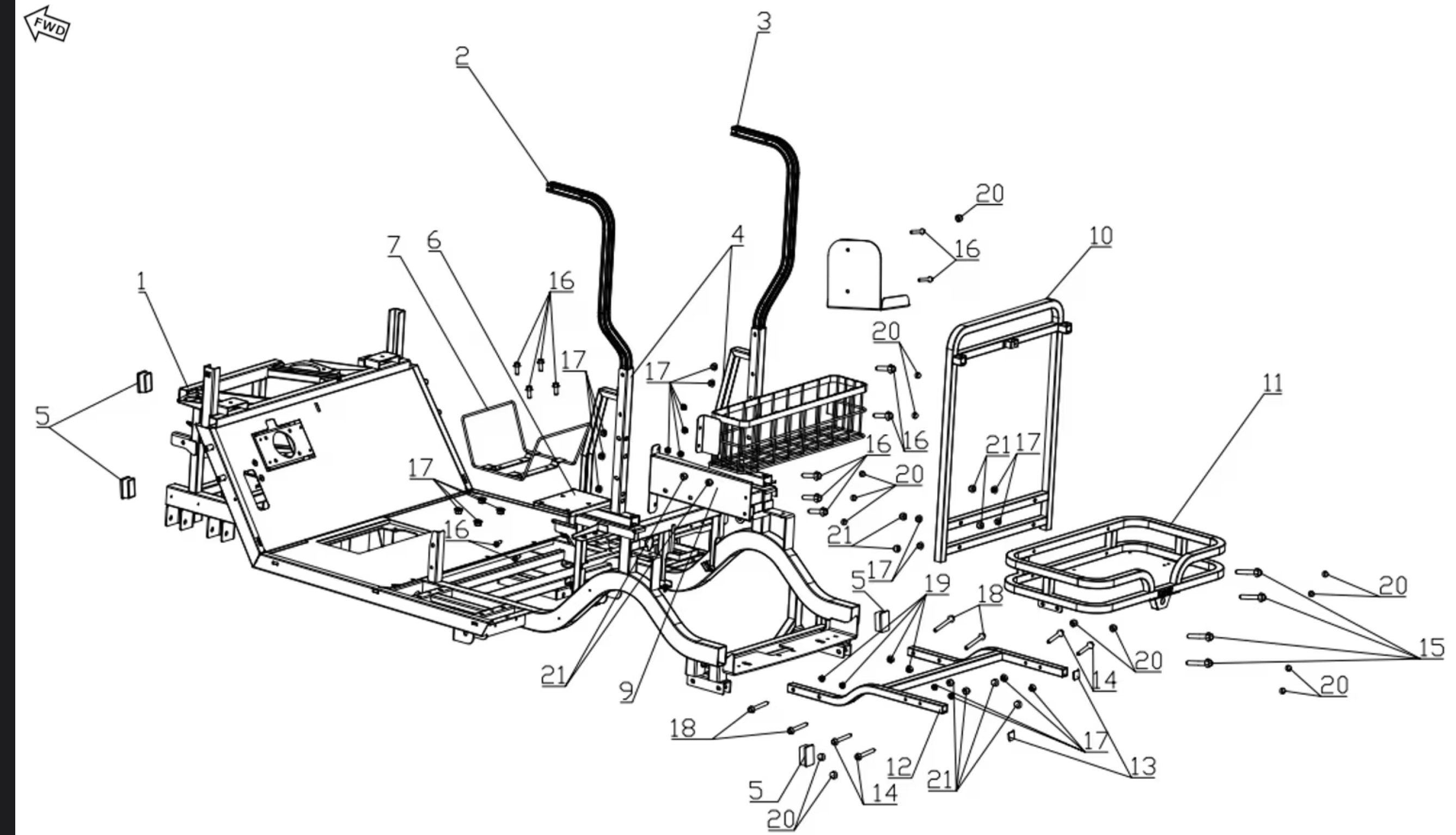

ACCESSORIES
| Ref# | Part | Price |
|---|---|---|
| 1 |
M1124Q-2801010 Frame Assembly |
$1,232.00 |
| 2 |
M1204FQ-2801421
B-Pillar GOAT (Driver Side)
|
$40.00 |
| 3 |
M1204FQ-2801422
B-Pillar GOAT (Passenger Side)
|
$40.00 |
| 4 |
M1224-2801430
B-Pillar Mounting Bracket
|
$46.26 |
| 5 |
M1205-8201001 Pipe Plug |
$5.00 |
| 6 |
M1124Q-8214111
Cooler Mounting Bracket
|
$15.00 |
| 7 |
M1124Q-8214120
Cooler Assembly
|
$20.00 |
| 8 |
M1204FQ-8200014
Ball Washer Mounting Bracket
|
$40.00 |
| 9 |
M1124Q-8200013
Sand Bottle Mounting Bracket
|
$30.00 |
| 10 |
M1124Q-2800150
Golf Bag Holder Mounting Bracket
|
$90.00 |
| 11 |
M1124Q-5005100
Golf Bag Holder Lower Platform
|
$220.00 |
| 12 |
M1124Q-2800130
Golf Bag Holder Support Bracket
|
$60.00 |
| 13 |
M1124Q-2800135
Pipe Plug - Golf Bag Holder Support Bracket
|
$5.00 |
| 14 |
Q1840840T1F6
Hexagon Flange Bolt - M8×1.25×40
|
$3.00 |
| 15 |
Q1840860T1F33
Hexagon Flange Bolt - M8×1.25×60
|
$2.69 |
| 16 |
Q1840820T1F6
Hexagon Flange Bolt - M8×1.25×20
|
$2.69 |
| 17 |
Q33008T2F6
Hexagon Flange Lock Nut - M8×1.25
|
$2.69 |
| 18 |
Q1851050TF6
Hexagon Flange Bolt - M10×1.25×50
|
$4.48 |
| 19 |
Q33110T13F6
Hexagon Flange Lock Nut - M10×1.25
|
$2.00 |
| 20 |
Q72606
Protection Cap - M6 Nut
|
$3.00 |
| 21 |
Q72608
Protection Cap - M8 Nut
|
$3.00 |

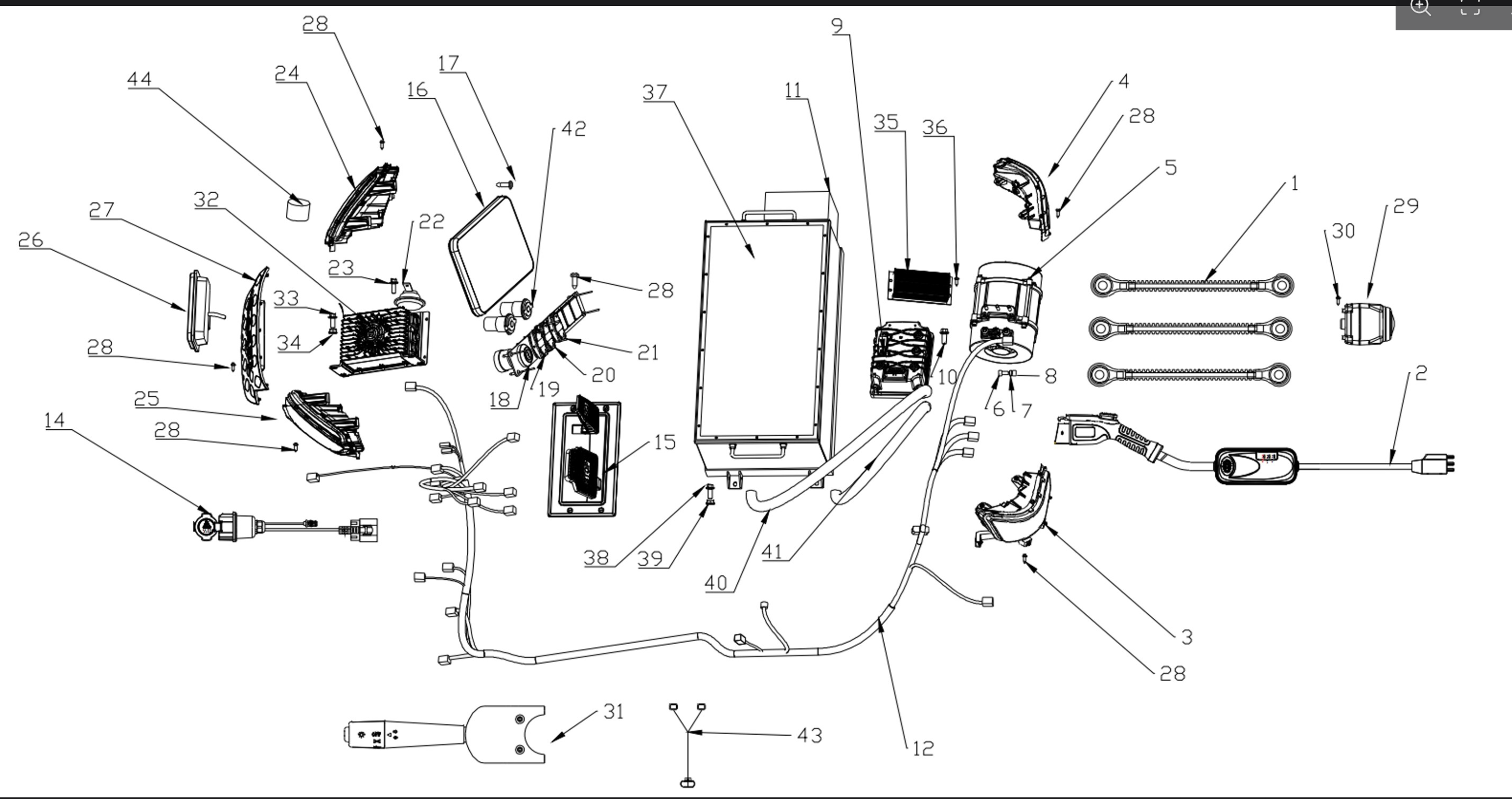

ELECTRICAL
| Ref# | Part | Price |
|---|---|---|
| 1 |
M1204-4005020 Motor Wire |
$30.00 |
| 2 |
M1104-2107020
Charging Cable for Lithium Battery
|
$199.00 |
| 3 |
M1224-4133010
Taillight PRO (Driver Side)
|
$47.94 |
| 4 |
M1224-4133020
Taillight PRO (Passenger Side)
|
$47.94 |
| 5 |
M1203-2103010 Drive Motor Assembly 5KW |
$600.00 |
| 6 |
1/4-20*1-1/4
Allen Head Bolt - 1/4-20*1-1/4
|
$4.70 |
| 7 |
Q40306F33 Spring Washer |
$3.14 |
| 8 |
Q40106T16F33
Washer
|
$3.14 |
| 9 |
M1104F-2142010LL
Motor Controller Assembly
|
$499.00 |
| 10 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
$2.69 |
| 11 |
M1104-3703010
12V Starting Battery
|
$60.00 |
| 12 |
M1124-4002010
Wiring Harness
|
$179.99 |
| 14 |
M1104-2107030 Charging Socket, Lithium |
$32.40 |
| 15 |
M1204-3504010HX
Combined Pedal Assembly
|
$214.14 |
| 16 |
M1224-3820010
Touchscreen Instrument Panel (10in Screen)
|
$400.00 |
| 17 |
Q2140308T1F33
Phillips Pan Head Screw - M3×8
|
$3.00 |
| 18 |
M1203-3704010
Key Switch
|
$16.99 |
| 19 |
M1224-3792010 Gear Switch |
$14.00 |
| 20 |
M1224-3792030
Spotlight Switch
|
$14.00 |
| 21 |
M1224-3792040
Hazard Warning Switch
|
$14.00 |
| 22 |
M1203-3721010
Horn
|
$19.88 |
| 23 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
$2.69 |
| 24 |
M1224-4121020
Headlight (Passenger Side) PRO A
|
$178.36 |
| 25 |
M1224-4121010
Headlight (Driver Side) PRO A
|
$178.36 |
| 26 |
M1124-4121030
Spotlight PRO
|
$30.00 |
| 27 |
M1224-4121030
Grille PRO A
|
$60.00 |
| 28 |
M1124-5006136
Phillips Truss Head Self-Tapping Screw - ST4.2×13
|
$1.79 |
| 29 |
M1124-3776010
Backup Camera (Call First)
|
$60.00 |
| 30 |
Q2140206
Bolt M2, Backup Camera
|
$2.00 |
| 31 |
M1224-3774010
Turn Signal Combination Switch PRO
|
$40.00 |
| 32 |
M1104F-2107010
Charger Assembly (4P Lithium with 7" Screen, Element, 4PRO, 4PROF, GOAT)
|
$420.00 |
| 33 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
$2.69 |
| 34 |
Q32006T2F33
Hexagon Flange Nut - M6×1
|
$1.79 |
| 35 |
M1104-2110010
DC to DC Converter (Call First)
|
$60.00 |
| 36 |
Q2140512T1F33
Phillips Pan Head Screw - M5×0.8×12
|
$3.00 |
| 37 |
M1104-2101010
Lithium Battery (Kandi OEM) (Only Ships to Commercial Addresses Through LTL)
|
$4,499.00 |
| 38 |
Q1840820T1F6
Hexagon Flange Bolt - M8×1.25×20
|
$2.69 |
| 39 |
Q33008T2F6
Hexagon Flange Lock Nut - M8×1.25
|
$2.69 |
| 40 |
M1104-4005012
Battery Cable - Red
|
$30.00 |
| 41 |
M1104-4005011
Battery Cable - Black
|
$30.00 |
| 42 |
M1224-3792050 USB Output Socket |
$26.25 |
| 43 |
M1124-4002210
USB Transition Cable
|
$3.00 |

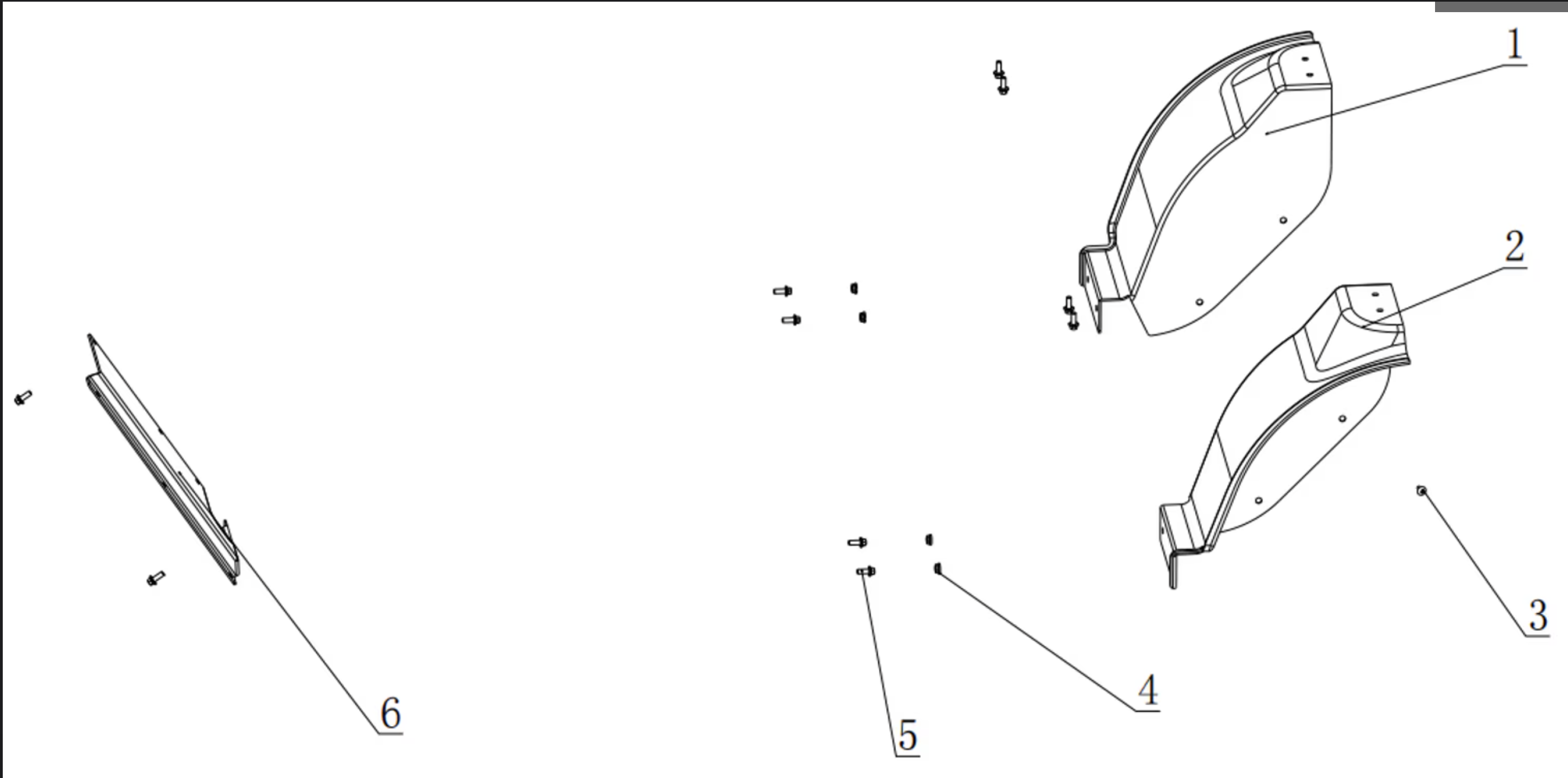

FENDER SPLASH SHIELD
| Ref# | Part | Price |
|---|---|---|
| 1 |
M1224-5006412
Fender Splash Shield (Rear Passenger Side)
|
$72.91 |
| 2 |
M1224-5006411
Fender Splash Shield (Rear Driver Side)
|
$72.91 |
| 3 |
Q2734816F33
Phillips Truss Head Self-Tapping Screw - ST4.8×16
|
$1.79 |
| 4 |
Q32006F33
Hexagon Flange Nut - M6×1
|
$1.79 |
| 5 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
$2.69 |
| 6 |
M1204F-5006221
Fender Splash Shield (Front Driver Side)
|
$41.66 |

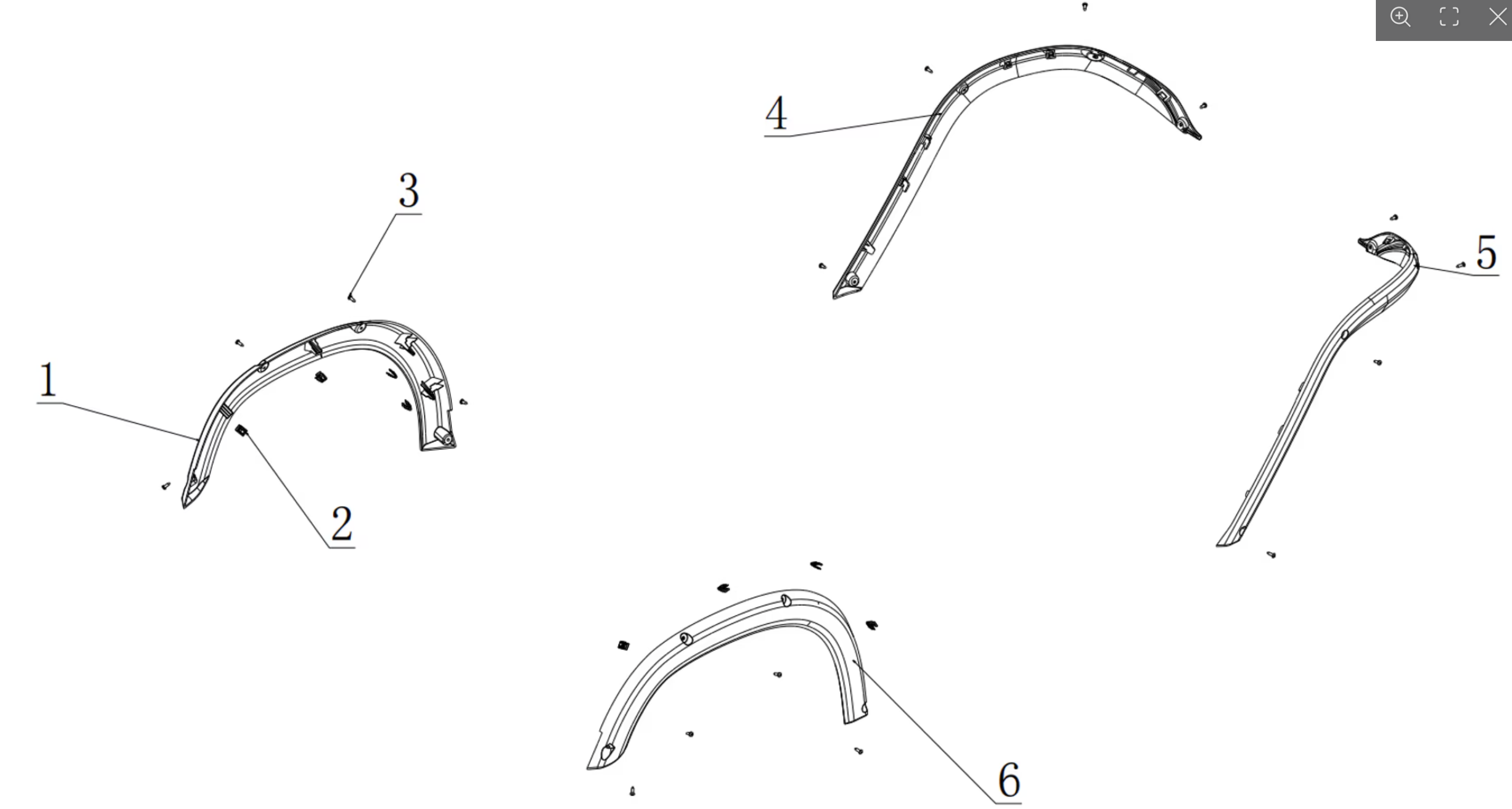

FENDER TRIM
| Ref# | Part | Price |
|---|---|---|
| 1 |
M1124Q-5006353
Fender Trim (Rear Driver Side)
|
$60.00 |
| 2 |
M1224-5006133 Metal Clip |
$3.99 |
| 3 |
Q2734816F33
Phillips Truss Head Self-Tapping Screw - ST4.8×16
|
$1.79 |
| 4 |
M1124Q-5006351
Fender Trim (Front Driver Side)
|
$60.00 |
| 5 |
M1124Q-5006352
Fender Trim (Front Passenger Side)
|
$60.00 |
| 6 |
M1124Q-5006354
Fender Trim (Rear Passenger Side)
|
$60.00 |

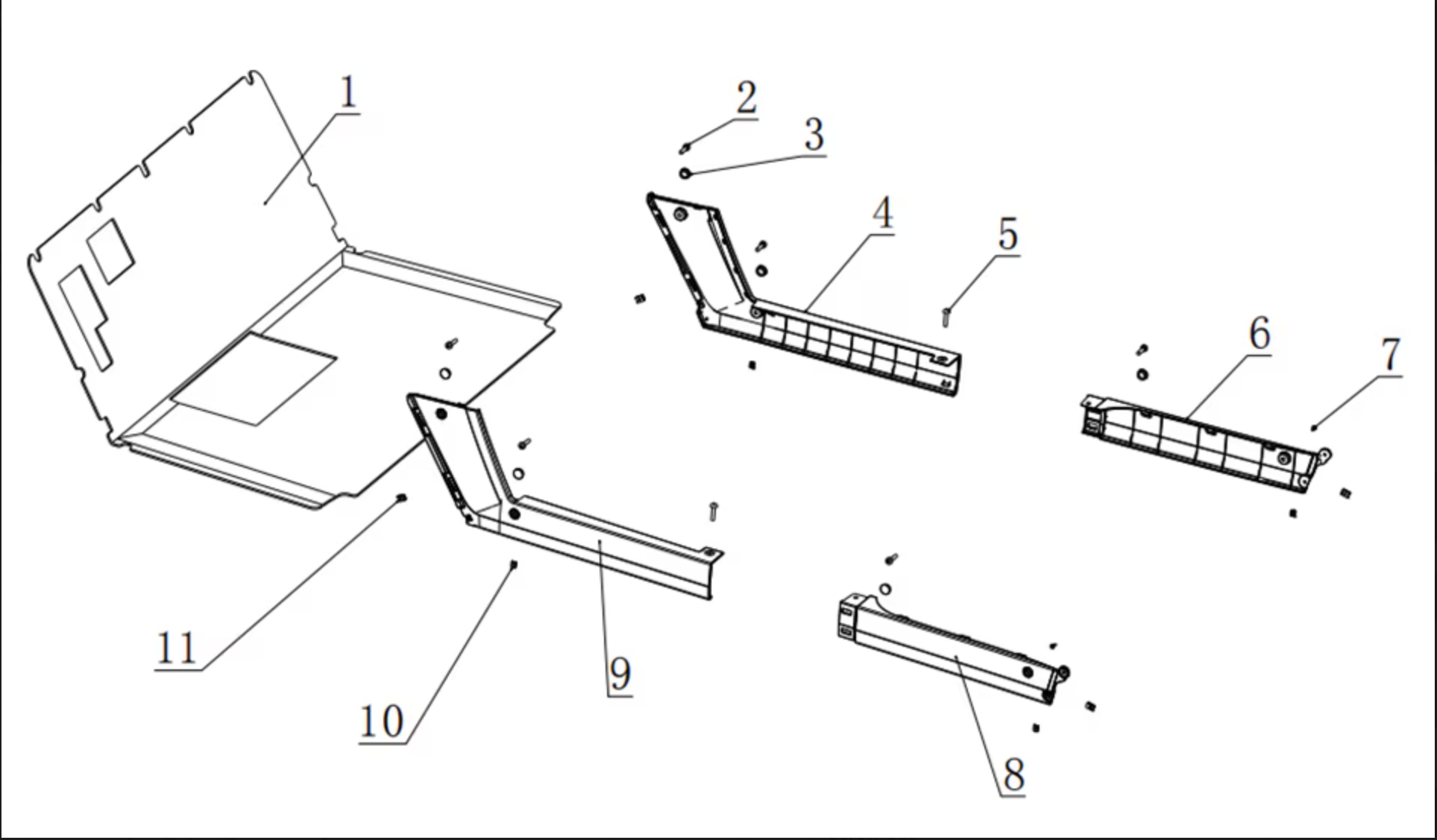

FLOOR TRIM
| Ref# | Part | Price |
|---|---|---|
| 1 |
M1203-5006211 Floorboard Liner |
$50.18 |
| 2 |
Q2140625F33
Phillips Pan Head Screw - M6×1×25
|
$1.79 |
| 3 |
M1124A-5006237
Screw Cap
|
$2.69 |
| 4 |
M1224-5006242
Side Trim (Front Passenger Side)
|
$17.00 |
| 5 |
M1203-5006314
Phillips Round Head Screw - M6×1×30
|
$1.79 |
| 6 |
M1224-5006244
Side Trim (Rear Passenger Side)
|
$12.00 |
| 7 |
Q2734816F33
Phillips Truss Head Self-Tapping Screw - ST4.8×16
|
$1.79 |
| 8 |
M1224-5006233
Side Trim (Rear Driver Side)
|
$12.00 |
| 9 |
M1224-5006231
Side Trim (Front Driver Side)
|
$17.00 |
| 10 |
C4806-B
Cage Nut
|
$2.69 |
| 11 |
M1224-5006236 Spring Nut |
$3.99 |

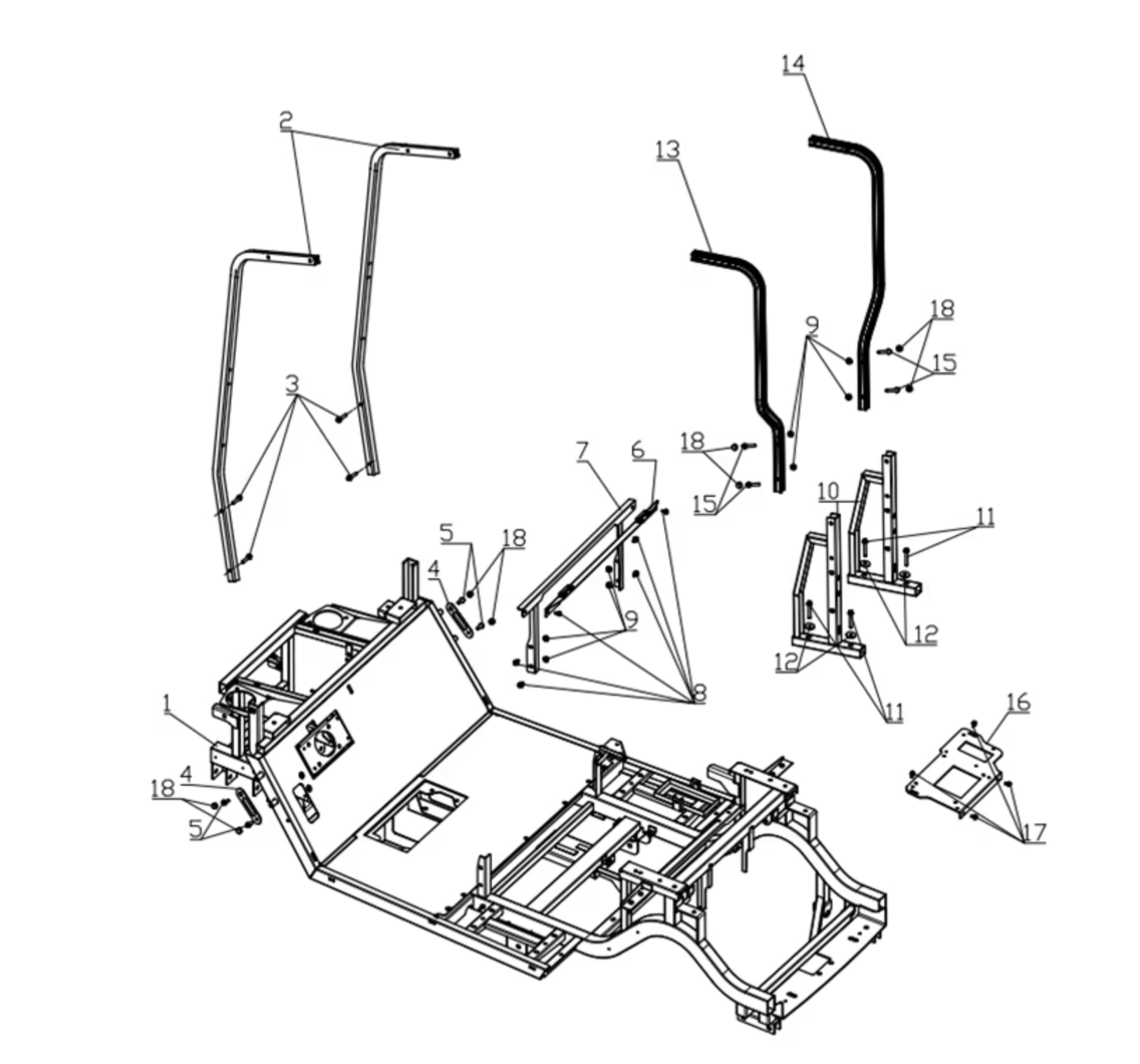

FRAME
| Ref# | Part | Price |
|---|---|---|
| 1 |
M1124Q-2801010 Frame Assembly |
$1,232.00 |
| 2 |
M1224-2801411 A-Pillar PRO (Sold Individually) |
$42.00 |
| 3 |
Q1840840T1F6
Hexagon Flange Bolt - M8×1.25×40
|
$3.00 |
| 4 |
M1204C-5005115
Side Beam Decorative Metal Accent
|
$2.69 |
| 5 |
Q1840820T1F6
Hexagon Flange Bolt - M8×1.25×20
|
$2.69 |
| 6 |
M1104-2800310
Seat Hinge Beam Assembly
|
$9.00 |
| 7 |
M1104-2800320
Seat Beam Assembly
|
$48.61 |
| 8 |
Q1840816T1F6
Hexagon Flange Bolt - M8×1.25×16
|
$2.69 |
| 9 |
Q33008T2F6
Hexagon Flange Lock Nut - M8×1.25
|
$2.69 |
| 10 |
M1224-2801430
B-Pillar Mounting Bracket
|
$46.26 |
| 11 |
Q1840860T1F33
Hexagon Flange Bolt - M8×1.25×60
|
$2.69 |
| 12 |
M1203-2801436
Washer - M8×4×40
|
$3.58 |
| 13 |
M1204FQ-2801421
B-Pillar GOAT (Driver Side)
|
$40.00 |
| 14 |
M1204FQ-2801422
B-Pillar GOAT (Passenger Side)
|
$40.00 |
| 15 |
Q1840875T1F6
Hexagon Flange Bolt - M8×1.25×75
|
$2.69 |
| 16 |
M1104-2801551H Motor Controller Mounting Plate |
$17.70 |
| 17 |
Q1840616T1F33
Hexagon Flange Bolt - M6×1×16
|
$2.69 |
| 18 |
Q72606
Protection Cap - M6 Nut
|
$3.00 |

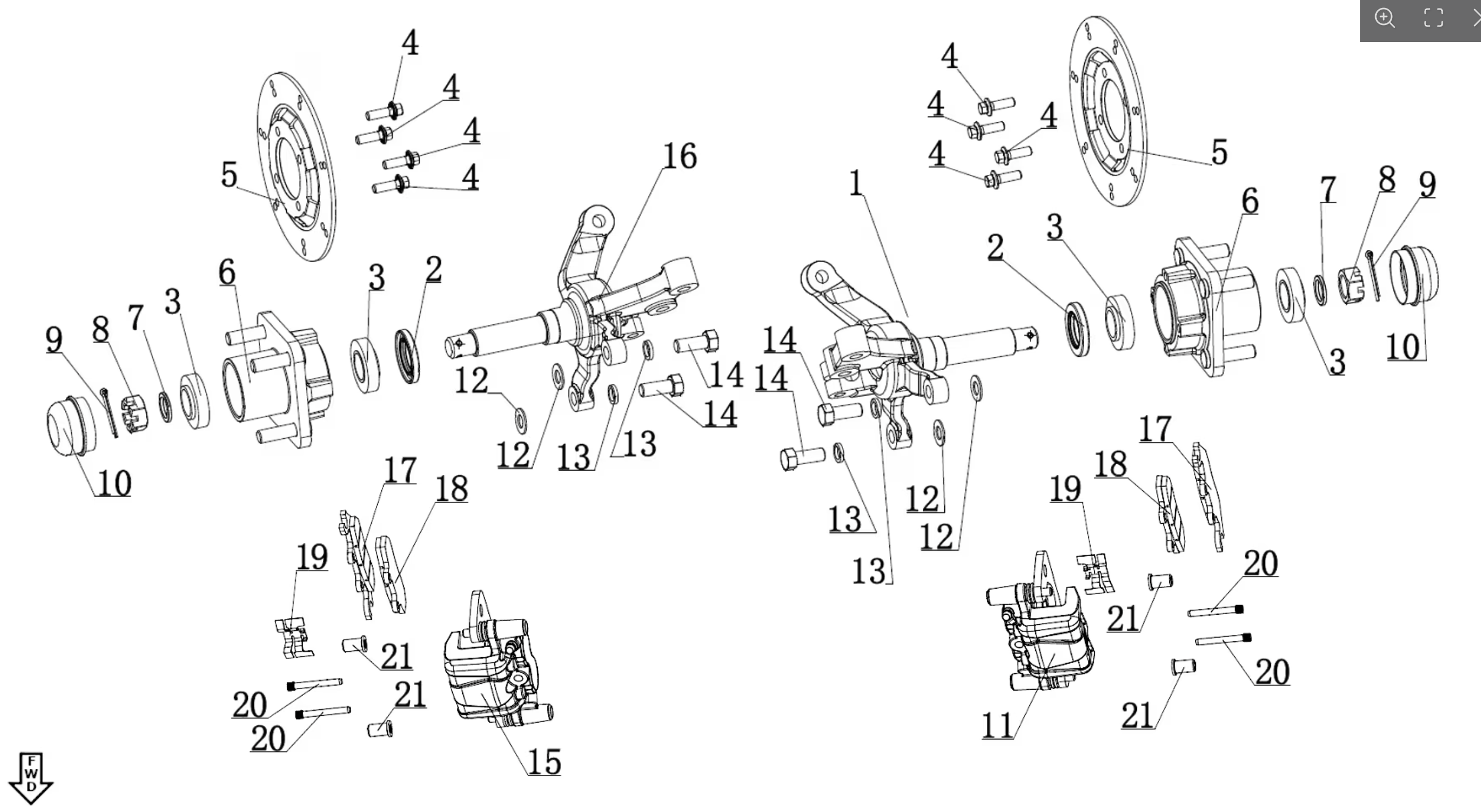

FRONT BRAKES
| Ref# | Part | Price |
|---|---|---|
| 1 |
M6204-3001015
Knuckle and Spindle Assembly (Front Driver Side)
|
$118.46 |
| 2 |
M6203-3001019 Grease Seal |
$13.78 |
| 3 |
M6203-3001016 Bearing |
$48.57 |
| 4 |
Q1800820TF3
Hexagon Serrated Flange Bolt - M8×1.25×20
|
$2.69 |
| 5 |
M1124Q-3501020
Brake Rotor
|
$57.88 |
| 6 |
M6203-3001017
Hub Assembly
|
$86.06 |
| 7 |
M6203-3001018 Washer |
$1.53 |
| 8 |
Q38312TF3 Slotted Hexagon Nut - M20×1.5 |
$6.43 |
| 9 |
Q5000436
Cotter Pin
|
$1.69 |
| 10 |
M6203-3001021
Hub Assembly End Cap
|
$10.11 |
| 11 |

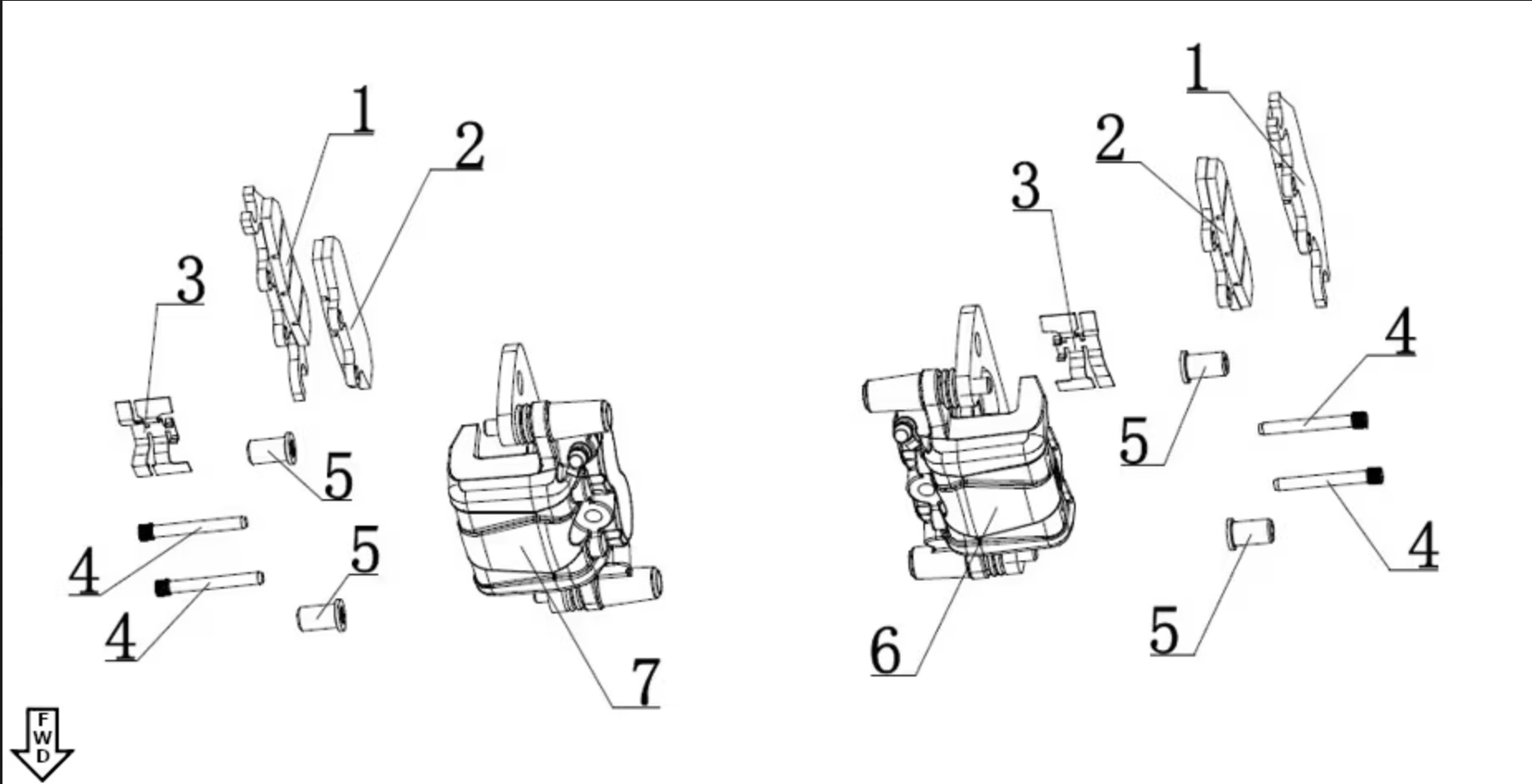

M1124Q-3501015 Front Brake Caliper (Driver Side, Brake Pads Not Included) |
$80.18 |
| 12 |
M1124Q-3001022
Spacer Shim
|
$3.14 |
| 13 |
Q40312F6
Spring Washer - M12
|
$1.69 |
| 14 |
Q151B1230TF6 Hexagon Bolt - M12×1.25×30 |
$3.07 |
| 15 |
M1124Q-3502010
Front Brake Caliper (Passenger Side, Brake Pads Not Included)
|
$80.18 |
| 16 |
M6204-3001025
Knuckle and Spindle Assembly (Front Passenger Side)
|
$118.46 |
| 19 |
M6204-3501023 Brake Caliper Spring Clip 1 |
$4.59 |
