Product Description
RedDot Evolution Classic & Forester Tinted Impact-Modified Folding Windshield (Item #09-261)
Premium Windshield Protection System

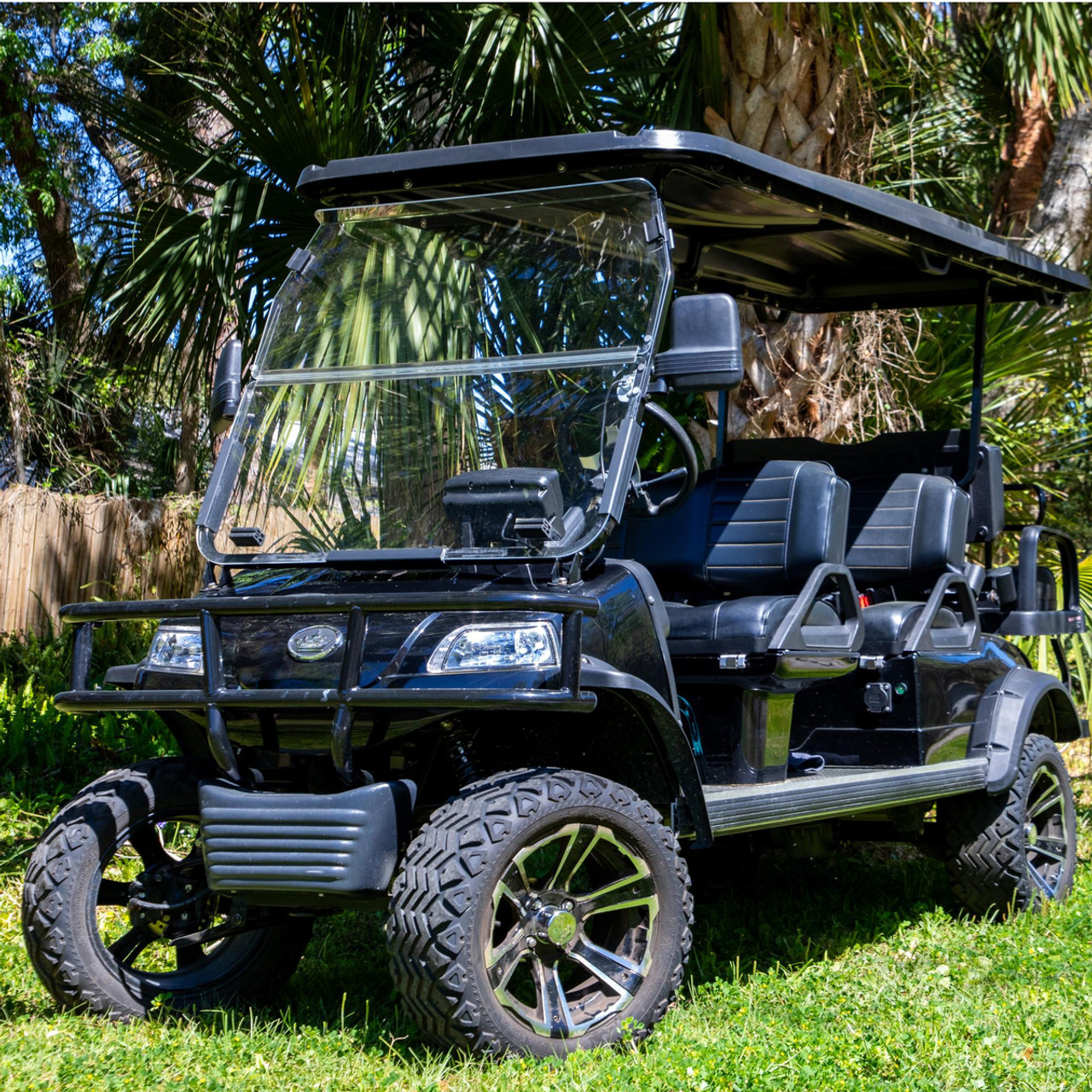

The RedDot Evolution Classic & Forester Tinted Impact-Modified Folding Windshield (Item #09-261) represents the pinnacle of golf cart weather protection, engineered specifically for Evolution Classic and Forester series models. This professional-grade windshield combines military-grade impact resistance with UV-blocking tint technology, delivering superior protection against both environmental hazards and sun glare while maintaining optical clarity.
Advanced Material Construction
-

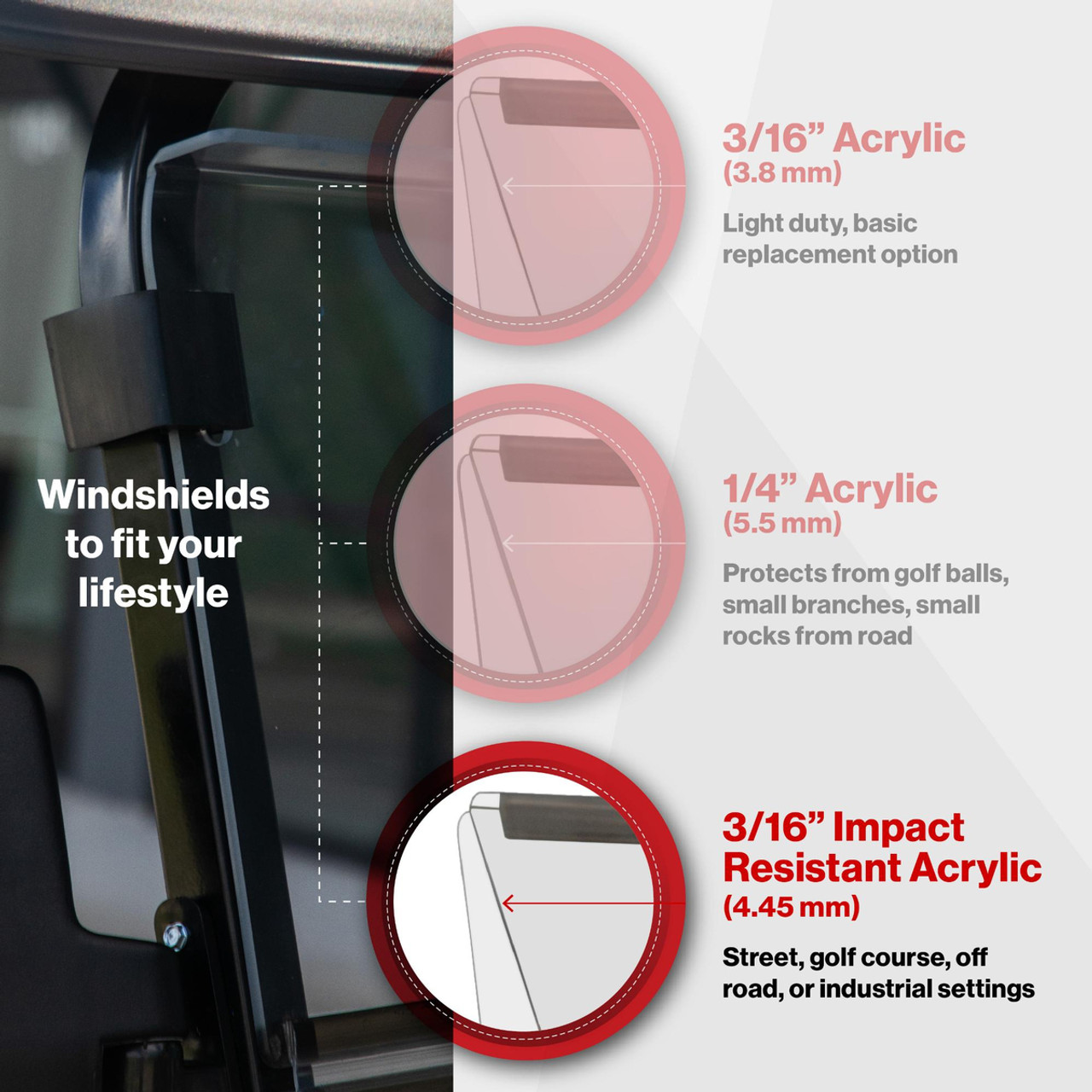

3/16" (4.76mm) Impact-Modified Tinted Acrylic:
-
Smoke-gray tint reduces glare by 35% while maintaining 88% light transmission
-
Polymer matrix reinforcement withstands impacts up to 75mph
-
Triple-layer UV protection (blocks 99% UVA/UVB rays)
-
Anti-scratch hard coat (5H pencil hardness rating)
-
Hydrophobic surface treatment beads water instantly
-
-
Aerospace-Grade Frame System:
-
6061-T6 aluminum extruded frame channels
-
Black anodized finish (MIL-A-8625 Type III specification)
-
Vibration-dampened mounting system with rubber isolators
-
Reinforced hinge mechanism rated for 50,000+ cycles
-
Engineered Functional Features
-

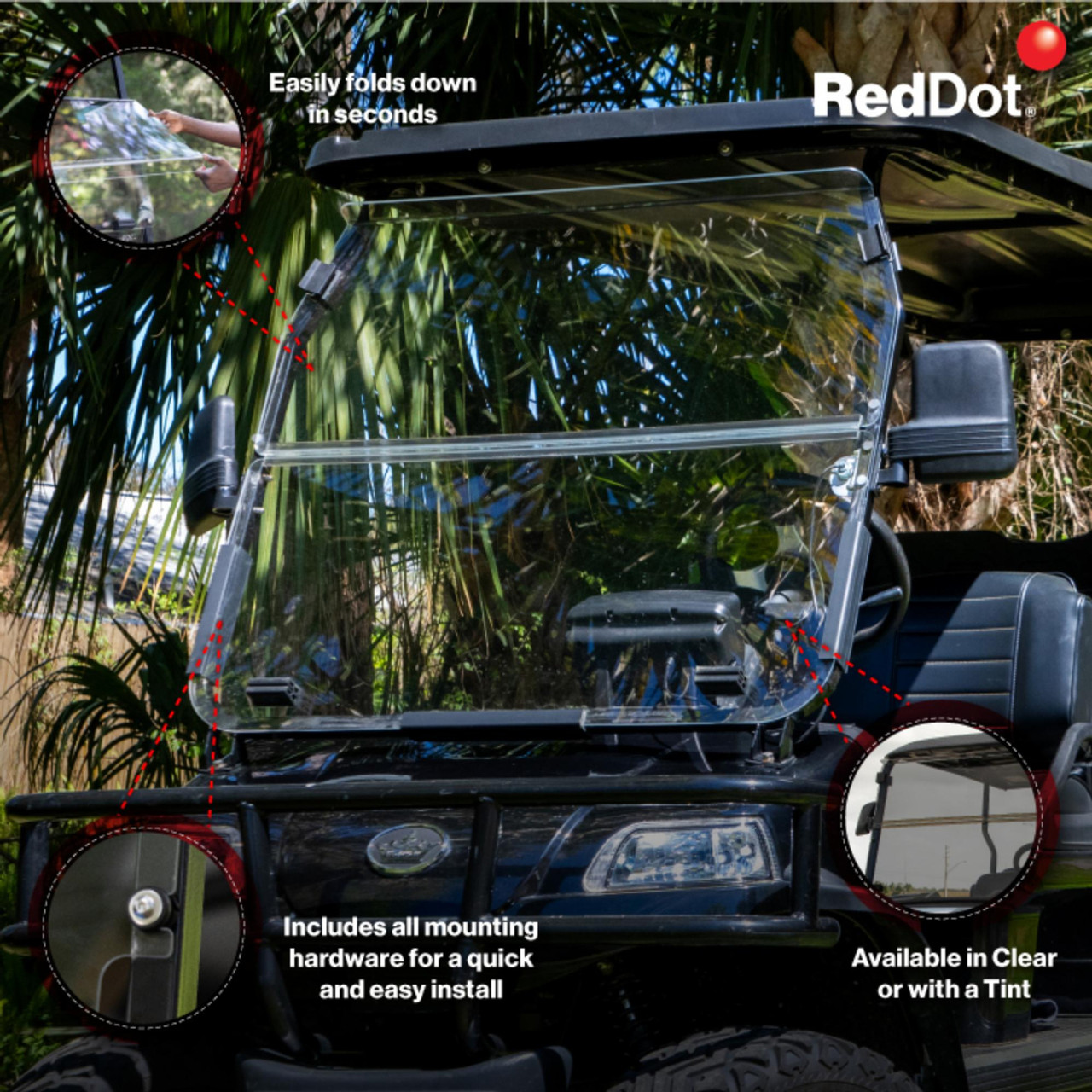

Smart Folding Mechanism:
-
One-touch release with positive detent positions
-
90° folding arc (full upright to completely folded)
-
Gas-charged struts for controlled movement
-
Locking safety catch in folded position
-
-
Climate Control System:
-
Adjustable airflow channels when partially folded
-
Integrated condensation drainage system
-
Thermal-stable from -40°F to 185°F
-
-
Precision Fitment Technology:
-
Laser-scanned templates for model-specific contours
-
Precision CNC-cut edges with polished finishes
-
Vehicle-matched curvature eliminates wind buffeting
-
OEM mounting point compatibility (no drilling required)
-
Technical Specifications
Category | Specification |
---|---|
Material | 4.76mm impact-modified tinted acrylic |
Dimensions | 46"W x 20"H (model-specific) |
Folded Height | 9.5" |
Weight | 9.1 lbs |
Impact Rating | Withstands 75mph projectile impacts |
Visible Light Transmission | 88% |
UV Protection | 99% UVA/UVB blocking |
Mounting | Direct bolt-on (hardware included) |
Compatibility | All Evolution Classic & Forester configurations |
Warranty | 5-year limited warranty |
Installation & Maintenance
-
20-minute professional installation:
-
Complete hardware kit included (stainless steel)
-
Vibration-proof nylon-insert lock nuts
-
Alignment guides for perfect positioning
-
-
Maintenance protocol:
-
Acrylic-safe cleaner recommendations
-
Storage position guidelines
-
Hinge lubrication schedule
-
-
Field-serviceable components:
-
Replaceable struts
-
Interchangeable mounting hardware
-
Modular frame sections
-
