QJ SRF135 Parts Schematic
QJ Motor
(No reviews yet)
Write a Review
QJ Motor
QJ SRF135 Parts Schematic
| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 40440P250200 | REAR VIEW MIRROR SET | 1 | Set | $48.00 | |
| 2 | 49371T620000 | RUBBER CABLE CLAMP | 4 | Pcs. | $3.50 | |
| 3 | 40101V020100 | HANDLEBAR | 1 | Pc. | $59.00 | |
| 4 | 40500L210102 | LEFT HANDLEBAR SWITCH | 1 | Assy. | $39.00 | |
| 5 | 40600L210104 | RIGHT HANDLEBAR SWITCH | 1 | Assy. | $30.00 | |
| 6 | 40001K740000 | LEFT HANDLEBAR GRIP | 1 | Pc. | $8.00 | |
| 7 | 40210K740000 | RIGHT HANDLEBAR GRIP W/ TUBE | 1 | Pc. | $8.00 | |
| 8 | 40031S010000 | HANDLEBAR END INSERT | 2 | Pcs. | $8.00 | |
| 9 | 40032P250000 | VIBRATION DAMPER | 2 | Pcs. | $8.00 | |
| 10 | 40031P250000 | HANDLEBAR END | 2 | Pcs. | $11.00 | |
| 11 | B0709000060H | WASHER | M6 | 2 | Pcs. | $1.50 |
| 12 | B0700000060H | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 13 | B0205060356H | ALLEN BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 14 | 40300V020100 | THROTTLE CABLE | 1 | Pc. | $11.00 | |
| 15 | 40400V020001 | CLUTCH CABLE | 1 | Pc. | $18.00 | |
| 16 | 40017J130000 | CLUTCH CABLE RUBBER COVER | 1 | Pc. | $2.00 | |
| 17 | 40080U350000 | CLUTCH PERCH ASSY | 1 | Assy. | $29.00 | |
| 18 | 45900J040103 | CLUTCH LEVER | 1 | Pc. | $18.00 | |
| 19 | 49371T620001 | RUBBER CABLE CLAMP | 2 | Pcs. | $1.50 | |
| 20 | B0226060256S | TORX BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 21 | 70190P250001 | DISPLAY ADJUSTMENT SWITCH | 1 | Pc. | $30.00 | |
| 22 | 91800J040006 | CLUTCH LOCKOUT SWITCH | 1 | Pc. | $10.00 | |
| 40460P250200 | LEFT REARVIEW MIRROR | 1 | Pc. | |||
| 40470P250200 | RIGHT REARVIEW MIRROR | 1 | Pc. | |||

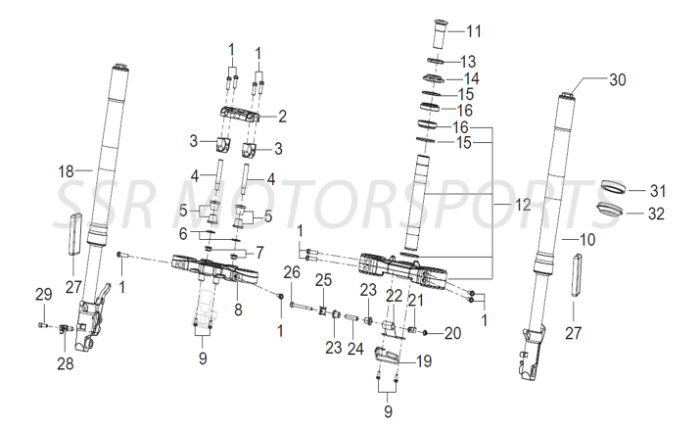

| FRONT SUSPENSION AND STEERING | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | B02810803062 | BOLT | M8X30 | 10 | Pcs. | $1.50 |
| 2 | 43014U350000 | UPPER HANDLEBAR CLAMP | 1 | Pc. | $18.00 | |
| 3 | 43014P010100 | LOWER HANDLEBAR CLAMP | 2 | Pcs. | $23.00 | |
| 4 | 40086P010002 | HANDLEBAR MOUNTING STUD | 2 | Pcs. | $11.00 | |
| 5 | 47015P010010 | HANDLEBAR MOUNTING VIBRATION DAMPER | 4 | Pcs. | $8.00 | |
| 6 | 40089P010100 | VIBRATION DAMPER WASHER | 10.2X24.9X2.5 | 2 | Pcs. | $2.00 |
| 7 | B04821012552 | FLANGE LOCKNUT | M10 | 2 | Pcs. | $1.50 |
| 8 | 43011V020003 | UPPER TRIPLE CLAMP | 1 | Pc. | $69.00 | |
| 9 | B02810601462 | BOLT | M6X14 | 5 | Pcs. | $1.50 |
| 10 | 43200V021005 | FRONT LEFT FORK ASSY | 1 | Assy. | $188.00 | |
| 11 | 43049P250000 | STEERING STEM NUT | 1 | Pc. | $24.00 | |
| 12 | 43100V02003Z | LOWER TRIPLE CLAMP W/ STEERING STEM | 1 | Assy. | $131.00 | |
| 13 | 43008S010010 | STEERING STEM HEAD NUT | 1 | Pc. | $8.00 | |
| 14 | 43009P260000 | STEERING STEM NUT | 1 | Pc. | $33.00 | |
| 15 | 43005S010000 | DUST SEAL | 2 | Pcs. | $7.00 | |
| 16 | 43130S010000 | STEERING STEM BEARING | 2 | Pcs. | $30.00 | |
| 18 | 43300V021005 | FRONT RIGHT FORK ASSY | 1 | Assy. | $188.00 | |
| 19 | 43060V020000 | CABLE GUIDE | 1 | Pc. | $1.50 | |
| 20 | B0417060004H | FLANGE LOCKNUT | M6 | 1 | Pc. | $1.50 |
| 21 | 43070J670010 | HOSE/CABLE HOLDER | 1 | Pc. | $2.00 | |
| 22 | 08521V040000 | LOWER HEADLIGHT MOUNTING BRACKET | 1 | Pc. | $4.00 | |
| 23 | 08524P250000 | RUBBER GROMMET | 2 | Pcs. | $2.00 | |
| 24 | 08523P250010 | SLEEVE | 1 | Pc. | $2.00 | |
| 25 | 45350H030000 | CLIP | 1 | Pc. | $1.50 | |
| 26 | B0109060606K | BOLT | M6X60 | 1 | Pc. | $2.00 |
| 27 | 86200P250001 | SIDE REFLECTOR | AMBER | 2 | Pcs. | $7.00 |
| 28 | 45710N490000 | SPEED SENSOR | 1 | Pc. | $1.50 | |
| 29 | B0226060166S | TORX BOLT | M6X16 | 1 | Pc. | $1.50 |
| 30 | 43204J300202 | FORK CAP BOLT | 2 | Pcs. | $8.00 | |
| 31 | 43260K990000 | FORK SEAL | 35X48X11 | 2 | Pcs. | $13.00 |
| 32 | 43290N100000 | DUST SEAL | 35X48.3X14 | 2 | Pcs. | $4.00 |

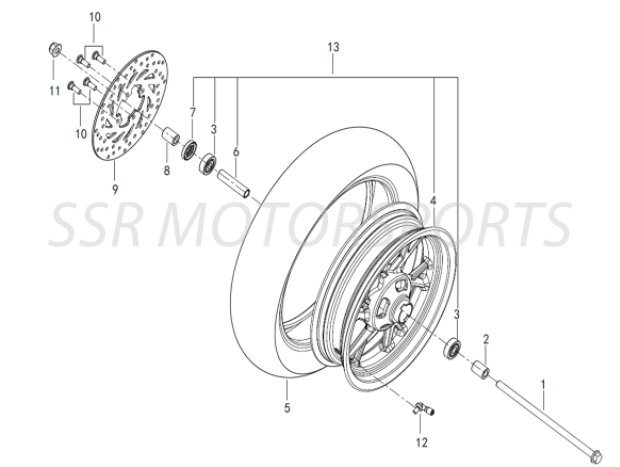

| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 58303T760101 | FRONT WHEEL AXLE | M12X1.25X258 | 1 | Pc. | $14.00 |
| 2 | 44005V040000 | FRONT LEFT WHEEL SPACER | 1 | Pc. | $4.00 | |
| 3 | B12016030100 | BEARING | 6301-2RS | 2 | Pcs. | $14.00 |
| 4 | 44101V020003 | FRONT WHEEL | N6&WS/B1 | 1 | Pc. | $96.00 |
| 4 | 44101V02U603 | FRONT WHEEL | U6/B1 | 1 | Pc. | $96.00 |
| 5 | B140107D1206 | FRONT TIRE | 120/70-12 | 1 | Pc. | $48.00 |
| 6 | 44006V020001 | FRONT WHEEL BEARING SPACER | 1 | Pc. | $8.00 | |
| 7 | 44300J000000 | DUST SEAL | 20X37X7/8.5 | 1 | Pc. | $2.50 |
| 8 | 44016J670101 | FRONT RIGHT WHEEL SPACER | 1 | Pc. | $8.00 | |
| 9 | 45033V500000 | FRONT BRAKE ROTOR | 1 | Pc. | $60.00 | |
| 10 | B0205080206A | ALLEN BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 11 | B0417121254H | FLANGE LOCKNUT | M12 | 1 | Pc. | $2.00 |
| 12 | B1403Z201120 | VALVE STEM | PVR70 | 1 | Pc. | $8.00 |
| 13 | 44100V02003Z | FRONT WHEEL ASSY W/ BEARINGS | N6&WS/B1 | 1 | Assy. | $112.00 |
| 13 | 44100V02U63Z | FRONT WHEEL ASSY W/ BEARINGS | U6/B1 | 1 | Assy. | $112.00 |

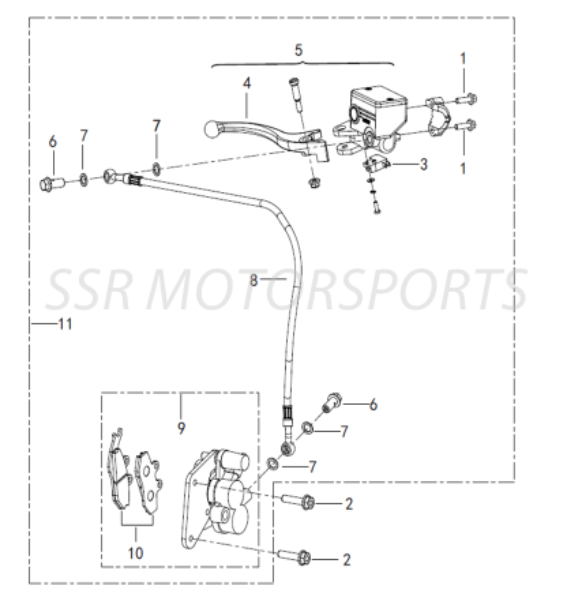

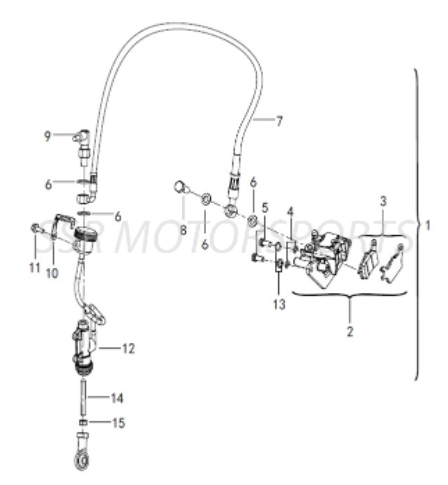

| FRONT BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | B01400602365 | BOLT | M6X23 | 2 | Pcs. | $1.50 |
| 2 | B0281080256H | ALLEN BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 3 | 45300J000100 | FRONT BRAKE LIGHT SWITCH | 1 | Pc. | #N/A | |
| 4 | 45022N030000 | FRONT BRAKE LEVER | 1 | Pc. | $11.00 | |
| 5 | 45400N030300 | FRONT BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $51.00 | |
| 6 | 45037J000200 | BANJO BOLT | 2 | Pcs. | $2.00 | |
| 7 | 45180J000100 | SEALING WASHER | 4 | Pcs. | $1.50 | |
| 8 | 45200V020001 | FRONT BRAKE HOSE | 1 | Pc. | $23.00 | |
| 9 | 45600V020000 | FRONT BRAKE CALIPER ASSY | 1 | Assy. | $59.00 | |
| 10 | 45120U060000 | FRONT BRAKE PAD SET | 1 | Set | $21.00 | |
| 11 | 45900V020001 | FRONT BRAKE ASSY | 1 | Assy. | $96.00 | |
| EXHAUST SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | B0417080004H | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 2 | 47800V300000 | MUFFLER GASKET | 1 | Pc. | $2.50 | |
| 3 | 47023V040000 | MUFFLER HEAT SHIELD | 1 | Pc. | $33.00 | |
| 4 | 280586030020 | OXYGEN SENSOR | 1 | Pc. | $150.00 | |
| 5 | 47100V040000 | MUFFLER | 1 | Pc. | $188.00 | |
| 6 | B0283060126K | SCREW | M6X12 | 2 | Pcs. | $1.50 |
| 7 | 08021K670100 | WASHER | 16X32X2 | 2 | Pcs. | $1.50 |
| AIRBOX | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 49100V020000 | AIR BOX ASSY | 1 | Assy. | $30.00 | |
| 2 | 49202V020000 | AIR FILTER ELEMENT | 1 | Pc. | $13.00 | |
| 3 | 49025V020000 | AIR BOX HOSE | 1 | Pc. | $8.00 | |
| 4 | 49805G120400 | SPRING HOSE CLAMP | 14.5 | 2 | Pcs. | $1.50 |
| 5 | 49910N210001 | CHARCOAL CANISTER | 1 | Pc. | $24.00 | |
| 6 | B0109060166H | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 7 | 57050V020000 | EVAP CANISTER MOUNTING BRACKET | 1 | Pc. | $6.00 | |
| 8 | 57055J690000 | CANISTER VALVE MOUNTING BRACKET | 1 | Pc. | $1.50 | |
| 9 | B0109060126H | FLANGE BOLT | M6X12 | 3 | Pcs. | $1.50 |
| 10 | 49710N070001 | EGR VALVE | 1 | Pc. | $39.00 | |
| 11 | 50307J140302 | SPRING HOSE CLAMP | 10 | 3 | Pcs. | $1.50 |
| 12 | 49922V020002 | HOSE I | 1 | Pc. | $7.00 | |
| 13 | 49923V020002 | HOSE II | 1 | Pc. | $3.50 | |
| 14 | 50306T450300 | SPRING HOSE CLAMP | 8 | 2 | Pcs. | $1.50 |
| 26 | 49016N070000 | HOSE CLAMP | 50 | 1 | Pc. | $3.50 |
| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | B02830602562 | BUTTON HEAD ALLEN BOLT | M6X25 | 4 | Pcs. | $1.50 |
| 2 | 51022V020000 | FRONT SEAT MOUNTING BRACKET | 1 | Pc. | $4.00 | |
| 3 | 65913J820100 | COLLAR | 4 | Pcs. | $1.50 | |
| 4 | 65618J820000 | RUBBER GROMMET | 4 | Pcs. | $2.00 | |
| 5 | 270105100000 | WASHER | M6 | 2 | Pcs. | $1.50 |
| 6 | 08016B920200 | BOLT W/ WASHER | M5X14 | 4 | Pcs. | $1.50 |
| 7 | 50811T820000 | FUEL LEVEL SENSOR SEAL | 1 | Pc. | $2.50 | |
| 8 | 50800V020001 | FUEL LEVEL SENSOR | 1 | Pc. | $18.00 | |
| 9 | 50400V020000 | FUEL PUMP ASSY | 1 | Assy. | $150.00 | |
| 10 | B0109050206H | FLANGE BOLT | M5X20 | 5 | Pcs. | $1.50 |
| 11 | 50340N100001 | FUEL FILTER | 1 | Pc. | $33.00 | |
| 12 | 50391N070010 | FUEL FILTER HOLDER | 1 | Pc. | $2.00 | |
| 13 | 50370V020000 | FUEL HOSE ASSY | 1 | Assy. | $42.00 | |
| 14 | 50100V020000 | FUEL TANK | 1 | Pc. | $77.00 | |
| 15 | 65704J000000 | RUBBER GROMMET | 1 | Pc. | $1.50 | |
| 16 | 49930G410002 | ONE-WAY VALVE | 1 | Pc. | $13.00 | |
| 17 | 50306T450300 | SPRING HOSE CLAMP | 8 | 3 | Pcs. | $1.50 |
| 18 | 49902V020000 | HOSE | 4.5X8.5X600 | 1 | Pc. | $11.00 |
| 19 | 49905V020000 | HOSE | 4X8 | 1 | Pc. | $2.00 |
| 20 | 06103N140300 | SPRING HOSE CLAMP | 13 | 1 | Pc. | $1.50 |
| 21 | 50302J000000 | FUEL FILLER OVERFLOW DRAIN HOSE | 1 | Pc. | $39.00 | |

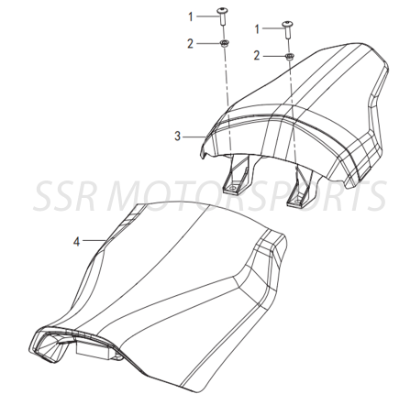

| SEAT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | B02830601962 | PAN HEAD ALLEN BOLT | M6X19 | 2 | Pcs. | $1.50 |
| 2 | 47128B450000 | COLLAR | 2 | Pcs. | $1.50 | |
| 3 | 51200U350100 | PASSENGER SEAT ASSY | 1 | Assy. | $39.00 | |
| 4 | 51100U350100 | RIDER SEAT ASSY | 1 | Assy. | $59.00 | |
| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 53001V020100 | SWINGARM AXLE | 1 | Pc. | $18.00 | |
| 2 | 53200J000000 | SWINGARM BUSHING | 2 | Pcs. | $4.00 | |
| 3 | 53005V020000 | SWINGARM BUSHING SPACER | 1 | Pc. | $7.00 | |
| 4 | B0417141504H | FLANGE LOCKNUT | M14X1.5 | 1 | Pc. | $2.50 |
| 5 | B0283060126K | SCREW | M6X12 | 2 | Pcs. | $1.50 |
| 6 | 53004V020000 | CHAIN SLIDER | 1 | Pc. | $8.00 | |
| 7 | 53018V020000 | CHAIN SLIDER PLATE | 1 | Pc. | $6.00 | |
| 8 | B02830601962 | PAN HEAD ALLEN BOLT | M6X19 | 2 | Pcs. | $1.50 |
| 9 | 53100V02000Z | SWINGARM ASSY W/ BEARINGS | 1 | Assy. | $96.00 | |
| 10 | 60101V020000 | REAR FENDER / CHAIN GUARD | 1 | Pc. | $13.00 | |
| 11 | 08018B910100 | BUTTON HEAD ALLEN BOLT W/ STEP | 4 | Pcs. | $1.50 | |
| 12 | 53230K980100 | CHAIN ADJUSTER | 2 | Pcs. | $8.00 | |
| 13 | 53234K980000 | CHAIN ADJUSTER RETAINER | 2 | Pcs. | $7.00 | |
| 14 | B0400080005H | NUT | M8 | 4 | Pcs. | $1.50 |
| 15 | 63800V02BC00 | REAR SHOCK ABSORBER | 1 | Pc. | $150.00 | |
| 16 | 08012V020100 | BOLT | M10X50 | 2 | Pcs. | $2.00 |
| 17 | B0417101254H | FLANGE LOCKNUT | M10 | 2 | Pcs. | $1.50 |
| 18 | B0703000060H | WASHER | M6 | 1 | Pc. | $1.50 |
| 19 | B0207060162H | BOLT | M6X16 | 1 | Pc. | $1.50 |
| 20 | B02050401662 | SCREW | M4X16 | 2 | Pcs. | $1.50 |
| 21 | 55721V020000 | SPEED SENSOR MOUNTING BRACKET | 1 | Pc. | $7.00 | |
| 22 | 94010P100001 | SPEED SENSOR | 1 | Pc. | $59.00 | |
| 23 | B0109060206H | FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 24 | 05581J780000 | TIRE PRESSURE LABEL | 1 | Pc. | $2.50 | |
| 25 | 05583L350000 | CHAIN ADJUSTMENT LABEL | 1 | Pc. | $2.50 | |

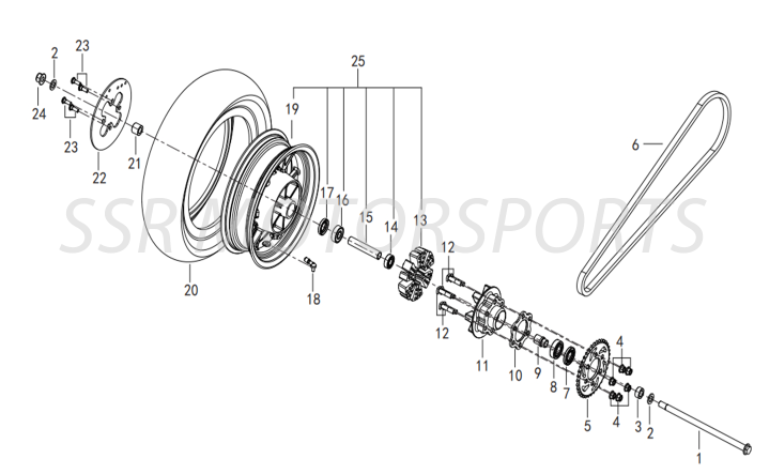

| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 54004V020100 | REAR WHEEL AXLE | 1 | Pc. | $29.00 | |
| 2 | 08021P250000 | WASHER | 2 | Pcs. | $1.50 | |
| 3 | 54016V020101 | LEFT REAR WHEEL SPACER | 1 | Pc. | $4.00 | |
| 4 | B0417101254H | FLANGE LOCKNUT | M10 | 6 | Pcs. | $1.50 |
| 5 | 60002V020003 | REAR SPROCKET | 36T MARK:Z36 | 1 | Pc. | $24.00 |
| 6 | B1502W1116B8 | DRIVE CHAIN | 428-116L | 1 | Pc. | $59.00 |
| 7 | 60200J000001 | DUST SEAL | 1 | Pc. | $7.00 | |
| 8 | B12016020400 | BEARING | 6204-2RS | 1 | Pc. | $18.00 |
| 9 | 60006J000001 | REAR WHEEL AXLE SLEEVE | 1 | Pc. | $18.00 | |
| 10 | 60014V020000 | SPROCKET MOUNTING COLLAR | 1 | Pc. | $8.00 | |
| 11 | 60001N210000 | REAR WHEEL DRIVE HUB | 1 | Pc. | $42.00 | |
| 12 | 60015M190000 | BOLT | M10X1.25X42 | 6 | Pcs. | $2.00 |
| 13 | 54024N210000 | REAR WHEEL DRIVE HUB DAMPER | 6 | Pcs. | $4.00 | |
| 14 | B12016020200 | BEARING | 6202-2RS | 1 | Pc. | $13.00 |
| 15 | 54006V020002 | BEARING SPACER | 1 | Pc. | $8.00 | |
| 16 | B12016030200 | BEARING | 6302RS | 1 | Pc. | $16.00 |
| 17 | 44300J040000 | DUST SEAL | 25X42X7 | 1 | Pc. | $2.50 |
| 18 | B1403Z201120 | VALVE STEM | PVR70 | 1 | Pc. | $8.00 |
| 19 | 54101V020201 | REAR WHEEL | BLACK N6&WS/B1 | 1 | Pc. | $150.00 |
| 19 | 54101V02U601 | REAR WHEEL | GREEN U6/B1 | 1 | Pc. | $150.00 |
| 20 | B140108D1204 | REAR TIRE | 130/70-12 | 1 | Pc. | $48.00 |
| 21 | 54005V020101 | RIGHT REAR WHEEL SPACER | 1 | Pc. | $8.00 | |
| 22 | 55033V020000 | REAR BRAKE ROTOR | 1 | Pc. | $45.00 | |
| 23 | 45036K010000 | BOLT | M8X24 | 4 | Pcs. | $1.50 |
| 24 | B0417141504H | FLANGE LOCKNUT | M14X1.5 | 1 | Pc. | $2.50 |
| 25 | 54101V02021Z | REAR WHEEL ASSY W/ BEARINGS | BLACK N6&WS/B1 | 1 | Assy. | $168.00 |
| 25 | 54101V02U61Z | REAR WHEEL ASSY W/ BEARINGS | GREEN U6/B1 | 1 | Assy. | $168.00 |
| REAR BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 55900V020100 | REAR BRAKE ASSY | BLACK CALIPER | 1 | Assy. | $131.00 |
| 2 | 55500V020000 | REAR BRAKE CALIPER ASSY | 1 | Assy. | $69.00 | |
| 3 | 55110V020000 | REAR BRAKE PAD SET | 1 | Set | $13.00 | |
| 4 | B0700000080A | LOCK WASHER | M8 | 2 | Pcs. | $1.50 |
| 5 | B02050802065 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 6 | 55180J410000 | SEALING WASHER | M10 | 4 | Pcs. | $1.50 |
| 7 | 55200V020000 | REAR BRAKE HOSE | 1 | Pc. | $36.00 | |
| 8 | 55037J410000 | BANJO BOLT | 2 | Pcs. | $2.00 | |
| 9 | 55300V020000 | REAR BRAKE LIGHT SWITCH | 1 | Assy. | $24.00 | |
| 10 | 57041V030001 | REAR BRAKE M/C CAP RETAINER | 1 | Pc. | $4.00 | |
| 11 | B0284060150A | BOLT | M6X15.2 | 1 | Pc. | $1.50 |
| 12 | 55400J410001 | REAR BRAKE MASTER CYLINDER | 1 | Pc. | $51.00 | |
| 13 | B0703000080A | WASHER | M8 | 2 | Pcs. | $1.50 |
| 14 | 55061V020000 | REAR BRAKE PUSH ROD | 1 | Pc. | $3.50 | |
| 15 | B04020600018 | NUT | M6 | 1 | Pc. | $1.50 |

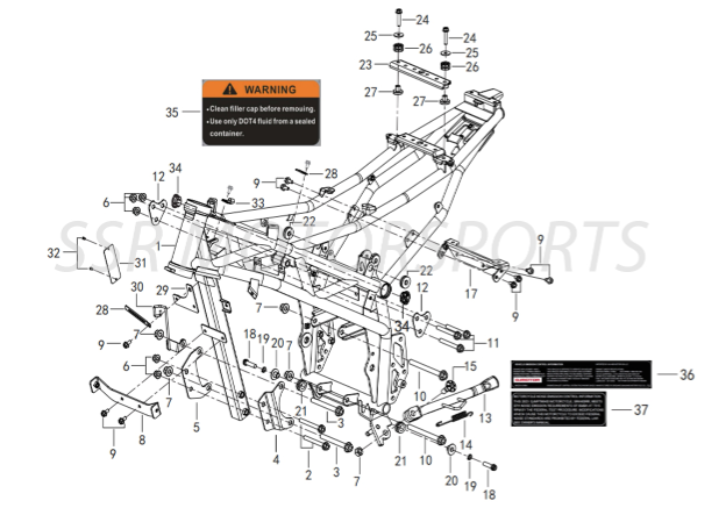

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 57100V02TY02 | FRAME | RED TY *OVERSIZE* | 1 | Pc. | $385.00 |
| 1 | 57100V02U602 | FRAME | GREEN U6 *OVERSIZE* | 1 | Pc. | $385.00 |
| 2 | B0109080706H | BOLT | M8X70 | 2 | Pcs. | $2.00 |
| 3 | B0159100906H | BOLT | M10X1.25X90 | 2 | Pcs. | $2.50 |
| 4 | 57009V020000 | FRONT LEFT ENGINE MOUNTING PLATE | 1 | Pc. | $7.00 | |
| 5 | 57019V020000 | FRONT RIGHT ENGINE MOUNTING PLATE | 1 | Pc. | $7.00 | |
| 6 | B0417080004H | FLANGE LOCKNUT | M8 | 5 | Pcs. | $1.50 |
| 7 | B0417101254H | FLANGE LOCKNUT | M10 | 5 | Pcs. | $1.50 |
| 8 | 59450V020000 | OIL COOLER BRACKET | 1 | Pc. | $4.00 | |
| 9 | B0109060126H | FLANGE BOLT | M6X12 | 9 | Pcs. | $1.50 |
| 10 | B0159101106H | BOLT | M10X110 | 2 | Pcs. | $3.50 |
| 11 | B0109080656H | BOLT | M8X65 | 3 | Pcs. | $2.00 |
| 12 | 57008V020000 | UPPER REAR ENGINE MOUNTING PLATE | 2 | Pcs. | $2.50 | |
| 13 | 58700V020000 | SIDE STAND | 1 | Pc. | $13.00 | |
| 14 | 57003J360000 | SIDE STAND SPRING | 1 | Pc. | $2.50 | |
| 15 | 57005V030100 | SIDE STAND BOLT | M10X33 | 1 | Pc. | $2.00 |
| 17 | 49360V020000 | AIRBOX MOUNTING BRACKET | 1 | Pc. | $6.00 | |
| 18 | B02810803062 | BOLT | M8X30 | 2 | Pcs. | $1.50 |
| 19 | B0700000080H | LOCK WASHER | M8 | 2 | Pcs. | $1.50 |
| 20 | 65618J820000 | RUBBER GROMMET | 2 | Pcs. | $2.00 | |
| 21 | 65617H010010 | RUBBER GROMMET | 2 | Pcs. | $1.50 | |
| 22 | 65618J000000 | RUBBER GROMMET | 2 | Pcs. | $2.00 | |
| 23 | 58070V020000 | SEAT LOCK BRACKET | 1 | Pc. | $8.00 | |
| 24 | B0281060306K | ALLEN BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 25 | 270105100000 | SEALING WASHER | 2 | Pcs. | $1.50 | |
| 26 | 65618J820000 | RUBBER GROMMET | 2 | Pcs. | $2.00 | |
| 27 | 08333V020100 | COLLAR | 6.5X22X4.7X10X11.5 | 2 | Pcs. | $1.50 |
| 28 | 58430J000000 | WIRE RETAINER | 2 | Pcs. | $2.00 | |
| 29 | 57590V020003 | REGULATOR / RECTIFIER MOUNTING BRACKET | 1 | Pc. | $2.50 | |
| 30 | 43070V020000 | CLUTCH CABLE RETAINER | 1 | Pc. | $2.00 | |
| 31 | 57001V040000 | FRAME PLATE | 1 | Pc. | $1.50 | |
| 32 | B100432007P0 | RIVET | 3.2X7 | 2 | Pcs. | $1.50 |
| 33 | 43070J670010 | HOSE/CABLE HOLDER | 1 | Pc. | $2.00 | |
| 34 | 65532V02C800 | FRAME PLUG | SILVER C8 | 2 | Pcs. | $3.50 |
| 35 | 05599K140000 | REAR BRAKE M/C WARNING LABEL | 1 | Pc. | $2.50 | |
| 36 | 05532V040000 | EMISSIONS LABEL | 1 | Pc. | $2.50 | |
| 37 | 05536V040000 | NOISE LABEL | 1 | Pc. | $2.50 | |

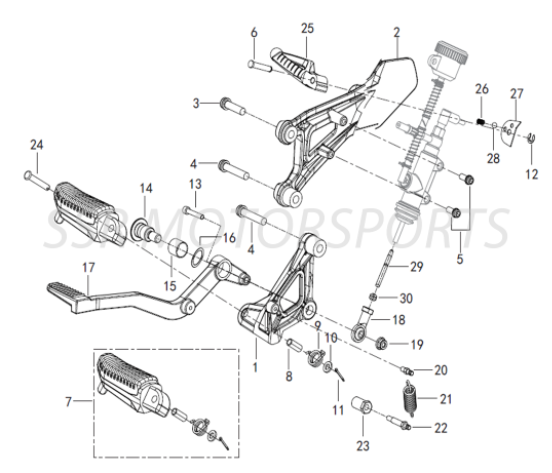

| LEFT FOOTREST ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 58226V020000 | LEFT FRONT FOOTREST BRACKET | 1 | Pc. | $48.00 | |
| 2 | 58266V020000 | LEFT PASSENGER FOOTREST BRACKET | 1 | Pc. | $69.00 | |
| 3 | B02810803062 | BOLT | M8X30 | 1 | Pc. | $1.50 |
| 4 | B02810804062 | BOLT | M8X40 | 2 | Pcs. | $2.00 |
| 5 | B02810803562 | ALLEN BOLT | M8X1.25X35 | 1 | Pc. | $1.50 |
| 6 | 58217P260000 | FOOTREST PIVOT PIN | 1 | Pc. | $2.50 | |
| 7 | 58220L290003 | LEFT FRONT FOOTREST ASSY | 1 | Assy. | $24.00 | |
| 8 | 65613P260000 | COLLAR | 1 | Pc. | $1.50 | |
| 9 | 58202V300000 | PEDAL RETURN SPRING | 1 | Pc. | $1.50 | |
| 10 | B0703000060A | WASHER | M6 | 1 | Pc. | $1.50 |
| 11 | B090002016AA | COTTER PIN | 1 | Pc. | $1.50 | |
| 12 | B0882000050A | CIRCLIP | 5 | 1 | Pc. | $1.50 |
| 13 | 58217S010001 | PASSENGER FOOTREST PIVOT PIN | 1 | Pc. | $2.50 | |
| 14 | 58266S010000 | LEFT REAR FOOTREST | 1 | Pc. | $35.00 | |
| 15 | 58222B930000 | PEDAL STOPPER SPRING | 1 | Pc. | $2.50 | |
| 16 | 58451S010000 | PASSENGER FOOTREST STOPPER PLATE | 1 | Pc. | $4.00 | |
| 17 | B06000002000 | STOPPER BALL | 1 | Pc. | $2.50 | |
| 18 | 08370V020100 | SHIFTER LEVER | 1 | Pc. | $13.00 | |
| 19 | B0201060252H | SCREW | M6X25 | 2 | Pcs. | $1.50 |
| 20 | 08376V020000 | HEIM JOINT LH THREAD | M6-LH | 1 | Pc. | $11.00 |
| 21 | B0417060004H | FLANGE LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 22 | 08051S040010 | NUT | M6-LH | 1 | Pc. | $1.50 |
| 23 | 08371V020000 | SHIFTER ROD | 1 | Pc. | $10.00 | |
| 24 | B04800600052 | NUT | M6-8-ZG | 1 | Pc. | $1.50 |
| 25 | 08375V020000 | HEIM JOINT RH THREAD | M6 | 1 | Pc. | $11.00 |
| 26 | 08386P100000 | SHIFTER KNUCKLE | 1 | Pc. | $13.00 | |
| 27 | B0109060206H | FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 28 | 08011V020000 | SPECIAL BOLT | 1 | Pc. | $2.00 | |

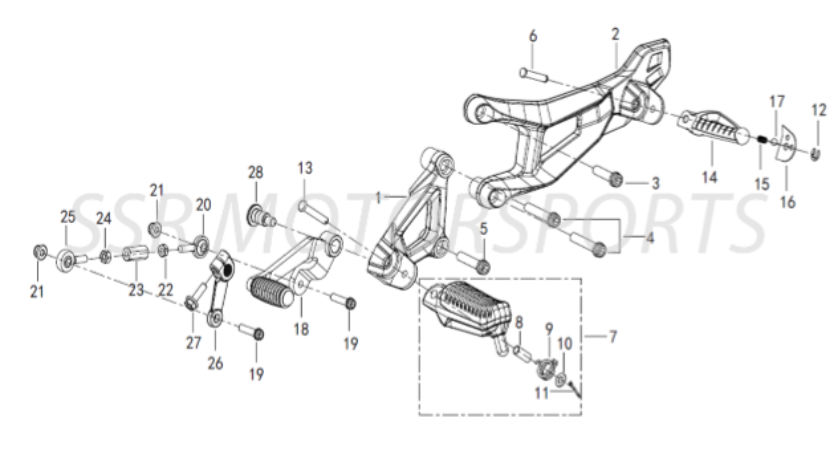

| RIGHT FOOTREST ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 58246V020000 | RIGHT FRONT FOOTREST BRACKET | 1 | Pc. | $48.00 | |
| 2 | 58286V020000 | RIGHT PASSENGER FOOTREST BRACKET | 1 | Pc. | $69.00 | |
| 3 | B02810803062 | BOLT | M8X30 | 1 | Pc. | $1.50 |
| 4 | B02810804062 | BOLT | M8X40 | 2 | Pcs. | $2.00 |
| 5 | B0109060206H | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 6 | 58217P260000 | FOOTREST PIVOT PIN | 1 | Pc. | $2.50 | |
| 7 | 58240L290003 | RIGHT FRONT FOOTREST ASSY | 1 | Assy. | $24.00 | |
| 8 | 65613P260000 | COLLAR | 1 | Pc. | $1.50 | |
| 9 | 58202V300000 | PEDAL RETURN SPRING | 1 | Pc. | $1.50 | |
| 10 | B0703000060A | WASHER | M6 | 1 | Pc. | $1.50 |
| 11 | B090002016AA | COTTER PIN | 1 | Pc. | $1.50 | |
| 12 | B0882000050A | CIRCLIP | 5 | 1 | Pc. | $1.50 |
| 13 | B0205060356H | ALLEN BOLT | M6X35 | 1 | Pc. | $1.50 |
| 14 | 40706P250001 | BRAKE PEDAL PIVOT BOLT | 1 | Pc. | $8.00 | |
| 15 | 58511S010000 | BRASS BUSHING | 1 | Pc. | $8.00 | |
| 16 | 58216S010000 | WASHER | 1 | Pc. | $1.50 | |
| 17 | 40712V020000 | REAR BRAKE PEDAL | 1 | Pc. | $45.00 | |
| 18 | 40283S010000 | REAR BRAKE MASTER CYLINDER HEIM JOINT | M6 | 1 | Pc. | $18.00 |
| 19 | B0417060004H | FLANGE LOCKNUT | M6 | 1 | Pc. | $1.50 |
| 20 | 40273P250000 | UPPER SPRING PIN | 1 | Pc. | $1.50 | |
| 21 | 40702P100002 | REAR BRAKE PEDAL RETURN SPRING | 1 | Pc. | $4.00 | |
| 22 | 40717P250001 | LOWER SPRING PIN | 1 | Pc. | $2.00 | |
| 23 | 40705P250000 | REAR BRAKE PEDAL STOP | 1 | Pc. | $4.00 | |
| 24 | 58217S010001 | PASSENGER FOOTREST PIVOT PIN | 1 | Pc. | $2.50 | |
| 25 | 58286S010000 | RIGHT PASSENGER FOOTREST | 1 | Pc. | $35.00 | |
| 26 | 58222B930000 | PEDAL STOPPER SPRING | 1 | Pc. | $2.50 | |
| 27 | 58451S010000 | PASSENGER FOOTREST STOPPER PLATE | 1 | Pc. | $4.00 | |
| 28 | B06000002000 | STOPPER BALL | 1 | Pc. | $2.50 | |
| 29 | 55061V020000 | REAR BRAKE PUSH ROD | 1 | Pc. | $3.50 | |
| 30 | B04020600018 | NUT | M6 | 1 | Pc. | $1.50 |
| FRONT FENDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 65101V02B100 | FRONT FENDER | 1 | Pc. | $59.00 | |
| 2 | 65801T850100 | CLIP NUT | ST4.2 | 2 | Pcs. | $1.50 |
| 3 | B0507420130H | ST SCREW | ST4.2X13 | 2 | Pcs. | $1.50 |
| 4 | 65116V020000 | RIGHT FRONT FENDER COVER | 1 | Pc. | $11.00 | |
| 5 | 43050V020000 | SPEEDOMETER CABLE HOLDER | 1 | Pc. | $3.50 | |
| 6 | 65913J820100 | COLLAR | 2 | Pcs. | $1.50 | |
| 7 | B0284060200A | BUTTON HEAD ALLEN BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 8 | B0284060150A | BOLT | M6X15.2 | 4 | Pcs. | $1.50 |
| 9 | 47936S010000 | NYLON WASHER | M10 | 4 | Pcs. | $1.50 |
| 10 | 65108V020000 | LEFT FRONT FENDER COVER | 1 | Pc. | $11.00 | |
| 11 | 45350V020000 | BRAKE HOSE HOLDER | 1 | Pc. | $3.50 | |

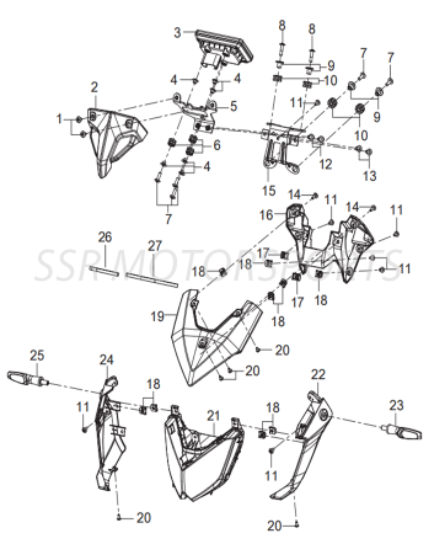

| HEADLIGHT COWLING | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 08002P620000 | FLANGE ALLEN BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 2 | 65501V040000 | SPEEDOMETER COVER | 1 | Pc. | $11.00 | |
| 3 | 70000V040002 | SPEEDOMETER ASSY | 1 | Assy. | $150.00 | |
| 4 | 82015S010010 | COLLAR | H6 | 6 | Pcs. | $2.50 |
| 5 | 59450V040000 | SPEEDOMETER MOUNTING BRACKET | 1 | Pc. | $8.00 | |
| 6 | 65618J820000 | RUBBER GROMMET | 3 | Pcs. | $2.00 | |
| 7 | B0284060200A | BUTTON HEAD ALLEN BOLT | M6X20 | 5 | Pcs. | $1.50 |
| 8 | B0201060252H | SCREW | M6X25 | 2 | Pcs. | $1.50 |
| 9 | 65913J820100 | COLLAR | 4 | Pcs. | $1.50 | |
| 10 | 65618J820000 | RUBBER GROMMET | 4 | Pcs. | $2.00 | |
| 11 | 08011P160000 | SCREW | M5X12 | 7 | Pcs. | $1.50 |
| 12 | B02810601462 | BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 13 | B0283060146H | BUTTON HEAD ALLEN BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 14 | 08012P160000 | BUTTON HEAD ALLEN BOLT | M5X16 | 2 | Pcs. | $1.50 |
| 15 | 08511V040000 | UPPER HEADLIGHT MOUNTING BRACKET | 1 | Pc. | $11.00 | |
| 16 | 65541V040000 | REAR HEADLIGHT COWLING | 1 | Pc. | $115.00 | |
| 17 | 65625J560100 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 18 | 65624P160000 | CLIP NUT | M5 | 9 | Pcs. | $1.50 |
| 19 | 65503V04B100 | UPPER HEADLIGHT COWLING | 1 | Pc. | $21.00 | |
| 20 | B0507420130H | ST SCREW | ST4.2X13 | 5 | Pcs. | $1.50 |
| 21 | 80000V040000 | HEADLIGHT ASSY | LED | 1 | Assy. | $206.00 |
| 22 | 65521V04N600 | LEFT HEADLIGHT COWLING | 1 | Pc. | $18.00 | |
| 23 | 81100U530000 | FRONT LEFT TURN SIGNAL | LED | 1 | Pc. | $41.00 |
| 24 | 65531V04N600 | RIGHT HEADLIGHT COWLING | 1 | Pc. | $18.00 | |
| 25 | 81300U530000 | FRONT RIGHT TURN SIGNAL | LED | 1 | Pc. | $41.00 |
| 26 | 65511V020000 | FOAM TRIM 1 | 1 | Pc. | $1.50 | |
| 27 | 65512V020000 | FOAM TRIM 2 | 1 | Pc. | $1.50 | |

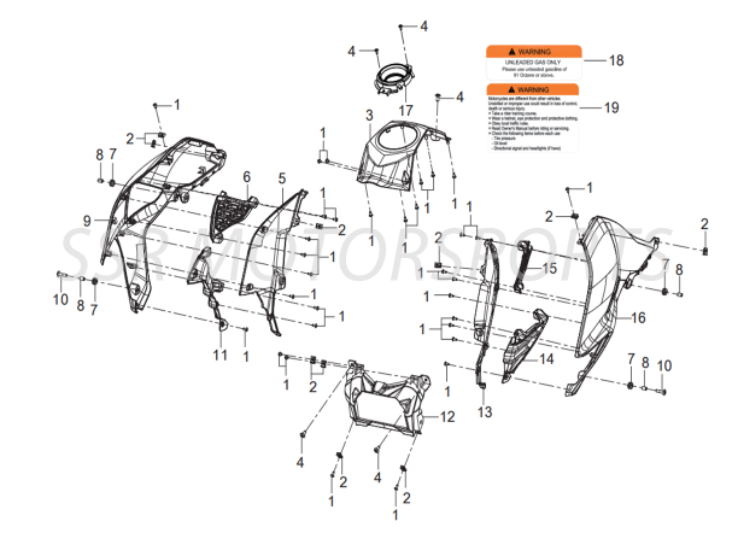

| FUEL TANK COWLING | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | B0507420130H | ST SCREW | ST4.2X13 | 32 | Pcs. | $1.50 |
| 2 | 65801T850100 | CLIP NUT | ST4.2 | 10 | Pcs. | $1.50 |
| 3 | 65672V02BA10 | CENTER FUEL TANK COVER | BLACK BA | 1 | Pc. | $29.00 |
| 4 | B0283060146H | BUTTON HEAD ALLEN BOLT | M6X14 | 5 | Pcs. | $1.50 |
| 5 | 65676V040000 | RIGHT INNER FUEL TANK COVER | 1 | Pc. | $13.00 | |
| 6 | 65622V040000 | RIGHT INNER FUEL TANK COVER TRIM | 1 | Pc. | $8.00 | |
| 7 | 43038P250000 | RUBBER GROMMET | 4 | Pcs. | $2.50 | |
| 8 | 47312T100100 | COLLAR | 4 | Pcs. | $1.50 | |
| 9 | 50016V04003Z | RIGHT FUEL TANK COVER | TITANIUM GRAY BROWN (ZB) WITH STICKER N6 | 1 | Pc. | $42.00 |
| 9 | 50016V04004Z | RIGHT FUEL TANK COVER | MEANING FULL WHITE (WS) WITH STICKER WS/B1 | 1 | Pc. | $42.00 |
| 9 | 50016V04005Z | RIGHT FUEL TANK COVER | GREEN (U6)/GRAY BROWN (ZB) WITH STICKER U6/B1 | 1 | Pc. | $42.00 |
| 10 | B0201060252H | SCREW | M6X25 | 2 | Pcs. | $1.50 |
| 11 | 65674V04B100 | RIGHT FRONT TRIM | 1 | Pc. | $18.00 | |
| 12 | 65677V020003 | OIL COOLER COVER | 1 | Pc. | $11.00 | |
| 13 | 65675V040000 | LEFT INNER FUEL TANK COVER | 1 | Pc. | $13.00 | |
| 14 | 65673V04B100 | LEFT FRONT TRIM | 1 | Pc. | $18.00 | |
| 15 | 65621V040000 | LEFT INNER FUEL TANK COVER TRIM | 1 | Pc. | $8.00 | |
| 16 | 50015V04003Z | LEFT FUEL TANK COVER | MATTE 059(N6)/GRAY BROWN (ZB) WITH STICKER N6 | 1 | Pc. | $42.00 |
| 16 | 50015V04004Z | LEFT FUEL TANK COVER | MEANING FULL WHITE (WS) WITH STICKER WS/B1 | 1 | Pc. | $42.00 |
| 16 | 50015V04005Z | LEFT FUEL TANK COVER | GREEN (U6)/GRAY BROWN (ZB) WITH STICKER U6/B1 | 1 | Pc. | $42.00 |
| 17 | 65679U350000 | FUEL TANK CAP SEAT | 1 | Pc. | $14.00 | |
| 18 | 05537K140000 | FUEL WARNING LABEL | 1 | Pc. | $2.50 | |
| 19 | 05595K140000 | SAFETY WARNING LABEL | 1 | Pc. | $2.50 | |

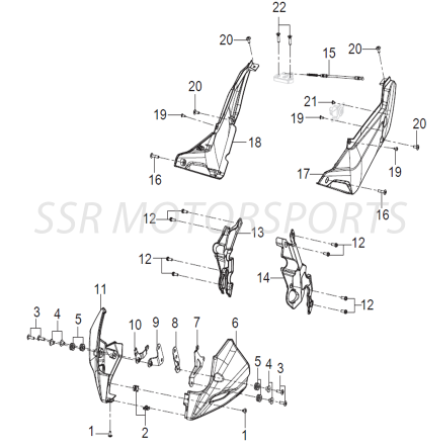

| SIDE COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | B0109060206H | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 2 | 65625J560100 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 3 | B0284060200A | BUTTON HEAD ALLEN BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 4 | 08061K670100 | COLLAR | 4 | Pcs. | $1.50 | |
| 5 | 65618J820000 | RUBBER GROMMET | 4 | Pcs. | $2.00 | |
| 6 | 65406V04B100 | LEFT BELLY PAN COWLING | 1 | Pc. | $21.00 | |
| 7 | 65560V040000 | LOWER LEFT BELLY PAN COWLING BRACKET | 1 | Pc. | $7.00 | |
| 8 | 65550V040000 | UPPER LEFT BELLY PAN COWLING BRACKET | 1 | Pc. | $6.00 | |
| 9 | 65580V040000 | LOWER RIGHT BELLY PAN COWLING BRACKET | 1 | Pc. | $4.00 | |
| 10 | 65570V040000 | UPPER RIGHT BELLY PAN COWLING BRACKET | 1 | Pc. | $6.00 | |
| 11 | 65407V04B100 | RIGHT BELLY PAN COWLING | 1 | Pc. | $21.00 | |
| 12 | B02810601462 | BOLT | M6X14 | 8 | Pcs. | $1.50 |
| 13 | 58311V020000 | RIGHT FRAME COVER | 1 | Pc. | $7.00 | |
| 14 | 58211V020000 | LEFT FRAME COVER | 1 | Pc. | $7.00 | |
| 15 | 58900V020000 | SEAT LOCK CABLE | 1 | Pc. | $7.00 | |
| 16 | B02830602562 | BUTTON HEAD ALLEN BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 17 | 65601V04002Z | LEFT SIDE COVER | N6 (BLACK) WITH STICKER | 1 | Pc. | $24.00 |
| 17 | 65601V04003Z | LEFT SIDE COVER | WS/B1 (WHITE/BLACK) WITH STICKER | 1 | Pc. | $24.00 |
| 17 | 65601V04004Z | LEFT SIDE COVER | U6 (GREEN/BLACK) WITH STICKER | 1 | Pc. | $24.00 |
| 18 | 65602V04002Z | RIGHT SIDE COVER | N6 (BLACK) WITH STICKER | 1 | Pc. | $24.00 |
| 18 | 65602V04003Z | RIGHT SIDE COVER | WS/B1 (WHITE/BLACK) WITH STICKER | 1 | Pc. | $24.00 |
| 18 | 65602V04004Z | RIGHT SIDE COVER | U6 (GREEN/BLACK) WITH STICKER | 1 | Pc. | $24.00 |
| 19 | B0507420130H | ST SCREW | ST4.2X13 | 3 | Pcs. | $1.50 |
| 20 | B0283060146H | BUTTON HEAD ALLEN BOLT | M6X14 | 4 | Pcs. | $1.50 |
| 21 | B0507420101G | CS ST SCREW | ST4.2X10 | 1 | Pc. | $1.50 |
| 22 | B0201060252H | SCREW | M6X25 | 2 | Pcs. | $1.50 |

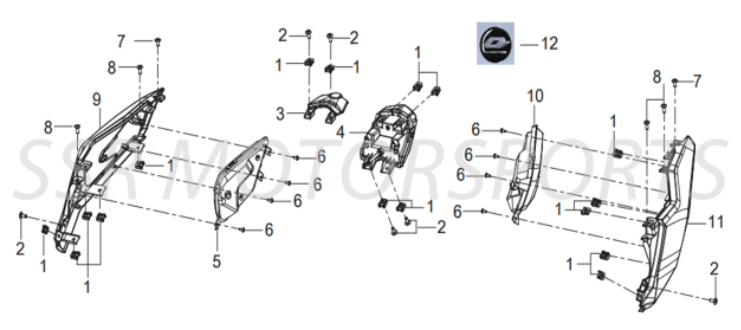

| TAIL COWLING | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 65625J560100 | CLIP NUT | M6 | 16 | Pcs. | $1.50 |
| 2 | B0283060146H | BUTTON HEAD ALLEN BOLT | M6X14 | 6 | Pcs. | $1.50 |
| 3 | 65907V02BA00 | CENTER TAIL COVER | BLACK BA | 1 | Pc. | $14.00 |
| 4 | 82000V040000 | TAILLIGHT | 1 | Pc. | $45.00 | |
| 5 | 81700V040001 | RIGHT REAR TURN SIGNAL | LED | 1 | Pc. | $54.00 |
| 6 | B0507420130H | ST SCREW | ST4.2X13 | 8 | Pcs. | $1.50 |
| 7 | B0283060126K | SCREW | M6X12 | 2 | Pcs. | $1.50 |
| 8 | 08018B910100 | BUTTON HEAD ALLEN BOLT W/ STEP | M6X14 | 4 | Pcs. | $1.50 |
| 9 | 65902V02028Z | RIGHT TAIL COWLING | MATTE 059 (N6) WITH STICKER | 1 | Pc. | $39.00 |
| 9 | 65902V02029Z | RIGHT TAIL COWLING | MEANING FULL WHITE (WS) WITH STICKER | 1 | Pc. | $39.00 |
| 9 | 65902V02030Z | RIGHT TAIL COWLING | CRYSTAL COLOR GREEN (U6) WITH STICKER | 1 | Pc. | $39.00 |
| 10 | 81500V040001 | LEFT REAR TURN SIGNAL | LED | 1 | Pc. | $54.00 |
| 11 | 65901V02028Z | LEFT TAIL COWLING | MATTE 059 (N6) WITH STICKER | 1 | Pc. | $39.00 |
| 11 | 65901V02029Z | LEFT TAIL COWLING | MEANING FULL WHITE (WS) WITH STICKER | 1 | Pc. | $39.00 |
| 11 | 65901V02030Z | LEFT TAIL COWLING | CRYSTAL COLOR GREEN (U6) WITH STICKER | 1 | Pc. | $39.00 |
| 12 | 05502V040000 | QJ LOGO | 1 | Pc. | $4.00 | |

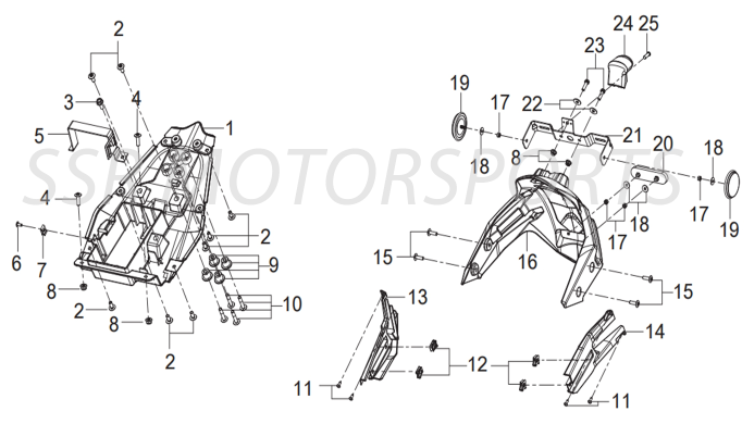

| REAR FENDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 65731V020000 | REAR FENDER UNDERTAIL / BATTERY TRAY | 1 | Pc. | $41.00 | |
| 2 | B0283060146H | BUTTON HEAD ALLEN BOLT | M6X14 | 8 | Pcs. | $1.50 |
| 3 | B0109060166H | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 4 | B02830601962 | PAN HEAD ALLEN BOLT | M6X19 | 2 | Pcs. | $1.50 |
| 5 | 58820V020000 | BATTERY RETAINER | 1 | Pc. | $6.00 | |
| 6 | B0507420101H | ST SCREW | ST4.2X10 | 1 | Pc. | $1.50 |
| 7 | 65801T850100 | CLIP NUT | ST4.2 | 1 | Pc. | $1.50 |
| 8 | B0417060004H | FLANGE LOCKNUT | M6 | 4 | Pcs. | $1.50 |
| 9 | 65711V020100 | REAR FENDER SPACER | 4 | Pcs. | $1.50 | |
| 10 | B0205060356H | ALLEN BOLT | M6X35 | 4 | Pcs. | $1.50 |
| 11 | B0507420130H | ST SCREW | ST4.2X13 | 4 | Pcs. | $1.50 |
| 12 | 65625J560100 | CLIP NUT | M6 | 4 | Pcs. | $1.50 |
| 13 | 65763V020000 | RIGHT REAR INNER MUDFLAP FENDER TRIM | 1 | Pc. | $14.00 | |
| 14 | 65762V020000 | LEFT REAR INNER MUDFLAP FENDER TRIM | 1 | Pc. | $14.00 | |
| 15 | B0284060200A | BUTTON HEAD ALLEN BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 16 | 65761V020003 | REAR MUDFLAP FENDER | 1 | Pc. | $27.00 | |
| 17 | B04000500055 | NUT | M5 | 4 | Pcs. | $1.50 |
| 18 | B0702000050H | WASHER | M5 | 4 | Pcs. | $1.50 |
| 19 | 86400T180002 | SIDE REFLECTOR | RED | 2 | Pcs. | $7.00 |
| 20 | 86500B590000 | REAR REFLECTOR | 1 | Pc. | $6.00 | |
| 21 | 08254V020000 | LICENSE PLATE BRACKET | 1 | Pc. | $7.00 | |
| 22 | B0702000060H | WASHER | M6 | 2 | Pcs. | $1.50 |
| 23 | B02810602062 | ALLEN BOLT | M6X1X20 | 2 | Pcs. | $1.50 |
| 24 | 82900V020000 | LICENSE PLATE LIGHT | 1 | Pc. | $8.00 | |
| 25 | B0107060406H | FLANGE BOLT | M6X40 | 1 | Pc. | $1.50 |
| ELECTRICAL EQUIPMENT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 95100T490000 | HORN | 1 | Pc. | $13.00 | |
| 2 | B0109060126H | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 3 | 299064010000 | REGULATOR / RECTIFIER | 1 | Pc. | $41.00 | |
| 4 | 94118B910000 | GROUND CABLE CONNECTOR COVER | 1 | Pc. | $2.50 | |
| 5 | 96200V020003 | IGNITION COIL | W/ WIRE+CAP | 1 | Pc. | $33.00 |
| 6 | 96200V020002 | IGNITION COIL | W/ WIRE+CAP | 1 | Pc. | $33.00 |
| 7 | B0109050106H | BOLT | M5X10 | 4 | Pcs. | $1.50 |
| 8 | 96100J280000 | BATTERY | YTX7A-BS | 1 | Pc. | $124.00 |
| 9 | 96400TA70100 | TURN SIGNAL RELAY | 1 | Pc. | $39.00 | |
| 10 | 96C00U354600 | ECU | 1 | Pc. | $291.00 | |
| 11 | B0283060146H | BUTTON HEAD ALLEN BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 12 | 96700K060000 | STARTING DIODE | 1 | Pc. | $8.00 | |
| 13 | 94100V020000 | STARTER RELAY | 1 | Pc. | $24.00 | |
| 14 | B0417060004H | FLANGE LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 15 | 92000V02000K | WIRE HARNESS ASSY | 1 | Assy. | $188.00 | |
| 16 | 92500V020000 | GROUND HARNESS | 1 | Pc. | $11.00 | |
| 17 | 96003V020000 | RUBBER CABLE CLAMP | 1 | Pc. | $1.50 | |
| 18 | 88000V020101 | COMPLETE LOCK SET | W/ 2 KEYS | 1 | Set | $59.00 |
| 19 | 58900V020000 | SEAT LOCK CABLE | 1 | Pc. | $7.00 | |
| 20 | 96007B720001 | TURN SIGNAL RELAY HOLDER | 1 | Pc. | $3.50 | |
| 21 | B0109060306H | BOLT | M6X30 | 1 | Pc. | $1.50 |
| 22 | B0109060256H | ALLEN BOLT | M6X25 | 1 | Pc. | $1.50 |
| 23 | 58752J00000A | BATTERY CUSHION II | 5 | Pcs. | $4.00 | |
| 24 | 96003P360000 | ZIP-TIE | 5X300 | 6 | Pcs. | $1.50 |
| 25 | 40098B450000 | ZIP-TIE | 3X150 | 5 | Pcs. | $1.50 |
| 26 | 96001J000000 | ZIP-TIE | 150MM | 5 | Pcs. | $1.50 |
| 27 | 96002J000000 | ZIP-TIE | 200MM | 1 | Pc. | $3.50 |
| 28 | 58430J670000 | WIRE RETAINER | 3 | Pcs. | $1.50 | |
| 29 | 280013320000 | CYLINDER TEMPERATURE SENSOR | 1 | Pc. | $33.00 | |
| 30 | 92059P060000 | CONTROLLER COUPLER | 1 | Pc. | $6.00 | |
| 31 | 96003P250000 | RUBBER CABLE CLAMP | 2 | Pcs. | $2.50 | |
| 32 | 99700U350000 | USB CHARGER | 1 | Pc. | $39.00 | |

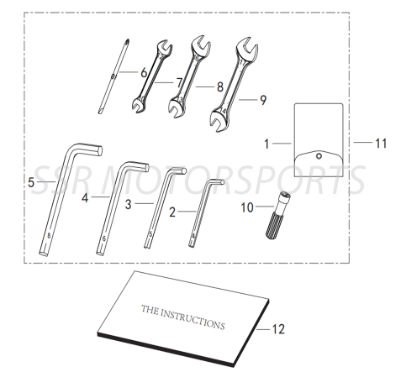

| TOOL KIT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 02110J000000 | TOOL KIT BAG | 1 | Pc. | $4.00 | |
| 2 | B2002040000H | ALLEN WRENCH | 1 | Pc. | $4.00 | |
| 3 | B2002050000H | ALLEN WRENCH | 1 | Pc. | $4.00 | |
| 4 | B2002060000H | ALLEN WRENCH | 1 | Pc. | $4.00 | |
| 5 | B2002080000H | ALLEN WRENCH | 1 | Pc. | $4.00 | |
| 6 | 02103J000100 | DOUBLE-SIDED SCREWDRIVER | 1 | Pc. | $4.00 | |
| 7 | B2001100120H | DOUBLE-HEADED WRENCH | 10-12MM | 1 | Pc. | $7.00 |
| 8 | B2001130160H | DOUBLE-HEADED WRENCH | 13-16MM | 1 | Pc. | $7.00 |
| 9 | B2001140170H | DOUBLE-HEADED WRENCH | 14-17MM | 1 | Pc. | $7.00 |
| 10 | 02106J000000 | SCREW DRIVER HANDLE | 1 | Pc. | $7.00 | |
| 11 | 02100B420100 | TOOL KIT | 1 | Kit | $33.00 | |
| 12 | 02401V040002 | OWNER'S MANUAL | 1 | Pc. | $11.00 | |
| OIL COOLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 150064040120 | BANJO BOLT | M12X1.25X30 | 4 | Pcs. | $2.00 |
| 2 | 270105100000 | SEALING WASHER | 8 | Pcs. | $1.50 | |
| 3 | 270114490020 | OIL COOLER HOSE 2 | 1 | Pc. | $24.00 | |
| 4 | 279235100030 | OIL COOLER | 1 | Pc. | $96.00 | |
| 5 | B0109060166H | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 6 | 270124320040 | OIL COOLER HOSE 1 | 1 | Pc. | $51.00 | |
| GRAPHICS (N6) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 05536V04N601 | LEFT FUEL TANK COWLING STICKER | N6 | 1 | Pc. | $13.00 |
| 2 | 05537V04N601 | RIGHT FUEL TANK COWLING STICKER | N6 | 1 | Pc. | $13.00 |
| 3 | 05511V04N602 | LEFT SIDE COVER STICKER | N6 | 1 | Pc. | $6.00 |
| 4 | 05512V04N602 | RIGHT SIDE COVER STICKER | N6 | 1 | Pc. | $6.00 |
| 5 | 05571V04N601 | LEFT TAIL COWLING STICKER | N6 | 1 | Pc. | $6.00 |
| 6 | 05572V04N601 | RIGHT TAIL COWLING STICKER | N6 | 1 | Pc. | $6.00 |

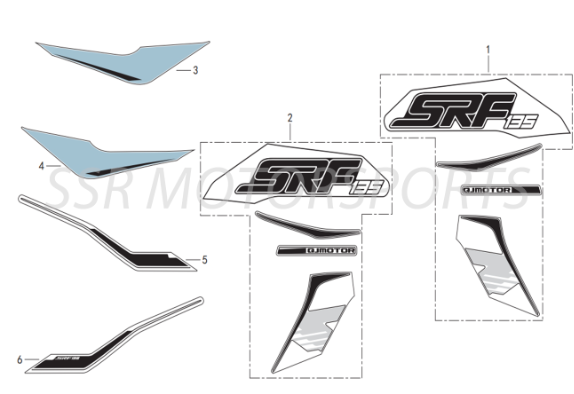

| GRAPHICS (WS/B1) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 05536V04WS01 | LEFT FUEL TANK COWLING STICKER | WS/B1 | 1 | Pc. | $13.00 |
| 2 | 05537V04WS01 | RIGHT FUEL TANK COWLING STICKER | WS/B1 | 1 | Pc. | $13.00 |
| 3 | 05511V04WS02 | LEFT SIDE COVER STICKER | WS/B1 | 1 | Pc. | $6.00 |
| 4 | 05512V04WS02 | RIGHT SIDE COVER STICKER | WS/B1 | 1 | Pc. | $6.00 |
| 5 | 05571V04WS01 | LEFT TAIL COWLING STICKER | WS/B1 | 1 | Pc. | $6.00 |
| 6 | 05572V04WS01 | RIGHT TAIL COWLING STICKER | WS/B1 | 1 | Pc. | $6.00 |

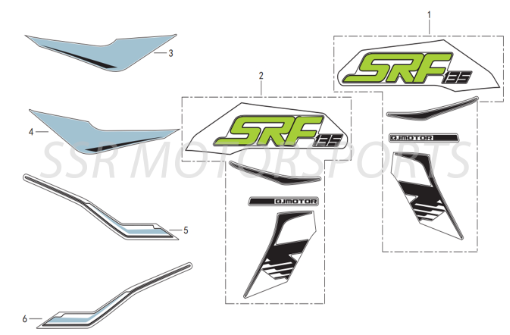

| GRAPHICS (U6/B1) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 05536V04U601 | LEFT FUEL TANK COWLING STICKER | U6/B1 | 1 | Pc. | $13.00 |
| 2 | 05537V04U601 | RIGHT FUEL TANK COWLING STICKER | U6/B1 | 1 | Pc. | $13.00 |
| 3 | 05511V04U602 | LEFT SIDE COVER STICKER | U6/B1 | 1 | Pc. | $6.00 |
| 4 | 05512V04U602 | RIGHT SIDE COVER STICKER | U6/B1 | 1 | Pc. | $6.00 |
| 5 | 05571V04U601 | LEFT TAIL COWLING STICKER | U6/B1 | 1 | Pc. | $6.00 |
| 6 | 05572V04U601 | RIGHT TAIL COWLING STICKER | U6/B1 | 1 | Pc. | $6.00 |
Discover the comprehensive QJ SRF135 Parts Schematic offering a wide range of essential components for your motorcycle maintenance needs. From handlebars and switches to front suspension and steering parts, this schematic provides you with detailed information on each part to ensure optimal performance and functionality.
Ensure smooth riding with high-quality parts such as front and rear wheel components, front brake system essentials, exhaust system parts, and airbox components. With detailed specifications and quantities listed, you can easily identify and order the necessary parts to keep your motorcycle running smoothly and safely.
Enhance your motorcycle's functionality with top-notch electrical equipment, including a horn, ignition coil, battery, and more. The tool kit included in this schematic ensures you have the essential tools on hand for any maintenance or repair tasks. Explore the QJ SRF135 Parts Schematic for a seamless experience in sourcing and maintaining your motorcycle.
