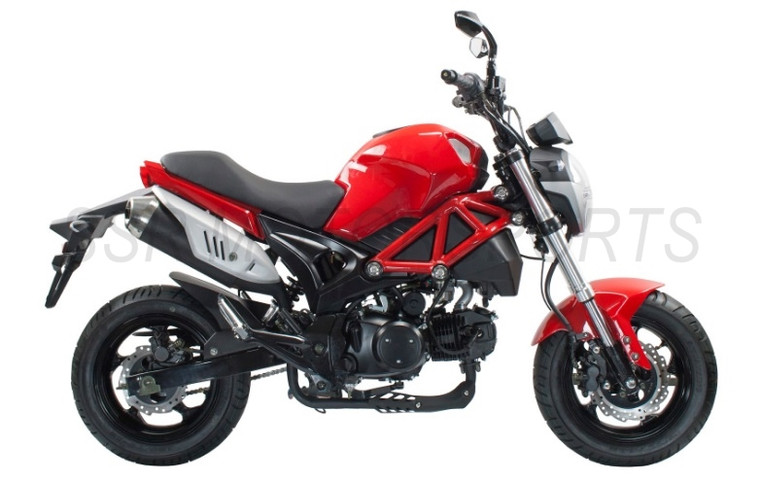

(RAZKULL) Full Parts Schematics
| # | Name | Retail |
|---|---|---|
| 1 | HEADLIGHT DECORATION
A00761-02-00 |
$24.00 |
| 1-1 | HEADLIGHT BULB 12V35W H8
A00266-03-00 |
$18.00 |
| 2 | HEADLIGHT LENS
A00318-03-00 |
$24.00 |
| 2-1 | HEADLIGHT ASSEMBLY 2017
A00267-03-00 |
$59.00 |
| 3 | HEADLIGHT BRACKET
A00763-02-00 |
$30.00 |
| 4 | ST SCREW ST4.2×13
A00006-20-03 |
$1.50 |
| 5 | FRONT RIGHT TURN SIGNAL LED
A00268-03-00 |
$27.00 |
| 6 | SPEEDOMETER ASSY (2017)
A00493-08-00 |
$131.00 |
| 7 | MED PANHEAD PHILLIPS BOLT M6×16
A00093-20-01 |
$1.50 |
| 8 | NUT M8
A00002-22-01 |
$1.50 |
| 9 | NUT M6
A00001-22-01 |
$1.50 |
| 10 | RUBBER GROMMET 8×12×18×9
A00764-02-00 |
$1.50 |
| 12 | HEADLIGHT CASE
A00762-02-00 |
$39.00 |
| 13 | WASHER M6X18X1.5 - BLACK
A00007-21-01 |
$1.50 |
| 14 | FRONT LEFT TURN SIGNAL LED
A00269-03-00 |
$27.00 |
HANDLEBARS
| # | Name | Retail |
|---|---|---|
| 1 | MIRROR SET
A00407-05-00 |
$39.00 |
| 2 | RIGHT HANDLEBAR END ASSY
A00408-05-00 |
$11.00 |
| 3 | LEFT HANDLEBAR END ASSY
A00464-05-00 |
$11.00 |
| 4 | THROTTLE CABLE
A00409-05-00 |
$14.00 |
| 5 | PHILLIPS BOLT M5×45
A00048-19-03 |
$1.50 |
| 6 | PHILLIPS BOLT M5×10
A00049-19-03 |
$1.50 |
| 7 | RIGHT HANDLEBAR SWITCH
A00494-08-00 |
$29.00 |
| 8 | PHILLIPS BOLT M5×42
A00050-19-03 |
$1.50 |
| 9 | PHILLIPS BOLT M5×22
A00051-19-03 |
$1.50 |
| 10 | LEFT HANDLEBAR SWITCH
A00495-08-00 |
$33.00 |
| 11 | CHOKE CABLE
A00410-05-00 |
$13.00 |
| 12 | RIGHT HANDLEBAR GRIP WITH TUBE
A00411-05-00 |
$7.00 |
| 13 | CLUTCH PERCH ASSY
A00412-05-00 |
$24.00 |
| 14 | FLANGE BOLT M6×22
A00030-19-03 |
$1.50 |
| 15 | LEFT HANDLEBAR GRIP
A00413-05-00 |
$6.00 |
| 16 | HANDLEBAR ALUMINUM
A00414-05-00 |
$59.00 |
| 17 | CLUTCH CABLE
A00462-05-00 |
$13.00 |
| 18 | CABLE TIE
A00116-24-01 |
$1.50 |
| 19 | CLUTCH LEVER
A00512-05-00 |
$18.00 |
UPPER & LOWER TRIPLE CLAMPS
| # | Name | Retail |
|---|---|---|
| 1 | LOWER HEADLIGHT MOUNTING BRACKET
A00221-15-00 |
$13.00 |
| 2 | UPPER HANDLEBAR CLAMP
A00222-15-00 |
$33.00 |
| 3 | UPPER TRIPLE CLAMP ASSY
A00223-15-00 |
$51.00 |
| 4 | LOWER TRIPLE CLAMP
A00224-15-00 |
$59.00 |
| 6 | NUT M26×1
A00105-22-00 |
$7.00 |
| 7 | STEERING STEM WASHER 26
A00225-15-00 |
$3.50 |
| 8 | IGNITION SWITCH ASSY WITH GAS CAP
A00496-08-00 |
$24.00 |
| 9 | FLANGE BOLT M6×12
A00008-19-03 |
$1.50 |
| 10 | IGNITION SWITCH SUPPORT
A00226-15-00 |
$11.00 |
| 11 | ALLEN BOLT M8X25
A00249-19-02 |
$1.50 |
| 12-13 | STEERING STEM NUT
A00090-22-01 |
$7.00 |
| 14 | BEARING RACE
A00227-15-00 |
$8.00 |
| 15 | STEERING STEM BEARING
A00228-15-00 |
$3.50 |
| 16 | UPPER STEM BEARING RACE II
A00229-15-00 |
$8.00 |
| 17 | LOWER STEM BEARING RACE I
A00230-15-00 |
$8.00 |
| 18 | WASHER
A00206-21-01 |
$3.50 |
| 19 | HORN DL121(12V 1.5A)
A00497-08-00 |
$13.00 |
| 20 | BLACK INSERT
A00948-02-02 |
$1.50 |
| 21 | REFLECTOR BRACKET
A00945-02-00 |
$7.00 |
| 22 | REFLECTOR
A00946-02-00 |
$4.00 |
FRONT SUSPENSION
| # | Name | Retail |
|---|---|---|
| 1 | RIGHT FRONT FORK ASSY
A00494-16-00 |
$168.00 |
| 2 | LEFT FRONT FORK ASSY
A00493-16-00 |
$168.00 |
| 3 | FORK/DUST SEAL SET 30X40.5X10.5/30X40.5X13
A00495-16-00 |
$13.00 |
FRONT FENDER
| # | Name | Retail |
|---|---|---|
| 1 | FRONT FENDER WHITE
A00765-02-01 |
$45.00 |
| 1 | FRONT FENDER BLACK
A00765-02-02 |
$45.00 |
| 1 | FRONT FENDER RED
A00765-02-18 |
$45.00 |
| 1 | FRONT FENDER YELLOW
A00765-02-05 |
$45.00 |
| 2 | SPEEDOMETER CABLE HOLDER
A00766-02-00 |
$4.00 |
| 3 | FRONT BRAKE HOSE HOLDER
A00767-02-00 |
$4.00 |
| 4 | ALLEN BOLT M6X16
A00011-19-02 |
$1.50 |
| 5 | RUBBER WASHER
A00207-21-01 |
$1.50 |
| 6 | WASHER M6X18X1.5 - BLACK
A00007-21-01 |
$1.50 |
| 8 | CHROME COLLAR 16.35x11.25x9.6
A00768-02-00 |
$2.00 |
| 9 | COLLAR
A00769-02-00 |
$1.50 |
| 10 | RUBBER GROMMET
A00949-02-00 |
$2.50 |
FRONT BRAKE SYSTEM
| # | Name | Retail |
|---|---|---|
| 1 | FRONT BRAKE LEVER
A00533-04-00 |
$18.00 |
| 2 | BRAKE LEVER PIVOT BOLT
A00534-04-00 |
$1.50 |
| 3 | FRONT BRAKE MASTER CYLINDER CLAMP
A00535-04-00 |
$7.00 |
| 4 | FRONT BRAKE MASTER CYLINDER ASSY
A00536-04-00 |
$48.00 |
| 5 | FLANGE BOLT M6×22
A00030-19-03 |
$1.50 |
| 6 | NUT M6
A00001-22-01 |
$1.50 |
| 7 | FRONT BRAKE HOSE
A00543-04-00 |
$14.00 |
| 8 | SEALING WASHER M10
A00549-04-00 |
$1.50 |
| 9 | BANJO BOLT M10×22
A00537-04-00 |
$2.00 |
| 10 | PHILLIPS BOLT M4X10
A00020-20-01 |
$1.50 |
| 11 | FRONT BRAKE CALIPER ASSY
A00538-04-00 |
$39.00 |
| 12 | FRONT BRAKE PAD SET
A00539-04-00 |
$30.00 |
| 13 | FRONT BRAKE ASSY
A00540-04-00 |
$89.00 |
| 14 | FRONT BRAKE LIGHT SWITCH HARNESS
A00498-08-00 |
$7.00 |
| 15 | FRONT BRAKE LIGHT SWITCH
A00499-08-00 |
$8.00 |
| 16 | ALLEN BOLT M8×30
A00041-19-02 |
$1.50 |
| 17 | CHROME COLLAR 21.8x13.5x14.4
A00541-04-00 |
$1.50 |
| 18 | CHROME INSERT
A00937-02-25 |
$1.50 |
FRONT WHEEL
| # | Name | Retail |
|---|---|---|
| 1 | FRONT/REAR TIRE 120/70-12
A00373-18-00 |
$56.00 |
| 3 | FRONT WHEEL AXLE
A00363-18-00 |
$18.00 |
| 4 | ROTOR BOLT M8X25 ALLEN
A00125-19-10 |
$1.50 |
| 5 | FRONT WHEEL SPACER
A00364-18-00 |
$4.00 |
| 6 | FRONT BRAKE ROTOR
A00671-04-00 |
$48.00 |
| 7 | DUST SEAL
A00229-26-00 |
$2.50 |
| 7A | DUST SEAL 44X52X6
A00250-26-00 |
$2.50 |
| 8 | WHEEL BEARING 6301-2RS
A00165-28-00 |
$8.00 |
| 10 | WHEEL BEARING SPACER
A00367-18-00 |
$7.00 |
| 11 | FRONT WHEEL ASSY 2.75-12 (BLACK)
A00368-18-00 |
$112.00 |
| 12 | FLANGE LOCKNUT M12 - BLACK
A00001-22-X3 |
$2.00 |
| 14 | SPEEDOMETER SENSOR ASSY
A00500-08-00 |
$29.00 |
| 15 | RUBBER AXLE BOLT COVER
A00371-18-00 |
$3.50 |
| 16 | RUBBER AXLE NUT COVER
A00372-18-00 |
$3.50 |
| 17 | ANGLED VALVE STEM
A00136-18-00 |
$4.00 |
FUEL TANK
| # | Name | Retail |
|---|---|---|
| 1 | FUEL TANK
A00345-12-00 |
$69.00 |
| 2 | FUEL TANK CENTER COVER WHITE
A00770-02-01 |
$24.00 |
| 2 | FUEL TANK CENTER COVER BLACK
A00770-02-02 |
$24.00 |
| 2 | FUEL TANK CENTER COVER RED
A00770-02-18 |
$24.00 |
| 2 | FUEL TANK CENTER COVER YELLOW
A00770-02-05 |
$24.00 |
| 3 | LEFT FUEL TANK COVER WHITE
A00771-02-01 |
$42.00 |
| 3 | LEFT FUEL TANK COVER BLACK
A00771-02-02 |
$42.00 |
| 3 | LEFT FUEL TANK COVER RED
A00771-02-18 |
$42.00 |
| 3 | LEFT FUEL TANK COVER YELLOW
A00771-02-05 |
$42.00 |
| 4 | RIGHT FUEL TANK COVER WHITE
A00772-02-01 |
$42.00 |
| 4 | RIGHT FUEL TANK COVER BLACK
A00772-02-02 |
$42.00 |
| 4 | RIGHT FUEL TANK COVER RED
A00772-02-18 |
$42.00 |
| 4 | RIGHT FUEL TANK COVER YELLOW
A00772-02-05 |
$42.00 |
| 5 | TOP FUEL TANK COVER
A00773-02-00 |
$36.00 |
| 6 | LEFT FUEL TANK COVER MESH 2017 OLD
A00774-02-00 |
$24.00 |
| 7 | RIGHT FUEL TANK COVER MESH 2017
A00838-02-00 |
$24.00 |
| 8 | FRONT CENTER FUEL TANK COVER
A00775-02-00 |
$18.00 |
| 9 | TANK COVER MOUNTING GROMMET
A00426-11-00 |
$2.00 |
| 10 | RIGHT FRAME SUPPORT INSERT
A00427-11-00 |
$21.00 |
| 11 | LEFT FRAME SUPPORT INSERT
A00428-11-00 |
$21.00 |
| 12 | RIGHT FRAME SUPPORT RED
A00429-11-18 |
$59.00 |
| 12 | RIGHT FRAME SUPPORT BLACK
A00429-11-02 |
$59.00 |
| 13 | LEFT FRAME SUPPORT RED
A00430-11-18 |
$59.00 |
| 13 | LEFT FRAME SUPPORT BLACK
A00430-11-02 |
$59.00 |
| 14 | ALUMINUM DECORATIVE COLLAR W/ BOLT+NUT ASSY
A00776-02-00 |
$13.00 |
| 15 | BOLT M6X16
A00001-19-03 |
$1.50 |
| 16 | ST SCREW ST4.2×13
A00006-20-03 |
$1.50 |
| 17 | CLIP NUT M5
A00003-22-05 |
$1.50 |
| 19 | PHILLIPS BOLT W/FLANGE M5×16
A00073-20-02 |
$1.50 |
| 20 | COLLAR 6
A00346-12-00 |
$1.50 |
| 21 | CASE FLANGE BOLT M6×55
A00012-19-03 |
$1.50 |
| 22 | HEX BOLT M5X16
A00032-19-03 |
$1.50 |
| 23 | IGNITION SWITCH ASSY WITH GAS CAP
A00496-08-00 |
$24.00 |
| 24 | FUEL LEVEL SENSOR
A00344-12-00 |
$23.00 |
| 25 | FUEL LEVEL SENSOR SEAL SQUARE
A00141-27-00 |
$1.50 |
| 26 | NUT M6
A00001-22-01 |
$1.50 |
| 27 | WASHER
A00208-21-01 |
$1.50 |
| 28 | BOLT M6X20
A00016-19-03 |
$1.50 |
| 29 | WASHER M6X18X1.5 - BLACK
A00007-21-01 |
$1.50 |
| 30 | GRAPHICS KIT WHITE
A00992-02-00 |
$10.00 |
| 30A | GRAPHICS KIT BLACK
A00993-02-00 |
$10.00 |
| 31 | RUBBER GROMMET
A00558-11-00 |
$1.50 |
LEFT AND RIGHT SIDE COVERS
| # | Name | Retail |
|---|---|---|
| 1 | LEFT SIDE COVER BLACK
A00777-02-02 |
$36.00 |
| 2 | RIGHT SIDE COVER BLACK
A00778-02-02 |
$36.00 |
| 3 | BOLT M6X16
A00001-19-03 |
$1.50 |
| 4 | RUBBER WASHER
A00209-21-01 |
$1.50 |
| 5 | WASHER M6X18X1.5 - BLACK
A00007-21-01 |
$1.50 |
| 6 | HEX BOLT M5X16
A00032-19-03 |
$1.50 |
| 7 | DAMPER STRIP
A00779-02-00 |
$2.00 |
SIDE STAND
| # | Name | Retail |
|---|---|---|
| 1 | SIDE STAND
A00431-11-00 |
$36.00 |
| 2 | BOLT
A00432-11-00 |
$2.00 |
| 3 | SIDE STAND SPRING
A00433-11-00 |
$2.50 |
| 4 | NUT M10×1.25
A00322-22-04 |
$1.50 |
SWINGARM
| # | Name | Retail |
|---|---|---|
| 1 | SWINGARM BLACK | $77.00 |
| 2 | SWINGARM FENDER WITH CHAIN GUARD | $35.00 |
| 3 | RIGHT FOOTREST STAY ASSY
A00415-05-00 |
$57.00 |
| 4 | LEFT FOOTREST STAY ASSY
A00416-05-00 |
$57.00 |
| 5 | SWINGARM AXLE
A00435-11-00 |
$18.00 |
| 6 | CHAIN ADJUSTER ASSY
A00436-11-00 |
$18.00 |
| 7 | DRIVE CHAIN SLIDER
A00437-11-00 |
$14.00 |
| 8 | HEX BOLT M5X12
A00025-19-03 |
$1.50 |
| 9 | FLANGE BOLT M8X35
A00049-19-01 |
$2.00 |
| 10 | FLANGE NUT M12×1.25
A00010-22-01 |
$2.00 |
| 11 | FLANGE BOLT M6×12
A00008-19-03 |
$1.50 |
| 12 | DRIVE CHAIN 428H-106L
A00311-07-00 |
$39.00 |
| 13 | RUBBER PLUG
A00955-02-00 |
$2.00 |
| 14 | REAR BRAKE PEDAL
A00420-05-00 |
$23.00 |
| 15 | CIRCLIP 14
A00115-24-07 |
$1.50 |
| 16 | REAR BRAKE LIGHT SWITCH SPRING
A00502-08-00 |
$1.50 |
| 17 | REAR BRAKE LIGHT SWITCH
A00503-08-00 |
$8.00 |
| 18 | REAR BRAKE PEDAL RETURN SPRING
A00419-05-00 |
$2.00 |
| 19 | RIGHT FOOTPEG
A00513-05-00 |
$18.00 |
| 20 | LEFT FOOTPEG
A00514-05-00 |
$18.00 |
MUFFLER
| # | Name | Retail |
|---|---|---|
| 1 | MUFFLER ASSY
A00090-10-00 |
$188.00 |
| 1-1 | HEADER ASSY
A00103-10-00 |
$77.00 |
| 2 | MUFFLER GUARD
A00091-10-00 |
$47.00 |
| 3 | FLANGE BOLT M8X30 - BLACK
A00041-19-X1 |
$1.50 |
| 4 | BOLT M6X16
A00001-19-03 |
$1.50 |
| 5 | HEAT SHIELD
A00092-10-00 |
$51.00 |
| 7 | ALLEN BOLT M8X20
A00251-19-02 |
$1.50 |
| 8 | PHILLIP BOLT M6x10
A00417-19-03 |
$1.50 |
| 9 | NUT M8
A00002-22-01 |
$1.50 |
| 10 | COLLAR
A00250-21-01 |
$3.50 |
| 11 | MUFFLER GASKET
A00187-13-00 |
$3.50 |
| 12 | RUBBER WASHER
A00211-21-01 |
$1.50 |
| 13 | WASHER M6X18X1.5 - BLACK
A00007-21-01 |
$1.50 |
| 14 | LOCK WASHER 5MM
A00212-21-02 |
$1.50 |
| 15 | HEAT INSULATION WASHER
A00093-10-00 |
$2.00 |
| 16 | GROMMET 29x12.5x12.2
A00248-21-01 |
$1.50 |
| 17 | PACKING GASKET
A00294-13-00 |
$11.00 |
SEAT
| # | Name | Retail |
|---|---|---|
| 1 | SEAT ASSY
A00782-02-00 |
$51.00 |
| 2 | SEAT COWL COVER WHITE
A00783-02-01 |
$30.00 |
| 2 | SEAT COWL COVER BLACK
A00783-02-02 |
$30.00 |
| 2 | SEAT COWL COVER RED
A00783-02-18 |
$30.00 |
| 2 | SEAT COWL COVER YELLOW
A00783-02-05 |
$30.00 |
| 3 | RUBBER CUSHION
A00784-02-00 |
$7.00 |
| 4 | ALLEN BOLT M6X20
A00008-19-02 |
$1.50 |
| 5 | CHROME COLLAR 16.35x11.25x9.6
A00768-02-00 |
$2.00 |
| 6 | SPECIAL BOLT
A00786-02-00 |
$2.50 |
| 7 | FLANGE NUT M8 - BLACK
A00003-22-X3 |
$1.50 |
REAR SUSPENSION
| # | Name | Retail |
|---|---|---|
| 1 | REAR SHOCK ABSORBER
A00496-16-00 |
$77.00 |
| 2 | FLANGE BOLT M10X45
A00011-19-01 |
$3.50 |
| 3 | FLANGE BOLT M10X50X1.25
A00057-19-01 |
$2.00 |
| 4 | FLANGE LOCKNUT M10 - BLACK
A00004-22-3X |
$1.50 |
REAR FENDER
| # | Name | Retail |
|---|---|---|
| 1 | SUBFRAME UNDERTRAY
A00787-02-00 |
$39.00 |
| 2 | REAR FENDER B
A00788-02-00 |
$18.00 |
| 3 | REAR FENDER A
A00789-02-00 |
$35.00 |
| 4 | LEFT TAIL SIDE COVER WHITE
A00790-02-01 |
$36.00 |
| 4 | LEFT TAIL SIDE COVER BLACK
A00790-02-02 |
$36.00 |
| 4 | LEFT TAIL SIDE COVER RED
A00790-02-18 |
$36.00 |
| 4 | LEFT TAIL SIDE COVER YELLOW
A00790-02-05 |
$36.00 |
| 5 | RIGHT TAIL SIDE COVER WHITE
A00791-02-01 |
$36.00 |
| 5 | RIGHT TAIL SIDE COVER BLACK
A00791-02-02 |
$36.00 |
| 5 | RIGHT TAIL SIDE COVER RED
A00791-02-18 |
$36.00 |
| 5 | RIGHT TAIL SIDE COVER YELLOW
A00791-02-05 |
$36.00 |
| 6 | CENTER TAIL COVER WHITE
A00792-02-01 |
$30.00 |
| 6 | CENTER TAIL COVER BLACK
A00792-02-02 |
$30.00 |
| 6 | CENTER TAIL COVER RED
A00792-02-18 |
$30.00 |
| 6 | CENTER TAIL COVER YELLOW
A00792-02-05 |
$30.00 |
| 7 | LICENCE PLATE LIGHT 12V5W
A00272-03-00 |
$29.00 |
| 8 | REAR REFLECTOR
A00793-02-00 |
$6.00 |
| 9 | LEFT REAR TURN SIGNAL LED
A00270-03-00 |
$27.00 |
| 10 | RIGHT REAR TURN SIGNAL LED
A00271-03-00 |
$27.00 |
| 11 | FLANGE NUT M10x1.25
A00004-22-03 |
$1.50 |
| 12 | CLIP NUT M5
A00003-22-05 |
$1.50 |
| 13 | HEX BOLT M8X16
A00034-19-03 |
$1.50 |
| 14 | HEX BOLT M5X16
A00032-19-03 |
$1.50 |
| 15 | NUT M6
A00001-22-01 |
$1.50 |
| 16 | WASHER M6X18X1.5 - BLACK
A00007-21-01 |
$1.50 |
| 17 | NUT M5
A00007-22-01 |
$1.50 |
| 18 | BOLT M6X16
A00001-19-03 |
$1.50 |
| 20 | RUBBER WASHER
A00213-21-01 |
$1.50 |
| 21 | ST SCREW ST4.2×13
A00006-20-03 |
$1.50 |
| 22 | REAR FENDER BRACKET
A00794-02-00 |
$42.00 |
| 23 | DAMPER PAD STRIP
A00795-02-00 |
$1.50 |
| 24 | BATTERY HOLDER BRACKET
A00796-02-00 |
$7.00 |
| 26 | TOOL KIT STRAP
A00591-08-00 |
$7.00 |
| 27 | REFLECTOR
A00950-02-00 |
$4.00 |
| 28 | LICENSE PLATE BRACKET
A00951-02-00 |
$13.00 |
REAR WHEEL
| # | Name | Retail |
|---|---|---|
| 1 | FRONT/REAR TIRE 120/70-12
A00373-18-00 |
$56.00 |
| 2 | REAR WHEEL ASSY 3.50-12 (BLACK)
A00375-18-00 |
$112.00 |
| 3 | WHEEL BEARING SPACER
A00376-18-00 |
$7.00 |
| 4 | DUST SEAL 26X37X6
A00231-26-00 |
$2.50 |
| 6 | WHEEL BEARING 6301-2RS
A00165-28-00 |
$8.00 |
| 7 | SEAL
A00232-26-00 |
$2.00 |
| 8 | SPROCKET CARRIER DAMPER SET OF 4
A00379-18-00 |
$7.00 |
| 9 | SPROCKET HUB SPACER
A00313-07-00 |
$4.00 |
| 10 | REAR SPROCKET WITH CARRIER ASSY
A00312-07-00 |
$77.00 |
| 11 | BEARING 6203RS
A00078-28-00 |
$8.00 |
| 12 | REAR SPROCKET CARRIER
A00314-07-00 |
$39.00 |
| 13 | HEX BOLT M8X30 - BLACK
A00029-19-03 |
$1.50 |
| 14 | REAR SPROCKET 428H-34T
A00315-07-00 |
$48.00 |
| 16 | SPROCKET NUT RETAINER PLATE
A00316-07-00 |
$2.50 |
| 18 | FLANGE LOCKNUT M12 - BLACK
A00001-22-X3 |
$2.00 |
| 19 | ROTOR BOLT M8X25 ALLEN
A00125-19-10 |
$1.50 |
| 20 | REAR WHEEL AXLE
A00381-18-00 |
$18.00 |
| 21 | REAR BRAKE ROTOR
A00544-04-00 |
$48.00 |
| 22 | REAR WHEEL SPACER
A00380-18-00 |
$4.00 |
| 23 | RUBBER AXLE BOLT COVER
A00371-18-00 |
$3.50 |
| 24 | RUBBER AXLE NUT COVER
A00372-18-00 |
$3.50 |
| 25 | ANGLED VALVE STEM
A00136-18-00 |
$4.00 |
REAR BRAKE SYSTEM
| # | Name | Retail |
|---|---|---|
| 1 | REAR BRAKE ASSY
A00545-04-00 |
$96.00 |
| 2 | COTTER PIN
A00038-25-01 |
$1.50 |
| 3 | FLANGE BOLT M6X25
A00003-19-03 |
$1.50 |
| 4 | PIN
A00648-04-00 |
$1.50 |
| 5 | WASHER
A00214-21-01 |
$1.50 |
| 6 | REAR BRAKE PAD SET
A00546-04-00 |
$30.00 |
| 7 | REAR BRAKE MASTER CYLINDER
A00547-04-00 |
$53.00 |
| 8 | BANJO BOLT
A00548-04-00 |
$2.00 |
| 9 | SEALING WASHER M10
A00549-04-00 |
$1.50 |
| 10 | REAR BRAKE HOSE
A00550-04-00 |
$14.00 |
| 11 | REAR BRAKE CALIPER
A00551-04-00 |
$39.00 |
| 12 | REAR BRAKE CALIPER BRACKET
A00552-04-00 |
$7.00 |
TAILLIGHT
| # | Name | Retail |
|---|---|---|
| 1 | TAILLIGHT LED
A00273-03-00 |
$48.00 |
| 2 | RUBBER GROMMET
A00274-03-00 |
$1.50 |
| 3 | WASHER M6X18X1.5 - BLACK
A00007-21-01 |
$1.50 |
| 4 | NUT M6
A00001-22-01 |
$1.50 |
FRAME
| # | Name | Retail |
|---|---|---|
| 1 | FRAME *OVERSIZE*
A00438-11-00 |
$180.00 |
| 2 | SEAT LOCK
A00439-11-00 |
$13.00 |
| 3 | SEAT LOCK CABLE
A00440-11-00 |
$4.00 |
| 4 | SEAT LOCK CABLE BRACKET
A00441-11-00 |
$33.00 |
| 5 | SEAT LOCK DRUM
A00442-11-00 |
$23.00 |
| 6 | HEX BOLT M5X16
A00032-19-03 |
$1.50 |
| 7 | FLANGE BOLT M10X115 10.9
A00005-19-01 |
$3.50 |
| 9 | FLANGE BOLT M10×135×1.25
A00069-19-01 |
$4.00 |
| 10 | NUT M10×1.25
A00014-22-01 |
$1.50 |
| 12 | WASHER M10
A00002-21-01 |
$1.50 |
| 13 | COMPLETE ENGINE ASSY *OVERSIZE*
A02887-09-00 |
$625.00 |
WIRE HARNESS & ELECTRICAL COMPONENTS
| # | Name | Retail |
|---|---|---|
| 1 | WIRE HARNESS
A00507-08-00 |
$77.00 |
| 2 | CDI W/ HOLDER
A00508-08-00 |
$29.00 |
| 3 | RUBBER CDI HOLDER
A00509-08-00 |
$3.50 |
| 4 | REGULATOR / RECTIFIER
A00510-08-00 |
$30.00 |
| 5 | SPARK PLUG CAP
A00511-08-00 |
$14.00 |
| 6 | IGNITION COIL
A00512-08-00 |
$33.00 |
| 7 | FLASHER RELAY RUBBER HOLDER
A00513-08-00 |
$3.50 |
| 8 | TURN SIGNAL RELAY
A00514-08-00 |
$14.00 |
| 9 | MAIN FUSE COVER
A00515-08-00 |
$4.00 |
| 9A | FUSE 10A
A00156-08-00 |
$2.50 |
| 10 | BOLT M5×20
A00013-19-03 |
$1.50 |
| 11 | STARTER RELAY ASSY
A00516-08-00 |
$18.00 |
| 12 | STARTER RELAY RUBBER HOLDER
A00517-08-00 |
$3.50 |
| 13 | STARTER RELAY
A00518-08-00 |
$13.00 |
| 14 | WASHER M6X13X2.0 - SILVER
A00091-21-01 |
$1.50 |
| 15 | LOCK WASHER M6
A00002-21-02 |
$1.50 |
| 16 | NUT M6
A00001-22-01 |
$1.50 |
| 17 | FLANGE BOLT M5×20
A00061-19-01 |
$1.50 |
| 18 | BATTERY YTX4L-BS
YTX4L-BS |
$48.00 |
AIR FILTER
| # | Name | Retail |
|---|---|---|
| 1 | AIR BOX BODY
A00253-14-00 |
$21.00 |
| 2 | AIR FILTER SUPPORT
A00254-14-00 |
$8.00 |
| 3 | AIR FILTER ELEMENT
A00255-14-00 |
$11.00 |
| 4 | AIR BOX COVER
A00256-14-00 |
$8.00 |
| 5 | SCREW M4×15
A00021-20-01 |
$1.50 |
| 6 | SCREW M5×35
A00028-20-01 |
$1.50 |
| 6 | CLAMP
A00102-24-02 |
$3.50 |
| 8 | FLANGE BOLT M6×12
A00008-19-03 |
$1.50 |
CYLINDER HEAD COVER
| # | Name | Retail |
|---|---|---|
| 1 | LEFT CYLINDER HEAD COVER
A01885-09-00 |
$27.00 |
| 2 | VALVE COVER
A01886-09-00 |
$7.00 |
| 3 | LEFT CYLINDER HEAD COVER GASKET
A00188-13-00 |
$4.00 |
| 4 | FLANGE CAP NUT M8
A00004-22-36 |
$1.50 |
| 5 | WASHER M8
A00004-21-01 |
$1.50 |
| 6 | COPPER WASHER M8
A00264-21-01 |
$1.50 |
| 7 | WASHER M6X18X1.5 - BLACK
A00007-21-01 |
$1.50 |
| 8 | O-RING
A00142-27-00 |
$2.00 |
| 9 | CASE FLANGE BOLT M6×110
A00033-19-01 |
$2.50 |
| 10 | CASE FLANGE BOLT M6X20
A00419-19-08 |
$1.50 |
CAMSHAFT & VALVE
| # | Name | Retail |
|---|---|---|
| 1 | INTAKE VALVE
A01894-09-00 |
$11.00 |
| 2 | EXHAUST VALVE
A01895-09-00 |
$18.00 |
| 3 | LOWER VALVE SPRING WASHER
A02993-09-00 |
$2.00 |
| 4 | LOWER VALVE SPRING SEAT
A01898-09-00 |
$2.50 |
| 5 | VALVE STEM SEAL
A01890-09-00 |
$3.50 |
| 6 | VALVE SPRING
A01896-09-00 |
$4.00 |
| 7 | UPPER VALVE SPRING SEAT
A01897-09-00 |
$7.00 |
| 8 | VALVE COLLET
A01899-09-00 |
$6.00 |
| 9 | ROCKER ARM SHAFT PLATE
A01904-09-00 |
$8.00 |
| 10 | HEX BOLT M6×10
A00015-19-03 |
$1.50 |
| 11 | SET PIN 8×12
A01905-09-00 |
$1.50 |
| 12 | CAMSHAFT ASSY
A01891-09-00 |
$42.00 |
| 13 | ROCKER ARM SHAFT I
A01902-09-00 |
$8.00 |
| 14 | ROCKER ARM SHAFT II
A01903-09-00 |
$8.00 |
| 15 | ROCKER ARM ASSY
A01892-09-00 |
$29.00 |
TIMING CHAIN & TENSIONER
| # | Name | Retail |
|---|---|---|
| 1 | FLANGE BOLT M6X16
A00002-19-01 |
$1.50 |
| 2 | TENSIONER PLATE
A01914-09-00 |
$11.00 |
| 3 | LIMITING PLATE
A01908-09-00 |
$8.00 |
| 4 | LIMITING PLATE SUPPORT SPRING
A02994-09-00 |
$1.50 |
| 5 | LIMITING PLATE PIN
A02995-09-00 |
$1.50 |
| 6 | LOWER CAM CHAIN GUIDE
A01912-09-00 |
$14.00 |
| 7 | UPPER CAM CHAIN GUIDE
A01913-09-00 |
$23.00 |
| 8 | CAM CHAIN TENSIONER GASKET
A00191-13-00 |
$3.50 |
| 9 | TENSIONER ASSY
A01909-09-00 |
$24.00 |
| 10 | CASE FLANGE BOLT M6X25
A00421-19-08 |
$1.50 |
| 11 | O-RING
A00143-27-00 |
$1.50 |
| 12 | ADJUSTING SCREW
A01910-09-00 |
$1.50 |
| 13 | HEX BOLT M5X12
A00025-19-03 |
$1.50 |
| 14 | CAM SPROCKET
A01906-09-00 |
$18.00 |
| 15 | TIMING CHAIN
A01907-09-00 |
$29.00 |
RIGHT CRANKCASE COVER
| # | Name | Retail |
|---|---|---|
| 1 | DIPSTICK
A01917-09-00 |
$4.00 |
| 2 | CLUTCH ACTUATING ARM
A01918-09-00 |
$33.00 |
| 3 | O-RING 8.8X1.9
A00140-27-00 |
$1.50 |
| 4 | CLUTCH COVER
A01916-09-00 |
$69.00 |
| 5 | CLUTCH COVER GASKET
A00193-13-00 |
$11.00 |
| 6 | DOWEL PIN M8X12
A00003-23-00 |
$1.50 |
| 7 | NEEDLE BEARING HK1010
A00063-28-00 |
$7.00 |
| 8 | BEARING 6001Z
A00105-28-00 |
$11.00 |
| 9 | OIL JET
A02700-09-00 |
$4.00 |
| 10 | NAMEPLATE
A02688-09-00 |
$11.00 |
| 11 | CASE FLANGE BOLT M6X16
A00418-19-08 |
$1.50 |
| 12 | CASE FLANGE BOLT M6X40
A00426-19-08 |
$1.50 |
| 13 | COIL WIRE HOLDER
A02689-09-00 |
$1.50 |
| 14 | SPRING
A02690-09-00 |
$2.00 |
| 15 | CLUTCH CABLE BRACKET
A02691-09-00 |
$4.00 |
| 16 | OIL SEAL 16X28X7
A00230-26-00 |
$4.00 |
CLUTCH
| # | Name | Retail |
|---|---|---|
| 1 | CLUTCH ASSY
A01935-09-00 |
$150.00 |
| 2 | OIL FILTER BODY
A02692-09-00 |
$18.00 |
| 3 | FLANGE NUT 14X1
A00089-22-01 |
$2.50 |
| 4 | DRIVE GEAR
A02693-09-00 |
$23.00 |
| 5 | OIL PUMP GEAR
A02694-09-00 |
$18.00 |
| 6 | CLUTCH BUSHING
A02695-09-00 |
$2.50 |
| 7 | CLUTCH HUB
A01926-09-00 |
$72.00 |
| 8 | THRUST WASHER
A00204-21-06 |
$4.00 |
| 9 | CLUTCH PRESSURE PLATE
A01930-09-00 |
$33.00 |
| 10 | CLUTCH FRICTION PLATE
A01928-09-00 |
$8.00 |
| 11 | CLUTCH STEEL PLATE
A01929-09-00 |
$13.00 |
| 12 | DRIVEN PLATE
A01927-09-00 |
$53.00 |
| 13 | CLUTCH SPRING
A01932-09-00 |
$3.50 |
| 14 | CLUTCH LIFTER PLATE
A01931-09-00 |
$24.00 |
| 15 | FLANGE BOLT M6×22
A00030-19-03 |
$1.50 |
| 16 | THRUST WASHER
A00205-21-06 |
$4.00 |
| 17 | SPLINE NUT M14×1
A01934-09-00 |
$2.50 |
| 18 | BEARING 61804/6200
A00077-28-00 |
$18.00 |
| 19 | CLUTCH PUSH ROD
A02696-09-00 |
$7.00 |
| 20 | PANHEAD SCREW M5X8
A00009-20-02 |
$1.50 |
| 21 | END CAP
A02697-09-00 |
$13.00 |
| 22 | SPACER
A01936-09-00 |
$7.00 |
| 23 | END CAP GASKET
A02699-09-00 |
$4.00 |
OIL PUMP
| # | Name | Retail |
|---|---|---|
| 1 | OIL PUMP ASSY
A01937-09-00 |
$39.00 |
| 2 | FLANGE BOLT M6X35
A00012-19-01 |
$1.50 |
| 3 | DOWEL PIN M8X12
A00003-23-00 |
$1.50 |
| 4 | FILTER SCREEN
A01941-09-00 |
$8.00 |
LEFT CRANKCASE COVER
| # | Name | Retail |
|---|---|---|
| 1 | CASE FLANGE BOLT M6X35
A00425-19-08 |
$1.50 |
| 2 | CRANK INSPECTION PLUG 14MM
A02310-09-00 |
$14.00 |
| 3 | O-RING 27X2.4
A00055-27-00 |
$1.50 |
| 4 | CASE FLANGE BOLT M6X25
A00421-19-08 |
$1.50 |
| 5 | COUNTERSHAFT SPROCKET COVER
A01947-09-00 |
$18.00 |
| 6 | INSPECTION PLUG
A01949-09-00 |
$8.00 |
| 7 | O-RING 13.8X2.5
A00056-27-00 |
$2.50 |
| 8 | WIRE CLAMP
A01948-09-00 |
$2.00 |
| 10 | STATOR COVER VIN# XXXXXX+
A02909-09-00 |
$39.00 |
| 11 | DOWEL PIN M8X12
A00003-23-00 |
$1.50 |
| 12 | BOLT M6×14
A00011-19-03 |
$1.50 |
| 13 | STATOR COVER GASKET
A00194-13-00 |
$7.00 |
| 14 | STATOR WIRE CLAMP
A02996-09-00 |
$1.50 |
| 15 | STATOR
A01952-09-00 |
$35.00 |
| 16 | FLANGE NUT M12×1.25
A00003-22-04 |
$2.00 |
| 17 | CRUSH WASHER M12.5
A00078-21-01 |
$1.50 |
| 18 | FLYWHEEL
A01953-09-00 |
$39.00 |
STARTER CLUTCH
| # | Name | Retail |
|---|---|---|
| 1 | STARTER CLUTCH REDUCTION GEAR
A01955-09-00 |
$23.00 |
| 2 | SHAFT
A01956-09-00 |
$4.00 |
| 3 | SPACER
A01957-09-00 |
$3.50 |
| 4 | STARTER CLUTCH GEAR
A01958-09-00 |
$14.00 |
| 5 | STARTER CLUTCH BODY
A01959-09-00 |
$33.00 |
| 6 | SPRING
A01960-09-00 |
$2.00 |
| 7 | SPRING HOUSING
A01961-09-00 |
$2.00 |
| 8 | COVER STARTER CLUTCH
A01962-09-00 |
$18.00 |
| 9 | NEEDLE BEARING 25×21×17.5
A00106-28-00 |
$14.00 |
| 10 | ROLLER 10×10
A01963-09-00 |
$3.50 |
| 11 | SPRING SEAT
A01964-09-00 |
$2.50 |
| 12 | STARTER CLUTCH ASSY
A01965-09-00 |
$51.00 |
| 13 | ALLEN BOLT M8X20
A00251-19-02 |
$1.50 |
STARTER MOTOR
| # | Name | Retail |
|---|---|---|
| 1 | STARTER MOTOR ASSY
A01966-09-00 |
$69.00 |
| 2 | CASE FLANGE BOLT M6X25
A00421-19-08 |
$1.50 |
CRANKCASE
| # | Name | Retail |
|---|---|---|
| 1 | RIGHT CRANKCASE HALF
A01967-09-00 |
$96.00 |
| 2 | MAIN BEARING RETAINER
A02990-09-00 |
$1.50 |
| 3 | FLANGE BOLT M6X16
A00002-19-01 |
$1.50 |
| 4 | LEFT CRANKCASE HALF
A01968-09-00 |
$112.00 |
| 5 | DOWEL PIN M10×14
A00002-23-00 |
$1.50 |
| 6 | OIL DRAIN PLUG WASHER
A01971-09-00 |
$1.50 |
| 7 | MAGNETIC DRAIN PLUG M12X14
A01972-09-00 |
$2.50 |
| 8 | CYLINDER STUD B
A00254-19-04 |
$8.00 |
| 9 | CYLINDER STUD A
A00253-19-04 |
$8.00 |
| 10 | CASE FLANGE BOLT M6X55
A00440-19-08 |
$1.50 |
| 11 | CASE FLANGE BOLT M6X60
A00429-19-08 |
$2.00 |
| 12 | CRANKCASE VENT HOSE
A01970-09-00 |
$11.00 |
CRANKSHAFT & PISTON
| # | Name | Retail |
|---|---|---|
| 1 | PISTON PIN CIRCLIP
A01980-09-00 |
$2.00 |
| 2 | PISTON
A01978-09-00 |
$27.00 |
| 3 | CRANKSHAFT ASSY
A01973-09-00 |
$112.00 |
| 4 | PISTON RING SET
A01974-09-00 |
$30.00 |
| 5 | PISTON PIN
A01979-09-00 |
$6.00 |
TRANSMISSION
| # | Name | Retail |
|---|---|---|
| 1 | MAIN SHAFT
A00295-17-00 |
$23.00 |
| 2 | COUNTERSHAFT
A00213-17-00 |
$23.00 |
| 3 | COUNTERSHAFT 1ST GEAR
A00260-17-00 |
$18.00 |
| 4 | SLEEVE
A00259-17-00 |
$2.50 |
| 5 | MAIN SHAFT 2ND GEAR
A00240-17-00 |
$14.00 |
| 6 | COUNTERSHAFT 2ND GEAR
A00222-17-00 |
$14.00 |
| 7 | MAIN SHAFT 3RD GEAR
A00223-17-00 |
$13.00 |
| 8 | COUNTERSHAFT 4TH GEAR
A00224-17-00 |
$13.00 |
| 9 | MAIN SHAFT 4TH GEAR
A00225-17-00 |
$14.00 |
| 10 | COUNTERSHAFT 3RD GEAR
A00226-17-00 |
$14.00 |
| 11 | COUNTERSHAFT SPROCKET 428H-15T
A00349-07-00 |
$18.00 |
| 12 | SPROCKET RETAINER PLATE
A00228-17-00 |
$6.00 |
| 13 | SLEEVE
A00229-17-00 |
$3.50 |
| 14 | SPRING
A00230-17-00 |
$2.00 |
| 15 | GEARSHIFT CAM LOCKING PLATE
A00231-17-00 |
$4.00 |
| 16 | WASHER I
A00308-17-00 |
$1.50 |
| 17 | WASHER II
A00329-17-00 |
$1.50 |
| 18 | SPLINED WASHER
A00233-17-00 |
$1.50 |
| 19 | SPLINED WASHER
A00234-17-00 |
$1.50 |
| 20 | WASHER III
A00235-17-00 |
$1.50 |
| 21 | SNAP RING
A00103-24-04 |
$1.50 |
| 22 | SNAP RING
A00104-24-04 |
$1.50 |
| 23 | COUNTERSHAFT OIL SEAL 17x30x6
A00233-26-00 |
$4.00 |
| 24 | BOLT M6X8
A00031-19-03 |
$1.50 |
| 25 | BEARING 6001
A00003-28-00 |
$8.00 |
| 26 | BEARING 6201
A00005-28-00 |
$8.00 |
| 27 | BEARING 6203
A00008-28-00 |
$27.00 |
| 28 | MAIN SHAFT ASSY
A00236-17-00 |
$59.00 |
| 29 | COUNTERSHAFT ASSY
A00237-17-00 |
$59.00 |
GEARSHIFT DRUM
| # | Name | Retail |
|---|---|---|
| 1 | GEARSHIFT SPINDLE ASSY
A02007-09-00 |
$39.00 |
| 2 | LOCK SCREW
A02005-09-00 |
$2.50 |
| 3 | GEARSHIFT DRUM + FORKS ASSY
A02001-09-00 |
$59.00 |
| 4 | CASE FLANGE BOLT M6X16
A00418-19-08 |
$1.50 |
| 5 | SHIFT POSITION SENSOR
A00519-08-00 |
$13.00 |
| 6 | O-RING RAZKULL
A00157-27-00 |
$2.50 |
| 7 | WASHER RAZKULL
A00282-21-00 |
$1.50 |
| 8 | SPRING
A01998-09-00 |
$3.50 |
| 9 | GEAR SETTING ARM
A01997-09-00 |
$4.00 |
| 10 | BOLT M6X20
A00016-19-03 |
$1.50 |
| 11 | OIL SEAL 11.6X24X10
A00002-26-00 |
$4.00 |
| 12 | GEARSHIFT WHEEL
A01993-09-00 |
$8.00 |
| 14 | PLATE
A01996-09-00 |
$7.00 |
| 15 | GEAR SHIFT INDICATOR
A01994-09-00 |
$2.50 |
| 16 | GEARSHIFT DRUM
A01992-09-00 |
$23.00 |
| 17 | PIN
A02000-09-00 |
$1.50 |
| 18 | SPRING
A01999-09-00 |
$1.50 |
| 19 | SHIFT FORK SHAFT
A01991-09-00 |
$8.00 |
| 20 | SHIFT FORK II
A01990-09-00 |
$13.00 |
| 21 | SHIFT FORK I
A01989-09-00 |
$13.00 |
| 22 | GEARSHIFT LEVER NO BOLT
A00463-05-00 |
$24.00 |
| 23 | BOLT M6X16
A00001-19-03 |
$1.50 |
| 24 | GEARSHIFT LEVER ASSY WITH BOLT
A00417-05-00 |
$24.00 |
KICKSTARTER / KICKSTARTER SHAFT
| # | Name | Retail |
|---|---|---|
| 1 | KICKSTARTER SHAFT
A02008-09-00 |
$14.00 |
| 2 | RATCHET WHEEL
A02009-09-00 |
$11.00 |
| 3 | PINION
A02010-09-00 |
$18.00 |
| 4 | WASHER M20
A00079-21-01 |
$1.50 |
| 5 | SPRING SEAT
A02011-09-00 |
$2.50 |
| 6 | RETURN SPRING
A02012-09-00 |
$2.50 |
| 7 | COLLAR M20
A02013-09-00 |
$1.50 |
| 8 | SLEEVE
A02014-09-00 |
$2.50 |
| 9 | SLEEVE
A02015-09-00 |
$2.50 |
| 10 | FRICTION SPRING
A02016-09-00 |
$2.00 |
| 11 | KICKSTART SHAFT ASSY
A02705-09-00 |
$45.00 |
| 13 | KICKSTARTER RUBBER DAMPER
A02019-09-00 |
$4.00 |
| 14 | ALLEN BOLT M8X25
A00249-19-02 |
$1.50 |
| 15 | KICKSTARTER LEVER ASSY
A02020-09-00 |
$21.00 |
ELECTRICAL COMPONENTS
| # | Name | Retail |
|---|---|---|
| 1 | REGULATOR / RECTIFIER
A00510-08-00 |
$30.00 |
| 2 | IGNITION COIL
A00512-08-00 |
$33.00 |
| 3 | CDI W/ HOLDER
A00508-08-00 |
$29.00 |
| 4 | STARTER RELAY ASSY
A00516-08-00 |
$18.00 |
| 5 | IGNITION SYSTEM ASSY
A00520-08-00 |
$77.00 |
