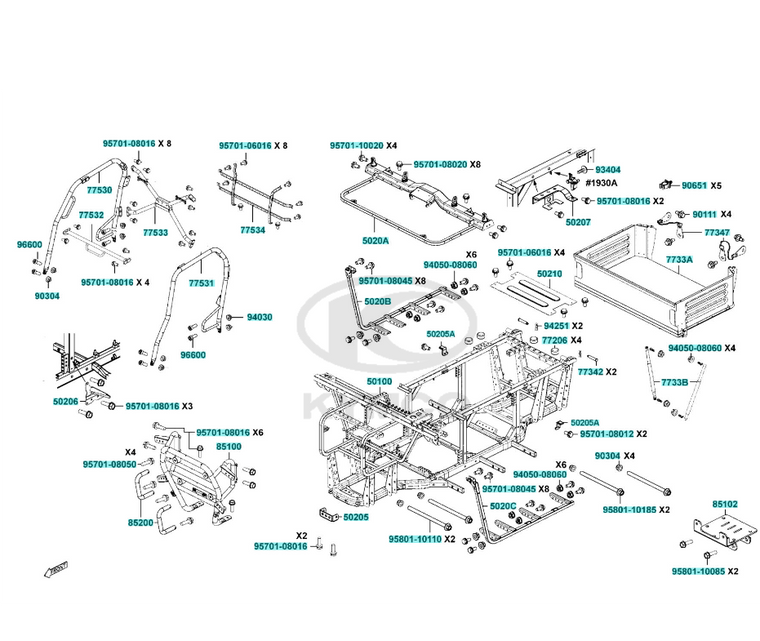

KYMCO UXV 450i Frame | Cargo Box Assembly
KYMCOSPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU
(No reviews yet)
Write a Review
KYMCO
KYMCO UXV 450i Frame | Cargo Box Assembly
| Parts No./Description | Part Q'ty | Price |
| 50100-AEE9-M00 BODY COMP FRAME |
1 | USD $ 1843.13 |
| 50205-ALE8-E00 STAY DIFFERENTIAL GEAR |
1 | USD $ 16.04 |
| 50205-LEE8-E00 STAY LATCH |
2 | USD $ 6.63 |
| 50206-ALE8-E00 BRKT SHIFTER |
1 | USD $ 25.81 |
| 50207-AFB9-M06 BRKT A/C |
1 | USD $ 10.76 |
| 5020A-AFB9-M07 CROSS PIPE COMP. SEAT |
1 | USD $ 49.75 |
| 5020B-ALE8-E00 PIPE COMP R SIDE FRAME |
1 | USD $ 115.81 |
| 5020C-ALE8-E00 PIPE COMP L SIDE FRAME |
1 | USD $ 111.80 |
| 50210-ALE8-E00 BRKT PROTECTOR |
1 | USD $ 48.79 |
| 77206-LBA7-900 RUBBER SEAT CUSH |
4 | USD $ 2.80 |
| 7733A-ALE8-E00 CARGO BED ASSY |
1 | USD $ 597.15 |
| 7733B-ALE8-E00 GAS DAMPER |
2 | USD $ 93.29 |
| 77342-ALE8-E00 PIN CARGO BED |
2 | USD $ 14.50 |
| 77347-LEE8-E00 ROPE CARGO BED |
2 | USD $ 19.55 |
| 77530-ALE8-E00-MAS R PIPE COMP ROOF |
1 | USD $ 243.92 |
| 77531-ALE8-E00 L PIPE COMP ROOF |
1 | USD $ 239.02 |
| 77532-ALE8-E00-MAS CROSS PIPE COMP. ROOF |
1 | USD $ 81.24 |
| 77533-ALE8-E00-MAS REAR PIPE COMP ROOF |
1 | USD $ 129.91 |
| 77534-ALE8-E00 CROSS BRKT. SEAT |
1 | USD $ 104.82 |
| 85100-ALE8-M00 PIPE FR BUMPER |
1 | USD $ 78.16 |
| 85102-ALE8-E01 PLATE WINCH |
1 | USD $ 22.43 |
| 85200-ALE8-E00 HOLDER FR BUMPER |
2 | USD $ 48.10 |
| 90111-1G87-001 BOLT FLANGE 6MM |
4 | USD $ 3.77 |
| 90304-GLW0-90A NUT U FLANGE 10MM |
8 | USD $ 3.49 |
| 90651-ALH3-700 CLIP WIREE HARN |
5 | USD $ 0.35 |
| 93404-06016-06 BOLT WASHER 6*16 |
1 | USD $ 1.83 |
| 94030-10080 NUT HEX 10MM |
4 | USD $ 4.50 |
| 94050-08060 NUT FLANGE 8MM |
16 | USD $ 1.97 |
| 94251-14000 PIN LOCK 14MM |
2 | USD $ 2.20 |
| 95701-06016-06 BOLT FLANGE 6*16 |
12 | USD $ 0.61 |
| 95701-08012-06 BOLT FLANGE 8*12 |
2 | USD $ 2.32 |
| 95701-08016-06 BOLT FLANGE 8*16 |
25 | USD $ 1.68 |
| 95701-08020-06 BOLT FLANGE 8*20 |
2 | USD $ 1.41 |
| 95701-08045-06 BOLT FLANGE 8*45 |
16 | USD $ 4.76 |
| 95701-08050-06 BOLT FLANGE 8*50 |
4 | USD $ 4.38 |
| 95701-10020-06 BOLT FLANGE 10*20 |
4 | USD $ 2.32 |
| 95801-10085-06 BOLT FLANGE 10*85 |
2 | USD $ 7.28 |
| 95801-10110-06 BOLT FLANGE 10*110 |
2 | USD $ 6.09 |
| 95801-10185-06 BOLT FLANGE 10X185 |
2 | USD $ 12.18 |
| 96600-10028-06 SOCKET BOLT 10X28 |
8 | USD $ 2.32 |
