KYMCO UXV 450i Front Drive Shaft
KYMCOSPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU
(No reviews yet)
Write a Review
KYMCO

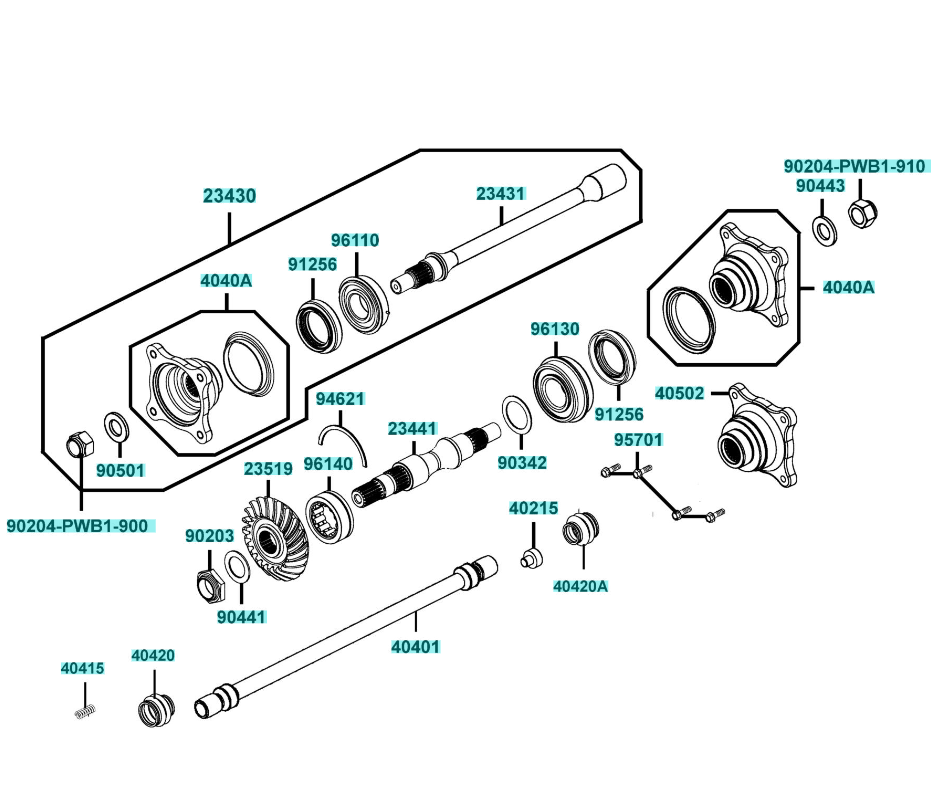

KYMCO UXV 450i Front Drive Shaft
| Parts No./Description | Part Q'ty | Price |
| 23430-PWB1-900 SHAFT ASSY FINAL DRIVEN FR |
1 | USD $ 88.55 |
| 23431-PWB1-900 SHAFT FINAL DRIVEN FRONT |
1 | USD $ 65.51 |
| 23441-ALE8-E00 SHAFT FINAL DRIVEN REAR |
1 | USD $ 87.90 |
| 23519-ALE8-E00 BEVEL GEAR DRIVE |
1 | USD $ 138.48 |
| 40215-PWB1-900 BUMPER DRIVESHAFT |
1 | USD $ 1.97 |
| 40401-ALE8-E00 SHAFT PROPELLER-FRONT |
1 | USD $ 143.74 |
| 4040A-PWB1-900 COUPLING REAR OUTPUT SHAFT |
2 | USD $ 53.16 |
| 40415-LDB5-E00 SPRING FR PROPELLER SHAFT |
1 | USD $ 1.68 |
| 40420-LFE9-E00 BOOT REAR PROPELLER SHAFT |
1 | USD $ 16.56 |
| 40420-ZWA2-E00 BOOT FRONT PROPELLER SHAFT |
1 | USD $ 7.37 |
| 40502-PRB2-900 FLANGE OUTPUT |
1 | USD $ 38.21 |
| 90203-PWB1-900 NUT DRIVEN B GEAR M22X1.5 |
1 | USD $ 12.51 |
| 90204-PWB1-900 NUT HEX SHOULDER (M16X1.5) |
1 | USD $ 12.18 |
| 90204-PWB1-910 NUT HEX SHOULDER (M16X1.5) |
1 | USD $ 15.41 |
| 90342-PWB1-900 SHIM DRIVEN BEVEL GEAR L (1.125~1.175) |
1 | USD $ 4.50 |
| 90441-LBA2-E00 WASHER 22*34*2.5 |
1 | USD $ 5.60 |
| 90443-KKE5-E00 WASHER 16mm |
1 | USD $ 5.60 |
| 90501-KNBN-901 WASHER 16MM |
1 | USD $ 2.10 |
| 91256-PWB1-900 OIL SEAL 34X52X9 |
2 | USD $ 1.29 |
| 94621-PWB1-900 RING DRIVEN BEARING |
1 | USD $ 3.36 |
| 95701-08020-06 BOLT FLANGE 8*20 |
4 | USD $ 1.41 |
| 96110-PWB1-900 BRG BALL SNAP 25X52X15 |
1 | USD $ 49.23 |
| 96130-PWB1-900 BEARING BALL D/R 25X52X20.6 |
1 | USD $ 80.72 |
| 96140-PWB1-900 BRG ROLLER 30X50X17 |
1 | USD $ 62.54 |
