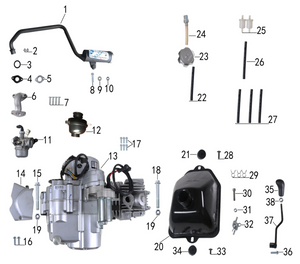

Mudhawk 10 (Power and Fuel Supply Parts)


Ref. No.

Part #

Description
01 116308 Muffler Assembly ATA125-K
02 600791 Hex Locknut; M6
03 102419 Muffler Gasket; OD： 31.5mm ID: 23.5mm
04 106945 Intake Manifold Gasket
05 101342-1 Intake Manifold Rubber Pad ATA125-K
06 103050 Intake Manifold; Metal Color
07 105712 Hex Nut; M8×20
08 105223 Hex Flange Bolt; M8x35
09 106932 Flat Washer; φ8x20x1.5
10 105276 Locknut; M8
11 101342 Electric Choke Carburetor ATA125-K; PZ22
12 115427 Air Filter
13 603975 125cc 3 Speed Electric Start Engine ATA135-D5; Silver
14 110975 Engine Sprocket Covers
15 116864 Hex Flange Bolt; M8×110
16 105712 Hex Nut; M8×20
17 105194 Hex Bolt; M8x16
18 116865 Hex Bolt; M8×120
19 105276 Locknut; M8
20 102297 Fuel Tank-ATV; @50
21 600709 Pedals Shockproof Rubber Parts ATA125-K
22 100269 Fuel Line; φ4.5×φ8.5×100
23 101678 Fuel Tank Cap
24 600566 Fuel Tank Cap Vent Tube
25 600801 Fuel Filter Universal
26 100271 Fuel Line; φ4.5×φ8.5×200
27 100273 Fuel Line; φ4.5×φ8.5×80
28 110552 Cross Large Flat Head bolt; M6×30
29 101449 Tube Fasten Clip; Φ8
30 600672 Hex Socket Bolt; M6×16
31 105272 Locknut; M6
32 102241 Fuel  Valve / Petcock/Fuel Pump
33 600680 Cross Large Flat Head bolt; M6x20
34 600710 Fuel Tank Panel Washer
35 101088 Gear Shifter Handle for ATA 135 DU and more
36 105141 Hex Flange Bolt; M6x20
37 602449 Gear Shifter Rod ATA110-C
38 105487 Hex Nut; M10×1.5

****PART NUMBERS HIGHLIGHTED ABOVE ARE LINKS TO CORRECT PART BEING USED SOMEWHERE ELSE****
