Mudhawk 10 (Rear Suspension Parts)




Ref. No.

Part #

Description
01 101591 Rear Sprocket; 428-45
02 603886 Chain Cover ATA125-K
03 116307 #428 Drive Chain ATA125-K; 428-94Chain
04 105195 Hex Flange Bolt; M8x1.25×16
05 600804 Rear Axle Washer; φ27
06 105187 Hex Flange Bolt; M8x14
07 104862 Hex Nut; M27×1.5
08 116302 Rear Disk Brake Rotor ATA125-K; φ190
09 100866 Brake Disc/Sprocket Hub for ATA 110 B/B1  and more

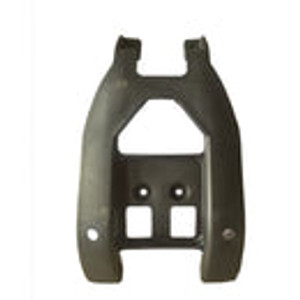

10 603888 Plastic Skid Plate ATA125-K; PP
11 105340 Cotter Pin; φ3×40
12 105334 Castle Nut; M20×1.5
13 104876 Spring Washer; M20
14 600583 Flat Washer; φ20*φ48*4
15 100870 Rear Rim Hub fits on all 8” & 10 ” tire for ATA 150 G and more
16 109369 Hub Bolt; M10×30
17 105180 Hex Flange Bolt; M8x12
18 116301 Rear Axle ATA125-K
19 109241 Rim- Rear; 8ΓÇ¥
20 108238 Valve Stems for All ATVs and Go Karts
21 105006 Hex Flange Bolt; M10x1.25×40
22 118092 Front Rim Center Cap; 8″
23 101286 8ΓÇ¥ Tire; 18*9.5-8
24 116304 Front Shock Assembly ATA125-K; 315mm
25 105254 Hex Locknut; M10×1.25
26 112921 Swing Arm Spacer Powder Metallurgy; φ30×φ26×φ18
27 112924 Swing Arm Sealing Cover; φ39×10
28 105277 Hex Locknut; M8
29 105926 Chain Adjuster; M8×40
30 102817 Ball Bearing; 6006
31 603849 ATV Swing Arm ATA125-K
32 600540 Rear Axle Carrier Spacer ATA125-D
33 109837 Rear Axle Carrier for Cheetah and more
34 112928 Chain Tensioner Spring ATA125-K
35 112927

Chain Tension Wheel
36 105234 Hex Flange Bolt; M8x55
37 104984 Hex Flange Bolt; M10x1.5×25
38 105259 Locknut; M12×1.25
39 105077 Hex Flange Bolt; M12x1.25×250
40 112922 Swing Arm Spacer ATA125-K; φ18×φ12×218.5
41 108287 Grease Fitting; M6x9
42 112923 Swing Arm Wear-Resisting Rubber Sleeve; φ36×φ30×φ38

****PART NUMBERS HIGHLIGHTED ABOVE ARE LINKS TO CORRECT PART BEING USED SOMEWHERE ELSE****
