| 2015-2017 SR110 Manual / SR110Semi / SR110DX | ||||||
 |
||||||

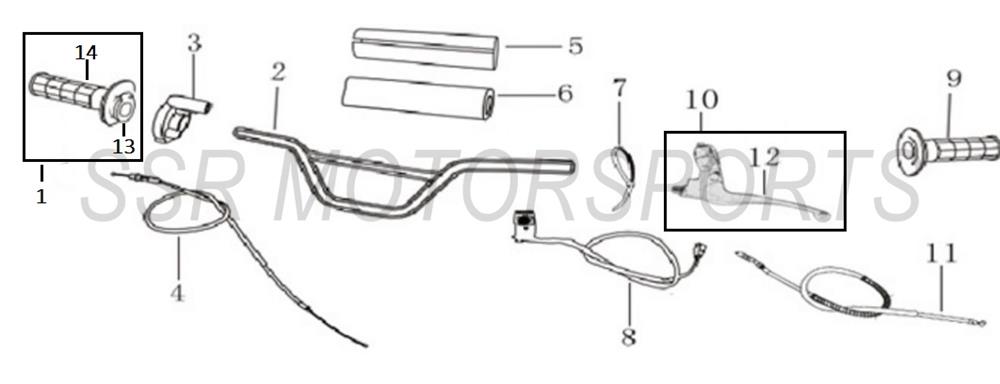

| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00397-05-00 | THROTTLE GRIP W/ TUBE | 1 | Pc. | $8.00 | |
| 2 | A00310-05-00 | HANDLEBAR | SR110/125 | 1 | Pc. | $32.00 |
| 2 | A00520-05-00 | HANDLEBAR | SR110DX ONLY | 1 | Pc. | $42.00 |
| 3 | A00311-05-00 | THROTTLE HOUSING | 1 | Pc. | $18.00 | |
| 4 | A00345-05-00 | THROTTLE CABLE | 780 119 | 1 | Pc. | $18.00 |
| 4 | A00378-05-00 | THROTTLE CABLE | 830 119 SR110DX ONLY | 1 | Pc. | $18.00 |
| 5 | A00401-05-00 | HANDLEBAR PAD COVER (SSR) | 220X172 | 1 | Pc. | $8.00 |
| 6 | A00402-05-00 | HANDLEBAR PAD | 1 | Pc. | $8.00 | |
| 7 | A00001-24-01 | ZIP-TIE | 5X200MM/380 | 2 | Pc. | $1.50 |
| 8 | A00473-08-00 | KILL SWITCH | 650MM | 1 | Pc. | $11.00 |
| 9 | A00347-05-00 | LEFT HANDLEBAR GRIP | 1 | Pc. | $7.00 | |
| 10 | A00404-05-00 | CLUTCH PERCH W/ LEVER ASSY | 1 | Assy. | $26.00 | |
| 11 | A00508-05-00 | CLUTCH CABLE | 900 70 | 1 | Pc. | $18.00 |
| 12 | A00503-05-00 | CLUTCH LEVER | 1 | Pc. | $18.00 | |
| 13 | A00510-05-00 | THROTTLE TUBE | 1 | Pc. | $4.00 | |
| 14 | A00511-05-00 | RIGHT HANDLEBAR GRIP (ONLY) | 1 | Pc. | $7.00 | |
| FRONT BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00524-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $98.00 | |
| 2 | A00587-04-00 | FRONT BRAKE MASTER CYLINDER | 1 | Assy. | $63.00 | |
| 3 | A00526-04-00 | FRONT BRAKE CALIPER BRACKET | 43H16/W451594 | 1 | Pc. | $18.00 |
| 4 | A00467-04-00 | FRONT BRAKE PAD SET | 1 | Set | $18.00 | |
| 5 | A00041-19-01 | FLANGE BOLT | GB5789-86 M8X30 S12 | 2 | Pcs. | $1.50 |
| 6 | A00318-05-00 | FRONT BRAKE LEVER | 1 | Pc. | $18.00 | |
| 7 | A00589-04-00 | FRONT BRAKE HOSE | 1 | Pc. | $18.00 | |
| 8 | A00588-04-00 | FRONT BRAKE CALIPER | 1 | Assy. | $76.00 | |
| 9 | A00675-04-00 | BANJO BOLT | M8 | 1 | Pc. | $2.00 |
| 10 | A00676-04-00 | SEALING WASHER | M8 | 3 | Pcs. | $1.50 |
| 11 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 12 | A00481-19-07 | LEVER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 13 | A00005-22-04 | LOCKNUT | M6 | 1 | Pc. | $1.50 |

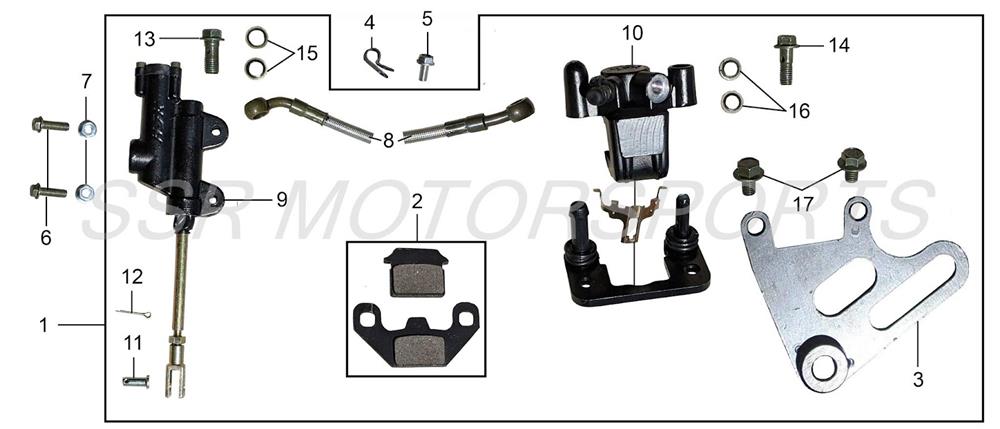

| REAR BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00529-04-00 | REAR BRAKE ASSY | L=470 | 1 | Assy. | $103.00 |
| 2 | A00469-04-00 | REAR BRAKE PAD SET | 1 | Set | $18.00 | |
| 3 | A00470-04-00 | REAR BRAKE CALIPER CARRIER | 190 12 | 1 | Pc. | $23.00 |
| 4 | A00523-04-00 | REAR BRAKE HOSE RETAINER | 1 | Pc. | $2.00 | |
| 5 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 6 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00593-04-00 | REAR BRAKE HOSE | L=470 | 1 | Pc. | $21.00 |
| 9 | A00583-04-00 | REAR BRAKE MASTER CYLINDER | 1 | Assy. | $76.00 | |
| 10 | A00584-04-00 | REAR BRAKE CALIPER | 1 | Assy. | $85.00 | |
| 11 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 12 | A00007-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 13 | A00688-04-00 | BANJO BOLT | M10 | 1 | Pc. | $2.00 |
| 14 | A00675-04-00 | BANJO BOLT | M8 | 1 | Pc. | $2.00 |
| 15 | A00549-04-00 | SEALING WASHER | M10 | 2 | Pcs. | $1.50 |
| 16 | A00676-04-00 | SEALING WASHER | M8 | 2 | Pcs. | $1.50 |
| 17 | A00089-19-X1 | FLANGE BOLT | M8x12 | 2 | Pcs. | $1.50 |
| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00265-16-00 | RIGHT FRONT FORK ASSY | 33MM DIA 630MM L | 1 | Assy. | $98.00 |
| 2 | A00727-16-00 | LEFT FRONT FORK ASSY | 33MM DIA 630MM L | 1 | Assy. | $98.00 |
| 3 | A00472-04-00 | BRAKE HOSE CLAMP | 33 | 1 | Pc. | $2.50 |
| 4 | A00002-20-01 | SCREW | GB823-88 M5X16 | 1 | Pc. | $1.50 |
| 5 | A00085-26-00 | FORK SEAL | 33X46X10.8 | 2 | Pcs. | $7.00 |
| 6 | A00086-26-00 | DUST SEAL | 33X46X13 | 2 | Pcs. | $7.00 |
| 7 | A00005-22-03 | FLANGE NUT | GB6177-86 M5 | 1 | Pc. | $1.50 |
| 8 | A00393-19-01 | FORK CROWN BOLT | M10X24 | 2 | Pcs. | $3.50 |
| UPPER AND LOWER TRIPLE CLAMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00157-15-00 | LOWER TRIPLE CLAMP W/ STEERING STEM | 25.1X201 | 1 | Pc. | $72.00 |
| 2 | A00158-15-00 | UPPER TRIPLE CLAMP | 33 | 1 | Pc. | $59.00 |
| 4 | A00214-15-00 | HANDLEBAR RISER ASSY | 1 | Assy. | $30.00 | |
| 4 | A00210-15-00 | HANDLEBAR RISER ASSY | SR110DX ONLY | 1 | Assy. | $30.00 |
| 4-1 | A00215-15-00 | UPPER HANDLEBAR CLAMP | 2 | Pcs. | $8.00 | |
| 4-2 | A00216-15-00 | LOWER HANDLEBAR CLAMP | 52X21XH25 | 2 | Pcs. | $10.00 |
| 4-2 | A00165-15-00 | LOWER HANDLEBAR CLAMP | SR110DX ONLY | 2 | Pcs. | $10.00 |
| 5 | A00166-15-00 | STEERING STEM NUT | M22 | 1 | Pc. | $6.00 |
| 6 | A00170-15-00 | STEERING STEM WASHER | 23X36X2 | 1 | Pc. | $2.50 |
| 7 | A00219-15-00 | STEERING STEM ADJUSTER NUT | CRF | 1 | Pc. | $4.00 |
| 8 | A00167-15-00 | FLANGE NUT | GB6187-86 M8 | 4 | Pcs. | $1.50 |
| 9 | A00168-15-00 | STEERING STEM BEARING SET | 1 | Set | $30.00 | |
| 10 | A00251-19-02 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 12 | A00052-19-03 | ALLEN BOLT | M8X75 | 4 | Pcs. | $2.00 |
| 12 | A00033-19-03 | ALLEN BOLT | M8X120 SR110DX ONLY | 4 | Pcs. | $3.50 |
| 13 | A00026-19-03 | ALLEN BOLT | M8X12 | 2 | Pcs. | $1.50 |
| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00525-18-00 | FRONT TIRE | NEW STYLE 2.75-12 | 1 | Pc. | $32.00 |
| 2 | A00356-18-00 | FRONT WHEEL ASSY | 1.6-12/SSR | 1 | Assy. | $92.00 |
| 2 | A00357-18-00 | FRONT WHEEL ASSY (PRO) | SR110DX | 1 | Assy. | $115.00 |
| 3 | A00473-04-00 | FRONT BRAKE ROTOR | 190 16.5XH1.5 | 1 | Pc. | $27.00 |
| 3A | A00682-04-00 | FRONT BRAKE ROTOR | FROM VIN ...HC101340+ | 1 | Pc. | $27.00 |
| 4 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 5 | A00277-18-00 | FRONT LEFT WHEEL SPACER | 12X20XH26 | 1 | Pc. | $6.00 |
| 6 | A00278-18-00 | FRONT WHEEL AXLE | 12X205XM12X1.25MM | 1 | Pc. | $11.00 |
| 7 | A00279-18-00 | FRONT RIGHT WHEEL SPACER | 12X20XH17 | 1 | Pc. | $6.00 |
| 8 | A00001-22-03 | FLANGE NUT | GB6187-86 M12X1.25 | 1 | Pc. | $2.00 |
| 9 | A00358-18-00 | INNERTUBE | 2.75-12 | 1 | Pc. | $16.00 |
| 10 | A00507-18-00 | FRONT SPOKE SET | 1 | Set | $21.00 | |
| 11 | A00075-28-00 | WHEEL BEARING | 6301RS | 2 | Pcs. | $6.00 |
| 14 | A00399-18-00 | FRONT WHEEL HUB | 1 | Pc. | $72.00 | |
| 16 | A00292-18-00 | RIM STRIP | 12" | 1 | Pc. | $6.00 |
| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00526-18-00 | REAR TIRE | NEW STYLE 3.00-10 | 1 | Pc. | $32.00 |
| 2 | A00360-18-00 | REAR WHEEL ASSY | 1.85-10/SSR | 1 | Assy. | $92.00 |
| 2 | A00361-18-00 | REAR WHEEL ASSY (PRO) | SR110DX | 1 | Assy. | $115.00 |
| 3 | A00474-04-00 | REAR BRAKE ROTOR | 190 16.5XH1.5 | 1 | Pc. | $27.00 |
| 3A | A00682-04-00 | REAR BRAKE ROTOR | FROM VIN ...HC101340+ | 1 | Pc. | $27.00 |
| 4 | A00310-07-00 | REAR SPROCKET | 420/37 76 | 1 | Pc. | $21.00 |
| 5 | A00283-18-00 | REAR RIGHT WHEEL SPACER | 12X20XH27 | 1 | Pc. | $6.00 |
| 6 | A00284-18-00 | REAR AXLE | 12X210XM12X1.25MM | 1 | Pc. | $11.00 |
| 7 | A00285-18-00 | REAR LEFT WHEEL SPACER | X12X20XH33 | 1 | Pc. | $6.00 |
| 8 | A00007-19-01 | FLANGE BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 9 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 10 | A00002-22-01 | NUT | 94001-08000-0S M8 | 2 | Pcs. | $1.50 |
| 11 | A00286-18-00 | BOLT | M8X40 S12 | 2 | Pcs. | $2.00 |
| 12 | A00464-18-00 | CHAIN ADJUSTER PLATE | L34X19X36X3X13 | 2 | Pcs. | $6.00 |
| 13 | A00001-22-03 | FLANGE NUT | M12X1.25 | 1 | Pc. | $2.00 |
| 14 | A00362-18-00 | INNERTUBE | 3.00-10 | 1 | Pc. | $16.00 |
| 16 | A00461-18-00 | REAR SPOKE SET | 32 PCS/SET | 1 | Set | $21.00 |
| 17 | A00334-18-00 | RIM STRIP | 10" | 1 | Pc. | $6.00 |
| 18 | A00075-28-00 | WHEEL BEARING | 6301RS | 2 | Pcs. | $6.00 |
| 20 | A00404-08-00 | REAR WHEEL HUB | 1 | Pc. | $72.00 | |

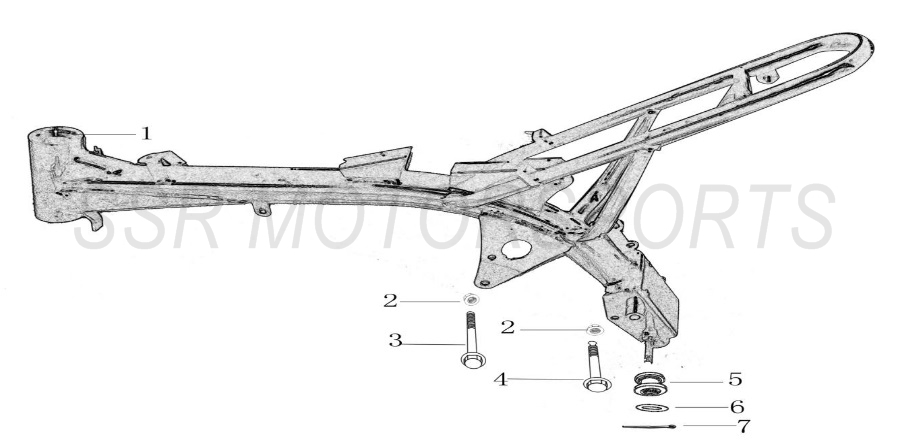

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00423-05-00 | FRAME (2015) | 41X10 *OVERSIZE* | 1 | Pc. | $164.00 |
| 2 | A00100-22-34 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 3 | A00046-19-01 | FLANGE BOLT | GB5787-86 M8X110 | 1 | Pc. | $2.50 |
| 4 | A00047-19-01 | FLANGE BOLT | M8X110 (NOTCHED) | 1 | Pc. | $2.50 |
| 5 | A00367-11-00 | CHAIN ROLLER | 1 | Pc. | $8.00 | |
| 6 | A00014-21-01 | WASHER | GB97.1-85 10X20X2 | 1 | Pc. | $1.50 |
| 7 | A00019-28-01 | COTTER PIN | GB91-86 2.5X24 | 1 | Pc. | $1.50 |
| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00424-11-00 | SWINGARM | 1 | Pc. | $85.00 | |
| 2 | A00290-07-00 | DRIVE CHAIN | 420-92L | 1 | Pc. | $39.00 |
| 3 | A00369-11-00 | SWINGARM AXLE | 10X190XM10X1.25MM | 1 | Pc. | $10.00 |
| 4 | A00011-28-00 | BEARING | 6200Z | 2 | Pcs. | $8.00 |
| 5 | A00373-11-00 | SLEEVE | 10.2X22.5XH17 | 2 | Pcs. | $6.00 |
| 6 | A00004-22-34 | FLANGE LOCKNUT | GB6187-86 M10X1.25 | 1 | Pc. | $2.00 |
| 7 | A00006-20-12 | CS SCREW | M6X12 | 1 | Pc. | $1.50 |
| 8 | A00370-11-00 | UPPER CHAIN SLIDER | WHITE TEFLON | 1 | Pc. | $10.00 |
| 9 | A00371-11-00 | LOWER CHAIN GUIDE | 1 | Pc. | $21.00 | |
| 10 | A00251-19-02 | ALLEN BOLT | GB70-85 M8X20 | 2 | Pcs. | $1.50 |
| 11 | A00013-21-01 | WASHER | 8X16X1.5MM | 2 | Pcs. | $1.50 |
| 12 | A00001-21-02 | LOCK WASHER | GB93-87 8X13X2 | 2 | Pcs. | $1.50 |
| 13 | A00287-07-00 | CLIP LINK | 420 | 1 | Pc. | $6.00 |
| 14 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 3 | Pcs. | $1.50 |
| 15 | A00005-22-04 | LOCKNUT | M6 | 3 | Pcs. | $1.50 |
| REAR SHOCK ABSORBER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00267-16-00 | REAR SHOCK ABSORBER | SSR/K-00 L=280 11 | 1 | Pc. | $98.00 |
| 2 | A00004-22-03 | FLANGE NUT | GB6187-86 M10X1.25 | 2 | Pcs. | $1.50 |
| 3 | A00046-19-03 | FLANGE BOLT | GB5787-86 M10X40X1.25 | 2 | Pcs. | $3.50 |
| REAR BRAKE PEDAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00319-05-00 | REAR BRAKE PEDAL | 1 | Pc. | $27.00 | |
| 2 | A00320-05-00 | REAR BRAKE PEDAL RETURN SPRING | 13X2.4XH24X10 | 1 | Pc. | $2.00 |
| 3 | A00015-21-01 | WASHER | 15X30X2.5 | 1 | Pc. | $1.50 |
| 4 | A00019-28-01 | COTTER PIN | 2.5X24 | 1 | Pc. | $1.50 |
| 5 | A00003-19-01 | FLANGE BOLT | M6X25 S10 | 1 | Pc. | $1.50 |
| 6 | A00001-22-01 | NUT | GB6170-86 M6 | 1 | Pc. | $1.50 |

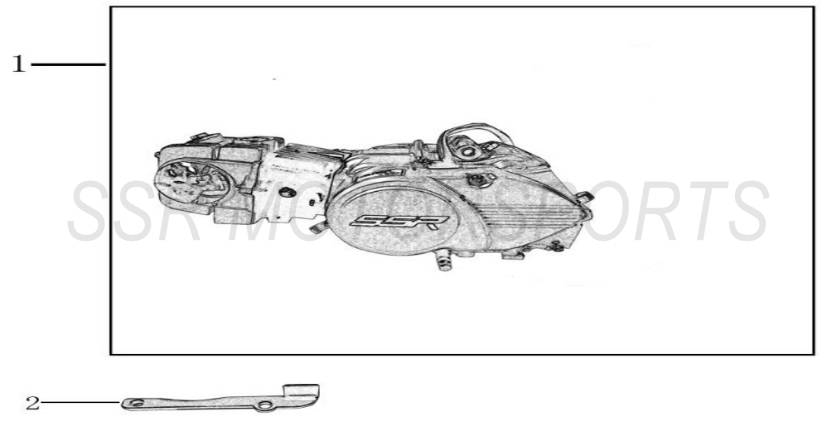

| ENGINE ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01617-09-00 | ENGINE COMPLETE | MANUAL *OVERSIZE* | 1 | Pc. | $269.00 |
| 1 | A01616-09-00 | ENGINE COMPLETE | SEMI *OVERSIZE* | 1 | Pc. | $269.00 |
| 2 | A00323-05-00 | REAR BRAKE PEDAL STOPPER | 1 | Pc. | $10.00 | |
| FOOTPEGS AND SKID PLATE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00372-11-00 | SKID PLATE | STEEL | 1 | Pc. | $42.00 |
| 1 | A00425-11-00 | SKID PLATE | ALUMINUM (SR110DX) | 1 | Pc. | $63.00 |
| 2 | A00418-19-08 | CASE FLANGE BOLT | M6X16 S10 | 2 | Pcs. | $1.50 |
| 3 | A00426-19-08 | CASE FLANGE BOLT | GB5787-86 M8X40 | 2 | Pcs. | $1.50 |
| 4 | A00324-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 5 | A00325-05-00 | FOOTPEG BRACKET | 1 | Pc. | $27.00 | |
| 6 | A00326-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
| 7 | A00507-05-00 | SIDE STAND ASSY | L=265 | 1 | Assy. | $27.00 |
| 8 | A00015-19-01 | FLANGE BOLT | GB5789-86 M8X20 S12 | 4 | Pcs. | $1.50 |
| 9 | A00004-21-01 | WASHER | 4 | Pcs. | $1.50 | |
| 10 | A00336-05-00 | FOOTPEG PIVOT PIN | 2 | Pcs. | $1.50 | |
| 11 | A00505-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 12 | A00506-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 13 | A00019-28-01 | COTTER PIN | 2.5X24 | 2 | Pcs. | $1.50 |
| 14 | A00455-05-00 | SIDE STAND SPRING | 1 | Pc. | $2.50 | |
| 15 | A00456-19-07 | SIDE STAND BOLT | M10X26 | 1 | Pc. | $1.50 |
| CARBURETOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00328-12-00 | CARBURETOR | JK 19 KS | 1 | Pc. | $76.00 |
| 2 | A00237-14-00 | AIR FILTER | 35 | 1 | Pc. | $18.00 |
| 2 | A00302-14-00 | AIR FILTER ELEMENT - BUTTON | 35 | 1 | Pc. | $23.00 |
| 3 | A00051-01-00 | CARBURETOR JET KIT | AVAILABLE ACCESSORY | 1 | Kit | $33.00 |
| 4 | A00150-27-00 | O-RING | 1 | Pc. | $2.50 | |
| 5 | A00416-12-00 | FLOAT BOWL O-RING | 1 | Pc. | $2.50 | |
| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00081-10-00 | MUFFLER ASSY | BLACK | 1 | Assy. | $76.00 |
| 2 | A00049-19-01 | FLANGE BOLT | GB5789-86 M8X35 S12 | 1 | Pc. | $2.00 |
| 3 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 4 | A00001-22-01 | NUT | GB923 M6 | 2 | Pcs. | $1.50 |
| 5 | A00115-13-00 | MUFFLER GASKET | 1 | Pc. | $6.00 | |
| 6 | A00094-10-00 | MUFFLER GUARD | 1 | Pc. | $14.00 | |
| 8 | A00090-20-01 | MED PANHEAD PHILLIPS BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 9 | A00002-21-02 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 10 | A00118-10-00 | RUBBER DAMPER | 1 | Pc. | $1.50 | |
| 11 | A00082-01-00 | PRO CIRCUIT T-4 EXHAUST SYSTEM ASSY | 1 | Assy. | $488.00 | |
| MUFFLER (SR110DX) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00076-10-00 | MUFFLER ASSY | CHROME | 1 | Assy. | $103.00 |
| 2 | A00049-19-01 | FLANGE BOLT | GB5789-86 M8X35 S12 | 1 | Pc. | $2.00 |
| 3 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 4 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 5 | A00115-13-00 | MUFFLER GASKET | 1 | Pc. | $6.00 | |
| 6 | A00090-20-01 | MED PANHEAD PHILLIPS BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 7 | A00002-21-02 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 8 | A00202-10-00 | CLAMP | 1 | Pc. | $6.00 | |
| 9 | A00203-10-00 | MUFFLER CLAMP | WITH RUBBER | 1 | Pc. | $18.00 |
| 10 | A00101-10-00 | MUFFLER GUARD | 1 | Pc. | $18.00 | |
| 11 | A00116-10-00 | MUFFLER HEAD PIPE | ONLY | 1 | Pc. | $50.00 |
| 12 | A00117-10-00 | MUFFLER | ONLY | 1 | Pc. | $76.00 |
| 13 | A00118-10-00 | RUBBER DAMPER | 1 | Pc. | $1.50 | |
| 14 | A00082-01-00 | PRO CIRCUIT T-4 EXHAUST SYSTEM ASSY | 1 | Assy. | $488.00 | |

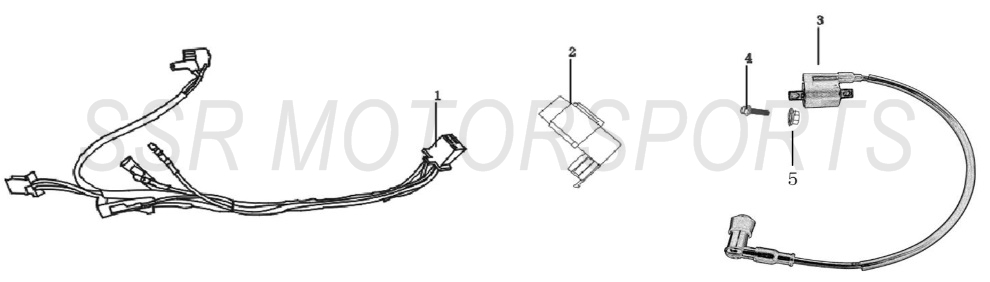

| WIRE HARNESS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00491-08-00 | WIRE HARNESS | 1 | Pc. | $42.00 | |
| 2 | A00479-08-00 | CDI | 1 | Pc. | $21.00 | |
| 3 | A00480-08-00 | IGNITION COIL | T4/SSR | 1 | Pc. | $27.00 |
| 4 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 5 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00315-12-00 | FUEL TANK ASSY | 1 | Assy. | $56.00 | |
| 1 | A00399-12-00 | FUEL TANK ASSY | SR110DX ONLY | 1 | Assy. | $70.00 |
| 1-1 | A00330-12-00 | FUEL PETCOCK | 1 | Pc. | $18.00 | |
| 1-2 | A00317-12-00 | FUEL TANK CAP | BLACK PLASTIC | 1 | Pc. | $14.00 |
| 1-2 | A00343-12-00 | FUEL TANK CAP | BILLET ALUMINUM (SR110DX) | 1 | Pc. | $33.00 |
| 2 | A00332-12-00 | FUEL TANK CAP VENT | 1 | Pc. | $6.00 | |
| 3 | A00007-19-01 | FLANGE BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 4 | A00012-21-01 | WASHER | 8X28X1.5 | 2 | Pcs. | $1.50 |
| 5 | A00002-24-03 | WIRE HOSE CLAMP | 7.5 | 3 | Pcs. | $1.50 |
| 6 | A00254-12-00 | FUEL FILTER | ONLY | 1 | Pc. | $4.00 |
| 6 | A00464-12-00 | FUEL FILTER W/ HOSES + CLAMPS | 1 | Assy. | $6.00 | |
| 7 | A00003-24-03 | WIRE HOSE CLAMP | 9 | 1 | Pc. | $1.50 |
| 8 | A00358-12-00 | FUEL TANK | ONLY | 1 | Pc. | $42.00 |
| 9 | A00465-12-00 | FUEL HOSE | A=50MM B=200MM | 1 | Set | $4.00 |
| 10 | A00468-12-00 | FUEL PETCOCK GASKET | 1 | Pc. | $7.00 | |
| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00717-02-00 | SEAT | LOW | 1 | Pc. | $45.00 |
| 1 | A00666-02-02 | SEAT | TALL (SR110DX) | 1 | Pc. | $45.00 |
| 2 | A00677-02-02 | FRONT NUMBER PLATE | BLACK | 1 | Pc. | $11.00 |
| 2 | A00677-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $11.00 |
| 2 | A00677-02-04 | FRONT NUMBER PLATE | GREEN | 1 | Pc. | $11.00 |
| 2 | A00677-02-12 | FRONT NUMBER PLATE | BLUE | 1 | Pc. | $11.00 |
| 2 | A00677-02-18 | FRONT NUMBER PLATE | RED | 1 | Pc. | $11.00 |
| 2 | A00677-02-03 | FRONT NUMBER PLATE | ORANGE | 1 | Pc. | $11.00 |
| 3 | A00678-02-02 | FRONT FENDER | BLACK | 1 | Pc. | $11.00 |
| 3 | A00678-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $11.00 |
| 3 | A00678-02-04 | FRONT FENDER | GREEN | 1 | Pc. | $11.00 |
| 3 | A00678-02-12 | FRONT FENDER | BLUE | 1 | Pc. | $11.00 |
| 3 | A00678-02-18 | FRONT FENDER | RED | 1 | Pc. | $11.00 |
| 3 | A00678-02-03 | FRONT FENDER | ORANGE | 1 | Pc. | $11.00 |
| 4 | A00679-02-02 | LEFT FUEL TANK SHROUD | BLACK | 1 | Pc. | $11.00 |
| 4 | A00679-02-01 | LEFT FUEL TANK SHROUD | WHITE | 1 | Pc. | $11.00 |
| 4 | A00679-02-04 | LEFT FUEL TANK SHROUD | GREEN | 1 | Pc. | $11.00 |
| 4 | A00679-02-12 | LEFT FUEL TANK SHROUD | BLUE | 1 | Pc. | $11.00 |
| 4 | A00679-02-18 | LEFT FUEL TANK SHROUD | RED | 1 | Pc. | $11.00 |
| 4 | A00679-02-03 | LEFT FUEL TANK SHROUD | ORANGE | 1 | Pc. | $11.00 |
| 5 | A00680-02-02 | RIGHT FUEL TANK SHROUD | BLACK | 1 | Pc. | $11.00 |
| 5 | A00680-02-01 | RIGHT FUEL TANK SHROUD | WHITE | 1 | Pc. | $11.00 |
| 5 | A00680-02-04 | RIGHT FUEL TANK SHROUD | GREEN | 1 | Pc. | $11.00 |
| 5 | A00680-02-12 | RIGHT FUEL TANK SHROUD | BLUE | 1 | Pc. | $11.00 |
| 5 | A00680-02-18 | RIGHT FUEL TANK SHROUD | RED | 1 | Pc. | $11.00 |
| 5 | A00680-02-03 | RIGHT FUEL TANK SHROUD | ORANGE | 1 | Pc. | $11.00 |
| 6 | A00681-02-02 | RIGHT REAR NUMBER PLATE | BLACK | 1 | Pc. | $11.00 |
| 6 | A00681-02-01 | RIGHT REAR NUMBER PLATE | WHITE | 1 | Pc. | $11.00 |
| 6 | A00681-02-04 | RIGHT REAR NUMBER PLATE | GREEN | 1 | Pc. | $11.00 |
| 6 | A00681-02-12 | RIGHT REAR NUMBER PLATE | BLUE | 1 | Pc. | $11.00 |
| 6 | A00681-02-18 | RIGHT REAR NUMBER PLATE | RED | 1 | Pc. | $11.00 |
| 6 | A00681-02-03 | RIGHT REAR NUMBER PLATE | ORANGE | 1 | Pc. | $11.00 |
| 7 | A00682-02-02 | LEFT REAR NUMBER PLATE | BLACK | 1 | Pc. | $11.00 |
| 7 | A00682-02-01 | LEFT REAR NUMBER PLATE | WHITE | 1 | Pc. | $11.00 |
| 7 | A00682-02-04 | LEFT REAR NUMBER PLATE | GREEN | 1 | Pc. | $11.00 |
| 7 | A00682-02-12 | LEFT REAR NUMBER PLATE | BLUE | 1 | Pc. | $11.00 |
| 7 | A00682-02-18 | LEFT REAR NUMBER PLATE | RED | 1 | Pc. | $11.00 |
| 7 | A00682-02-03 | LEFT REAR NUMBER PLATE | ORANGE | 1 | Pc. | $11.00 |
| 8 | A00683-02-02 | REAR FENDER | BLACK | 1 | Pc. | $11.00 |
| 8 | A00683-02-01 | REAR FENDER | WHITE | 1 | Pc. | $11.00 |
| 8 | A00683-02-04 | REAR FENDER | GREEN | 1 | Pc. | $11.00 |
| 8 | A00683-02-12 | REAR FENDER | BLUE | 1 | Pc. | $11.00 |
| 8 | A00683-02-18 | REAR FENDER | RED | 1 | Pc. | $11.00 |
| 8 | A00683-02-03 | REAR FENDER | ORANGE | 1 | Pc. | $11.00 |
| 9 | A00684-02-00 | FRONT BRAKE LINE GUIDE | WHITE | 1 | Pc. | $1.50 |
| 10 | A00348-22-04 | LOCKNUT | M4 | 2 | Pcs. | $1.50 |
| 11 | A00009-20-01 | SCREW | M4X12 | 2 | Pcs. | $1.50 |
| 12 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 13 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 14 | A00008-19-03 | BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 15 | A00003-20-01 | PHILLIPS BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 16 | A00010-19-29 | PAN HEAD PHILLIPS BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 17 | A00016-21-01 | RUBBER WASHER | 6X17X3.5 | 2 | Pcs. | $1.50 |
| 18 | A00011-21-01 | WASHER | 6X18X1.5 | 2 | Pcs. | $1.50 |
| 19 | A00010-20-03 | SCREW | ST4.2X16 | 7 | Pcs. | $1.50 |
| 20 | A00017-21-01 | WASHER | 6X12X1.5 | 6 | Pcs. | $1.50 |
| 21 | A00002-20-03 | ST SCREW | ST4.2X12 | 2 | Pcs. | $1.50 |
| 22 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 23 | A00685-02-00 | SPACER | 8X16XH6.5 | 1 | Pc. | $1.50 |
| 24 | A00936-02-02 | COMPLETE PLASTIC KIT | BLACK | 1 | KIT | $36.00 |
| 24 | A00936-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | KIT | $36.00 |
| 24 | A00936-02-04 | COMPLETE PLASTIC KIT | GREEN | 1 | KIT | $36.00 |
| 24 | A00936-02-12 | COMPLETE PLASTIC KIT | BLUE | 1 | KIT | $36.00 |
| 24 | A00936-02-18 | COMPLETE PLASTIC KIT | RED | 1 | KIT | $36.00 |
| 24 | A00936-02-03 | COMPLETE PLASTIC KIT | ORANGE | 1 | KIT | $36.00 |
| 25 | A00009-20-03 | ST SCREW | ST4.8X16 | 1 | Pc. | $1.50 |
| GRAPHICS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00726-02-00 | GRAPHIC KIT | CRF/3M | 1 | Kit | $39.00 |
-
-
-
-
-
-
Only 1 left in stock
-
Out of stock
-
-
