(SR125) Full Engine Schematics (YX/Bangen) (2015-2017)

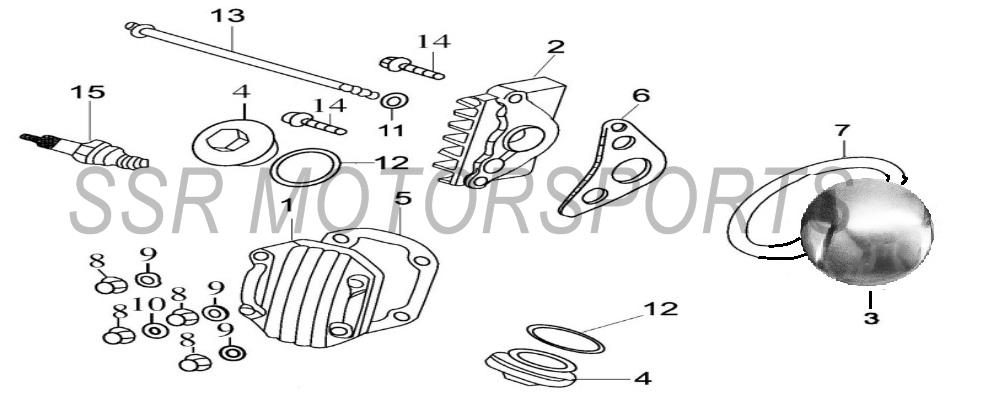

| CYLINDER HEAD COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01171-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $21.00 | |
| 2 | A01172-09-00 | RIGHT CYLINDER HEAD COVER | 1 | Pc. | $18.00 | |
| 3 | A01173-09-00 | LEFT CYLINDER HEAD COVER | CHROME | 1 | Pc. | $18.00 |
| 4 | A01174-09-00 | TAPPET COVER | CHROME | 2 | Pcs. | $8.00 |
| 5 | A00110-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 6 | A00111-13-00 | RIGHT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 7 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 8 | A00328-22-36 | FLANGE CAP NUT | M7 | 4 | Pcs. | $1.50 |
| 9 | A00008-21-01 | WASHER | M7 | 3 | Pcs. | $1.50 |
| 10 | A00269-21-01 | COPPER WASHER | M7 | 1 | Pc. | $1.50 |
| 11 | A01177-09-00 | ALUMINUM WASHER | M6 | 1 | Pc. | $1.50 |
| 12 | A00004-27-00 | O-RING | 30.8X3.2 | 2 | Pcs. | $3.50 |
| 13 | A00439-19-07 | TIMING COVER FLANGE BOLT | M6X110 | 1 | Pc. | $2.50 |
| 14 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 15 | D8EA | SPARK PLUG | D8EA | 1 | Pc. | $10.00 |

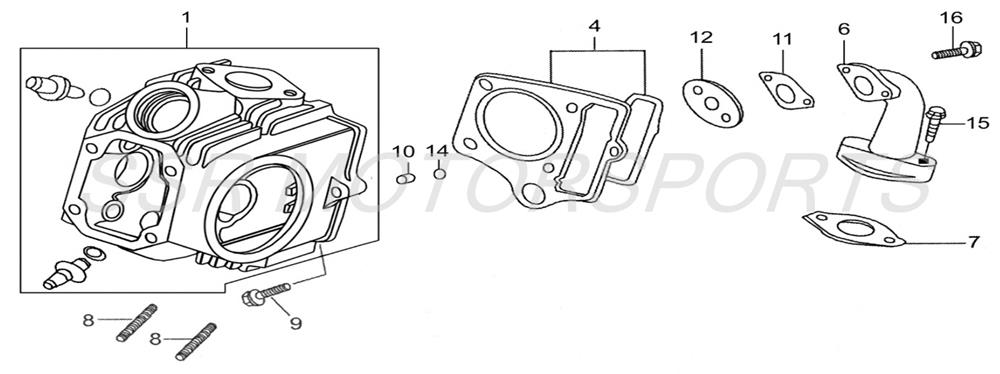

| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01180-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $124.00 |
| 4 | A00288-13-00 | CYLINDER HEAD GASKET | YX | 1 | Pc. | $11.00 |
| 4 | A00113-13-00 | CYLINDER HEAD GASKET | BANGEN | 1 | Pc. | $11.00 |
| 6 | A00293-14-00 | INTAKE MANIFOLD | YX-02 | 1 | Pc. | $36.00 |
| 7 | A00292-14-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $4.00 | |
| 8 | A00001-19-04 | STUD | M6X32 | 2 | Pcs. | $1.50 |
| 9 | A00002-19-03 | BOLT | M6X23 | 1 | Pc. | $1.50 |
| 10 | A00118-23-00 | SPECIAL PIN | 8X11 | 1 | Pc. | $2.50 |
| 11 | A00274-13-00 | CARBURETOR GASKET | 1 | Pc. | $4.00 | |
| 12 | A00272-13-00 | INTAKE INSULATOR | M4.7 | 1 | Pc. | $6.00 |
| 14 | A00042-27-00 | O-RING | 9X1.6 | 1 | Pc. | $1.50 |
| 15 | A00040-19-01 | FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 16 | A00024-19-01 | FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |

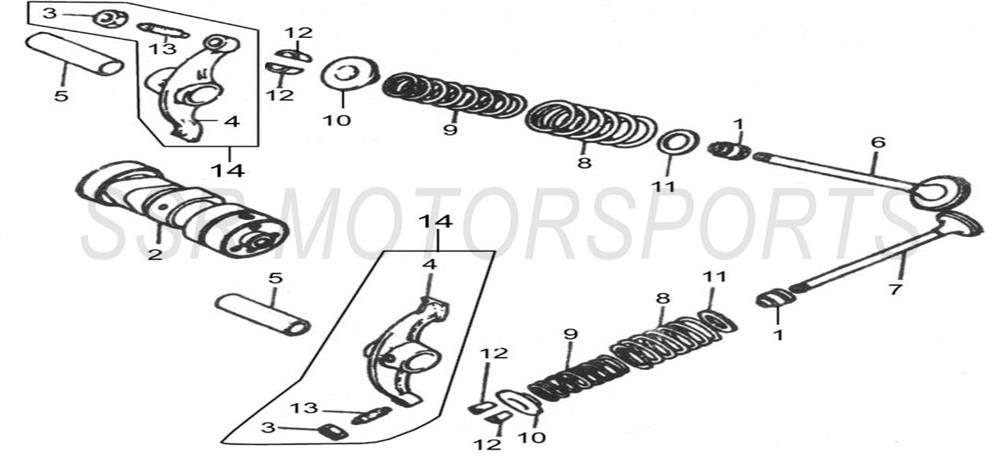

| CAMSHAFT & VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02858-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.50 | |
| 2 | A02859-09-00 | CAMSHAFT | 1 | Pc. | $63.00 | |
| 3 | A02860-09-00 | TAPPET ADJUSTER NUT | 2 | Pcs. | $2.00 | |
| 4 | A02861-09-00 | ROCKER ARM | 2 | Pcs. | $18.00 | |
| 5 | A02862-09-00 | ROCKER ARM SHAFT | 2 | Pcs. | $6.00 | |
| 6 | A02863-09-00 | INTAKE VALVE | 1 | Pc. | $13.00 | |
| 7 | A02864-09-00 | EXHAUST VALVE | 1 | Pc. | $13.00 | |
| 8 | A02865-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 9 | A02866-09-00 | INNER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 10 | A02867-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 11 | A02868-09-00 | LOWER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 12 | A02869-09-00 | COLLET | 4 | Pcs. | $2.00 | |
| 13 | A02870-09-00 | VALVE ADJUSTING SCREW | 2 | Pcs. | $2.00 | |
| 14 | A02871-09-00 | ROCKER ARM ASSY | 2 | Assy. | $21.00 | |

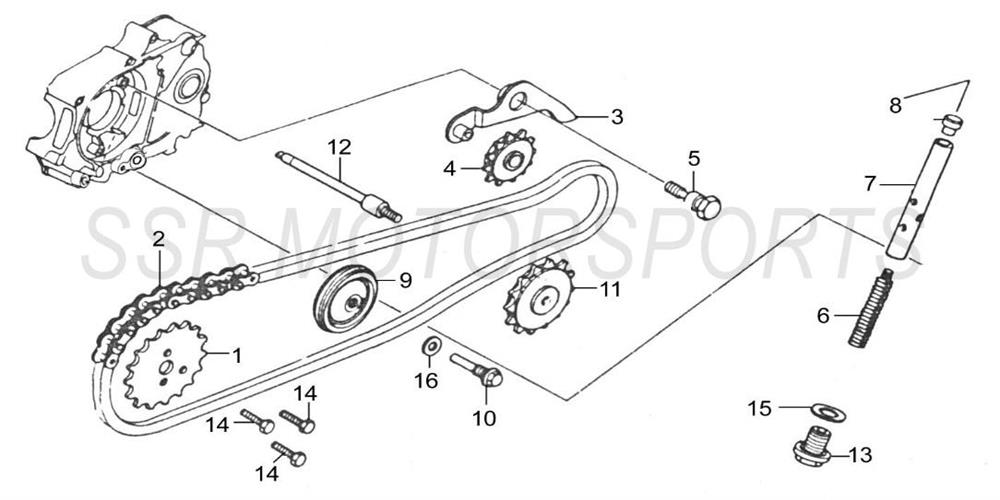

| CAM CHAIN | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01329-09-00 | CAMSHAFT SPROCKET | 28T | 1 | Pc. | $21.00 |
| 2 | A01255-09-00 | TIMING CHAIN | 84L | 1 | Pc. | $30.00 |
| 3 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 4 | A01257-09-00 | TENSIONER SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 5 | A01321-09-00 | CHAIN TENSIONER ARM BOLT | 1 | Pc. | $2.00 | |
| 6 | A01322-09-00 | TENSIONER SPRING | 1 | Pc. | $2.50 | |
| 7 | A01323-09-00 | TENSIONER ROD | 1 | Pc. | $7.00 | |
| 8 | A01299-09-00 | TENSIONER ROD HEAD | 1 | Pc. | $2.50 | |
| 9 | A01300-09-00 | CHAIN ROLLER | RUBBER | 1 | Pc. | $14.00 |
| 10 | A01303-09-00 | ROLLER GUIDE BOLT | 1 | Pc. | $1.50 | |
| 11 | A01304-09-00 | GUIDE SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 12 | A01305-09-00 | OIL PUMP SHAFT | 1 | Pc. | $6.00 | |
| 13 | A02455-09-00 | TENSIONER BOLT | M14X1.5 | 1 | Pc. | $2.50 |
| 14 | A00025-19-03 | BOLT | M5X12 | 3 | Pcs. | $1.50 |
| 15 | A01307-09-00 | TENSIONER SEAL | 1 | Pc. | $1.50 | |
| 16 | A00094-21-01 | WASHER | 8x14x1.5 | 1 | Pc. | $1.50 |

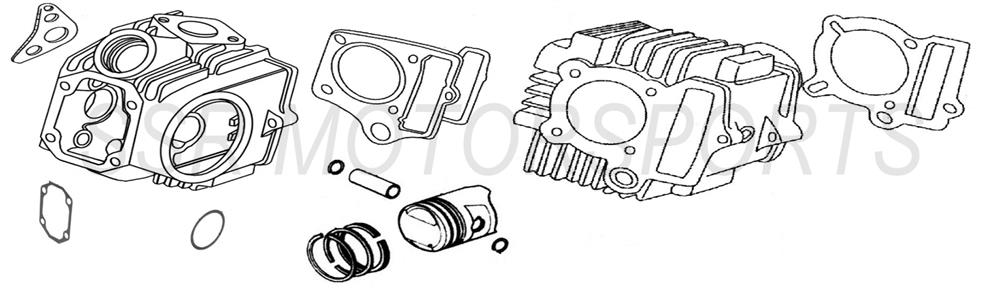

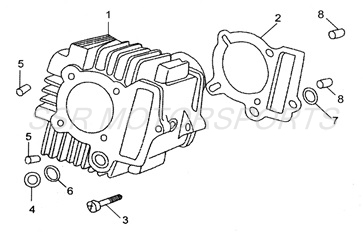

| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02891-09-00 | CYLINDER | YX | 1 | Pc. | $98.00 |
| 2 | A00289-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |
| 3 | A00002-19-03 | BOLT | M6X23 | 1 | Pc. | $1.50 |
| 4 | A00042-27-00 | O-RING | 9X1.6 | 1 | Pc. | $1.50 |
| 5 | A00001-23-00 | DOWEL PIN | 2 | Pcs. | $1.50 | |
| 6 | A00008-27-00 | O-RING | 1 | Pc. | $1.50 | |
| 7 | A00009-27-00 | O-RING | 1 | Pc. | $1.50 | |
| 8 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |
| RIGHT CRANKSCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01308-09-00 | CLUTCH COVER | 1 | Pc. | $85.00 | |
| 2 | A00120-13-00 | CLUTCH COVER GASKET | 1 | Pc. | $14.00 | |
| 3 | A01309-09-00 | CLUTCH ADJUSTMENT COVER | SSR LOGO | 1 | Pc. | $21.00 |
| 4 | A01310-09-00 | COIL WIRE RETAINER | 1 | Pc. | $1.50 | |
| 5 | A01311-09-00 | OIL LEVEL DIPSTICK | 1 | Pc. | $8.00 | |
| 6 | A01312-09-00 | CLUTCH ACTUATOR | 1 | Pc. | $27.00 | |
| 7 | A01313-09-00 | CLUTCH ACTUATOR SPRING | 1 | Pc. | $1.50 | |
| 8 | A01314-09-00 | CLUTCH ACTUATOR PIN | 1 | Pc. | $1.50 | |
| 9 | A01315-09-00 | CLUTCH PRESSURE PLATE | 1 | Pc. | $10.00 | |
| 10 | A01316-09-00 | CLUTCH DETENT | 1 | Pc. | $11.00 | |
| 11 | A01317-09-00 | CLUTCH ACTUATOR SCREW | 1 | Pc. | $1.50 | |
| 12 | A00081-26-00 | OIL SEAL | 12x21x4 | 1 | Pc. | $6.00 |
| 13 | A00005-26-00 | OIL SEAL | 13.7X24X5 | 1 | Pc. | $6.00 |
| 14 | A00092-27-00 | O-RING | 13.7X1.5 | 1 | Pc. | $1.50 |
| 15 | A00090-27-00 | O-RING | 18X3 | 1 | Pc. | $2.50 |
| 16 | A00003-20-01 | SCREW | M6X16 | 1 | Pc. | $1.50 |
| 17 | A00007-20-01 | SCREW | M5X12 | 2 | Pcs. | $1.50 |
| 18 | A00001-22-01 | NUT | M6 | 1 | Pc. | $1.50 |
| 19 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |
| 20 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 5 | Pcs. | $1.50 |
| 21 | A00436-19-08 | CASE FLANGE BOLT | M6X80 | 2 | Pcs. | $2.00 |
| 22 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 1 | Pc. | $2.00 |
| CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01317-09-01 | CLUTCH HUB | 1 | Pc. | $42.00 | |
| 2 | A01318-09-00 | CLUTCH LIFTER PLATE | 1 | Pc. | $18.00 | |
| 3 | A00121-13-00 | CLUTCH LIFTER PLATE GASKET | 1 | Pc. | $8.00 | |
| 4 | A01319-09-00 | CLUTCH DRIVE OUTER GEAR | 1 | Pc. | $21.00 | |
| 5 | A01271-09-00 | PRIMARY DRIVE GEAR BUSHING | 1 | Pc. | $6.00 | |
| 6 | A01272-09-00 | CLUTCH FRICTION PLATE | 3 | Pcs. | $14.00 | |
| 7 | A01273-09-00 | CLUTCH STEEL PLATE | 3 | Pcs. | $11.00 | |
| 9 | A01275-09-00 | CLUTCH HOLDER | 1 | Pc. | $27.00 | |
| 10 | A01276-09-00 | CLUTCH SPRING | 4 | Pcs. | $2.00 | |
| 11 | A01277-09-00 | SPRING | 4 | Pcs. | $1.50 | |
| 12 | A01278-09-00 | CLUTCH PUSH ROD | 1 | Pc. | $6.00 | |
| 13 | A02380-09-00 | CLUTCH SNAP RING | 1 | Pc. | $6.00 | |
| 14 | A01327-09-00 | CLUTCH WASHER | 1 | Pc. | $3.50 | |
| 15 | A01301-09-00 | PRIMARY DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 16 | A01302-09-00 | GEAR | 18T | 1 | Pc. | $18.00 |
| 17 | A01279-09-00 | SLEEVE | 1 | Pc. | $1.50 | |
| 18 | A01280-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 19 | A01281-09-00 | BUSHING | 1 | Pc. | $2.00 | |
| 20 | A01282-09-00 | PRIMARY DRIVE GEAR LOCKNUT | M14X1 | 1 | Pc. | $2.50 |
| 21 | A01283-09-00 | TONGUE WASHER | M14 | 1 | Pc. | $2.50 |
| 22 | A01284-09-00 | PRIMARY DRIVE DISHED WASHER | 1 | Pc. | $1.50 | |
| 23 | A01285-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 24 | A00020-20-05 | CS SCREW | M5X10 | 4 | Pcs. | $1.50 |
| 25 | A00009-28-00 | BEARING | 6000 | 1 | Pc. | $8.00 |
| 26 | A02714-09-00 | CLUTCH ASSY | 1 | Assy. | $98.00 | |
| 27 | A03016-09-00 | CLUTCH LIFTER PLATE ASSY | 1 | Assy. | $30.00 | |

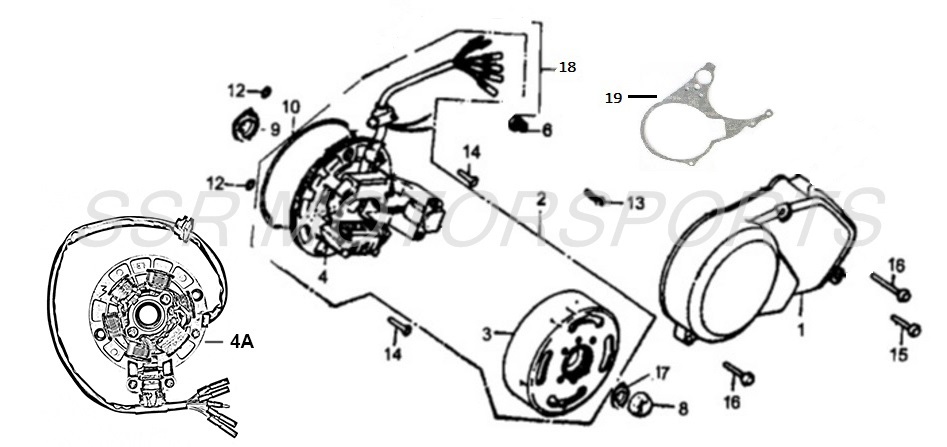

| LEFT CRANKCASE COVER AND MAGNETO | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02760-09-00 | STATOR COVER | 1 | Pc. | $57.00 | |
| 2 | A02712-09-00 | STATOR W/ FLYWHEEL ASSY | BANGEN ENGINE | 1 | Assy. | $129.00 |
| 2 | A02922-09-00 | STATOR W/ FLYWHEEL ASSY | YX ENGINE | 1 | Assy. | $129.00 |
| 3 | A02770-09-00 | FLYWHEEL | BANGEN ENGINE | 1 | Pc. | $63.00 |
| 3 | A02921-09-00 | FLYWHEEL | YX ENGINE | 1 | Pc. | $63.00 |
| 4 | A02711-09-00 | STATOR PLATE ASSY | BANGEN ENGINE | 1 | Assy. | $85.00 |
| 4A | A02910-09-00 | STATOR PLATE ASSY | YX ENGINE | 1 | Assy. | $85.00 |
| 6 | A02920-09-00 | RUBBER PLUG | 1 | Pc. | $4.00 | |
| 8 | A00005-22-08 | SPECIAL NUT | M10X1.25 | 1 | Pc. | $1.50 |
| 9 | A00003-26-00 | OIL SEAL | 18.9X30X5 | 1 | Pc. | $4.00 |
| 10 | A00010-27-00 | O-RING | 107X2 | 1 | Pc. | $8.00 |
| 12 | A00012-27-00 | O-RING | 6.5X1.9 | 2 | Pcs. | $1.50 |
| 13 | A00008-19-03 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 14 | A00006-20-12 | CS SCREW | M6X12 | 2 | Pcs. | $1.50 |
| 15 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 1 | Pc. | $1.50 |
| 16 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 17 | A00002-21-01 | WASHER | M10 | 1 | Pc. | $1.50 |
| 18 | A01338-09-00 | STATOR W/ FLYWHEEL ASSY + SEALS | YX ENGINE | 1 | Assy. | $136.00 |
| 18 | A02923-09-00 | STATOR W/ FLYWHEEL ASSY + SEALS | BANGEN ENGINE | 1 | Assy. | $136.00 |
| 19 | A00258-13-00 | STATOR COVER GASKET | 1 | Pc. | $10.00 | |

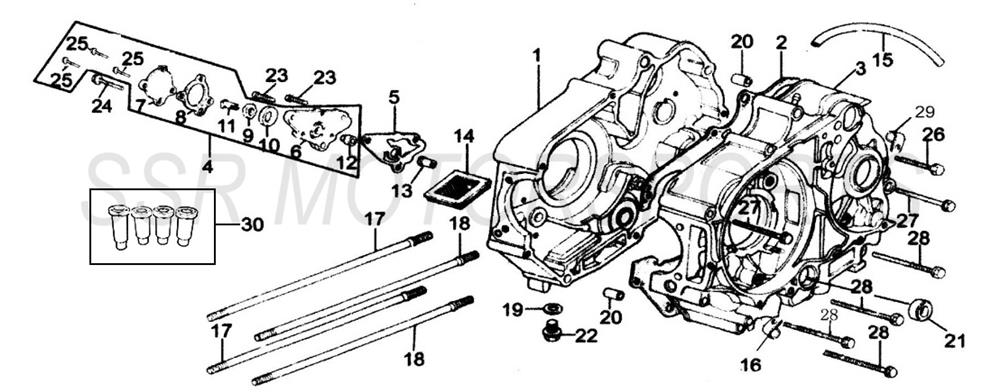

| CRANKCASE & OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01219-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $90.00 | |
| 2 | A00122-13-00 | CENTER CASE GASKET | 1 | Pc. | $14.00 | |
| 3 | A01220-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $112.00 | |
| 4 | A01221-09-00 | OIL PUMP ASSY | 1 | Assy. | $42.00 | |
| 5 | A00123-13-00 | OIL PUMP GASKET | 1 | Pc. | $6.00 | |
| 6 | A01222-09-00 | OIL PUMP BODY | 1 | Pc. | $18.00 | |
| 7 | A01225-09-00 | OIL PUMP COVER | 1 | Pc. | $8.00 | |
| 8 | A00124-13-00 | OIL PUMP COVER GASKET | 1 | Pc. | $4.00 | |
| 9 | A01226-09-00 | OIL PUMP INNER ROTOR | 1 | Pc. | $8.00 | |
| 10 | A01227-09-00 | OIL PUMP OUTER ROTOR | 1 | Pc. | $8.00 | |
| 11 | A01228-09-00 | OIL PUMP SHAFT | 1 | Pc. | $8.00 | |
| 12 | A01229-09-00 | OIL PUMP SHAFT BUSHING | 1 | Pc. | $2.00 | |
| 13 | A01230-09-00 | OIL PUMP SPROCKET BUSHING | 1 | Pc. | $2.00 | |
| 14 | A01098-09-00 | OIL SCREEN | 1 | Pc. | $10.00 | |
| 15 | A02356-09-00 | CRANKCASE VENT HOSE | 1 | Pc. | $10.00 | |
| 16 | A01100-09-00 | PIPE CLAMP | 1 | Pc. | $1.50 | |
| 17 | A00003-19-04 | CYLINDER STUD A | M7X203MM | 2 | Pcs. | $8.00 |
| 18 | A00002-19-04 | CYLINDER STUD B | M7X197MM | 2 | Pcs. | $8.00 |
| 19 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 20 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 21 | A00002-26-00 | OIL SEAL | 11.6X24X10 | 1 | Pc. | $4.00 |
| 22 | A01102-09-00 | OIL DRAIN BOLT | 1 | Pc. | $4.00 | |
| 23 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 24 | A00030-19-03 | FLANGE BOLT | M6X22 | 1 | Pc, | $1.50 |
| 25 | A00037-19-01 | FLANGE BOLT | M5X10 | 3 | Pcs. | $1.50 |
| 26 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 27 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 28 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 4 | Pcs. | $2.00 |
| 29 | A02576-09-00 | VENT HOSE CLAMP | 1 | Pc. | $1.50 | |
| 30 | A01270-09-00 | ENGINE MOUNT DAMPER SET |
3 SHORT 1 LONG
|
1 | Set | $6.00 |
| CRANKSHAFT AND PISTON | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01103-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $115.00 | |
| 2 | A01104-09-00 | PISTON RING SET | 1 | Set | $42.00 | |
| 3 | A01105-09-00 | PISTON | 1 | Pc. | $42.00 | |
| 4 | A01106-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 5 | A01107-09-00 | PISTON PIN CIRCLIP | 2 | Pcs. | $1.50 | |
| 6 | A01108-09-00 | CONNECTING ROD | 1 | Pc. | $10.00 | |
| 7 | A01109-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | $51.00 | |
| 8 | A01110-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | $51.00 | |
| 9 | A01111-09-00 | CRANKSHAFT PIN | 1 | Pc. | $6.00 | |
| 10 | A01112-09-00 | TIMING SPROCKET | 16T | 1 | Pc. | $8.00 |
| 11 | A01113-09-00 | WOODRUFF KEY | 4X14X4 | 2 | Pcs. | $1.50 |
| 12 | A00001-28-00 | BEARING | 6304 | 2 | Pcs. | $11.00 |
| 13 | A01114-09-00 | BEARING | 1 | Pc. | $8.00 | |
| 17 | A01268-09-00 | OIL PUMP DRIVE GEAR | 1 | Pc. | $10.00 | |
| 19 | A02521-09-00 | PISTON KIT | 1 | Kit | $79.00 | |
| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00221-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $77.00 | |
| 2 | A00217-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 3 | A00212-17-00 | COUNTERSHAFT 4TH GEAR | 24T | 1 | Pc. | $13.00 |
| 4 | A00215-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 5 | A00210-17-00 | COUNTERSHAFT 3RD GEAR | 23T | 1 | Pc. | $13.00 |
| 6 | A00218-17-00 | SPLINED WASHER | 3 | Pcs. | $2.00 | |
| 7 | A00220-17-00 | CIRCLIP | 4 | Pcs. | $1.50 | |
| 8 | A00208-17-00 | COUNTERSHAFT 2ND GEAR | 31T | 1 | Pc. | $13.00 |
| 9 | A00219-17-00 | SPLINED WASHER | 1 | Pc. | $2.00 | |
| 10 | A00206-17-00 | COUNTERSHAFT BUSHING | 1 | Pc. | $7.00 | |
| 11 | A00205-17-00 | COUNTERSHAFT 1ST GEAR | 36T | 1 | Pc. | $13.00 |
| 12 | A00204-17-00 | COUNTER SHAFT | 1 | Pc. | $51.00 | |
| 13 | A00008-28-00 | BEARING | 6203 | 2 | Pcs. | $27.00 |
| 14 | A00001-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 15 | A00307-07-00 | COUNTERSHAFT SPROCKET | 14T | 1 | Pc. | $14.00 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 17 | A00031-19-03 | BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 18 | A00108-28-00 | NEEDLE BEARING | NK14/2 | 1 | Pc. | $7.00 |
| 19 | A00232-17-00 | MAINSHAFT ASSY | 1 | Assy. | $77.00 | |
| 20 | A00216-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 21 | A00203-17-00 | MAINSHAFT | 11T | 1 | Pc. | $51.00 |
| 22 | A00207-17-00 | COUNTERSHAFT 2ND GEAR | 16T | 1 | Pc. | $13.00 |
| 23 | A00209-17-00 | MAINSHAFT 3RD GEAR | 17T | 1 | Pc. | $13.00 |
| 24 | A00211-17-00 | MAINSHAFT 4TH GEAR | 23T | 1 | Pc. | $13.00 |
| 25 | A00107-28-00 | NEEDLE BEARING | NK13.5/2 | 1 | Pc. | $7.00 |

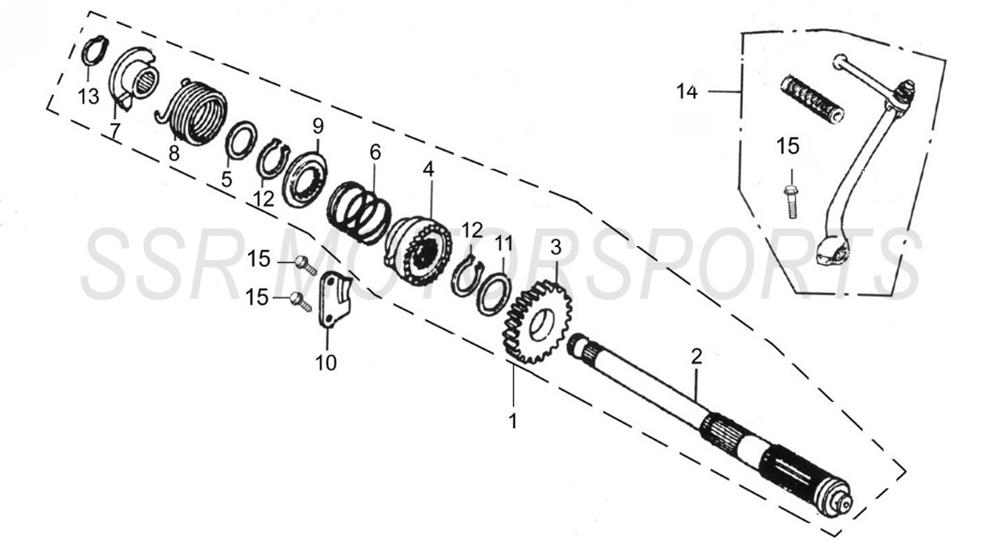

| KICKSTARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01118-09-00 | KICKSTARTER SHAFT ASSY | 1 | Assy. | $51.00 | |
| 2 | A01120-09-00 | KICKSTARTER SHAFT | 1 | Pc. | $18.00 | |
| 3 | A01121-09-00 | KICKSTARTER GEAR | 1 | Pc. | $18.00 | |
| 4 | A01122-09-00 | RATCHET | 1 | Pc. | $13.00 | |
| 5 | A01123-09-00 | WASHER I | 1 | Pc. | $1.50 | |
| 6 | A01124-09-00 | RATCHET SPRING | 1 | Pc. | $2.00 | |
| 7 | A01125-09-00 | SPRING SEAT | 1 | Pc. | $4.00 | |
| 8 | A01126-09-00 | KICKSTARTER RETURN SPRING | 1 | Pc. | $2.50 | |
| 9 | A01127-09-00 | RATCHET SPRING SEAT | 1 | Pc. | $2.50 | |
| 10 | A01128-09-00 | RETAINER PLATE | 1 | Pc. | $4.00 | |
| 11 | A01129-09-00 | SHAFT WASHER II | 1 | Pc. | $1.50 | |
| 12 | A01130-09-00 | CIRCLIP | 2 | Pc. | $1.50 | |
| 13 | A01131-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 14 | A00321-05-00 | KICKSTARTER ASSY | 1 | Assy. | $23.00 | |
| 15 | A00047-19-03 | HEX BOLT | M6X20 | 3 | Pcs. | $1.50 |

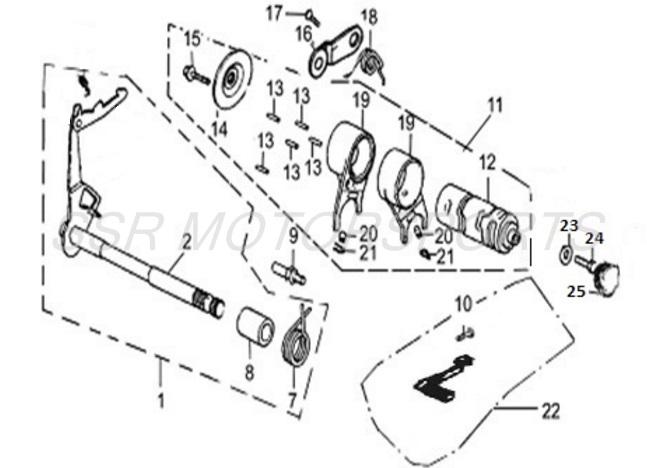

| GEARSHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01132-09-00 | GEAR SHIFT SHAFT ASSY | 1 | Assy. | $63.00 | |
| 2 | A01133-09-00 | GEARSHIFT SHAFT | 1 | Pc. | $60.00 | |
| 7 | A01138-09-00 | GEARSHIFT SPRING | 1 | Pc. | $2.00 | |
| 8 | A01139-09-00 | GEARSHIFT SHAFT SLEEVE | 1 | Pc. | $6.00 | |
| 9 | A01140-09-00 | RETURN SPRING STOPPER | 1 | Pc. | $2.50 | |
| 10 | A00022-19-03 | BOLT | M6X30 | 1 | Pc. | $1.50 |
| 11 | A01141-09-00 | GEARSHIFT DRUM ASSY | 1 | Assy. | $59.00 | |
| 12 | A01142-09-00 | GEARSHIFT DRUM | 1 | Pc. | $39.00 | |
| 13 | A01143-09-00 | PIN | M4x13 | 5 | Pcs. | $1.50 |
| 14 | A01144-09-00 | GEAR PIN PLATE | 1 | Pc. | $6.00 | |
| 15 | A00031-19-01 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 16 | A01145-09-00 | GEAR SETTING ARM |
BOLT ATTACHED
|
1 | Pc. | $8.00 |
| 18 | A01147-09-00 | TORSION SETTING PLATE SPRING | 1 | Pc. | $1.50 | |
| 19 | A01148-09-00 | SHIFT FORK | 2 | Pcs. | $11.00 | |
| 20 | A01149-09-00 | STRIKING PIN | 2 | Pcs. | $1.50 | |
| 21 | A01150-09-00 | CLIP | 2 | Pcs. | $1.50 | |
| 22 | A00322-05-00 | GEARSHIFT LEVER ASSY | 1 | Assy. | $24.00 | |
| 23 | A00011-21-01 | WASHER | 6X18X1.5 | 1 | Pc. | $1.50 |
| 24 | A00008-19-03 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 25 | A01151-09-00 | RUBBER PLUG | 1 | Pc. | $2.50 | |
| ENGINE PART SETS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02687-09-00 | COMPLETE TOP END KIT | YX ENGINE | 1 | Kit | $205.00 |
| 1 | A02762-09-00 | COMPLETE TOP END KIT | BANGEN ENGINE | 1 | Kit | $205.00 |
| 2 | A00250-13-00 | COMPLETE ENGINE GASKET SET | YX ENGINE | 1 | Set | $63.00 |
| 3 | A00241-26-00 | COMPLETE ENGINE SEALS SET | 1 | Set | $14.00 | |
| 4 | A00268-13-00 | COMPLETE TOP END GASKET SET | YX ENGINE | 1 | Set | $39.00 |
| 4 | A00281-13-00 | COMPLETE TOP END GASKET SET | BANGEN ENGINE | 1 | Set | $39.00 |
The SR125 Full Engine Schematics (YX/Bangen) (2015-2017) is an essential resource for anyone owning, maintaining, or repairing the SR125 pit bike engine. This comprehensive guide provides detailed schematics and part numbers for every component of the SR125 engine, covering both YX and Bangen engine models from 2015 to 2017. Whether you're performing routine maintenance, rebuilding your engine, or customizing your bike, this catalog ensures you have access to accurate and reliable information.
Key Features:
-
Complete Coverage:
-
This catalog includes detailed schematics for all major engine systems, including:
-
Cylinder Head and Covers
-
Camshaft and Valves
-
Cam Chain and Timing Components
-
Cylinder and Piston Assembly
-
Crankshaft and Transmission
-
Clutch and Kickstarter
-
Gearshift Drum and Mechanism
-
Crankcase and Oil Pump
-
Magneto and Stator Assembly
-
-
-
Accurate Part Numbers:
-
Each component is listed with its corresponding part number, description, specifications, quantity, unit, and retail price. This makes it easy to identify and order the exact parts you need.
-
-
Detailed Schematics:
-
The schematics are organized by system, providing a clear visual representation of how each part fits into the overall assembly. This is invaluable for both novice and experienced mechanics.
-
-
Compatibility:
-
The catalog covers both YX and Bangen engine models, ensuring you have the correct information for your specific engine type. It also includes specific notes for parts that are unique to each model.
-
-
User-Friendly Format:
-
The catalog is designed for ease of use, with a logical structure and clear labeling. Each section is broken down into subcategories, making it simple to locate the information you need.
-
-
Maintenance and Repair Guidance:
-
While not a step-by-step repair manual, the schematics provide valuable insights into the assembly and disassembly of key components, aiding in maintenance and repair tasks.
-
SR125 engine schematics, SR125 YX engine parts, SR125 Bangen engine parts, 2015-2017 SR125 engine, pit bike engine schematics, SR125 cylinder head parts, SR125 camshaft parts, SR125 cam chain parts, SR125 cylinder and piston parts, SR125 crankshaft parts, SR125 transmission parts, SR125 clutch parts, SR125 kickstarter parts, SR125 gearshift drum parts, SR125 crankcase parts, SR125 oil pump parts, SR125 magneto parts, SR125 stator parts, SR125 engine repair manual, SR125 engine maintenance guide, SR125 engine part numbers, SR125 engine OEM parts, SR125 engine aftermarket parts, SR125 engine customization parts, SR125 engine rebuild kit, SR125 engine gasket set, SR125 engine seal set.
