(SR125/SR125SEMI/SR125AUTO) Full Parts Schematics (2018-2022)
| 2018-2022 SR125/Semi/Auto | ||||||
 |
||||||
| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00397-05-00 | THROTTLE GRIP W/ TUBE | BLACK | 1 | Pc. | $8.00 |
| 2 | A00310-05-00 | HANDLEBAR | BLACK | 1 | Pc. | $32.00 |
| 3 | A00311-05-00 | THROTTLE HOUSING | 1 | Pc. | $18.00 | |
| 4 | A00312-05-00 | THROTTLE CABLE | 880 113 | 1 | Pc. | $18.00 |
| 5 | A00401-05-00 | HANDLEBAR PAD COVER | 220X172 | 1 | Pc. | $8.00 |
| 6 | A00314-05-00 | HANDLEBAR PAD | 12X53X220 | 1 | Pc. | $8.00 |
| 7 | A00001-24-01 | ZIP-TIE | 5X200MM/380 | 1 | Pc. | $1.50 |
| 8 | A00473-08-00 | KILL SWITCH | 1 | Pc. | $11.00 | |
| 9 | A00347-05-00 | LEFT HANDLEBAR GRIP | BLACK | 1 | Pc. | $7.00 |
| 10 | A00404-05-00 | CLUTCH PERCH W/ LEVER ASSY | 1 | Assy. | $26.00 | |
| 11 | A00317-05-00 | CLUTCH CABLE | 930 70 | 1 | Pc. | $18.00 |
| 12 | A00503-05-00 | CLUTCH LEVER | BLACK | 1 | Pc. | $18.00 |
| 13A | A00510-05-00 | THROTTLE TUBE (ONLY) | 1 | Pc. | $4.00 | |
| 13 | A00551-08-00 | LEFT HANDLEBAR COMBO SWITCH | AUTO ONLY | 1 | Pc. | $18.00 |
| 14A | A00511-05-00 | RIGHT HANDLEBAR GRIP (ONLY) | BLACK | 1 | Pc. | $7.00 |
| 14 | A00478-08-00 | IGNITION SWITCH W/ 2 KEYS | AUTO ONLY | 1 | Pc. | $30.00 |

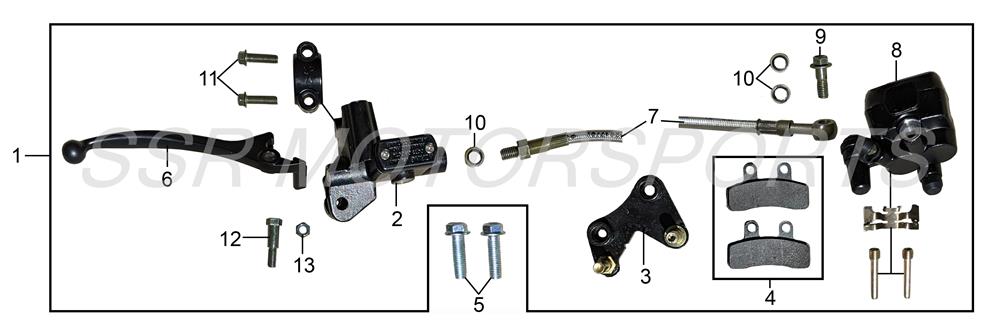

| FRONT BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00465-04-00 | FRONT BRAKE ASSY | 43H16/W451594 | 1 | Assy. | $98.00 |
| 2 | A00587-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $63.00 | |
| 3 | A00526-04-00 | FRONT BRAKE CALIPER BRACKET | 43H16/W451594 | 1 | Pc. | $18.00 |
| 4 | A00467-04-00 | FRONT BRAKE PAD SET | 1 | Set | $18.00 | |
| 5 | A00041-19-01 | FLANGE BOLT | GB5789-86 M8X30 S12 | 2 | Pcs. | $1.50 |
| 6 | A00318-05-00 | FRONT BRAKE LEVER | BLACK | 1 | Pc. | $18.00 |
| 7 | A00555-04-00 | FRONT BRAKE HOSE | 1 | Pc. | $18.00 | |
| 8 | A00588-04-00 | FRONT BRAKE CALIPER | 1 | Assy. | $76.00 | |
| 9 | A00675-04-00 | BANJO BOLT | M8 | 1 | Pc. | $2.00 |
| 10 | A00676-04-00 | SEALING WASHER | M8 | 3 | Pcs. | $1.50 |
| 11 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 12 | A00481-19-07 | LEVER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 13 | A00005-22-X4 | LOCKNUT | M6 | 1 | Pc. | $1.50 |
| REAR BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00468-04-00 | REAR BRAKE ASSY | L=520 | 1 | Assy. | $103.00 |
| 2 | A00469-04-00 | REAR BRAKE PAD SET | 1 | Set | $18.00 | |
| 3 | A00470-04-00 | REAR BRAKE CALIPER CARRIER | 190 12 | 1 | Pc. | $23.00 |
| 4 | A00523-04-00 | REAR BRAKE HOSE RETAINER | 1 | Pc. | $2.00 | |
| 5 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 6 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00582-04-00 | REAR BRAKE HOSE | L=520 | 1 | Pc. | $21.00 |
| 9 | A00585-04-00 | REAR BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $76.00 | |
| 10 | A00584-04-00 | REAR BRAKE CALIPER | 1 | Assy. | $85.00 | |
| 11 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 12 | A00007-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 13 | A00688-04-00 | BANJO BOLT | M10 | 1 | Pc. | $2.00 |
| 14 | A00675-04-00 | BANJO BOLT | M8 | 1 | Pc. | $2.00 |
| 15 | A00549-04-00 | SEALING WASHER | M10 | 2 | Pcs. | $1.50 |
| 16 | A00676-04-00 | SEALING WASHER | M8 | 2 | Pcs. | $1.50 |
| 17 | A00089-19-X1 | FLANGE BOLT | M8x12 | 2 | Pcs. | $1.50 |
| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00265-16-00 | RIGHT FRONT FORK ASSY | 33MM/630MM | 1 | Assy. | $98.00 |
| 2 | A00727-16-00 | LEFT FRONT FORK ASSY | 33MM/630MM | 1 | Assy. | $98.00 |
| 3 | A00737-04-00 | BRAKE HOSE CLAMP | 1 | Pc. | $2.50 | |
| 4 | A00094-19-01 | FLANGE BOLT | GB823-88 M5X16 | 1 | Pc. | $1.50 |
| 5 | A00085-26-00 | FORK SEAL | 33X46X10.8 | 2 | Pcs. | $7.00 |
| 6 | A00086-26-00 | FORK DUST SEAL | 33X46X13 | 2 | Pcs. | $7.00 |
| 7 | A00005-22-03 | FLANGE NUT | GB6177-86 M5 | 1 | Pc. | $1.50 |
| 8 | A00393-19-01 | FORK CROWN BOLT | M10X24 | 2 | Pcs. | $3.50 |
| TRIPLE CLAMPS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00157-15-00 | LOWER TRIPLE CLAMP W/ STEERING STEM | 25.1X201 | 1 | Pc. | $72.00 |
| 1 | A00394-15-00 | LOWER TRIPLE CLAMP W/ STEERING STEM | MATTE BLACK | 1 | Pc. | $72.00 |
| 2 | A00158-15-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $59.00 | |
| 2 | A00395-15-00 | UPPER TRIPLE CLAMP | MATTE BLACK | 1 | Pc. | $59.00 |
| 4 | A00210-15-00 | HANDLEBAR RISER ASSY | 1 | Assy. | $30.00 | |
| 4 | A00396-15-00 | HANDLEBAR RISER ASSY | MATTE BLACK | 1 | Assy. | $30.00 |
| 4-1 | A00160-15-00 | UPPER HANDLEBAR CLAMP | 2 | Pcs. | $8.00 | |
| 4-1 | A00398-15-00 | UPPER HANDLEBAR CLAMP | MATTE BLACK | 2 | Pcs. | $8.00 |
| 4-2 | A00165-15-00 | LOWER HANDLEBAR CLAMP | (HIGH MOUNT) | 2 | Pcs. | $10.00 |
| 4-2 | A00399-15-00 | LOWER HANDLEBAR CLAMP | MATTE BLACK (HIGH MOUNT) | 2 | Pcs. | $10.00 |
| 5 | A00166-15-00 | STEERING STEM NUT | 1 | Pc. | $6.00 | |
| 6 | A00170-15-00 | WASHER | 23X36X2 | 1 | Pc. | $2.50 |
| 7 | A00171-15-00 | STEERING STEM ADJUSTMENT NUT | 1 | Pc. | $4.00 | |
| 8 | A00167-15-00 | FLANGE NUT | GB6187-86 M8 | 4 | Pcs. | $1.50 |
| 9 | A00168-15-00 | STEERING STEM BEARING SET | 1 | Pc. | $30.00 | |
| 10 | A00251-19-02 | ALLEN BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 12 | A00033-19-03 | ALLEN BOLT | M8X120 | 4 | Pcs. | $3.50 |
| 13 | A00026-19-03 | ALLEN BOLT | M8X12 | 2 | Pcs. | $1.50 |

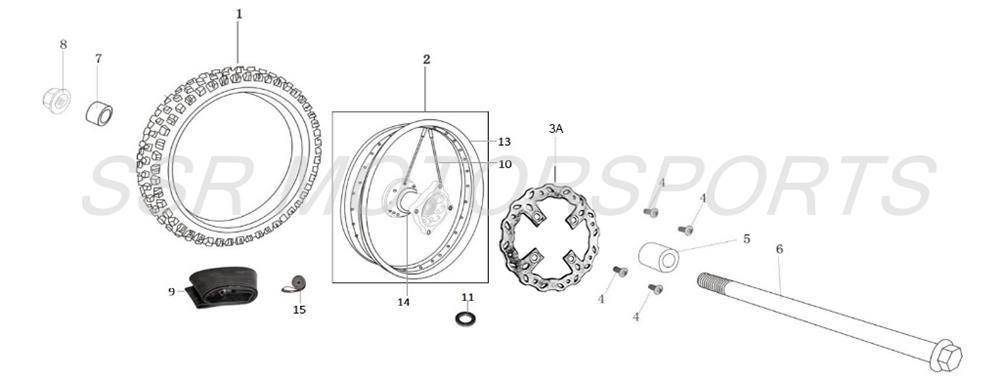

| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00527-18-00 | FRONT TIRE | 60/100-14 | 1 | Pc. | $34.00 |
| 2 | A00276-18-00 | FRONT WHEEL ASSY | 1.4-14 | 1 | Assy. | $98.00 |
| 3A | A00682-04-00 | FRONT BRAKE ROTOR | 1 | Pc. | $27.00 | |
| 4 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 5 | A00277-18-00 | FRONT LEFT WHEEL SPACER | 12X20XH26 | 1 | Pc. | $6.00 |
| 6 | A00278-18-00 | FRONT WHEEL AXLE | 12X205XM12X1.25MM | 1 | Pc. | $11.00 |
| 7 | A00279-18-00 | FRONT RIGHT WHEEL SPACER | 12X20XH17 | 1 | Pc. | $6.00 |
| 8 | A00001-22-03 | FLANGE NUT | GB6187-86 M12X1.25 | 1 | Pc. | $2.00 |
| 9 | A00233-18-00 | INNER TUBE | 2.50-14 | 1 | Pc. | $18.00 |
| 10 | A00397-18-00 | FRONT SPOKE SET | 1 | Set | $21.00 | |
| 11 | A00075-28-00 | WHEEL BEARING | 6301RS | 2 | Pcs. | $6.00 |
| 13 | A00398-18-00 | FRONT RIM | 1.4-14 | 1 | Pc. | $42.00 |
| 14 | A00399-18-00 | FRONT HUB | 1 | Pc. | $72.00 | |
| 15 | A00400-18-00 | RIM STRIP | 14" | 1 | Pc. | $6.00 |

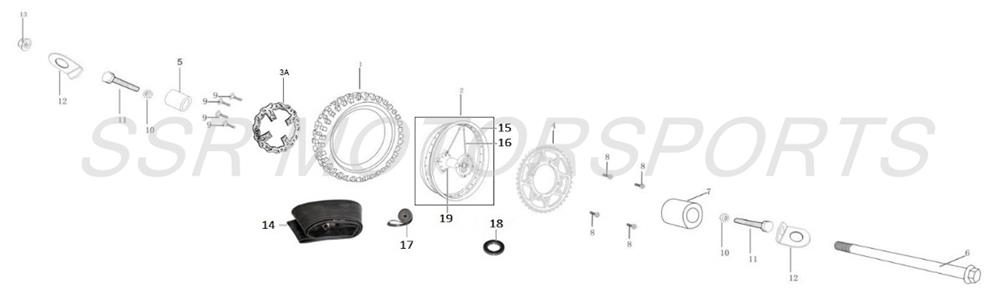

| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00528-18-00 | REAR TIRE | 80/100-12 | 1 | Pc. | $34.00 |
| 2 | A00282-18-00 | REAR WHEEL ASSY | 1.85-12/SSR | 1 | Assy. | $98.00 |
| 3A | A00682-04-00 | REAR BRAKE ROTOR | 1 | Pc. | $27.00 | |
| 4 | A00310-07-00 | REAR SPROCKET | 37T | 1 | Pc. | $21.00 |
| 5 | A00283-18-00 | REAR RIGHT WHEEL SPACER | 12X20XH27 | 1 | Pc. | $6.00 |
| 6 | A00284-18-00 | REAR AXLE | 12X210XM12X1.25MM | 1 | Pc. | $11.00 |
| 7 | A00285-18-00 | REAR LEFT WHEEL SPACER | 12X20XH33 | 1 | Pc. | $6.00 |
| 8 | A00007-19-01 | FLANGE BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 9 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 10 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
| 11 | A00286-18-00 | BOLT | M8X40 S12 | 2 | Pcs. | $2.00 |
| 12 | A00554-18-00 | CHAIN ADJUSTER BRACKET | 38X17X37X3X13 | 2 | Pcs. | $6.00 |
| 13 | A00001-22-03 | FLANGE NUT | GB6187-86 M12X1.25 | 1 | Pc. | $2.00 |
| 14 | A00291-18-00 | INNERTUBE | 3.00-12 | 1 | Pc. | $18.00 |
| 15 | A00401-18-00 | REAR RIM | 1.85-12 | 1 | Pc. | $42.00 |
| 16 | A00402-08-00 | REAR SPOKE SET | 1 | Set | $21.00 | |
| 17 | A00292-18-00 | RIM STRIP | 12" | 1 | Pc. | $6.00 |
| 18 | A00075-28-00 | WHEEL BEARING | 6301RS | 2 | Pcs. | $6.00 |
| 19 | A00404-08-00 | REAR HUB | 1 | Pc. | $72.00 | |

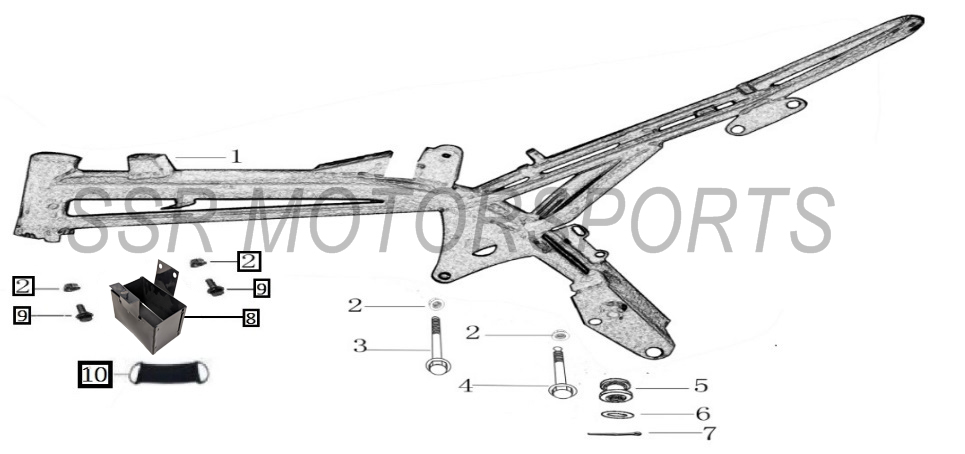

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00366-11-00 | FRAME | *OVERSIZE* | 1 | Pc. | $185.00 |
| 1 | A00505-11-00 | FRAME | 125 AUTO ONLY *OVERSIZE* | 1 | Pc. | $185.00 |
| 2 | A00100-22-34 | FLANGE LOCKNUT | M8 | 2 or 5 | Pcs. | $1.50 |
| 3 | A00046-19-01 | FLANGE BOLT | GB5787-86 M8X110 | 1 | Pc. | $2.50 |
| 4 | A00047-19-01 | FLANGE BOLT | M8X110 (NOTCHED) | 1 | Pc. | $2.50 |
| 5 | A00367-11-00 | CHAIN ROLLER | 1 | Pc. | $8.00 | |
| 6 | A00014-21-01 | WASHER | GB97.1-85 10X20X2 | 1 | Pc. | $1.50 |
| 7 | A00019-28-01 | COTTER PIN | GB91-86 2.5X24 | 1 | Pc. | $1.50 |
| 8 | A00525-11-00 | BATTERY BOX | AUTO ONLY | 1 | Pc. | $26.00 |
| 9 | A00015-19-01 | FLANGE BOLT | M8X20 AUTO ONLY | 3 | Pcs. | $1.50 |
| 10 | A00476-08-00 | BATTERY STRAP | AUTO ONLY | 1 | PC | $8.00 |

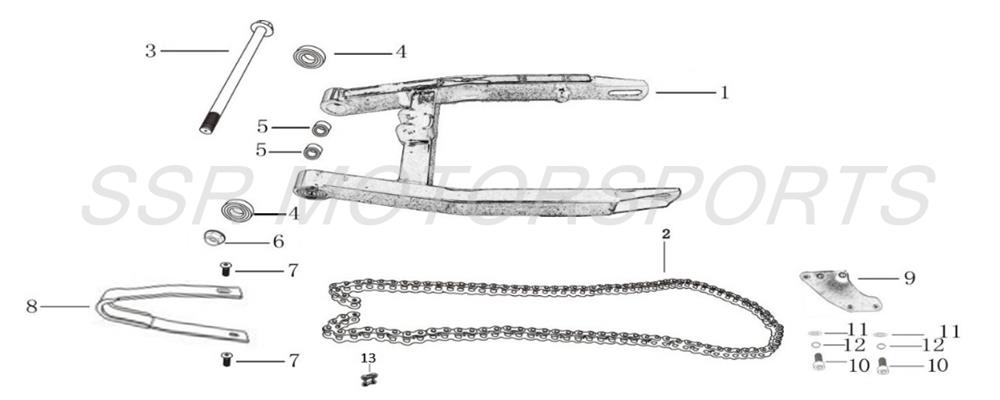

| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00541-11-00 | SWINGARM | BLACK | 1 | Pc. | $85.00 |
| 2 | A00293-07-00 | DRIVE CHAIN | 420-102L | 1 | Pc. | $51.00 |
| 3 | A00369-11-00 | SWINGARM AXLE | 10X190XM10X1.25MM | 1 | Pc. | $10.00 |
| 4 | A00011-28-00 | BEARING | 6200Z | 2 | Pcs. | $8.00 |
| 5 | A00373-11-00 | SLEEVE | 10.2X22.5XH17 | 2 | Pcs. | $6.00 |
| 6 | A00004-22-34 | FLANGE LOCKNUT | GB6187-86 M10X1.25 | 1 | Pc. | $2.00 |
| 7 | A00006-20-12 | CS SCREW | M6X12 | 2 | Pc. | $1.50 |
| 8 | A00545-11-00 | FRONT CHAIN SLIDER | 1 | Pc. | $18.00 | |
| 9 | A00371-11-00 | LOWER CHAIN GUIDE | 1 | Pc. | $21.00 | |
| 10 | A00251-19-02 | ALLEN BOLT | GB70-85 M8X20 | 2 | Pcs. | $1.50 |
| 11 | A00013-21-01 | WASHER | 8X16X1.5MM | 2 | Pcs. | $1.50 |
| 12 | A00001-21-02 | LOCK WASHER | GB93-87 8X13X2 | 2 | Pcs. | $1.50 |
| 13 | A00287-07-00 | CLIP LINK | 420 | 1 | Pc. | $6.00 |
| 14 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 3 | Pcs. | $1.50 |
| 15 | A00005-22-04 | LOCKNUT | M6 | 3 | Pcs. | $1.50 |
| REAR SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00267-16-00 | REAR SHOCK ABSORBER | K-00 L=280 11 | 1 | Pc. | $98.00 |
| 2 | A00004-22-03 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 3 | A00048-19-01 | FLANGE BOLT | GB5787-86 M10X40X1.25 | 2 | Pcs. | $3.50 |

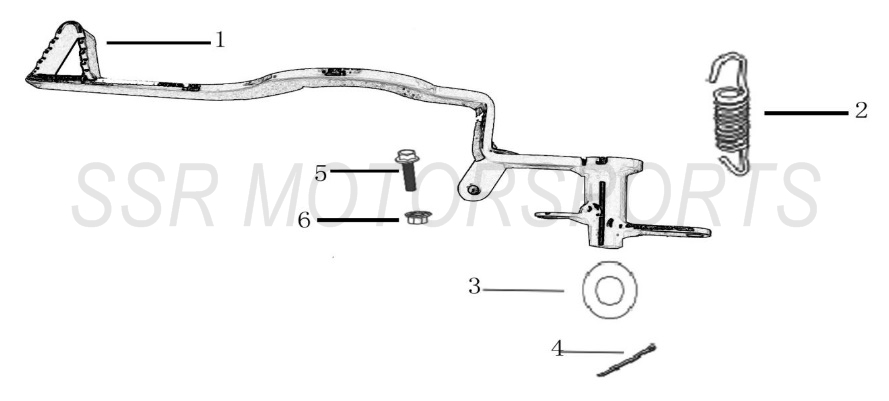

| REAR BRAKE PEDAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00319-05-00 | REAR BRAKE PEDAL | BLACK | 1 | Pc. | $27.00 |
| 2 | A00320-05-00 | REAR BRAKE PEDAL RETURN SPRING | 13X2.4XH24X10 | 1 | Pc. | $2.00 |
| 3 | A00015-21-01 | WASHER | 15X30X2.5 | 1 | Pc. | $1.50 |
| 4 | A00019-28-01 | COTTER PIN | 2.5X24 | 1 | Pc. | $1.50 |
| 5 | A00003-19-01 | FLANGE BOLT | M6X25 | 1 | Pc. | $1.50 |
| 6 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| ENGINE ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00038-09-00 | COMPLETE ENGINE ASSY | MANUAL *OVERSIZE* | 1 | Assy. | $299.00 |
| 1 | A01324-09-00 | COMPLETE ENGINE ASSY | SEMI AUTO *OVERSIZE* | 1 | Assy. | $299.00 |
| 1 | A01339-09-00 | COMPLETE ENGINE ASSY | AUTO *OVERSIZE* | 1 | Assy. | $346.00 |
| 2 | A00323-05-00 | REAR BRAKE PEDAL STOPPER | 1 | Pc. | $10.00 | |
| SKIDPLATE, SIDE STAND AND FOOTPEGS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00372-11-00 | SKID PLATE | 1 | Pc. | $42.00 | |
| 2 | A00002-19-01 | FLANGE BOLT | M6X16 S10 | 2 | Pcs. | $1.50 |
| 3 | A00014-19-01 | FLANGE BOLT | GB5787-86 M8X40 | 2 | Pcs. | $2.00 |
| 4 | A00324-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 5 | A00325-05-00 | FOOTPEG BRACKET | 1 | Pc. | $27.00 | |
| 6 | A00326-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
| 7 | A00327-05-00 | SIDE STAND ASSY | L=280 | 1 | Assy. | $27.00 |
| 8 | A00015-19-01 | FLANGE BOLT | GB5789-86 M8X20 S12 | 2 | Pcs. | $1.50 |
| 9 | A00004-21-01 | WASHER | 2 | Pcs. | $1.50 | |
| 10 | A00336-05-00 | FOOTPEG PIVOT PIN | 2 | Pcs. | $1.50 | |
| 11 | A00505-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 12 | A00506-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 13 | A00019-28-01 | COTTER PIN | 2.5X24 | 2 | Pcs. | $1.50 |
| 14 | A00455-05-00 | SIDE STAND SPRING | 1 | Pc. | $2.50 | |
| 15 | A00456-19-07 | SIDE STAND BOLT | M10X26 | 1 | Pc. | $1.50 |
| CARBURETOR & AIR FILTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00352-12-00 | CARBURETOR ASSY | 1 | Assy. | $76.00 | |
| 1-1 | A00154-27-00 | O-RING | 29.2X2.5 | 1 | Pc. | $1.50 |
| 1-2 | A00417-12-00 | FLOAT BOWL O-RING | 1 | Pc. | $2.50 | |
| 1-1 | A00155-27-00 | O-RING | 28.5X3 | 1 | Pc. | $1.50 |
| 2 | A00225-14-00 | AIR FILTER ELEMENT | 38 | 1 | Assy. | $21.00 |
| 2 | A00300-14-00 | AIR FILTER ELEMENT - BUTTON | 38 | 1 | Assy. | $23.00 |
| 3 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 4 | A00052-01-00 | CARBURETOR JET KIT | AVAILABLE ACCESSORY | 1 | Kit | $33.00 |
| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00076-10-00 | MUFFLER ASSY | CHROME | 1 | Assy. | $103.00 |
| 2 | A00049-19-01 | FLANGE BOLT | M8X35 | 1 | Pc. | $2.00 |
| 3 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 4 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 5 | A00115-13-00 | MUFFLER GASKET | 1 | Pc. | $6.00 | |
| 6 | A00090-20-01 | MED PANHEAD PHILLIPS BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 7 | A00002-21-02 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 8 | A00202-10-00 | CLAMP | 1 | Pc. | $6.00 | |
| 9 | A00203-10-00 | MUFFLER CLAMP | WITH RUBBER | 1 | Pc. | $18.00 |
| 10 | A00101-10-00 | MUFFLER GUARD | 1 | Pc. | $18.00 | |
| 11 | A00083-01-00 | PRO CIRCUIT T-4/S SILENCER | WITH SPARK ARRESTOR | 1 | Pc. | $402.00 |
| 12 | A00116-10-00 | MUFFLER HEAD PIPE | ONLY | 1 | Pc. | $50.00 |
| 13 | A00117-10-00 | MUFFLER | ONLY | 1 | Pc. | $76.00 |
| 14 | A00118-10-00 | RUBBER DAMPER | 1 | Pc. | $1.50 | |
| WIRE HARNESS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00462-08-00 | WIRE HARNESS | 1 | Pc. | $42.00 | |
| 1-1 | A00561-08-00 | WIRE HARNESS | AUTO ONLY | 1 | Pc. | $76.00 |
| 2 | A00463-08-00 | CDI | 1 | Pc. | $26.00 | |
| 3 | A00480-08-00 | IGNITION COIL | T4/SSR | 1 | Pc. | $27.00 |
| 4 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 5 | A00093-22-03 | FLANGE NUT | GB6177-86 M6 | 1 | Pc. | $1.50 |
| 6 | YTX5L-BS | BATTERY | 12V5Ah (AUTO ONLY) | 1 | Pc. | $76.00 |
| 7 | A00477-08-00 | REGULATOR / RECTIFIER | AUTO ONLY | 1 | Pc. | $21.00 |
| 8 | A00475-08-00 | STARTER RELAY | AUTO ONLY | 1 | Pc. | $27.00 |
| 9 | A00156-08-00 | FUSE | 10A AUTO ONLY | 1 | Pc. | $2.50 |

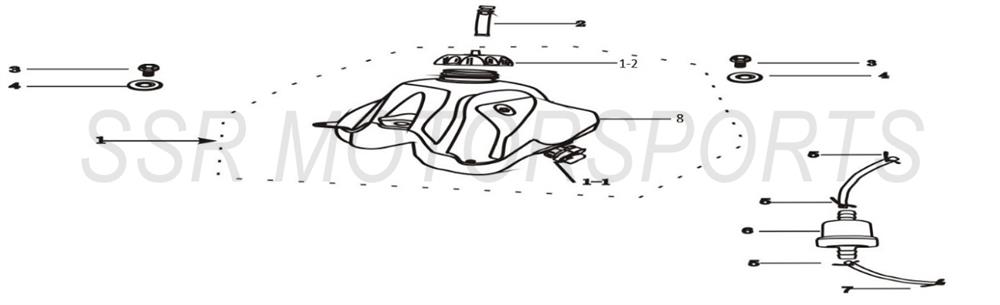

| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00315-12-00 | FUEL TANK ASSY | W/ FUEL PETCOCK | 1 | Assy. | $56.00 |
| 1-1 | A00330-12-00 | FUEL PETCOCK | 1 | Pc. | $18.00 | |
| 1-2 | A00317-12-00 | FUEL TANK CAP | 1 | Pc. | $14.00 | |
| 2 | A00332-12-00 | FUEL TANK CAP VENT | 1 | Pc. | $6.00 | |
| 3 | A00007-19-01 | FLANGE BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 4 | A00012-21-01 | WASHER | 8X28X1.5 | 2 | Pcs. | $1.50 |
| 5 | A00002-24-03 | WIRE HOSE CLAMP | 7.5 | 3 | Pcs. | $1.50 |
| 6 | A00254-12-00 | FUEL FILTER | FILTER ONLY | 1 | Pc. | $4.00 |
| 6 | A00464-12-00 | FUEL FILTER W/ HOSES + CLAMPS | 1 | Assy. | $6.00 | |
| 7 | A00003-24-03 | WIRE HOSE CLAMP | 9 | 1 | Pc. | $1.50 |
| 8 | A00358-12-00 | FUEL TANK | ONLY | 1 | Pc. | $42.00 |
| 9 | A00465-12-00 | FUEL HOSE | A=50MM B=200MM | 1 | Set | $4.00 |
| 10 | A00468-12-00 | FUEL PETCOCK GASKET | 1 | Pc. | $7.00 | |

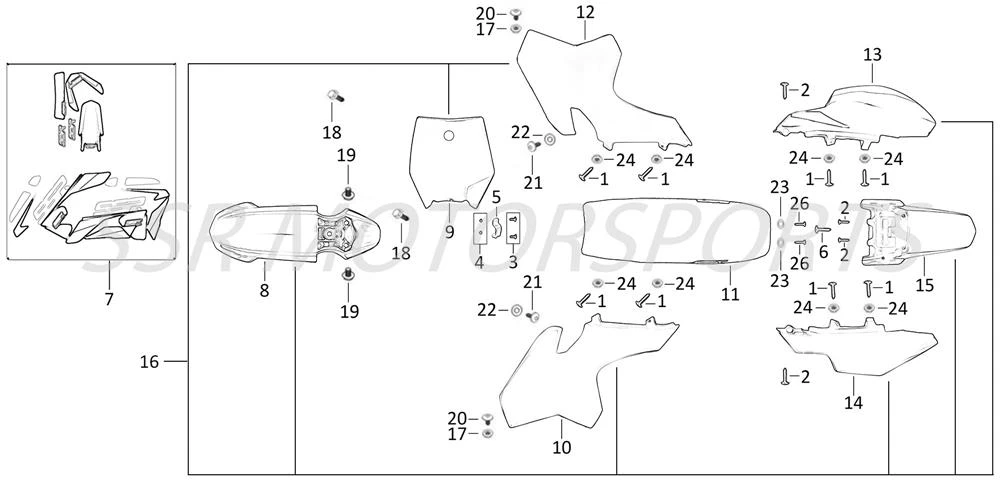

| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00010-20-03 | ST SCREW | ST4.2X16 | 8 | Pcs. | $1.50 |
| 2 | A00002-20-03 | ST SCREW | ST4.2X12 | 4 | Pcs. | $1.50 |
| 3 | A00009-20-01 | SCREW | M4X12 | 2 | Pcs. | $1.50 |
| 4 | A00348-22-04 | LOCKNUT | M4 | 2 | Pcs. | $1.50 |
| 5 | A00684-02-00 | FRONT BRAKE HOSE GUIDE | WHITE | 1 | Pc. | $1.50 |
| 6 | A00009-20-03 | ST SCREW | ST4.8X16 | 1 | Pc. | $1.50 |
| 7 | A00702-02-00 | GRAPHIC KIT | 3M | 1 | Kit | $39.00 |
| 8 | A00685-02-02 | FRONT FENDER | BLACK | 1 | Pc. | $14.00 |
| 8 | A00685-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $14.00 |
| 8 | A00685-02-40 | FRONT FENDER | LIME GREEN | 1 | Pc. | $14.00 |
| 8 | A00685-02-12 | FRONT FENDER | BLUE | 1 | Pc. | $14.00 |
| 8 | A00685-02-18 | FRONT FENDER | RED | 1 | Pc. | $14.00 |
| 8 | A00685-02-03 | FRONT FENDER | ORANGE | 1 | Pc. | $14.00 |
| 9 | A00686-02-02 | FRONT NUMBER PLATE | BLACK | 1 | Pc. | $14.00 |
| 9 | A00686-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 9 | A00686-02-40 | FRONT NUMBER PLATE | LIME GREEN | 1 | Pc. | $14.00 |
| 9 | A00686-02-12 | FRONT NUMBER PLATE | BLUE | 1 | Pc. | $14.00 |
| 9 | A00686-02-18 | FRONT NUMBER PLATE | RED | 1 | Pc. | $14.00 |
| 9 | A00686-02-03 | FRONT NUMBER PLATE | ORANGE | 1 | Pc. | $14.00 |
| 10 | A00687-02-02 | LEFT FUEL TANK SHROUD | BLACK | 1 | Pc. | $14.00 |
| 10 | A00687-02-01 | LEFT FUEL TANK SHROUD | WHITE | 1 | Pc. | $14.00 |
| 10 | A00687-02-40 | LEFT FUEL TANK SHROUD | LIME GREEN | 1 | Pc. | $14.00 |
| 10 | A00687-02-12 | LEFT FUEL TANK SHROUD | BLUE | 1 | Pc. | $14.00 |
| 10 | A00687-02-18 | LEFT FUEL TANK SHROUD | RED | 1 | Pc. | $14.00 |
| 10 | A00687-02-03 | LEFT FUEL TANK SHROUD | ORANGE | 1 | Pc. | $14.00 |
| 11 | A00666-02-02 | SEAT | TALL | 1 | Pc. | $45.00 |
| 12 | A00688-02-02 | RIGHT FUEL TANK SHROUD | BLACK | 1 | Pc. | $14.00 |
| 12 | A00688-02-01 | RIGHT FUEL TANK SHROUD | WHITE | 1 | Pc. | $14.00 |
| 12 | A00688-02-40 | RIGHT FUEL TANK SHROUD | LIME GREEN | 1 | Pc. | $14.00 |
| 12 | A00688-02-12 | RIGHT FUEL TANK SHROUD | BLUE | 1 | Pc. | $14.00 |
| 12 | A00688-02-18 | RIGHT FUEL TANK SHROUD | RED | 1 | Pc. | $14.00 |
| 12 | A00688-02-03 | RIGHT FUEL TANK SHROUD | ORANGE | 1 | Pc. | $14.00 |
| 13 | A00689-02-02 | RIGHT REAR NUMBER PLATE | BLACK | 1 | Pc. | $14.00 |
| 13 | A00689-02-01 | RIGHT REAR NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 13 | A00689-02-40 | RIGHT REAR NUMBER PLATE | LIME GREEN | 1 | Pc. | $14.00 |
| 13 | A00689-02-12 | RIGHT REAR NUMBER PLATE | BLUE | 1 | Pc. | $14.00 |
| 13 | A00689-02-18 | RIGHT REAR NUMBER PLATE | RED | 1 | Pc. | $14.00 |
| 13 | A00689-02-03 | RIGHT REAR NUMBER PLATE | ORANGE | 1 | Pc. | $14.00 |
| 14 | A00690-02-02 | LEFT REAR NUMBER PLATE | BLACK | 1 | Pc. | $14.00 |
| 14 | A00690-02-01 | LEFT REAR NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 14 | A00690-02-40 | LEFT REAR NUMBER PLATE | LIME GREEN | 1 | Pc. | $14.00 |
| 14 | A00690-02-12 | LEFT REAR NUMBER PLATE | BLUE | 1 | Pc. | $14.00 |
| 14 | A00690-02-18 | LEFT REAR NUMBER PLATE | RED | 1 | Pc. | $14.00 |
| 14 | A00690-02-03 | LEFT REAR NUMBER PLATE | ORANGE | 1 | Pc. | $14.00 |
| 15 | A00691-02-02 | REAR FENDER | BLACK | 1 | Pc. | $14.00 |
| 15 | A00691-02-01 | REAR FENDER | WHITE | 1 | Pc. | $14.00 |
| 15 | A00691-02-40 | REAR FENDER | LIME GREEN | 1 | Pc. | $14.00 |
| 15 | A00691-02-12 | REAR FENDER | BLUE | 1 | Pc. | $14.00 |
| 15 | A00691-02-18 | REAR FENDER | RED | 1 | Pc. | $14.00 |
| 15 | A00691-02-03 | REAR FENDER | ORANGE | 1 | Pc. | $14.00 |
| 16 | A00692-02-02 | COMPLETE PLASTIC KIT | BLACK | 1 | Kit | $42.00 |
| 16 | A00692-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | Kit | $42.00 |
| 16 | A00692-02-40 | COMPLETE PLASTIC KIT | LIME GREEN | 1 | Kit | $42.00 |
| 16 | A00692-02-12 | COMPLETE PLASTIC KIT | BLUE | 1 | Kit | $42.00 |
| 16 | A00692-02-18 | COMPLETE PLASTIC KIT | RED | 1 | Kit | $42.00 |
| 16 | A00692-02-03 | COMPLETE PLASTIC KIT | ORANGE | 1 | Kit | $42.00 |
| 17 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 18 | A00002-19-01 | FLANGE BOLT | M6X16 S10 | 2 | Pcs. | $1.50 |
| 19 | A00008-19-03 | BOLT | M6X12 S10 | 2 | Pcs. | $1.50 |
| 20 | A00003-20-01 | SCREW | M6X16 | 2 | Pcs. | $1.50 |
| 21 | A00010-19-29 | PAN HEAD PHILLIPS BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 22 | A00016-21-01 | RUBBER WASHER | 6X17X3.5 | 2 | Pcs. | $1.50 |
| 23 | A00011-21-01 | WASHER | 6X18X1.5 | 2 | Pcs. | $1.50 |
| 24 | A00017-21-01 | WASHER | 6X12X1.5 | 6 | Pcs. | $1.50 |
| 26 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
The SR125/SR125SEMI/SR125AUTO Full Parts Schematics (2018-2022) is an essential resource for owners, mechanics, and enthusiasts of the SR125 series pit bikes. This comprehensive parts catalog provides detailed schematics and part numbers for every component of the SR125, SR125SEMI, and SR125AUTO models, covering the years 2018 to 2022. Whether you're performing routine maintenance, repairing damaged parts, or customizing your bike, this guide ensures you have access to accurate and reliable information.
Key Features:
-
Complete Coverage:
-
This catalog includes detailed schematics for all major systems of the SR125 series, including:
-
Handlebars and Controls
-
Front and Rear Brake Systems
-
Suspension (Front and Rear)
-
Wheels and Tires
-
Frame and Swingarm
-
Engine Assembly
-
Carburetor and Air Filter
-
Muffler and Exhaust
-
Fuel Tank and Body Components
-
Electrical Systems (Wire Harness, CDI, Ignition Coil, etc.)
-
-
-
Accurate Part Numbers:
-
Each component is listed with its corresponding part number, description, specifications, quantity, unit, and retail price. This makes it easy to identify and order the exact parts you need.
-
-
Detailed Schematics:
-
The schematics are organized by system, providing a clear visual representation of how each part fits into the overall assembly. This is invaluable for both novice and experienced mechanics.
-
-
Compatibility:
-
The catalog covers all three variants of the SR125 series: SR125 (Manual), SR125SEMI (Semi-Automatic), and SR125AUTO (Automatic). It also includes specific notes for parts that are unique to each model.
-
-
User-Friendly Format:
-
The catalog is designed for ease of use, with a logical structure and clear labeling. Each section is broken down into subcategories, making it simple to locate the information you need.
-
-
Maintenance and Repair Guidance:
-
While not a step-by-step repair manual, the schematics provide valuable insights into the assembly and disassembly of key components, aiding in maintenance and repair tasks.
-
SR125 parts schematics, SR125SEMI parts catalog, SR125AUTO parts list, 2018-2022 SR125 parts, pit bike parts schematics, SR125 handlebar parts, SR125 brake system parts, SR125 suspension parts, SR125 wheel and tire parts, SR125 frame parts, SR125 engine assembly parts, SR125 carburetor parts, SR125 muffler parts, SR125 fuel tank parts, SR125 body components, SR125 wire harness parts, SR125 repair manual, SR125 maintenance guide, SR125 part numbers, SR125 OEM parts, SR125 aftermarket parts, SR125 customization parts, SR125 semi-automatic parts, SR125 automatic parts, SR125 manual parts, SR125 pit bike accessories.
- Use Schematics to locate part numbers:
- Call 320-358-1994 to order!
-
-
-
-
-
Only 1 left in stock
-
Only 2 left in stock
-
-
Out of stock
-
Only 1 left in stock
