(SR125SEMI) Full Engine Parts Schematics (Bangen) (Semi-Auto) (2015-2017)
| 2015-2017 SR125Semi | ||||||
| CYLINDER HEAD & CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00289-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |
| 2 | A00008-27-00 | O-RING | 14.5X2.5 | 2 | Pcs. | $1.50 |
| 3 | A01253-09-00 | CYLINDER | BANGEN | 1 | Pc. | $98.00 |
| 4 | A00113-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $11.00 | |
| 5 | A01257-09-00 | TENSIONER SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 6 | A01255-09-00 | TIMING CHAIN | 84L | 1 | Pc. | $30.00 |
| 7 | A00042-27-00 | O-RING | 9X1.6 | 2 | Pcs. | $1.50 |
| 8 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| 9 | A00118-23-00 | SPECIAL PIN | 8X11 | 1 | Pc. | $2.50 |
| 12 | A01300-09-00 | CHAIN ROLLER | RUBBER | 1 | Pc. | $14.00 |
| 13 | A00094-21-01 | WASHER | 8x14x1.5 | 1 | Pc. | $1.50 |
| 14 | A01303-09-00 | ROLLER GUIDE BOLT | 1 | Pc. | $1.50 | |
| 15 | A01180-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $124.00 |
| 16 | A01329-09-00 | CAMSHAFT SPROCKET | 28T | 1 | Pc. | $21.00 |
| 17 | A01177-09-00 | ALUMINUM WASHER | M6 | 1 | Pc. | $1.50 |
| 18 | A00439-19-07 | TIMING COVER FLANGE BOLT | M6X110 | 1 | Pc. | $2.50 |
| 19 | A00025-19-03 | BOLT | M5X12 | 3 | Pcs. | $1.50 |
| 20 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 21 | A01173-09-00 | LEFT CYLINDER HEAD COVER | CHROME | 1 | Pc. | $18.00 |
| 22 | A00004-27-00 | O-RING | 30.8X3.2 | 2 | Pcs. | $3.50 |
| 23 | A01174-09-00 | TAPPET COVER | CHROME | 2 | Pcs. | $8.00 |
| 24 | A00002-19-03 | BOLT | M6X23 | 2 | Pcs. | $1.50 |
| 25 | A00110-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 26 | A01171-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $21.00 | |
| 27 | A00008-21-01 | WASHER | M7 | 3 | Pcs. | $1.50 |
| 28 | A00269-21-01 | COPPER WASHER | M7 | 1 | Pc. | $1.50 |
| 29 | A00328-22-36 | FLANGE CAP NUT | M7 | 4 | Pcs. | $1.50 |
| 30 | A00293-14-00 | INTAKE MANIFOLD | YX-02 | 1 | Pc. | $36.00 |
| 31 | A00292-14-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $4.00 | |
| 32 | A00272-13-00 | INTAKE INSULATOR | M4.7 | 1 | Pc. | $6.00 |
| 33 | A00274-13-00 | CARBURETOR GASKET | 1 | Pc. | $4.00 | |

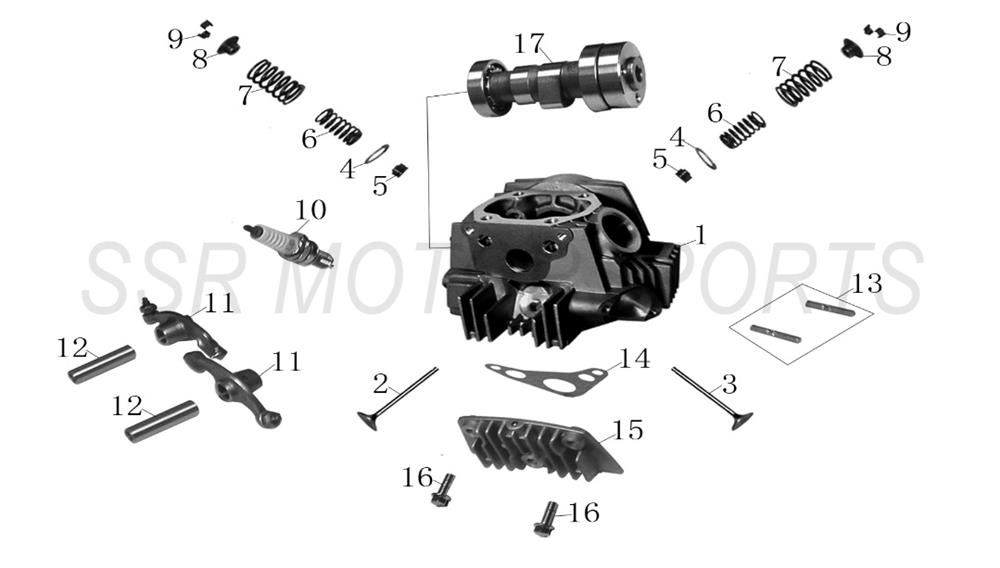

| CYLINDER HEAD & VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01180-09-00 | CYLINDER HEAD | W/ VALVES | 1 | Pc. | $124.00 |
| 2 | A02863-09-00 | INTAKE VALVE | 1 | Pc. | $13.00 | |
| 3 | A02864-09-00 | EXHAUST VALVE | 1 | Pc. | $13.00 | |
| 4 | A02868-09-00 | LOWER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 5 | A02858-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.50 | |
| 6 | A02866-09-00 | INNER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 7 | A02865-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 8 | A02867-09-00 | UPPER VALVE SPRING RETAINER | 4 | Pcs. | $7.00 | |
| 9 | A02869-09-00 | COLLET | 4 | Pcs. | $2.00 | |
| 10 | D8EA | SPARK PLUG | D8EA | 1 | Pc. | $10.00 |
| 11 | A02861-09-00 | ROCKER ARM | 2 | Pcs. | $18.00 | |
| 12 | A02862-09-00 | ROCKER ARM SHAFT | 2 | Pcs. | $6.00 | |
| 13 | A00001-19-04 | STUD | M6x32 | 2 | Pcs. | $1.50 |
| 14 | A00128-13-00 | RIGHT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 15 | A01172-09-00 | RIGHT CYLINDER HEAD COVER | 1 | Pc. | $18.00 | |
| 16 | A00126-19-01 | FLANGE BOLT | M6x20 | 2 | Pcs. | $1.50 |
| 17 | A02859-09-00 | CAMSHAFT | 1 | Pc. | $63.00 | |
| RIGHT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02326-09-00 | RIGHT ENGINE COVER | 1 | Pc. | $85.00 | |
| 2 | A00120-13-00 | CLUTCH COVER GASKET | 1 | Pc. | $14.00 | |
| 3 | A01311-09-00 | OIL LEVEL DIPSTICK | 1 | Pc. | $8.00 | |
| 4 | A02327-09-00 | CLUTCH OPERATING ARM | 1 | Pc. | $26.00 | |
| 5 | A02328-09-00 | CLUTCH CAM PLATE | 1 | Assy. | $14.00 | |
| 6 | A02329-09-00 | CLUTCH SEPARATING DISK | 1 | Assy. | $1.50 | |
| 8 | A02331-09-00 | CLUTCH ADJUSTING BOLT | 1 | Pc. | $6.00 | |
| 12 | A01310-09-00 | COIL WIRE RETAINER | 1 | Pc. | $1.50 | |
| 13 | A00004-21-01 | WASHER | 8MM | 1 | Pc. | $1.50 |
| 14 | A00005-26-00 | OIL SEAL | 13.7X24X5 | 1 | Pc. | $6.00 |
| 15 | A00090-27-00 | O-RING | 18X3 | 1 | Pc. | $2.50 |
| 16 | A00019-27-00 | O-RING | 8X2 | 1 | Pc. | $1.50 |
| 17 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
| 18 | A00003-23-00 | DOWEL PIN | 8X12 | 1 | Pc. | $1.50 |
| 19 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 2 | Pcs. | $1.50 |
| 20 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 5 | Pcs. | $2.00 |
| 21 | A00436-19-08 | CASE FLANGE BOLT | M6X80 | 2 | Pcs. | $2.00 |
| 22 | A01309-09-00 | CLUTCH ADJUSTMENT COVER | 1 | Pc. | $21.00 | |
| 23 | A00003-20-12 | CS PHILLIPS | M6X16 | 2 | Pcs. | $1.50 |
| CENTRIFUGAL CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01327-09-00 | CLUTCH WASHER | 1 | Pc. | $3.50 | |
| 2 | A01271-09-00 | PRIMARY DRIVE GEAR BUSHING | 1 | Pc. | $6.00 | |
| 3 | A01302-09-00 | GEAR | 18T | 1 | Pc. | $18.00 |
| 4 | A01301-09-00 | GEAR | 67T | 1 | Pc. | $21.00 |
| 5 | A00036-24-07 | CIRCLIP | 1 | Pc. | $1.50 | |
| 6 | A01213-09-00 | CLUTCH | 1 | Pc. | $76.00 | |
| 7 | A01283-09-00 | TONGUE WASHER | 1 | Pc. | $2.50 | |
| 8 | A01284-09-00 | PRIMARY DRIVE DISHED WASHER | 1 | Pc. | $1.50 | |
| 9 | A01282-09-00 | PRIMARY DRIVE GEAR LOCKNUT | M14X1 | 1 | Pc. | $2.50 |
| 10 | A00308-13-00 | CLUTCH LIFTER PLATE GASKET | 1 | Pc. | $8.00 | |
| 11 | A03025-09-00 | CLUTCH LIFTER PLATE | 1 | Pc. | $18.00 | |
| 12 | A00007-20-01 | CS SCREW | M5X12 | 4 | Pcs. | $1.50 |
| 13 | A01280-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 14 | A01279-09-00 | SLEEVE | 1 | Pc. | $1.50 | |
| 16 | A02715-09-00 | CLUTCH ASSY | 1 | Assy. | $98.00 | |

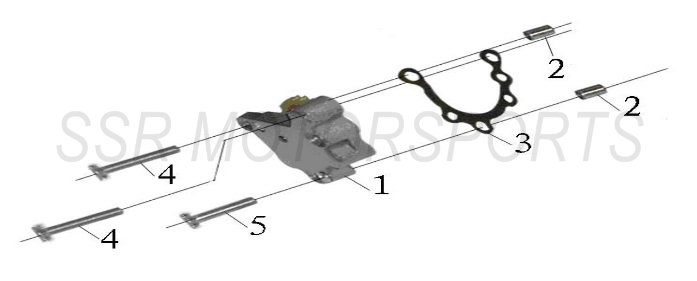

| OIL PUMP ASSY. | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01328-09-00 | OIL PUMP HOUSING | 1 | Pc. | $42.00 | |
| 2 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 3 | A00124-13-00 | OIL PUMP COVER GASKET | 1 | Pc. | $4.00 | |
| 4 | A00037-19-01 | FLANGE BOLT | M5X10 | 2 | Pcs. | $1.50 |
| 5 | A00024-19-01 | FLANGE BOLT | M6X22 | 1 | Pc. | $1.50 |
| STATOR & FLYWHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02760-09-00 | STATOR COVER | 1 | Pc. | $57.00 | |
| 2 | A02712-09-00 | STATOR W/ FLYWHEEL ASSY | BANGEN ENGINE | 1 | Assy. | $129.00 |
| 3 | A02770-09-00 | FLYWHEEL | BANGEN ENGINE | 1 | Pc. | $63.00 |
| 4 | A02711-09-00 | STATOR PLATE ASSY | BANGEN ENGINE | 1 | Assy. | $85.00 |
| 6 | A02920-09-00 | RUBBER PLUG | 1 | Pc. | $4.00 | |
| 8 | A00005-22-08 | SPECIAL NUT | M10X1.25 | 1 | Pc. | $1.50 |
| 9 | A00003-26-00 | OIL SEAL | 18.9X30X5 | 1 | Pc. | $4.00 |
| 10 | A00010-27-00 | O-RING | 107X2 | 1 | Pc. | $8.00 |
| 12 | A00012-27-00 | O-RING | 6.5X1.9 | 2 | Pcs. | $1.50 |
| 13 | A00008-19-03 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 14 | A00006-20-12 | CS SCREW | M6X12 | 2 | Pcs. | $1.50 |
| 15 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 1 | Pc. | $1.50 |
| 16 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 17 | A00002-21-01 | WASHER | M10 | 1 | Pc. | $1.50 |
| 18 | A01338-09-00 | STATOR W/ FLYWHEEL ASSY + SEALS | BANGEN ENGINE | 1 | Assy. | $136.00 |
| 19 | A00258-13-00 | STATOR COVER GASKET | 1 | Pc. | $10.00 | |

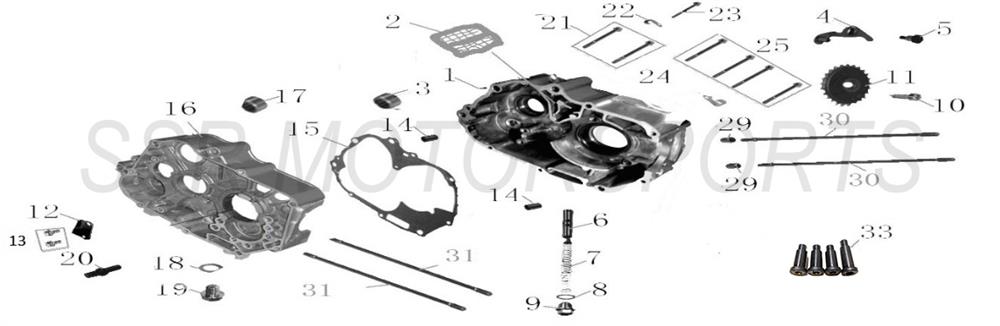

| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01219-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $90.00 | |
| 2 | A01098-09-00 | OIL SCREEN | 1 | Pc. | $10.00 | |
| 3 | A00005-28-00 | BEARING | 6201 | 1 | Pc. | $8.00 |
| 4 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 5 | A01321-09-00 | CHAIN TENSIONER ARM BOLT | 1 | Pc. | $2.00 | |
| 6 | A01323-09-00 | TENSIONER ROD | 1 | Pc. | $7.00 | |
| 7 | A01322-09-00 | TENSIONER SPRING | 1 | Pc. | $2.50 | |
| 8 | A01307-09-00 | TENSIONER SEAL | 1 | Pc. | $1.50 | |
| 9 | A02455-09-00 | TENSIONER BOLT | M14X1.5 | 1 | Pc. | $2.50 |
| 10 | A03054-09-00 | OIL PUMP GEAR BOLT | 1 | Pc. | $4.00 | |
| 11 | A01304-09-00 | GUIDE SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 12 | A01128-09-00 | RETAINER PLATE | 1 | Pc. | $4.00 | |
| 13 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 14 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 15 | A00122-13-00 | CENTER CASE GASKET | 1 | Pc. | $14.00 | |
| 16 | A01220-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $112.00 | |
| 17 | A00003-28-00 | BEARING | 6001 | 1 | pc. | $8.00 |
| 18 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 19 | A01102-09-00 | OIL DRAIN BOLT | 1 | Pc. | $4.00 | |
| 20 | A03053-09-00 | THREADED STUD | 1 | Pc. | $4.00 | |
| 21 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 22 | A00099-24-02 | VENT HOSE CLAMP | 1 | Pc. | $1.50 | |
| 23 | A00425-19-08 | CASE FLANGE BOLT | M6X45 | 1 | Pc. | $1.50 |
| 24 | A01099-09-00 | HOLDER | 1 | Pc. | $1.50 | |
| 25 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 4 | Pcs. | $2.00 |
| 28 | A00002-26-00 | OIL SEAL | 11.6X24X10 | 1 | Pc. | $4.00 |
| 29 | A00001-23-00 | DOWEL PIN | M8X14 | 2 | Pcs. | $1.50 |
| 30 | A00003-19-04 | CYLINDER STUD A | M7X203MM | 2 | Pcs. | $8.00 |
| 31 | A00002-19-04 | CYLINDER STUD B | M7X197MM | 2 | Pcs. | $8.00 |
| 32 | A02356-09-00 | CRANKCASE VENT HOSE | NOT PICTURED | 1 | Pc. | $10.00 |
| 33 | A01270-09-00 | ENGINE MOUNT DAMPER SET | 3 SHORT 1 LONG | 1 | Set | $6.00 |
| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01103-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $115.00 | |
| 2 | A01104-09-00 | PISTON RING SET | 1 | Set | $42.00 | |
| 3 | A01105-09-00 | PISTON | 1 | Pc. | $42.00 | |
| 4 | A01106-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 5 | A01107-09-00 | PISTON PIN CIRCLIP | 2 | Pcs. | $1.50 | |
| 6 | A01108-09-00 | CONNECTING ROD | 1 | Pc. | $10.00 | |
| 7 | A01109-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | $51.00 | |
| 8 | A01110-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | $51.00 | |
| 9 | A01111-09-00 | CRANKSHAFT PIN | 1 | Pc. | $6.00 | |
| 10 | A01113-09-00 | WOODRUFF KEY | 4X14X4 | 2 | Pcs. | $1.50 |
| 11 | A00001-28-00 | BEARING | 6304 | 2 | Pcs. | $11.00 |
| 12 | A01114-09-00 | BEARING | 1 | Pc. | $8.00 | |
| 17 | A02521-09-00 | PISTON & RING SET | 1 | Set | $79.00 | |

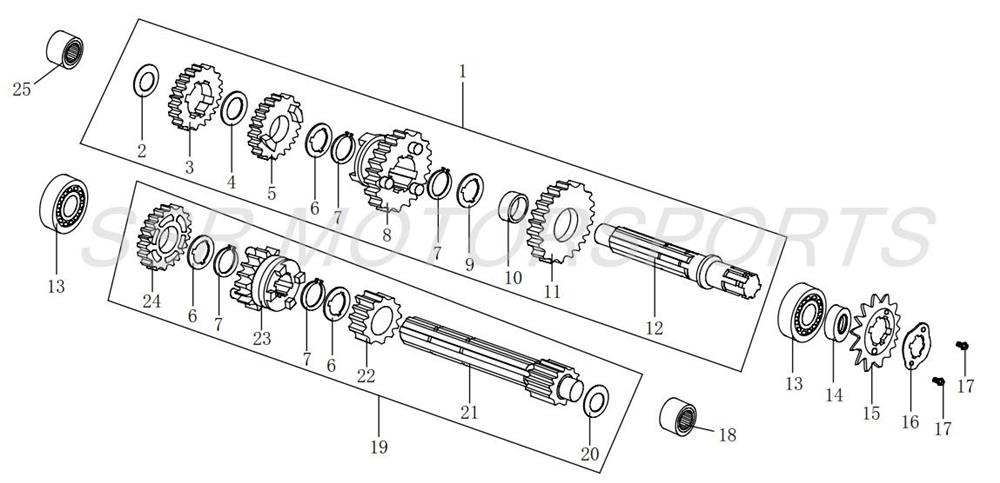

| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00221-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $77.00 | |
| 2 | A00217-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 3 | A00212-17-00 | COUNTERSHAFT 4TH GEAR | 1 | Pc. | $13.00 | |
| 4 | A00215-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 5 | A00210-17-00 | COUNTERSHAFT 3RD GEAR | 1 | Pc. | $13.00 | |
| 6 | A00218-17-00 | WASHER | 3 | Pcs. | $2.00 | |
| 7 | A00220-17-00 | CIRCLIP | 4 | Pcs. | $1.50 | |
| 8 | A00208-17-00 | COUNTERSHAFT 2ND GEAR | 1 | Pc. | $13.00 | |
| 9 | A00219-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 10 | A00206-17-00 | COUNTERSHAFT BUSHING | 1 | Pc. | $7.00 | |
| 11 | A00205-17-00 | COUNTERSHAFT 1ST GEAR | 1 | Pc. | $13.00 | |
| 12 | A00204-17-00 | COUNTER SHAFT | 1 | Pc. | $51.00 | |
| 13 | A00008-28-00 | BEARING | 6203 | 2 | Pcs. | $27.00 |
| 14 | A00001-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 15 | A00307-07-00 | COUNTERSHAFT SPROCKET | 14T | 1 | Pc. | $14.00 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 17 | A00031-19-03 | BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 18 | A00108-28-00 | NEEDLE BEARING | NK14/2 | 1 | Pc. | $7.00 |
| 19 | A00232-17-00 | MAINSHAFT ASSY | 1 | Assy. | $77.00 | |
| 20 | A00216-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 21 | A00203-17-00 | MAINSHAFT | 11T | 1 | Pc. | $51.00 |
| 22 | A00207-17-00 | COUNTERSHAFT 2ND GEAR | 16T | 1 | Pc. | $13.00 |
| 23 | A00209-17-00 | MAINSHAFT 3RD GEAR | 17T | 1 | Pc. | $13.00 |
| 24 | A00211-17-00 | MAINSHAFT 4TH GEAR | 23T | 1 | Pc. | $13.00 |
| 25 | A00107-28-00 | NEEDLE BEARING | NK13.5/2 | 1 | Pc. | $7.00 |
| KICKSTARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01118-09-00 | KICKSTARTER SHAFT ASSY | 1 | Assy. | $51.00 | |
| 2 | A01120-09-00 | KICKSTARTER SHAFT | 1 | Pc. | $18.00 | |
| 3 | A01121-09-00 | KICKSTARTER GEAR | 1 | Pc. | $18.00 | |
| 4 | A01122-09-00 | RATCHET | 1 | Pc. | $13.00 | |
| 5 | A01123-09-00 | WASHER I | 1 | Pc. | $1.50 | |
| 6 | A01124-09-00 | RATCHET SPRING | 1 | Pc. | $2.00 | |
| 7 | A01125-09-00 | SPRING SEAT | 1 | Pc. | $4.00 | |
| 8 | A01126-09-00 | KICKSTARTER RETURN SPRING | 1 | Pc. | $2.50 | |
| 9 | A01127-09-00 | RATCHET SPRING SEAT | 1 | Pc. | $2.50 | |
| 10 | A01128-09-00 | RATCHET GUIDE | 1 | Pc. | $4.00 | |
| 11 | A01129-09-00 | SHAFT WASHER II | 1 | Pc. | $1.50 | |
| 12 | A01130-09-00 | CIRCLIP | 2 | Pc. | $1.50 | |
| 13 | A01131-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 14 | A00321-05-00 | KICKSTARTER ASSY | 1 | Assy. | $23.00 | |
| 15 | A00047-19-03 | HEX BOLT | M6X20 | 3 | Pcs. | $1.50 |

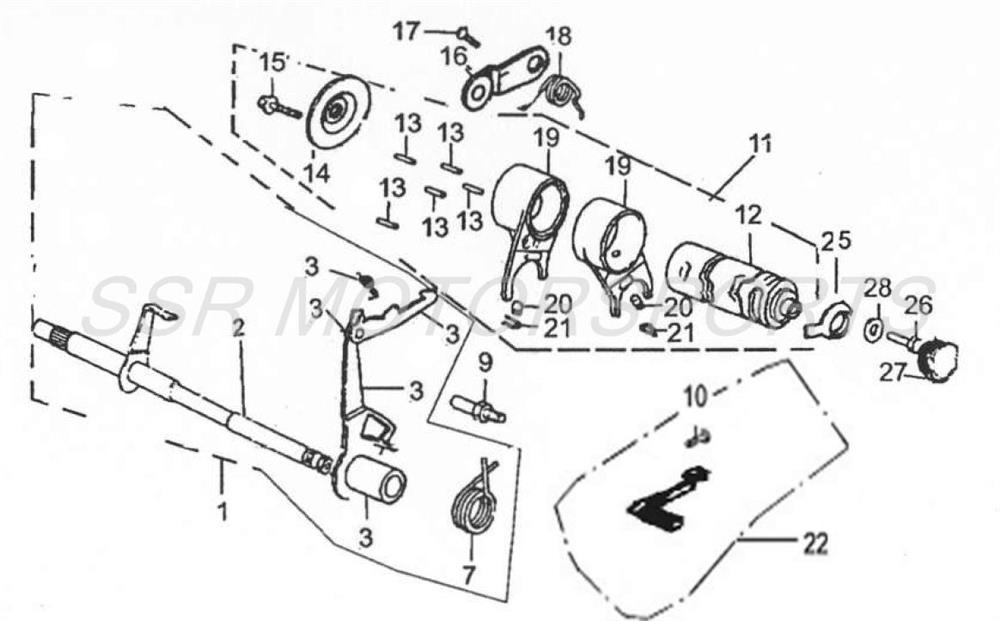

| GEARSHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02886-09-00 | GEARSHIFT SHAFT ASSY | 1 | Assy. | $63.00 | |
| 2 | A02902-09-00 | GEARSHIFT SHAFT | 1 | Pc. | $39.00 | |
| 3 | A02903-09-00 | GEAR SHIFT ARM ASSY | 1 | Assy. | $27.00 | |
| 7 | A01138-09-00 | GEARSHIFT SPRING | 1 | Pc. | $2.00 | |
| 9 | A01140-09-00 | RETURN SPRING STOPPER | 1 | Pc. | $2.50 | |
| 10 | A00022-19-03 | BOLT | M6X30 | 1 | Pc. | $1.50 |
| 11 | A01141-09-00 | GEARSHIFT DRUM ASSY | 1 | Assy. | $59.00 | |
| 12 | A01142-09-00 | GEARSHIFT DRUM | 1 | Pc. | $39.00 | |
| 13 | A01143-09-00 | PIN | M4x13 | 5 | Pcs. | $1.50 |
| 14 | A01144-09-00 | GEAR INDICATING PIN PLATE | 1 | Pc. | $6.00 | |
| 15 | A00031-19-01 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 16 | A01145-09-00 | GEAR SETTING ARM | 1 | Pc. | $8.00 | |
| 17 | A00002-19-06 | BOLT | M6X22 | 1 | Pc. | $1.50 |
| 18 | A01147-09-00 | TORSION SETTING PLATE SPRING | 1 | Pc. | $1.50 | |
| 19 | A01148-09-00 | SHIFT FORK | 2 | Pcs. | $11.00 | |
| 20 | A01149-09-00 | STRIKING PIN | 2 | Pcs. | $1.50 | |
| 21 | A01150-09-00 | CLIP | 2 | Pcs. | $1.50 | |
| 22 | A00322-05-00 | GEARSHIFT LEVER ASSY | 1 | Assy. | $24.00 | |
| 25 | A02900-09-00 | RETAINER PLATE | 1 | Pc. | $4.00 | |
| 26 | A00008-19-03 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 27 | A01151-09-00 | RUBBER PLUG | 1 | Pc. | $2.50 | |
| 28 | A00011-21-01 | WASHER | 6X18X1.5 | 1 | Pc. | $1.50 |
| ENGINE PART SETS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02762-09-00 | COMPLETE TOP END KIT | BANGEN | 1 | Kit | $205.00 |
| 2 | A00251-13-00 | COMPLETE ENGINE GASKET SET | BANGEN | 1 | Set | $63.00 |
| 3 | A00242-26-00 | COMPLETE ENGINE SEALS SET | BANGEN | 1 | Set | $14.00 |
| 4 | A00281-13-00 | COMPLETE TOP END GASKET SET | BANGEN | 1 | Set | $39.00 |
The SR125SEMI Full Engine Parts Schematics (Bangen) (Semi-Auto) (2015-2017) is an essential resource for anyone owning, maintaining, or repairing the SR125SEMI pit bike engine. This comprehensive guide provides detailed schematics and part numbers for every component of the SR125SEMI engine, specifically designed for the Bangen semi-automatic engine models from 2015 to 2017. Whether you're performing routine maintenance, rebuilding your engine, or customizing your bike, this catalog ensures you have access to accurate and reliable information.
Key Features:
-
Complete Coverage:
-
This catalog includes detailed schematics for all major engine systems, including:
-
Cylinder Head and Covers
-
Camshaft and Valves
-
Cam Chain and Timing Components
-
Cylinder and Piston Assembly
-
Crankshaft and Transmission
-
Clutch and Kickstarter
-
Gearshift Drum and Mechanism
-
Crankcase and Oil Pump
-
Magneto and Stator Assembly
-
-
-
Accurate Part Numbers:
-
Each component is listed with its corresponding part number, description, specifications, quantity, unit, and retail price. This makes it easy to identify and order the exact parts you need.
-
-
Detailed Schematics:
-
The schematics are organized by system, providing a clear visual representation of how each part fits into the overall assembly. This is invaluable for both novice and experienced mechanics.
-
-
Compatibility:
-
The catalog is specifically designed for the Bangen semi-automatic engine models, ensuring you have the correct information for your specific engine type.
-
-
User-Friendly Format:
-
The catalog is designed for ease of use, with a logical structure and clear labeling. Each section is broken down into subcategories, making it simple to locate the information you need.
-
-
Maintenance and Repair Guidance:
-
While not a step-by-step repair manual, the schematics provide valuable insights into the assembly and disassembly of key components, aiding in maintenance and repair tasks.
-
SR125SEMI engine schematics, SR125SEMI Bangen engine parts, 2015-2017 SR125SEMI engine, pit bike engine schematics, SR125SEMI cylinder head parts, SR125SEMI camshaft parts, SR125SEMI cam chain parts, SR125SEMI cylinder and piston parts, SR125SEMI crankshaft parts, SR125SEMI transmission parts, SR125SEMI clutch parts, SR125SEMI kickstarter parts, SR125SEMI gearshift drum parts, SR125SEMI crankcase parts, SR125SEMI oil pump parts, SR125SEMI magneto parts, SR125SEMI stator parts, SR125SEMI engine repair manual, SR125SEMI engine maintenance guide, SR125SEMI engine part numbers, SR125SEMI engine OEM parts, SR125SEMI engine aftermarket parts, SR125SEMI engine customization parts, SR125SEMI engine rebuild kit, SR125SEMI engine gasket set, SR125SEMI engine seal set.
