Product Description

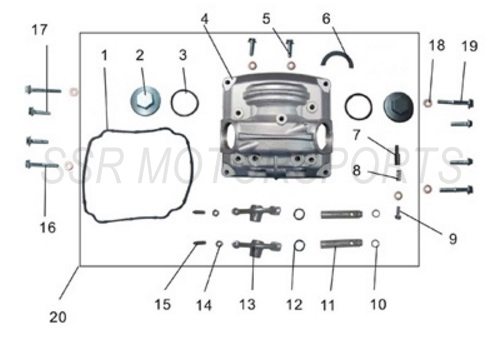

| CYLINDER HEAD COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00216-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $13.00 | |
| 2 | A02201-09-00 | VALVE INSPECTION CAP | 2 | Pcs. | $7.00 | |
| 3 | A00052-27-00 | O-RING | 35X3 | 2 | Pcs. | $2.50 |
| 4 | A02684-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $51.00 | |
| 5 | A00066-19-01 | BOLT | M6X18 | 2 | Pcs. | $1.50 |
| 6 | A00100-24-07 | CIRCLIP | 1 | Pc. | $2.00 | |
| 7 | A02203-09-00 | PIN | 1 | Pc. | $1.50 | |
| 8 | A02204-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 9 | A00008-19-03 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 10 | A00047-27-00 | O-RING | 8.6X1.9 | 2 | Pcs. | $1.50 |
| 11 | A02478-09-00 | ROCKER ARM SHAFT | 2 | Pcs. | $13.00 | |
| 12 | A00068-21-01 | WASHER | 13X18X0.2 | 2 | Pcs. | $1.50 |
| 13 | A02479-09-00 | ROCKER ARM | 2 | Pcs. | $21.00 | |
| 14 | A02207-09-00 | ADJUSTER NUT | 2 | Pcs. | $1.50 | |
| 15 | A02208-09-00 | ADJUSTER SCREW | 2 | Pcs. | $1.50 | |
| 16 | A00009-19-03 | FLANGE BOLT | M6X45 | 2 | Pcs. | $1.50 |
| 17 | A00003-19-03 | BOLT | M6X25 | 4 | Pcs. | $1.50 |
| 18 | A00070-21-01 | COPPER WASHER | 8.2X16X1.5 | 7 | Pcs. | $1.50 |
| 19 | A00010-19-03 | FLANGE BOLT | M6X40 | 2 | Pcs. | $1.50 |
| 20 | A02209-09-00 | CYLINDER HEAD COVER ASSY | 1 | Assy. | $96.00 | |

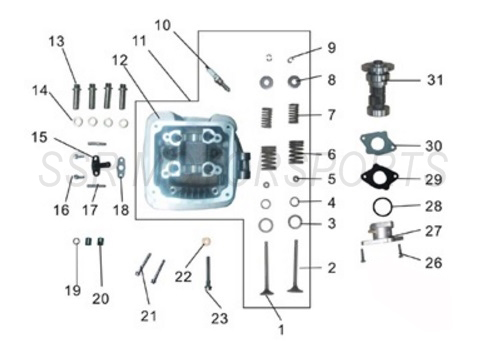

| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02763-09-00 | EXHAUST VALVE | 1 | Pc. | $30.00 | |
| 2 | A02468-09-00 | INTAKE VALVE | 1 | Pc. | $30.00 | |
| 3 | A02212-09-00 | LOWER SPRING SEAT I | 2 | Pcs. | $7.00 | |
| 4 | A02470-09-00 | LOWER SPRING SEAT II | 2 | Pcs. | $3.50 | |
| 5 | A02471-09-00 | OIL SEAL | 2 | Pcs. | $7.00 | |
| 6 | A02214-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $8.00 | |
| 7 | A02215-09-00 | INNER VALVE SPRING | 2 | Pcs. | $8.00 | |
| 8 | A02216-09-00 | VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 9 | A02217-09-00 | VALVE STEM COLLET | 4 | Pcs. | $1.50 | |
| 10 | CPR6EA-9 | SPARK PLUG | 1 | Pc. | $13.00 | |
| 11 | A02466-09-00 | CYLINDER HEAD ASSY | 1 | Assy. | $367.00 | |
| 12 | A02476-09-00 | CYLINDER HEAD | 1 | Pc. | $265.00 | |
| 13 | A00002-22-08 | SPECIAL NUT | M8X40 | 4 | Pcs. | $1.50 |
| 14 | A00069-21-01 | WASHER | 12X19X2 | 4 | Pcs. | $1.50 |
| 15 | A02220-09-00 | BLOCK OFF PLATE | 1 | Pc. | $18.00 | |
| 16 | A00442-19-08 | CASE FLANGE BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 17 | A00010-19-04 | STUD | M8X35 | 2 | Pc. | $1.50 |
| 18 | A00217-13-00 | BLOCK OFF PLATE GASKET | 1 | Pc. | $2.50 | |
| 19 | A00006-21-04 | LOCK WASHER | 8X12X2.5 | 1 | Pc. | $1.50 |
| 20 | A00013-23-00 | DOWEL PIN | 8X10 | 2 | Pcs. | $1.50 |
| 21 | A00022-19-01 | FLANGE BOLT | M6X45 | 2 | Pcs. | $1.50 |
| 22 | A00070-21-01 | COPPER WASHER | 8.2X16X1.5 | 1 | Pc. | $1.50 |
| 23 | A00023-19-01 | CAM CHAIN GUIDE BOLT | M8X59 | 1 | Pc. | $2.00 |
| 26 | A00003-19-03 | BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 27 | A00214-14-00 | INTAKE MANIFOLD | 1 | Pc. | $11.00 | |
| 28 | A00139-27-00 | O-RING | 1 | Pc. | $2.50 | |
| 29 | A00096-13-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $7.00 | |
| 30 | A00213-14-00 | INTAKE MANIFOLD INSULATOR | 1 | Pc. | $8.00 | |
| 31 | A02221-09-00 | CAMSHAFT | 1 | Pc. | $104.00 | |
| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00218-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $8.00 | |
| 2 | A00024-19-01 | FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |
| 3 | A02222-09-00 | CYLINDER | 1 | Pc. | $218.00 | |
| 4 | A00219-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $13.00 | |
| 5 | A00048-27-00 | O-RING | 10X1.6 | 1 | Pc. | $1.50 |
| 6 | A00018-23-00 | DOWEL PIN | 10X20 | 3 | Pcs. | $1.50 |
| TIMING CHAIN | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02223-09-00 | CAM CHAIN | 98L | 1 | Pc. | $39.00 |
| 2 | A02224-09-00 | CAM CHAIN GUIDE | 1 | Pc. | $18.00 | |
| 3 | A02225-09-00 | CAM CHAIN TENSIONER | 1 | Pc. | $11.00 | |
| 4 | A00008-20-02 | SCREW | M6X6 | 1 | Pc. | $1.50 |
| 5 | A00011-19-02 | ALLEN BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 6 | A00015-19-03 | HEX BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 7 | A02226-09-00 | CAM SHAFT SPROCKET | 1 | Pc. | $11.00 | |
| 8 | A02227-09-00 | FRONT CAM CHAIN GUIDE | 1 | Pc. | $18.00 | |
| 9 | A00220-13-00 | CAM CHAIN TENTIONER GASKET | 1 | Pc. | $2.50 | |
| 10 | A00050-27-00 | O-RING | 10X1.9 | 1 | Pc. | $1.50 |

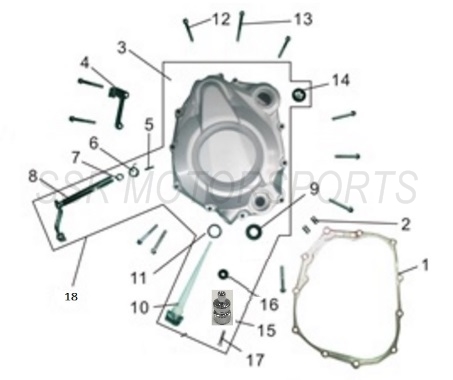

| RIGHT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00221-13-00 | CLUTCH COVER GASKET | 1 | Pc. | $21.00 | |
| 2 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| 3 | A02228-09-00 | CLUTCH COVER | 1 | Pc. | $77.00 | |
| 4 | A02229-09-00 | CLUTCH CABLE BRACKET | 1 | Pc. | $8.00 | |
| 5 | A00037-25-01 | ROLL PIN | 1 | Pc. | $1.50 | |
| 6 | A02230-09-00 | CLUTCH RELEASE SPRING | 1 | Pc. | $1.50 | |
| 7 | A00049-27-00 | O-RING | 8.2X2.2 | 1 | Pc. | $1.50 |
| 8 | A02231-09-00 | CLUTCH ACTUATOR ROD | 1 | Pc. | $30.00 | |
| 9 | A00036-26-00 | OIL SEAL | 16X28X7 | 1 | Pc. | $4.00 |
| 10 | A02232-09-00 | OIL LEVEL DIPSTICK | 1 | Pc. | $10.00 | |
| 11 | A00006-27-00 | O-RING | 18X3.5 | 1 | Pc. | $2.50 |
| 12 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 10 | Pcs. | $1.50 |
| 13 | A00440-19-08 | CASE FLANGE BOLT | M6X55 | 1 | Pc. | $1.50 |
| 14 | A02233-09-00 | OIL LEVEL WINDOW | 1 | Pc. | $7.00 | |
| 15 | A02560-09-00 | PLUG | 1 | Pc. | $7.00 | |
| 16 | A00228-26-00 | OIL SEAL | 6.5X14.5X7 | 1 | Pc. | $2.50 |
| 17 | A00072-20-01 | SCREW | 1 | Pc. | $1.50 | |
| 18 | A02234-09-00 | CLUTCH COVER ASSY | 1 | Assy. | $96.00 | |
| 19 | A02955-09-00 | CLUTCH LIFTER PIN | NOT PICTURED | 1 | Pc. | $7.00 |

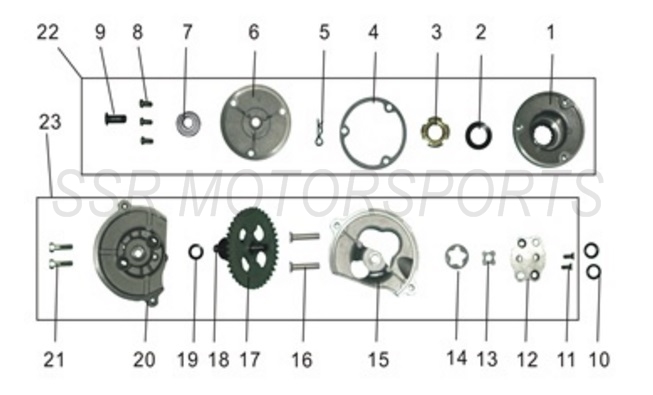

| OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02235-09-00 | OIL STRAINER BODY | 1 | Pc. | $13.00 | |
| 2 | A00072-21-01 | WASHER | 16 | 1 | Pc. | $2.50 |
| 3 | A02236-09-00 | SPLINED NUT | M16 | 1 | Pc. | $4.00 |
| 4 | A00222-13-00 | OIL STRAINER BODY GASKET | 1 | Pc. | $7.00 | |
| 5 | A00036-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 6 | A02237-09-00 | ROTOR CAP | 1 | Pc. | $11.00 | |
| 7 | A02238-09-00 | OIL PASSAGE SPRING | 1 | Pc. | $2.50 | |
| 8 | A00007-20-01 | SCREW | M5X12 | 3 | Pcs. | $1.50 |
| 9 | A02239-09-00 | FILTER BOLT | 1 | Pc. | $2.00 | |
| 10 | A00051-27-00 | O-RING | 9.4X2.4 | 2 | Pcs. | $1.50 |
| 11 | A00009-20-01 | SCREW | M4X12 | 2 | Pcs. | $1.50 |
| 12 | A02240-09-00 | OIL PUMP CAP | 1 | Pc. | $7.00 | |
| 13 | A02241-09-00 | INNER ROTOR | 1 | Pc. | $4.00 | |
| 14 | A02242-09-00 | OUTER ROTOR | 1 | Pc. | $4.00 | |
| 15 | A02243-09-00 | OIL PUMP BRACKET | 1 | Pc. | $14.00 | |
| 16 | A00027-20-01 | SCREW | M6X30 | 2 | Pcs. | $1.50 |
| 17 | A02244-09-00 | DRIVE GEAR | 1 | Pc. | $13.00 | |
| 18 | A02245-09-00 | OIL PUMP SHAFT | 1 | Pc. | $11.00 | |
| 19 | A00201-21-06 | THRUST WASHER | 1 | Pc. | $1.50 | |
| 20 | A02246-09-00 | OIL PUMP BODY | 1 | Pc. | $14.00 | |
| 21 | A00013-19-03 | BOLT | M5X20 | 2 | Pcs. | $1.50 |
| 22 | A02247-09-00 | OIL STRAINER ASSY | 1 | Assy. | $30.00 | |
| 23 | A02248-09-00 | OIL PUMP ASSY | 1 | Assy. | $39.00 | |

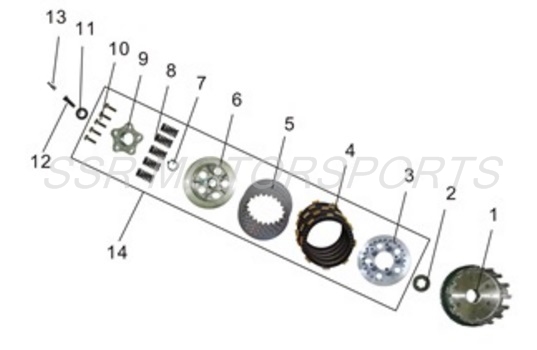

| CLUTCH (5-BOLT) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02249-09-00 | CLUTCH BASKET | 1 | Pc. | $104.00 | |
| 2 | A02250-09-00 | SPLINE WASHER | 1 | Pc. | $2.00 | |
| 3 | A02251-09-00 | INNER CLUTCH HUB | 1 | Pc. | $59.00 | |
| 4 | A02252-09-00 | FRICTION PLATE | 5 | Pcs. | $7.00 | |
| 5 | A02253-09-00 | STEEL PLATE | 4 | Pcs. | $4.00 | |
| 6 | A02254-09-00 | PRESSURE PLATE | 1 | Pc. | $39.00 | |
| 7 | A02255-09-00 | RETAINER | 1 | Pc. | $1.50 | |
| 8 | A02256-09-00 | CLUTCH SPRING | 5 | Pcs. | $2.00 | |
| 9 | A02257-09-00 | CLUTCH RELEASE PLATE | 1 | Pc. | $18.00 | |
| 10 | A00003-19-03 | BOLT | M6X25 | 5 | Pcs. | $1.50 |
| 11 | A02383-09-00 | BEARING | 6001 | 1 | Pc. | $1.50 |
| 12 | A02258-09-00 | CLUTCH PUSH ROD INNER | 1 | Pc. | $2.50 | |
| 13 | A02259-09-00 | CLUTCH PUSH ROD OUTER | 1 | Pc. | $2.00 | |
| 14 | A02260-09-00 | COMPLETE CLUTCH ASSY | 1 | Set | $112.00 | |

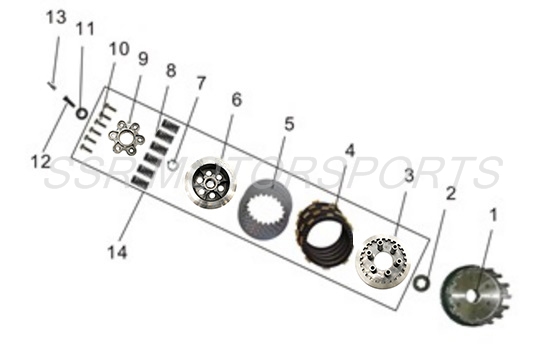

| CLUTCH (6-BOLT) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02249-09-00 | CLUTCH BASKET | 1 | Pc. | $104.00 | |
| 2 | A02250-09-00 | SPLINE WASHER | 1 | Pc. | $2.00 | |
| 3 | A02901-09-00 | INNER CLUTCH HUB | 1 | Pc. | $59.00 | |
| 4 | A02252-09-00 | FRICTION PLATE | 6 | Pcs. | $7.00 | |
| 5 | A02253-09-00 | STEEL PLATE | 5 | Pcs. | $4.00 | |
| 6 | A02907-09-00 | PRESSURE PLATE | 1 | Pc. | $39.00 | |
| 7 | A02255-09-00 | RETAINER | 1 | Pc. | $1.50 | |
| 8 | A02912-09-00 | CLUTCH SPRING | 6 | Pcs. | $2.00 | |
| 9 | A02908-09-00 | CLUTCH RELEASE PLATE | 1 | Pc. | $18.00 | |
| 10 | A00061-19-01 | CASE FLANGE BOLT | M5X20 | 6 | Pcs. | $1.50 |
| 11 | A02383-09-00 | BEARING | 6001 | 1 | Pc. | $1.50 |
| 12 | A02258-09-00 | CLUTCH PUSH ROD INNER | 1 | Pc. | $2.50 | |
| 13 | A02259-09-00 | CLUTCH PUSH ROD OUTER | 1 | Pc. | $2.00 | |
| 14 | A02911-09-00 | COMPLETE CLUTCH ASSY | 1 | Assy. | $112.00 | |

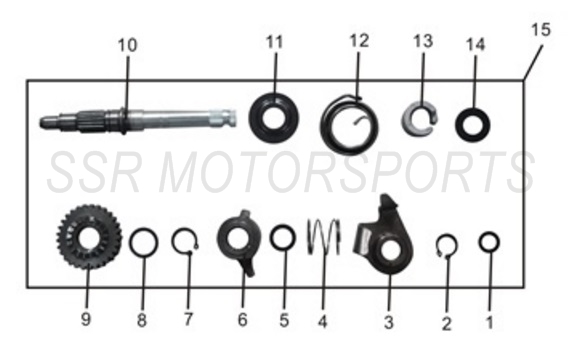

| KICK STARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00001-21-06 | THRUST WASHER | 12 | 1 | Pc. | $1.50 |
| 2 | A00016-24-07 | CIRCLIP | 16 | 1 | Pc. | $1.50 |
| 3 | A02261-09-00 | RATCHET GUIDE PLATE | 1 | Pc. | $7.00 | |
| 4 | A02262-09-00 | KICKSTARTER RATCHET SPRING | 1 | Pc. | $2.50 | |
| 5 | A00004-21-06 | THRUST WASHER | 16 | 1 | Pc. | $1.50 |
| 6 | A02263-09-00 | KICK STARTER RATCHET | 1 | Pc. | $13.00 | |
| 7 | A00017-24-07 | CIRCLIP | 20 | 1 | Pc. | $1.50 |
| 8 | A00005-21-06 | THRUST WASHER | 20 | 1 | Pc. | $1.50 |
| 9 | A02264-09-00 | KICK STARTER GEAR | 1 | Pc. | $18.00 | |
| 10 | A02265-09-00 | KICK STARTER SHAFT | 1 | Pc. | $18.00 | |
| 11 | A02266-09-00 | KICK START SPRING SEAT | 1 | Pc. | $3.50 | |
| 12 | A02267-09-00 | KICK STARTER SPRING | 1 | Pc. | $3.50 | |
| 13 | A02268-09-00 | KICK STARTER SHAFT GUIDE | 1 | Pc. | $3.50 | |
| 14 | A00004-21-06 | THRUST WASHER | 16 | 1 | Pc. | $1.50 |
| 15 | A02269-09-00 | COMPLETE KICK STARTER ASSY | 1 | Assy. | $51.00 | |

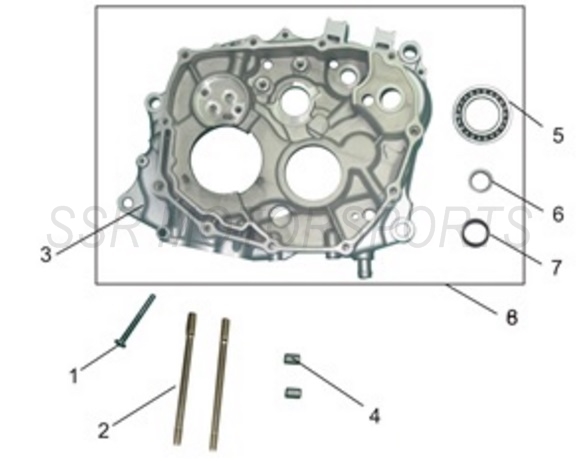

| RIGHT CRANKCASE HALF | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00014-19-03 | BOLT | M6X53 | 1 | Pc. | $1.50 |
| 2 | A00024-19-04 | CYLINDER STUD | M8X122 | 2 | Pcs. | $3.50 |
| 3 | A02270-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $124.00 | |
| 4 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 5 | A00066-28-00 | BEARING | NK1512 | 1 | Pc. | $18.00 |
| 6 | A00067-28-00 | BEARING | 6006 | 1 | Pc. | $11.00 |
| 7 | A00068-28-00 | BALL BEARING | HK2110 | 1 | Pc. | $13.00 |
| 8 | A02271-09-00 | RIGHT CRANKCASE ASSY | 1 | Assy. | $142.00 | |
| 9 | A03036-09-00 | CRANKCASE BREATHER HOSE | 1 | Pc. | $7.00 | |

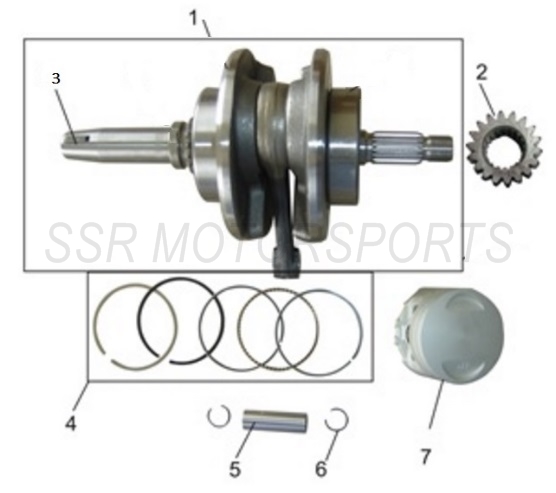

| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02280-09-01 | CRANKSHAFT ASSY | 1 | Assy. | $206.00 | |
| 2 | A02273-09-00 | DRIVEN GEAR | 1 | Pc. | $33.00 | |
| 3 | A02274-09-00 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 4 | A02275-09-00 | PISTON RING SET | 1 | Set | $48.00 | |
| 5 | A02888-09-00 | PISTON PIN | 1 | Pc. | $14.00 | |
| 6 | A02889-09-00 | PISTON PIN CLIP | 2 | Pcs. | $1.50 | |
| 7 | A02278-09-00 | PISTON | 1 | Pc. | $61.00 | |

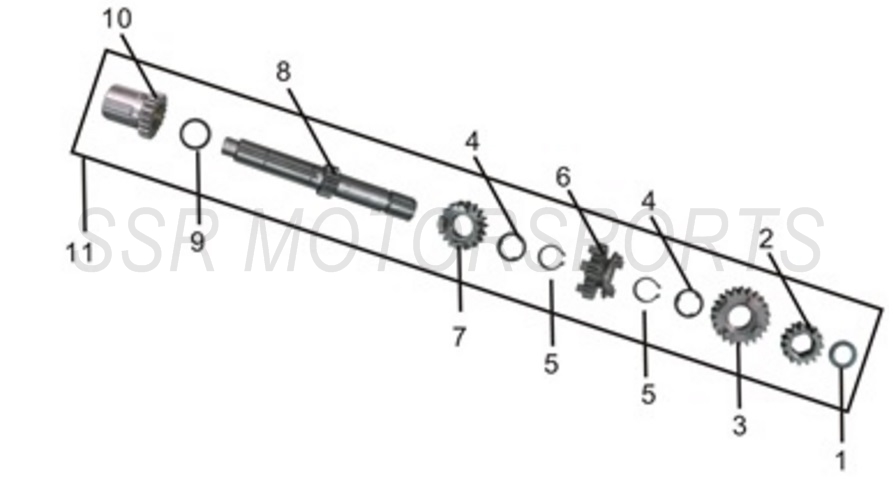

| TRANSMISSION MAINSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00199-21-00 | WASHER | 1 | Pc. | $1.50 | |
| 2 | A00343-17-00 | 2ND GEAR | 1 | Pc. | $21.00 | |
| 3 | A00344-17-00 | 5TH GEAR | 1 | Pc. | $21.00 | |
| 4 | A00345-17-00 | SPLINE WASHER | 2 | Pcs. | $2.00 | |
| 5 | A00017-24-07 | CIRCLIP | 20 | 2 | Pcs. | $1.50 |
| 6 | A00346-17-00 | 4TH GEAR | 1 | Pc. | $21.00 | |
| 7 | A00347-17-00 | 3RD GEAR | 1 | Pc. | $21.00 | |
| 8 | A00348-17-00 | MAINSHAFT | 1 | Pc. | $39.00 | |
| 9 | A00006-21-06 | THRUST WASHER | 21 | 1 | Pc. | $2.00 |
| 10 | A00349-17-00 | KICK STARTER GEAR | 1 | Pc. | $18.00 | |
| 11 | A00350-17-00 | MAINSHAFT ASSY | 1 | Assy. | $96.00 | |

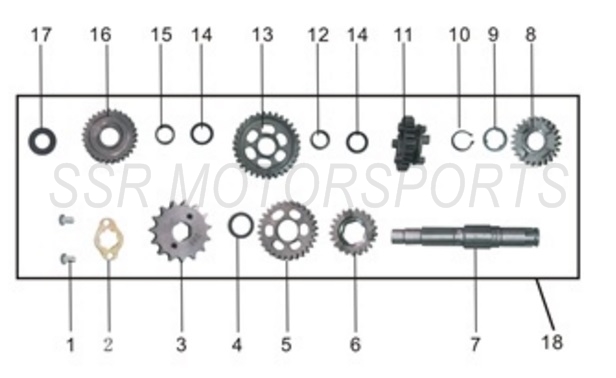

| TRANSMISSION COUNTERSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00015-19-03 | BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 2 | A00351-17-00 | LOCK WASHER | 1 | Pc. | $2.50 | |
| 3 | A00288-07-00 | COUNTERSHAFT SPROCKET | 13 | 1 | Pc. | $18.00 |
| 4 | A00403-17-00 | SHIM | 1 | Pc. | $2.00 | |
| 5 | A00352-17-00 | 2ND DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 6 | A00353-17-00 | 5TH DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 7 | A00354-17-00 | DRIVE SHAFT | 1 | Pc. | $39.00 | |
| 8 | A00355-17-00 | 4TH DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 9 | A00356-17-00 | SPLINE WASHER | 1 | Pc. | $2.00 | |
| 10 | A00017-24-07 | CIRCLIP | 20 | 1 | Pc. | $1.50 |
| 11 | A00357-17-00 | 3RD DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 12 | A00358-17-00 | 1ST GEAR BUSHING | 1 | Pc. | $2.00 | |
| 13 | A00359-17-00 | 1ST DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 14 | A00002-21-06 | THRUST WASHER | 16.5 | 2 | Pcs. | $2.00 |
| 15 | A00360-17-00 | STARTER IDLER GEAR BUSHING | 1 | Pc. | $2.00 | |
| 16 | A00361-17-00 | STARTER IDLER GEAR | 1 | Pc. | $18.00 | |
| 17 | A00003-21-06 | THRUST WASHER | 15 | 1 | Pc. | $2.00 |
| 18 | A00362-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $89.00 | |
| SHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02281-09-00 | STOPPER SPRING | 1 | Pc. | $1.50 | |
| 2 | A02282-09-00 | GEAR SHIFT STOPPER | 1 | Pc. | $7.00 | |
| 3 | A00016-19-03 | BOLT | M6X20 | 1 | Pc. | $1.50 |
| 4 | A02283-09-00 | GEARSHIFT DRUM | 1 | Pc. | $96.00 | |
| 5 | A00002-25-03 | PIN | 4X10 | 1 | Pc. | $1.50 |
| 6 | A02284-09-00 | GEAR SHIFT CAM | 1 | Pc. | $18.00 | |
| 7 | A00003-19-03 | BOLT | M6X25 | 1 | Pc. | $1.50 |
| 8 | A02285-09-00 | LEFT SHIFT FORK | 1 | Pc. | $18.00 | |
| 9 | A02286-09-00 | MIDDLE SHIFT FORK | 1 | Pc. | $18.00 | |
| 10 | A02287-09-00 | RIGHT SHIFT FORK | 1 | Pc. | $18.00 | |
| 11 | A02288-09-00 | GEAR SHIFT SHAFT | 1 | Pc. | $11.00 | |
| 12 | A00003-24-07 | CIRCLIP | 12 | 1 | Pc. | $2.00 |
| 13 | A02289-09-00 | SPRING | 1 | Pc. | $2.00 | |
| 14 | A02290-09-00 | GEAR SHIFT PLATE | 1 | Pc. | $11.00 | |
| 15 | A02291-09-00 | GEAR SHIFT SHAFT | 1 | Pc. | $51.00 | |
| 16 | A02292-09-00 | RETURN SPRING | 1 | PC | $4.00 | |
| 17 | A00200-21-06 | THRUST WASHER | 2 | Pcs. | $2.00 | |
| 18 | A00005-24-07 | CIRCLIP | 14 | 1 | Pc. | $1.50 |
| 19 | A02293-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 20 | A02294-09-00 | SPRING SLEEVE | 1 | Pc. | $1.50 | |
| 21 | A02295-09-00 | GEARSHIFT SHAFT ASSY | 1 | Assy. | $66.00 | |

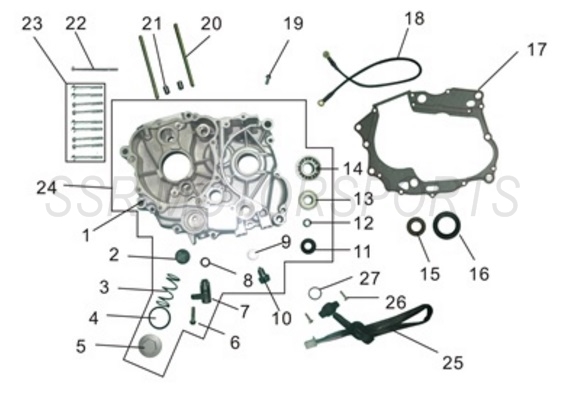

| LEFT CRANKCASE HALF | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02296-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $131.00 | |
| 2 | A00660-09-00 | OIL FILTER SCREEN | 1 | Pc. | $8.00 | |
| 3 | A02298-09-00 | SPRING | 1 | Pc. | $3.50 | |
| 4 | A00052-27-00 | O-RING | 35X3 | 1 | Pc. | $2.50 |
| 5 | A02299-09-00 | OIL FILTER SCREEN CAP | 1 | Pc. | $7.00 | |
| 6 | A00003-19-03 | BOLT | M6X25 | 1 | Pc. | $1.50 |
| 7 | A02300-09-00 | SUPPORT | 1 | Pc. | $4.00 | |
| 8 | A00053-27-00 | O-RING | 13.1X2.5 | 1 | Pc. | $1.50 |
| 9 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 10 | A01102-09-00 | OIL DRAIN BOLT | M12X15 | 1 | Pc. | $4.00 |
| 11 | A00037-26-00 | OIL SEAL | 14X28X7 | 1 | Pc. | $4.00 |
| 12 | A00063-28-00 | NEEDLE BEARING | 1010 | 1 | Pc. | $7.00 |
| 13 | A00021-28-00 | BEARING | 6202 | 1 | Pc. | $13.00 |
| 14 | A00020-28-00 | BEARING | 6204 | 1 | Pc. | $30.00 |
| 15 | A00038-26-00 | OIL SEAL | 20X34X7 | 1 | Pc. | $4.00 |
| 16 | A00039-26-00 | OIL SEAL | 34X50X7 | 1 | Pc. | $7.00 |
| 17 | A00223-13-00 | CRANKCASE GASKET | 1 | Pc. | $23.00 | |
| 18 | A00524-08-00 | GROUND TERMINAL | 1 | Pc. | $7.00 | |
| 19 | A00008-19-03 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 20 | A00023-19-04 | STUD | M8X130 | 2 | Pcs. | $3.50 |
| 21 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 22 | A00433-19-08 | CASE FLANGE BOLT | M6X95 | 2 | Pcs. | $2.00 |
| 23 | A00026-20-01 | SCREW | M6X50 | 9 | Pcs. | $1.50 |
| 24 | A02303-09-00 | LEFT CRANKCASE ASSY | 1 | Assy. | $168.00 | |
| 25 | A00523-08-00 | NEUTRAL SWITCH | 1 | Pc. | $18.00 | |
| 26 | A00002-19-07 | CROSS BOLT | M4X16 | 2 | Pcs. | $1.50 |
| 27 | A00054-27-00 | O-RING | 10X2X2.2 | 1 | Pc. | $2.00 |

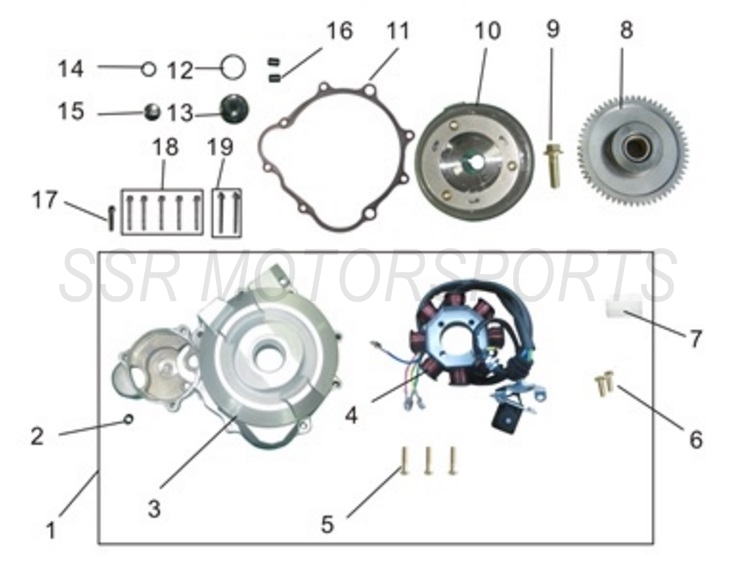

| STATOR & STATOR COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02304-09-00 | STATOR COVER W/ STATOR ASSY | 1 | Assy. | $150.00 | |
| 2 | A00063-28-00 | BEARING | 1010 | 1 | Pc. | $7.00 |
| 3 | A02305-09-00 | STATOR COVER | 1 | Pc. | $83.00 | |
| 4 | A02306-09-00 | STATOR ASSY | 1 | Assy. | $77.00 | |
| 5 | A00018-19-03 | BOLT | M5X25 | 3 | Pcs. | $1.50 |
| 6 | A00032-19-03 | BOLT | M5X16 | 2 | Pcs. | $1.50 |
| 7 | A02307-09-00 | CABLE CONNECTOR | 1 | Pc. | $4.00 | |
| 8 | A02308-09-00 | STARTER GEAR | 1 | Pc. | $59.00 | |
| 9 | A00005-19-03 | FLANGE BOLT | M10X35 | 1 | Pc. | $2.00 |
| 10 | A02309-09-00 | ROTOR | 1 | Pc. | $89.00 | |
| 11 | A00224-13-00 | STATOR COVER GASKET | 1 | Pc. | $18.00 | |
| 12 | A00055-27-00 | O-RING | 27X2.4 | 1 | Pc. | $1.50 |
| 13 | A02310-09-00 | INSPECTION PLUG | 14MM | 1 | Pc. | $14.00 |
| 14 | A00056-27-00 | O-RING | 13.8X2.5 | 1 | Pc. | $2.50 |
| 15 | A02311-09-00 | INSPECTION PLUG | VIEW NOTES | 1 | Pc. | $14.00 |
| 16 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 17 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 1 | Pc. | $1.50 |
| 18 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 5 | Pcs. | $1.50 |
| 19 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 2 | Pcs. | $1.50 |

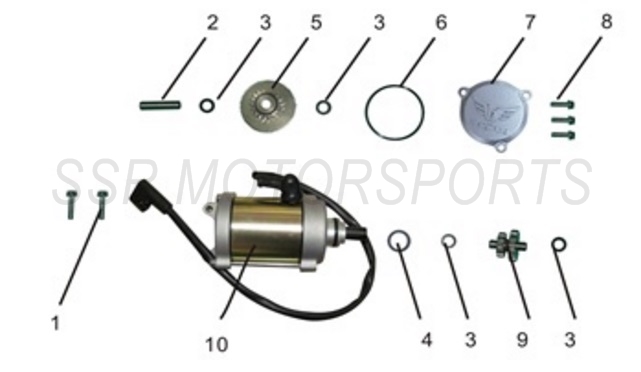

| STARTER MOTOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00040-19-01 | FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 2 | A02312-09-00 | STARTER GEAR SHAFT | 1 | Pc. | $4.00 | |
| 3 | A00071-21-01 | WASHER | 10.5X18X0.5 | 4 | Pcs. | $1.50 |
| 4 | A00058-27-00 | O-RING | 24.5X3 | 1 | Pc. | $2.00 |
| 5 | A02313-09-00 | STARTER GEAR | 1 | Pc. | $29.00 | |
| 6 | A00057-27-00 | O-RING | 62X3 | 1 | Pc. | $2.50 |
| 7 | A02314-09-00 | STARTER MOTOR CAP | 1 | Pc. | $39.00 | |
| 8 | A00016-19-03 | BOLT | M6X20 | 3 | Pcs. | $1.50 |
| 9 | A02315-09-00 | STARTER IDLER GEAR | 1 | Pc. | $24.00 | |
| 10 | A02316-09-00 | STARTER MOTOR | 1 | Pc. | $104.00 | |
| ENGINE PARTS SETS | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00286-13-00 | COMPLETE TOP END GASKET SET | 1 | Set | $30.00 | |
| 2 | A00287-13-00 | COMPLETE ENGINE GASKET SET | 1 | Set | $69.00 | |
| 3 | A00252-26-00 | COMPLETE ENGINE SEALS SET | 1 | Set | $23.00 | |
