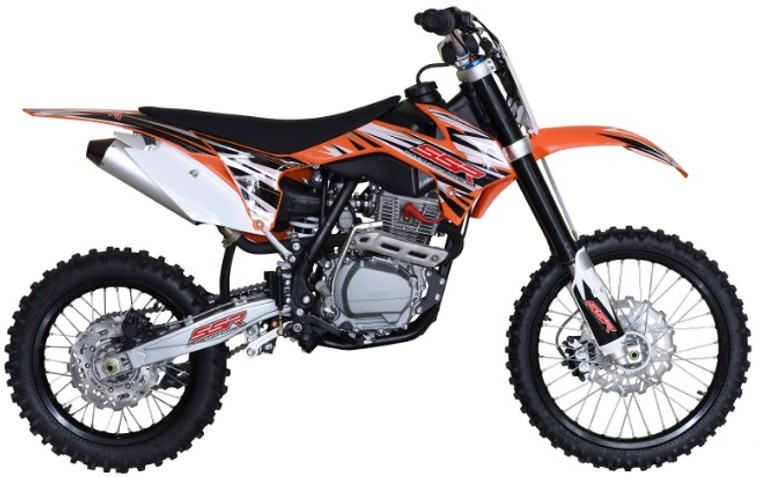

(SR189) Full Parts Schematics (2016-2019)
| 2016-2019 SR189 | ||||||
| ENGINE ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01097-09-00 | COMPLETE ENGINE ASSY | 520X13T *OVERSIZE* | 1 | Assy. | $479.00 |
| 1-1 | A00288-07-00 | FRONT SPROCKET | 520-13T | 1 | Pc. | $18.00 |
| 2 | A00096-13-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $7.00 | |
| 3 | A00213-14-00 | INTAKE INSULATOR | 1 | Pc. | $8.00 | |
| 4 | A00290-14-00 | INTAKE MANIFOLD FLANGE | 1 | Pc. | $16.00 | |
| 5 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 6 | A00214-14-00 | INTAKE MANIFOLD | 1 | Pc. | $11.00 | |
| 7 | A00005-24-02 | HOSE CLAMP | 32-44MM | 2 | Pcs. | $8.00 |
| 8 | A00407-12-00 | CARBURETOR | PE28-6 | 1 | Pc. | $142.00 |
| 9 | A00004-19-01 | FLANGE BOLT | M10X120 | 1 | Pcs. | $3.50 |
| 10 | A00315-11-00 | COLLAR | 10X20X10 | 1 | Pc. | $2.50 |
| 11 | A00004-22-03 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 12 | A01000-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $39.00 | |
| 12-1 | A00001-19-01 | FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 13 | A00005-19-88 | FLANGE BOLT | M10X115 | 1 | Pc. | $3.50 |
| 14 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 15 | A00288-05-00 | GEAR SHIFTER | 2016-2017 ONLY | 1 | Pc. | $18.00 |
| 15 | A00532-05-00 | GEAR SHIFTER | 2018-2019+ ONLY | 1 | Pc. | $18.00 |
| 16 | A00289-05-00 | KICKSTARTER LEVER | 2016-2017 ONLY | 1 | Pc. | $41.00 |
| 16 | A00533-05-00 | KICKSTARTER LEVER | 2018-2019+ ONLY | 1 | Pc. | $41.00 |
| 16-1 | A00007-19-01 | FLANGE BOLT | M8X25 | 1 | Pc. | $1.50 |
| 17 | A00100-22-34 | FLANGE LOCKNUT | M8 | 5 | Pcs. | $1.50 |
| 18 | A00008-19-01 | FLANGE BOLT | M8X95 | 4 | Pcs. | $2.50 |
| 19 | A00316-11-00 | ENGINE BRACKET A | 2 | Pcs. | $10.00 | |
| 20 | A00009-19-11 | FLANGE BOLT | M8X75 | 1 | Pc. | $2.00 |
| 21 | A00317-11-00 | ENGINE BRACKET B | 2 | Pcs. | $6.00 | |
| 22 | A00001-19-02 | ALLEN BOLT | M8X16 | 3 | Pcs. | $1.50 |
| 23 | A00001-21-02 | LOCK WASHER | M8 | 4 | Pcs. | $1.50 |
| 24 | A00013-21-01 | WASHER | M8 | 8 | Pcs. | $1.50 |
| 25 | A00068-01-00 | MAIN JET #130 | OPT. | 1 | Pc. | $11.00 |
| 26 | A00069-01-00 | PILOT JET #40 | OPT. | 1 | Pc. | $11.00 |
| AIR BOX | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00004-24-02 | HOSE CLAMP | 38-57 | 1 | Pc. | $6.00 |
| 2 | A00219-14-00 | AIRBOX BOOT | 1 | Pc. | $39.00 | |
| 3 | A00220-14-00 | FILTER FIXING BRACKET | 1 | Pc. | $18.00 | |
| 4 | A00221-14-00 | FILTER HOLDER | 1 | Pc. | $11.00 | |
| 5 | A00222-14-00 | AIR FILTER ELEMENT | 1 | Pc. | $35.00 | |
| 6 | A00223-14-00 | WING BOLT | M6X70 | 1 | Pc. | $2.00 |
| 7 | A00100-21-01 | WASHER | M8X22 | 1 | Pc. | $1.50 |
| 8 | A00013-19-20 | PHILLIPS BOLT | M5X20 | 7 | Pc. | $1.50 |
| 9 | A00003-21-01 | WASHER | M5 | 7 | Pcs. | $1.50 |
| 10 | A00331-22-00 | LOCKNUT | M5 | 7 | Pcs. | $1.50 |
| 11 | A00216-14-01 | AIR BOX ASSY | WHITE | 1 | Assy. | $89.00 |
| 11 | A00216-14-02 | AIR BOX ASSY | BLUE | 1 | Assy. | $89.00 |
| EXHAUST SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00061-10-00 | EXHAUST HEAD PIPE | 1 | Pc. | $51.00 | |
| 1-1 | A00513-10-00 | EXHAUST HEAT SHIELD | 1 | Pc. | $18.00 | |
| 2 | A00097-13-00 | EXHAUST GASKET | 1 | Pc. | $4.00 | |
| 3 | A00002-20-02 | SCREW | M6X25 | 1 | Pc. | $1.50 |
| 4 | A00062-10-00 | COLLAR | 6X9X18X13X15MM | 1 | Pc. | $1.50 |
| 5 | A00063-10-00 | GROMMET | 1 | Pc. | $2.00 | |
| 6 | A00001-22-05 | CLIP NUT | M6 | 1 | Pc. | $1.50 |
| 7 | A00064-10-00 | EXHAUST PIPE HANGER | 29X32 | 1 | Pc. | $8.00 |
| 8 | A00113-10-00 | EXHAUST PIPE MOUNT | 1 | Pc. | $8.00 | |
| 9 | A00066-10-00 | CLAMP | 1 | Pc. | $8.00 | |
| 10 | A00065-10-00 | MUFFLER | 1 | Pc. | $89.00 | |
| 11 | A00007-19-01 | FLANGE BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 12 | A00001-21-02 | LOCK WASHER | M8 | 2 | Pcs. | $1.50 |
| 13 | A00004-21-01 | WASHER | M8X22 | 2 | Pcs. | $1.50 |
| 14 | A00100-22-34 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 15 | A00041-20-02 | BUTTONHEAD SCREW | M6X8 | 2 | Pcs. | $1.50 |
| 16 | A00065-01-00 |
PRO CIRCUIT T4S MUFFLER W/ SPARK ARRESTOR
|
OPTIONAL | 1 | Pc. | $402.00 |
| 17 | A00280-13-00 | PACKING GASKET | 1 | Pc. | $11.00 | |
| 18 | A00003-22-03 | FLANGE NUT | M8 | 2 | Pcs. | $1.50 |
| WHEELS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00248-18-00 | FRONT WHEEL ASSY | 1.60-19 | 1 | Assy. | $119.00 |
| 1-1 | A00249-18-00 | FRONT RIM | 1.60-19 | 1 | Pc. | $61.00 |
| 1-2 | A00250-18-00 | FRONT HUB | 1 | Pc. | $83.00 | |
| 1-3 | A00251-18-00 | FRONT SPOKE W/ NIPPLE | 36 | Pc. | $2.00 | |
| 1-4 | A00111-28-00 | BEARING | 6004 | 2 | Pcs. | $13.00 |
| 1-5 | A00078-26-00 | SEAL | 26x42x7 | 2 | Pcs. | $3.50 |
| 2 | A00252-18-00 | REAR WHEEL ASSY | 1.85-16 | 1 | Assy. | $131.00 |
| 2-1 | A00253-18-00 | REAR RIM | 1.85-16 | 1 | Pc, | $69.00 |
| 2-2 | A00254-18-00 | REAR HUB | 1 | Pc. | $89.00 | |
| 2-3 | A00255-18-00 | REAR SPOKE W/ NIPPLE | 36 | Pcs. | $2.00 | |
| 2-4 | A00110-28-00 | BEARING | 6005 | 2 | Pcs. | $13.00 |
| 2-5 | A00076-26-00 | SEAL | 30x47x7 | 2 | Pcs. | $3.50 |
| 3-1 | A00600-18-00 | FRONT TIRE | 70/100-19 INNOVA | 1 | Pc. | $63.00 |
| 3-2 | A00257-18-00 | FRONT INNER TUBE | 1 | Pc. | $18.00 | |
| 4-1 | A00601-18-00 | REAR TIRE | 90/100-16 INNOVA | 1 | Pc. | $84.00 |
| 4-2 | A00259-18-00 | REAR INNER TUBE | 1 | Pc. | $18.00 | |
| 5 | A00261-18-00 | REAR AXLE | M25X242 | 1 | Pc. | $35.00 |
| 5-1 | A00087-22-01 | REAR AXLE NUT | 1 | Pc. | $8.00 | |
| 6 | A00260-18-00 | FRONT AXLE | M20X216 | 1 | Pc. | $33.00 |
| 6-1 | A00088-22-01 | FRONT AXLE NUT | 1 | Pc. | $2.50 | |
| 7 | A00262-18-00 | FRONT AXLE SPACER | 30x20.2x24x26 | 1 | Pc. | $4.00 |
| 7 | A00555-18-00 | FRONT AXLE SPACER | 30x20.2x24x26 ALLOY 2018-19 | 1 | Pc. | $4.00 |
| 8 | A00395-18-00 | FRONT AXLE SPACER | 30x20.2x28x26 | 1 | Pc. | $4.00 |
| 8 | A00556-18-00 | FRONT AXLE SPACER | 30x20.2x28x26 ALLOY 2018-19 | 1 | Pc. | $4.00 |
| 9 | A00263-18-00 | REAR AXLE SPACER | 36x25.2x14x32 | 1 | Pc. | $4.00 |
| 9 | A00557-18-00 | REAR AXLE SPACER | 36x25.2x14x32 ALLOY 2018-19 | 1 | Pc. | $4.00 |
| 10 | A00396-18-00 | REAR AXLE SPACER | 36x25.2x33x32 | 1 | Pc. | $4.00 |
| 10 | A00558-18-00 | REAR AXLE SPACER | 36x25.2x33x32 ALLOY 2018-19 | 1 | Pc. | $4.00 |
| 11 | A00109-21-01 | WASHER | M25 | 1 | Pc. | $1.50 |
| 12 | A00065-18-00 | RIM LOCK | 1.6 | 1 | Pc. | $13.00 |
| 13 | A00264-18-00 | RIM LOCK | 1.85 | 1 | Pc. | $13.00 |
| 14 | A00394-07-00 | DRIVE CHAIN | 520-106L | 1 | Pc. | $66.00 |
| 14-1 | A00350-07-01 | DRIVE CHAIN LINK | 520 | 1 | Pc. | $4.00 |
| 15 | A00289-07-00 | CS ALLEN BOLT | M8X35 | 6 | Pcs. | $1.50 |
| 16 | A00100-22-34 | FLANGE LOCKNUT | M8 | 6 | Pcs. | $1.50 |
| 17 | A00285-07-00 | REAR SPROCKET | 43T | 1 | Pc. | $51.00 |
| 18 | A00267-18-00 | RIM STRIP | 16" | 1 | Pc. | $8.00 |
| 19 | A00266-18-00 | RIM STRIP | 19" | 1 | Pc. | $8.00 |
| 20 | A00457-04-00 | REAR BRAKE ROTOR | 240x116 | 1 | Pc. | $54.00 |
| 21 | A00456-04-00 | FRONT BRAKE ROTOR | 260x101 | 1 | Pc. | $54.00 |
| 22 | A00126-19-19 | BUTTON HEAD ALLEN BOLT | M6X20 | 12 | Pcs. | $1.50 |
| 23 | A00005-22-04 | LOCK NUT | M6 | 12 | Pcs. | $1.50 |
| SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00707-16-00 | LEFT FRONT FORK ASSY | 830-53/58.5MM | 1 | Assy. | $229.00 |
| 1A | A00708-16-00 | RIGHT FRONT FORK ASSY | 830-53/58.5MM | 1 | Assy. | $229.00 |
| 1-1 | A00942-02-01 | FORK GUARD SET | WHITE | 1 | Set | $39.00 |
| 1-2 | A00552-16-00 | FORK SEAL | 43x53.1x11MM | 2 | Pcs. | $13.00 |
| 1-3 | A00525-16-00 | FORK DUST SEAL | 43x53.2x15 | 2 | Pcs. | $13.00 |
| 2 | A00206-16-00 | REAR SHOCK | 450MM 12.5 | 1 | Pc. | $168.00 |
| 3 | A00010-19-01 | FLANGE BOLT | M10X60 | 1 | Pc. | $4.00 |
| 4 | A00004-22-03 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 5 | A00005-19-07 | SPECIAL BOLT | M10X45 | 1 | Pc. | $3.50 |
| 6 | A00008-19-07 | STEPPED ALLEN BOLT | M6X12 | 6 | Pcs. | $1.50 |
| 7 | A00014-19-01 | FLANGE BOLT | M8X40 | 4 | Pcs. | $2.00 |
| TRIPLE CLAMPS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00064-21-01 | WASHER | 23X35 | 1 | Pc. | $2.50 |
| 2 | A00086-22-01 | NUT | M22 | 1 | Pc. | $6.00 |
| 3 | A00005-19-02 | ALLEN BOLT | M8X30 | 4 | Pcs. | $1.50 |
| 4 | A00138-15-00 | UPPER HANDLEBAR CLAMP | 2 | Pcs. | $8.00 | |
| 5 | A00137-15-00 | LOWER HANDLEBAR CLAMP | 2 | Pcs. | $11.00 | |
| 6 | A00110-21-01 | WASHER | 26X30X3 | 4 | Pcs. | $1.50 |
| 7 | A00014-19-01 | FLANGE BOLT | M8X40 | 8 | Pcs. | $2.00 |
| 8 | A00139-15-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $60.00 | |
| 8 | A00363-15-00 | UPPER TRIPLE CLAMP | 2018-19 MODEL | 1 | Pc. | $60.00 |
| 9 | A00001-22-34 | FLANGE LOCKNUT | M12 | 2 | Pcs. | $2.00 |
| 10 | A00127-19-04 | STUD | M12x72 | 2 | Pcs. | $2.50 |
| 11 | A00111-21-01 | WASHER | 12x24x1.5 | 2 | Pcs. | $1.50 |
| 12 | A00375-15-00 | STEERING STEM | 270MM | 1 | Pc. | $33.00 |
| 13 | A00077-26-00 | DUST SEAL | 1 | Pc. | $4.00 | |
| 14 | A00146-15-00 | LOWER TRIPLE CLAMP | 1 | Pc. | $60.00 | |
| 15 | A00003-19-02 | ALLEN BOLT | M8X16 | 2 | Pcs. | $1.50 |
| 16 | A00001-21-02 | LOCK WASHER | M8 | 2 | Pcs. | $1.50 |
| 17 | A00364-15-00 | STEERING STEM BEARING | 25X52 (30205) | 2 | Pcs. | $18.00 |
| 18 | A00032-22-01 | STEERING STEM NUT | M25X1X7 | 1 | Pc. | $7.00 |
| 19 | A00232-15-00 | RUBBER DAMPER | 4 | Pcs. | $1.50 | |
| CONTROLS & BRAKES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00280-05-00 | HANDLEBAR GRIP SET | 1 | Set | $13.00 | |
| 2 | A00408-08-00 | KILL SWITCH | 1 | Pc. | $11.00 | |
| 3 | A00602-05-00 | HANDLEBAR | 800-810 28.5X22.2 | 1 | Pc. | $33.00 |
| 4 | A00282-05-00 | CLUTCH PERCH ASSY | SILVER | 1 | Assy. | $42.00 |
| 4 | A00543-05-00 | CLUTCH PERCH ASSY | BLACK | 1 | Assy. | $42.00 |
| 4-1 | A00439-05-00 | CLUTCH LOCKOUT SWITCH | THREADED | 1 | Pc. | $11.00 |
| 4-1 | A00539-05-00 | CLUTCH LOCKOUT SWITCH | CLIP | 1 | Pc. | $11.00 |
| 5 | A00283-05-00 | CLUTCH CABLE | 1 | Pc. | $18.00 | |
| 6 | A00455-04-00 | REAR BRAKE ASSY | 1 | Assy. | $104.00 | |
| 6-1 | A00458-04-00 | REAR BRAKE PAD SET | 1 | Set | $14.00 | |
| 6-2 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 6-3 | A00007-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 6-4 | A00594-04-00 | REAR BRAKE MASTER CYLINDER | 1 | Assy. | $39.00 | |
| 6-5 | A00691-04-00 | REAR BRAKE CALIPER ASSY | INCLUDES BRAKE PADS | 1 | Assy. | $59.00 |
| 6-6 | A00596-04-00 | REAR BRAKE HOSE | 1 | Pc. | $18.00 | |
| 7 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 8 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 9 | A00445-05-00 | CHOKE CABLE | 1 | Pc. | $18.00 | |
| 10 | A00297-05-00 | THROTTLE CABLE | 1 | Pc. | $18.00 | |
| 11 | A00459-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $110.00 | |
| 11 | A00700-04-00 | FRONT BRAKE ASSY | 2018+ MODEL | 1 | Assy. | $110.00 |
| 11-1 | A00460-04-00 | FRONT BRAKE PAD SET | 1 | Set | $14.00 | |
| 11-1 | A00701-04-00 | FRONT BRAKE PAD SET | 2018+ MODEL | 1 | Set | $14.00 |
| 11-2 | A00601-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $39.00 | |
| 11-2 | A00702-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | 2018+ MODEL | 1 | Assy. | $39.00 |
| 11-3 | A00602-04-00 | FRONT BRAKE CALIPER | 1 | Pc. | $59.00 | |
| 11-3 | A00703-04-00 | FRONT BRAKE CALIPER | 2018+ MODEL | 1 | Pc. | $59.00 |
| 11-4 | A00603-04-00 | FRONT BRAKE HOSE | 1 | Pc. | $18.00 | |
| 11-4 | A00704-04-00 | FRONT BRAKE HOSE | 2018+ MODEL | 1 | Pc. | $18.00 |
| 11-5 | A00604-04-00 | FRONT CALIPER BRACKET | 1 | Pc. | $4.00 | |
| 11-5 | A00705-04-00 | FRONT CALIPER BRACKET | 2018+ MODEL | 1 | Pc. | $4.00 |
| 12 | A00014-19-01 | FLANGE BOLT | M8X40 | 2 | Pc. | $2.00 |
| 13 | A00013-21-01 | WASHER | M8 | 4 | Pcs. | $1.50 |
| 14 | A00262-12-00 | SPACER | 8.5X15X8 | 2 | Pcs. | $1.50 |
| 15 | A00409-08-00 | START SWITCH | 1 | Pc. | $18.00 | |
| 16 | A00284-05-00 | THROTTLE TUBE | 1 | Pc. | $8.00 | |
| 17 | A00285-05-00 | THROTTLE HOUSING | 1 | Pc. | $18.00 | |
| 18 | A00009-24-01 | RUBBER CABLE CLAMP | 75MM | 4 | Pcs. | $1.50 |
| 19 | A00286-05-00 | HANDLEBAR PAD COVER | 1 | Pc. | $8.00 | |
| 20 | A00565-05-01 | HANDLEBAR PAD | 1 | Pc. | $23.00 | |
| 21 | A00428-05-00 | CLUTCH LEVER | FOR SILVER PERCH | 1 | Pc. | $18.00 |
| 21 | A00546-05-00 | CLUTCH LEVER | FOR BLACK PERCH | 1 | Pc. | $18.00 |
| 22 | A00429-05-00 | FRONT BRAKE LEVER | FOR BLACK M/C | 1 | Pc. | $18.00 |
| 22 | A00534-05-00 | FRONT BRAKE LEVER | FOR SILVER M/C 18'+ | 1 | Pc. | $18.00 |
| 22A | A00507-04-00 | FOLDING FRONT BRAKE LEVER | OPTIONAL | 1 | Pc. | $48.00 |
| 23 | A00399-19-00 | CLUTCH LEVER PIVOT BOLT | 1 | Pc. | $2.50 | |
| 24 | A00002-21-02 | LOCK WASHER | M6 | 1 | Pc. | $1.50 |
| 25 | A00001-22-01 | NUT | M6 | 1 | Pc. | $1.50 |
| 26 | A00421-19-X8 | CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 27 | A00585-05-00 | CHOKE LEVER | 1 | Pc. | $2.50 | |
| 28 | A00586-05-00 | CLUTCH CABLE ADJUSTER W/ NUT | 1 | Pc. | $2.50 | |
| 29 | A00587-05-00 | SPACER | 1 | Pc. | $2.50 | |
| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00318-11-00 | FRAME | BLACK *OVERSIZE* | 1 | Pc. | $229.00 |
| 2 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 3 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 4 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 5 | A00319-11-00 | BODY BRACKET A | 1 | Pc. | $8.00 | |
| 5-1 | A00365-11-00 | BODY BRACKET B | 1 | Pc. | $8.00 | |
| 6 | A00031-22-05 | CLIP NUT | 1 | Pc. | $1.50 | |
| 7 | A00320-11-00 | CHAIN ROLLER BRACKET | 1 | Pc. | $4.00 | |
| 8 | A00321-11-00 | CHAIN ROLLER | 35X26 | 1 | Pc. | $7.00 |
| 9 | A00096-28-00 | BEARING | 6900 | 2 | Pcs. | $7.00 |
| 10 | A00002-21-01 | WASHER | M10 | 5 | Pcs. | $1.50 |
| 11 | A00008-25-01 | COTTER PIN | 2.5X16 | 3 | Pcs. | $1.50 |
| 12 | A00290-05-00 | FOOTPEG SET | 1 | Set | $30.00 | |
| 13 | A00291-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 13-1 | A00501-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 14 | A00292-05-00 | FOOTPEG PIN | 8X42 | 2 | Pcs. | $1.50 |
| 15 | A00013-21-01 | WASHER | M8 | 2 | Pcs. | $1.50 |
| 16 | A00293-05-00 | FOOT BRAKE TIP | 1 | Pc. | $7.00 | |
| 18 | A00005-22-04 | LOCK NUT | M6 | 1 | Pc. | $1.50 |
| 19 | A00294-05-00 | FOOT BRAKE PEDAL | 1 | Pc. | $24.00 | |
| 19 | A00535-05-00 | FOOT BRAKE PEDAL | 2018-19 MODEL | 1 | Pc. | $24.00 |
| 20 | A00014-19-01 | FLANGE BOLT | M8X40 | 1 | Pc. | $2.00 |
| 21 | A00100-22-34 | FLANGE LOCKNUT | M8 | 3 | Pcs. | $1.50 |
| 22 | A00097-28-00 | BEARING | 608 | 2 | Pcs. | $7.00 |
| 23 | A00065-21-01 | WASHER | 9X17X2.5 | 1 | Pc. | $1.50 |
| 24 | A00295-05-00 | PEDAL STOPPER | 18X6.5X9 | 1 | Pc. | $1.50 |
| 25 | A00296-05-00 | BRAKE PEDAL RETURN SPRING | 1 | Pc. | $1.50 | |
| 26 | A00001-19-07 | KICKSTAND BOLT | M10X25 | 1 | Pc. | $2.00 |
| 27 | A00066-21-01 | WASHER | 12X24X2 | 1 | Pc. | $1.50 |
| 28 | A00322-11-00 | KICKSTAND SPRING | 90MM | 1 | Pc. | $2.50 |
| 29 | A00503-11-00 | KICKSTAND | 310MM | 1 | Pc. | $29.00 |
| 30 | A00324-11-00 | KICKSTAND BRACKET | 1 | Pc. | $11.00 | |
| 31 | A00005-19-02 | ALLEN BOLT | M8X30 | 2 | Pcs. | $1.50 |
| 32 | A00325-11-00 | MUFFLER BRACKET | 1 | Pc. | $8.00 | |
| 33 | A00326-11-00 | SUBFRAME | SILVER | 1 | Pc. | $104.00 |
| 34 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 35 | A00100-22-34 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 36 | A00327-11-00 | FUEL PETCOCK BRACKET | 1 | Pc. | $4.00 | |
| 37 | A00539-11-00 | IGNITION SWITCH BRACKET | METAL | 1 | Pc. | $4.00 |
| 38 | A00010-19-09 | PAN HEAD ALLEN BOLT | M6X10 | 2 | Pcs. | $1.50 |
| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00522-11-00 | SWINGARM | 16" | 1 | Pc. | $133.00 |
| 2 | A00521-11-00 | BEARING SPACER SLEEVE | 22x18x152mm ALLOY | 1 | Pc. | $7.00 |
| 3 | A00084-28-00 | BEARING | 6002 | 4 | Pcs. | $8.00 |
| 4 | A00033-26-00 | DUST SEAL | 22X32X7 | 2 | Pcs. | $2.00 |
| 5 | A00332-11-00 | COLLAR | 22X15X8.5MM | 2 | Pcs. | $1.50 |
| 6 | A00333-11-00 | SWINGARM AXLE | 15XM14X1.5X240 | 1 | Pc. | $35.00 |
| 7 | A00003-22-34 | FLANGE LOCKNUT | M14X1.5 | 1 | Pc. | $2.50 |
| 8 | A00334-11-00 | CHAIN GUIDE | 1 | Pc. | $23.00 | |
| 8-1 | A00524-16-00 | COLLAR | 2 | Pcs. | $2.50 | |
| 8-2 | A00016-19-07 | BUTTON HEAD ALLEN BOLT | M8X45 | 2 | Pcs. | $2.00 |
| 8-3 | A00017-19-07 | BUTTON HEAD ALLEN BOLT | M8X16 | 1 | Pc. | $1.50 |
| 9 | A00451-11-00 | LEFT CHAIN ADJUSTER BLOCK | 1 | Pc. | $18.00 | |
| 10 | A00452-11-00 | RIGHT CHAIN ADJUSTER BLOCK | 1 | Pc. | $18.00 | |
| 11 | A00006-19-03 | ADJUSTER BOLT | M8X60 | 2 | Pcs. | $2.00 |
| 12 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
| 13 | A00003-20-01 | SCREW | M6X16 | 2 | Pcs. | $1.50 |
| 14 | A00336-11-00 | BRAKE HOSE CLIP B | 1 | Pc. | $1.50 | |
| 15 | A00337-11-00 | BRAKE HOSE CLIP A | 1 | Pc. | $1.50 | |
| 16 | A00010-19-09 | PAN HEAD ALLEN BOLT | M6X10 | 4 | Pcs. | $1.50 |
| 17 | A00338-11-00 | CHAIN SLIDER | 1 | Pc. | $30.00 | |
| SUSPENSION LINKAGE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00695-16-00 | ROD LINK | ALLOY | 1 | Pc. | $33.00 |
| 2 | A00034-26-00 | DUST SEAL | 20X32X5 | 2 | Pcs. | $2.50 |
| 3 | A00064-28-00 | NEEDLE BEARING | 2012 | 2 | Pcs. | $23.00 |
| 4 | A00018-19-01 | FLANGE BOLT | M12X1.25X120 | 1 | Pc. | $6.00 |
| 5 | A00001-22-03 | FLANGE NUT | M12X1.25 | 3 | Pcs. | $2.00 |
| 6 | A00210-16-00 | BEARING SPACER SLEEVE | 20X12X81MM | 1 | Pc. | $4.00 |
| 7 | A00019-19-01 | FLANGE BOLT | M12X1.25X95 | 1 | Pc. | $6.00 |
| 8 | A00696-16-00 | PIVOT ARM | ALLOY | 1 | Pc. | $51.00 |
| 9 | A00212-16-00 | BEARING SPACER SLEEVE | 18X12.5X24MM | 1 | Pc. | $2.50 |
| 10 | A00003-28-01 | BEARING | 6001-RS | 4 | Pcs. | $11.00 |
| 11 | A00035-26-00 | DUST SEAL | 20X28X5 | 4 | Pcs. | $2.50 |
| 12 | A00067-21-01 | WASHER | 19X12X9.5 | 8 | Pcs. | $1.50 |
| 13 | A00065-28-00 | BEARING | 6902 | 2 | Pcs. | $13.00 |
| 14 | A00214-16-00 | COLLAR | 20X10.2X11X15MM | 2 | Pcs. | $1.50 |
| 15 | A00215-16-00 | BEARING SPACER SLEEVE | 18X12.5X13.5MM | 1 | Pc. | $2.50 |
| 16 | A00020-19-01 | FLANGE BOLT | M12X1.25X83 | 1 | Pc. | $3.50 |
| 17 | A00066-21-01 | WASHER | 12X24X2 | 2 | Pcs. | $1.50 |
| ELECTRICAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00410-08-00 | CDI | 1 | Pc. | $24.00 | |
| 2 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 3 | A00411-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $30.00 | |
| 4 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 5 | A00412-08-00 | STARTER RELAY | 12V | 1 | Pc. | $24.00 |
| 6 | A00413-08-00 | BATTERY STRAP | 105MM | 1 | Pc. | $14.00 |
| 7 | YTX4L-BS | BATTERY | YTX4L-BS | 1 | Pc. | $63.00 |
| 8 | A00415-08-00 | IGNITION SWITCH | W/ 2 KEYS | 1 | Pc. | $39.00 |
| 9 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 10 | A00416-08-00 | IGNITION COIL | 1 | Pc. | $30.00 | |
| 11 | A00417-08-00 | WIRE HARNESS | 1 | Pc. | $51.00 | |
| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00827-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $39.00 |
| 1 | A00827-02-12 | FRONT FENDER | BLUE | 1 | Pc. | $39.00 |
| 2 | A00011-21-01 | WASHER | M6 | 4 | Pcs. | $1.50 |
| 3 | A00002-19-01 | FLANGE BOLT | M6X16 | 6 | Pcs. | $1.50 |
| 4 | A00651-02-01 | LEFT SHROUD | WHITE | 1 | Pc. | $21.00 |
| 4 | A00651-02-12 | LEFT SHROUD | BLUE | 1 | Pc. | $21.00 |
| 5 | A00003-20-01 | SCREW | M6X16 | 9 | Pcs. | $1.50 |
| 6 | A00804-02-00 | COLLAR | 7x5x9.5x2x20 | 2 | Pcs. | $1.50 |
| 7 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00010-19-02 | ALLEN BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 9 | A00010-19-09 | PAN HEAD ALLEN BOLT | M6X10 | 4 | Pcs. | $1.50 |
| 10 | A00652-02-01 | RIGHT SHROUD | WHITE | 1 | Pc. | $21.00 |
| 10 | A00652-02-12 | RIGHT SHROUD | BLUE | 1 | Pc. | $21.00 |
| 11 | A00653-02-01 | RIGHT FRAME COVER | WHITE | 1 | Pc. | $33.00 |
| 11 | A00653-02-12 | RIGHT FRAME COVER | BLUE | 1 | Pc. | $33.00 |
| 12 | A00654-02-01 | LEFT FRAME COVER | WHITE | 1 | Pc. | $14.00 |
| 12 | A00654-02-12 | LEFT FRAME COVER | BLUE | 1 | Pc. | $14.00 |
| 13 | A00655-02-01 | REAR SIDE NUMBER PLATE SET | WHITE | 1 | Set | $53.00 |
| 14 | A00805-02-00 | RUBBER GROMMET | 1 | Pc. | $1.50 | |
| 15 | A00656-02-01 | REAR FENDER | WHITE | 1 | Pc. | $27.00 |
| 15 | A00656-02-12 | REAR FENDER | BLUE | 1 | Pc. | $27.00 |
| 16 | A00657-02-02 | MUD FLAP | 1 | Pc. | $13.00 | |
| 17 | A00014-20-03 | SCREW | 4.2X30 | 2 | Pcs. | $1.50 |
| 18 | A00009-20-03 | ST SCREW | 4.8X16 | 3 | Pcs. | $1.50 |
| 19 | A00003-21-01 | WASHER | M5 | 2 | Pcs. | $1.50 |
| 20 | A00660-02-00 | SEAT | 1 | Pc. | $72.00 | |
| 21 | A00004-21-01 | WASHER | M8 | 1 | Pc. | $1.50 |
| 22 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 23 | A00257-12-00 | FUEL TANK | 1 | Pc. | $74.00 | |
| 24 | A00258-12-00 | FUEL TANK CAP | 1 | Pc. | $13.00 | |
| 25 | A00021-19-01 | FLANGE BOLT | M6X40 | 1 | Pc. | $2.00 |
| 26 | A00259-12-00 | COLLAR | 22X6.5X27X12MM | 1 | Pc. | $1.50 |
| 27 | A00107-21-01 | WASHER | 10X22X2 | 1 | Pc. | $1.50 |
| 28 | A00260-12-00 | FUEL FILTER | 1 | Pc. | $11.00 | |
| 29 | A00338-12-00 | FUEL PETCOCK | 1 | Pc. | $23.00 | |
| 30 | A00011-19-02 | ALLEN BOLT | M6X16 | 1 | Pc. | $1.50 |
| 31 | A00002-21-02 | LOCK WASHER | M6 | 1 | Pc. | $1.50 |
| 32 | A00400-12-00 | GROMMET | 1 | Pc. | $1.50 | |
| 33 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 34 | A00659-02-01 | BRAKE HOSE GUIDE | WHITE | 1 | Pc. | $4.00 |
| 35 | A00826-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $21.00 |
| 36 | A00806-02-00 | SPACER | 6X12X6 | 1 | Pc. | $1.50 |
| 37 | A00807-02-00 | BRACKET | 1 | Pc. | $2.50 | |
| 38 | A00001-22-05 | CLIP NUT | M6 | 1 | Pc. | $1.50 |
| 39 | A00952-02-00 | COMPLETE GRAPHICS KIT | 1 | Kit | $35.00 | |
| 40 | A00947-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | Kit | $168.00 |
| 40 | A00947-02-12 | COMPLETE PLASTIC KIT | BLUE | 1 | Kit | $168.00 |
